forSte 37DJ Speed

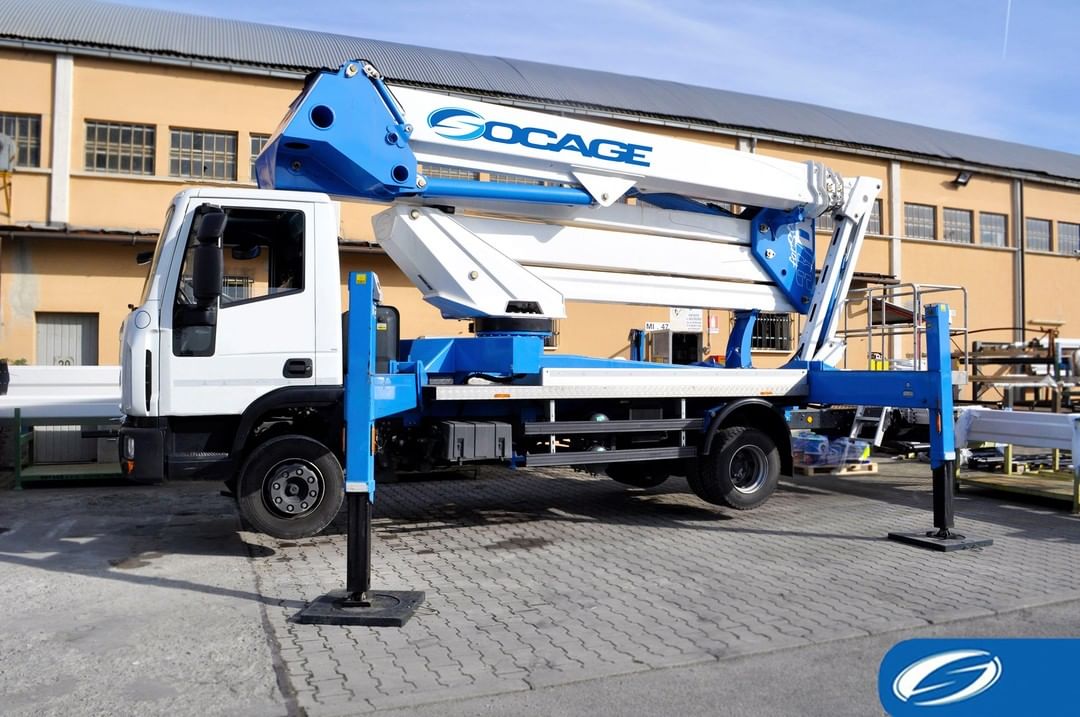

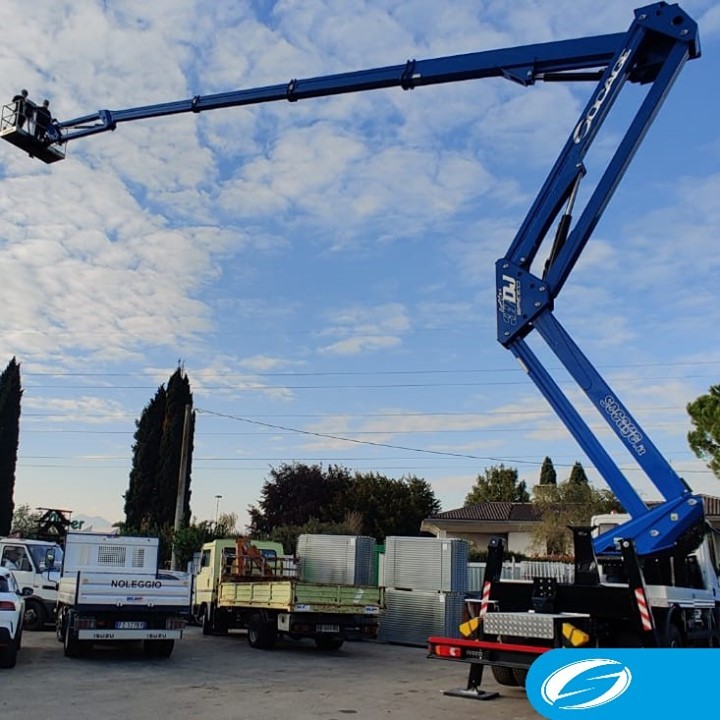

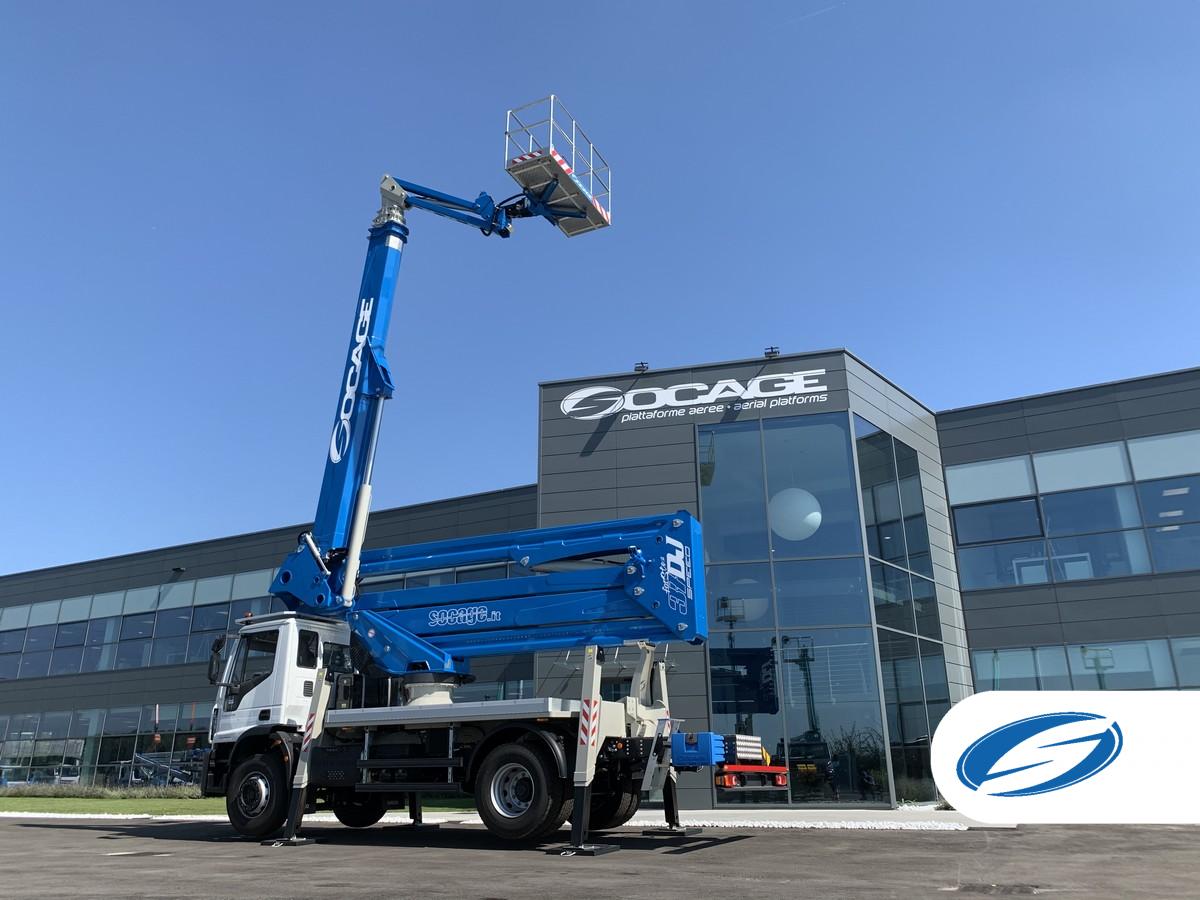

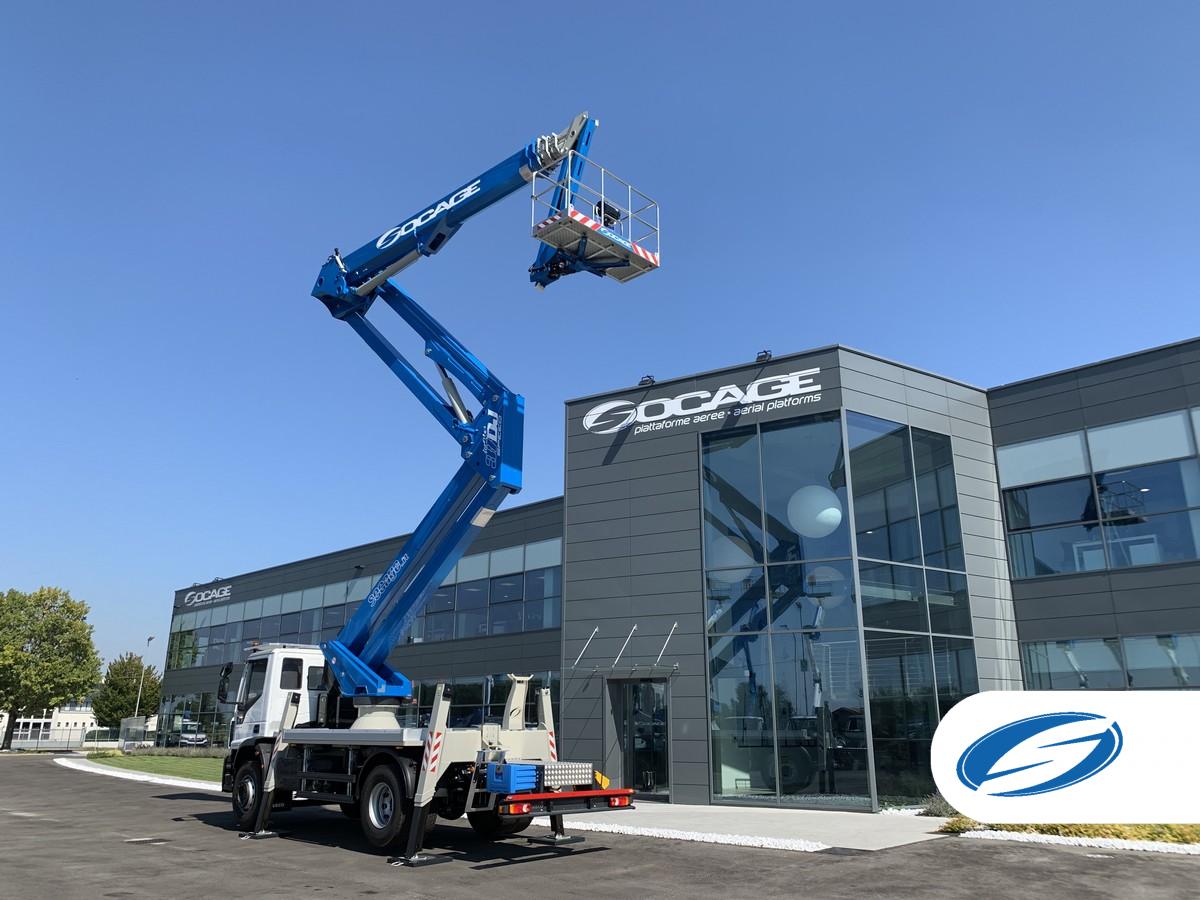

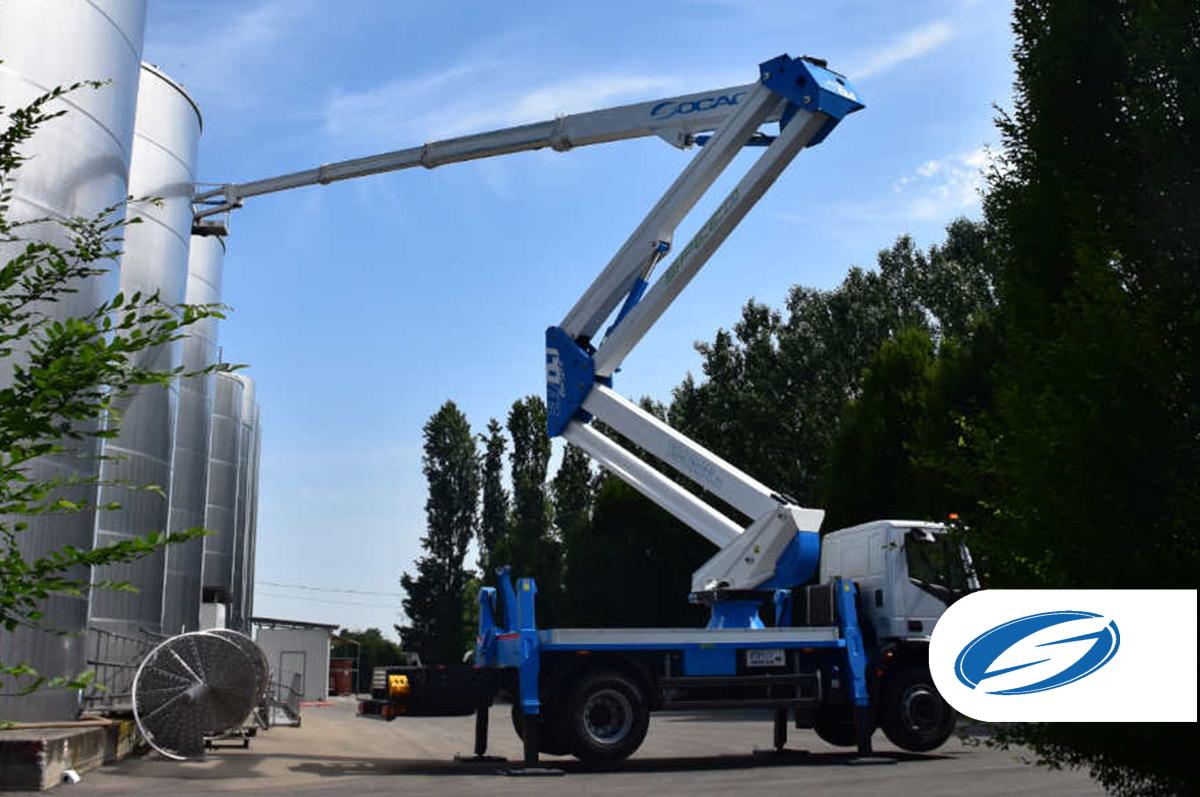

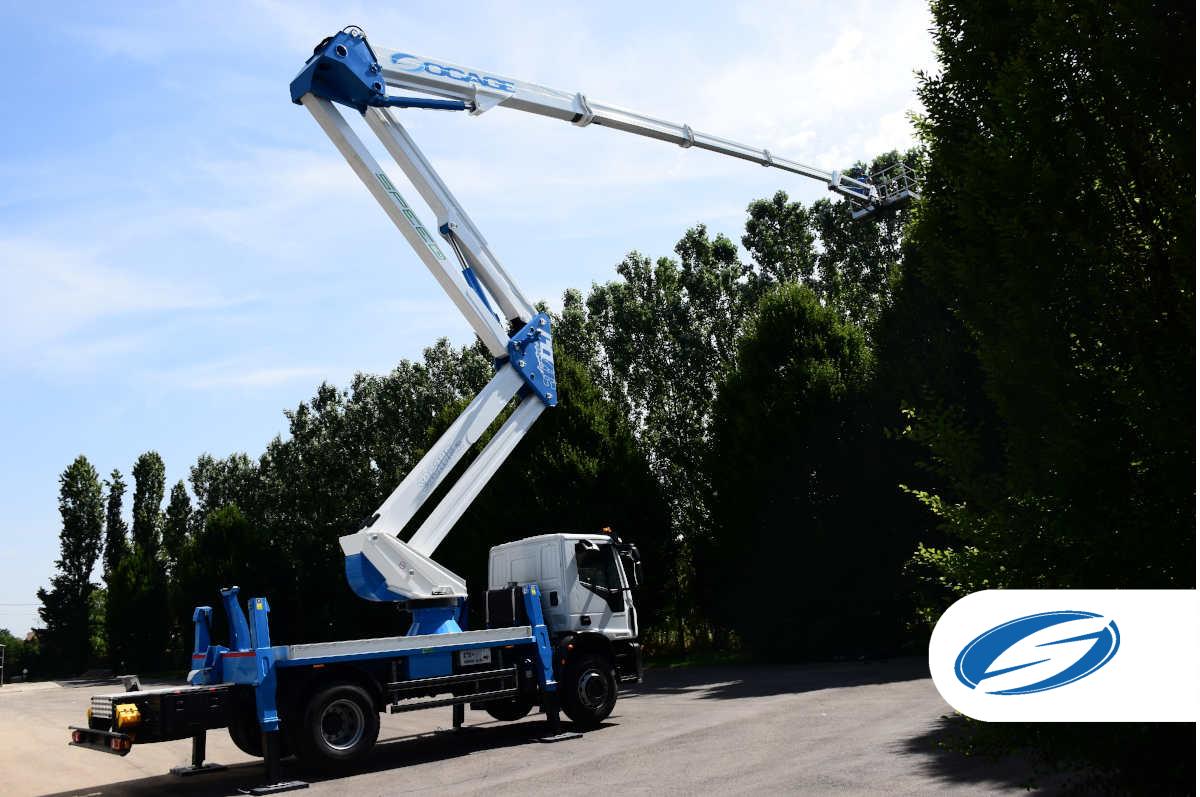

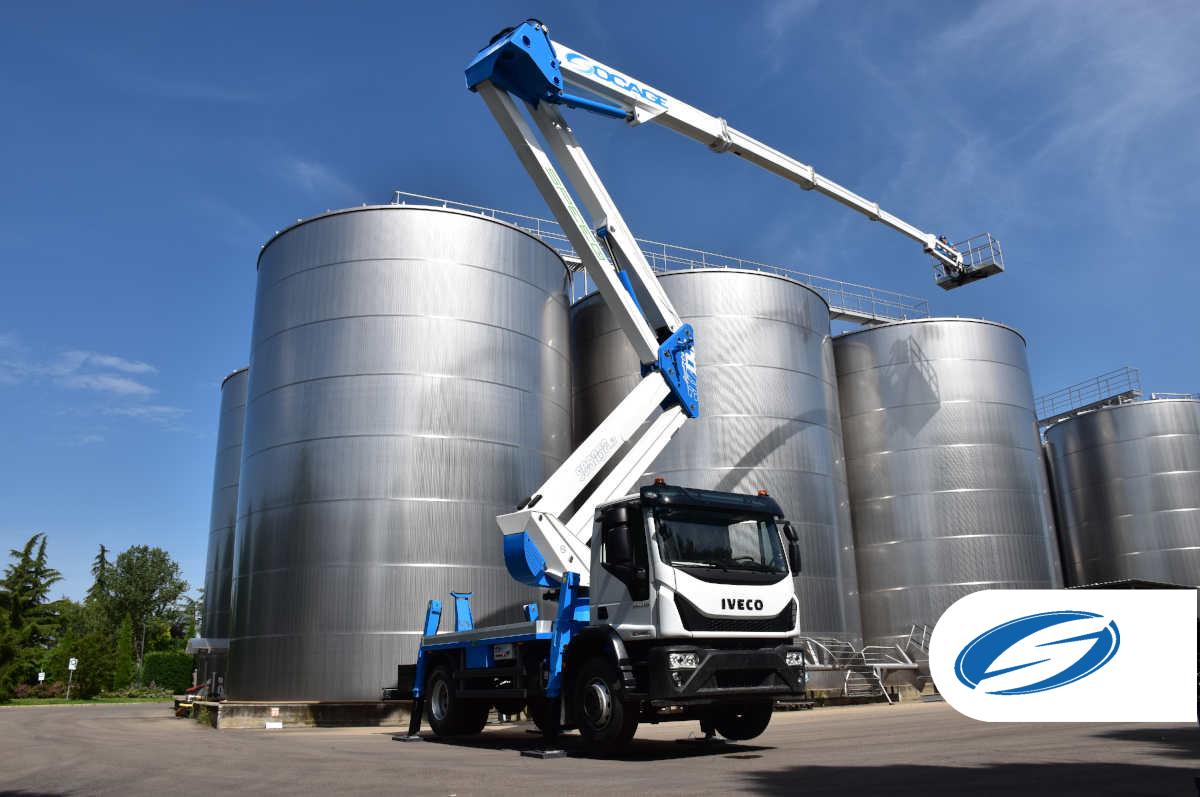

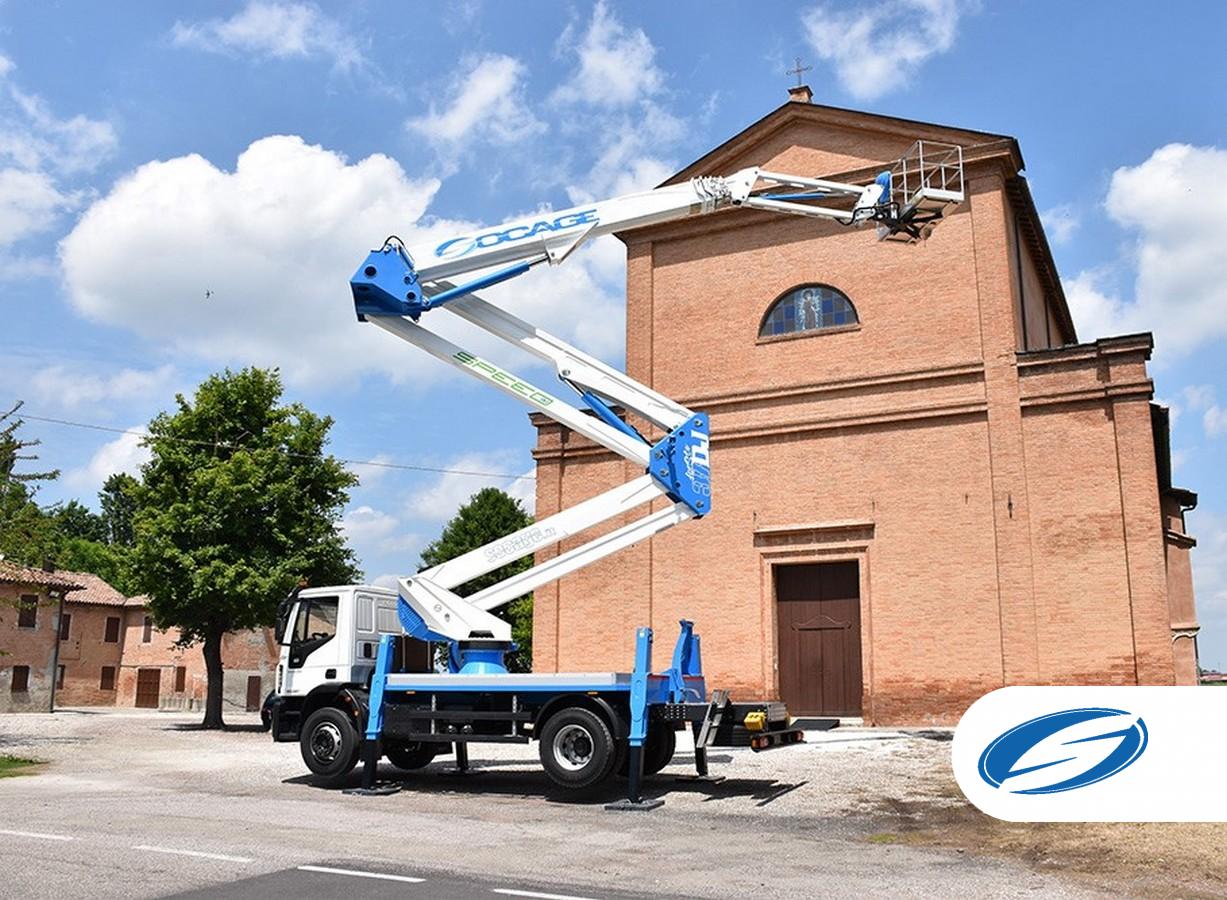

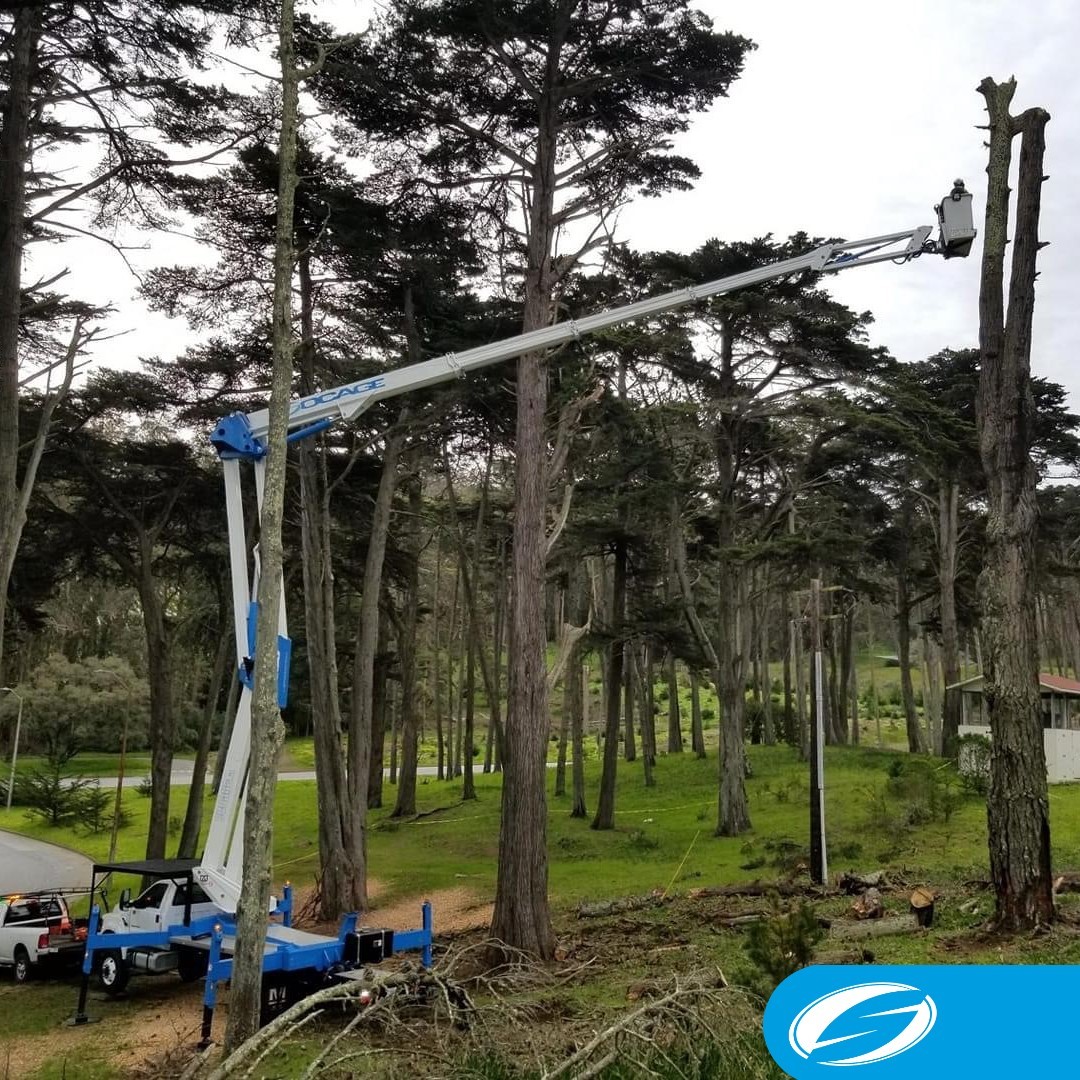

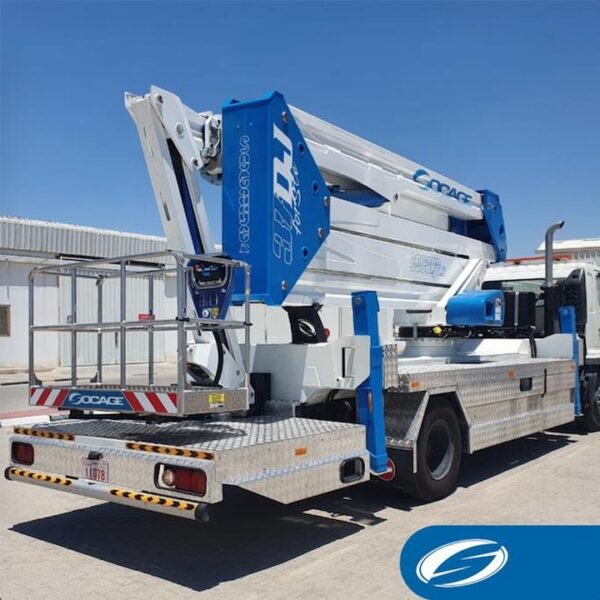

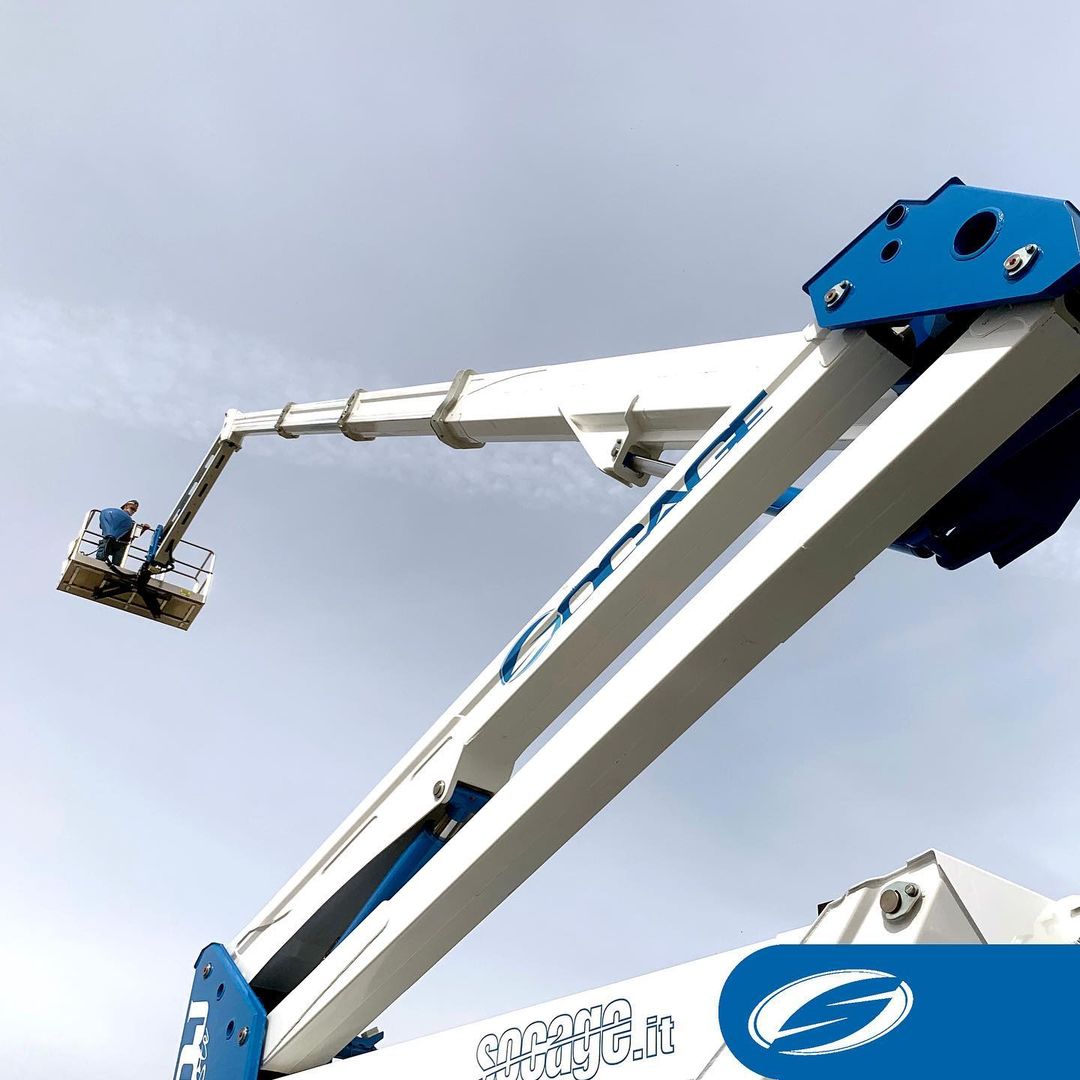

SOCAGE forSte 37DJ Speed is a truck-mounted boom lift with hydraulic JIB, that can be mounted on 2-axle trucks from 18T. It reaches a working height of 37,30m and a horizontal reach of 21m, in addition, has a large load capacity of 280 kg (3 operators + material).

As standard, it has automatic stabilization together with a fixed vertical stabilization SOCAGE H + H. A combination that guarantees a stabilization maneuver of great simplicity of use, versatility, fast and safe.

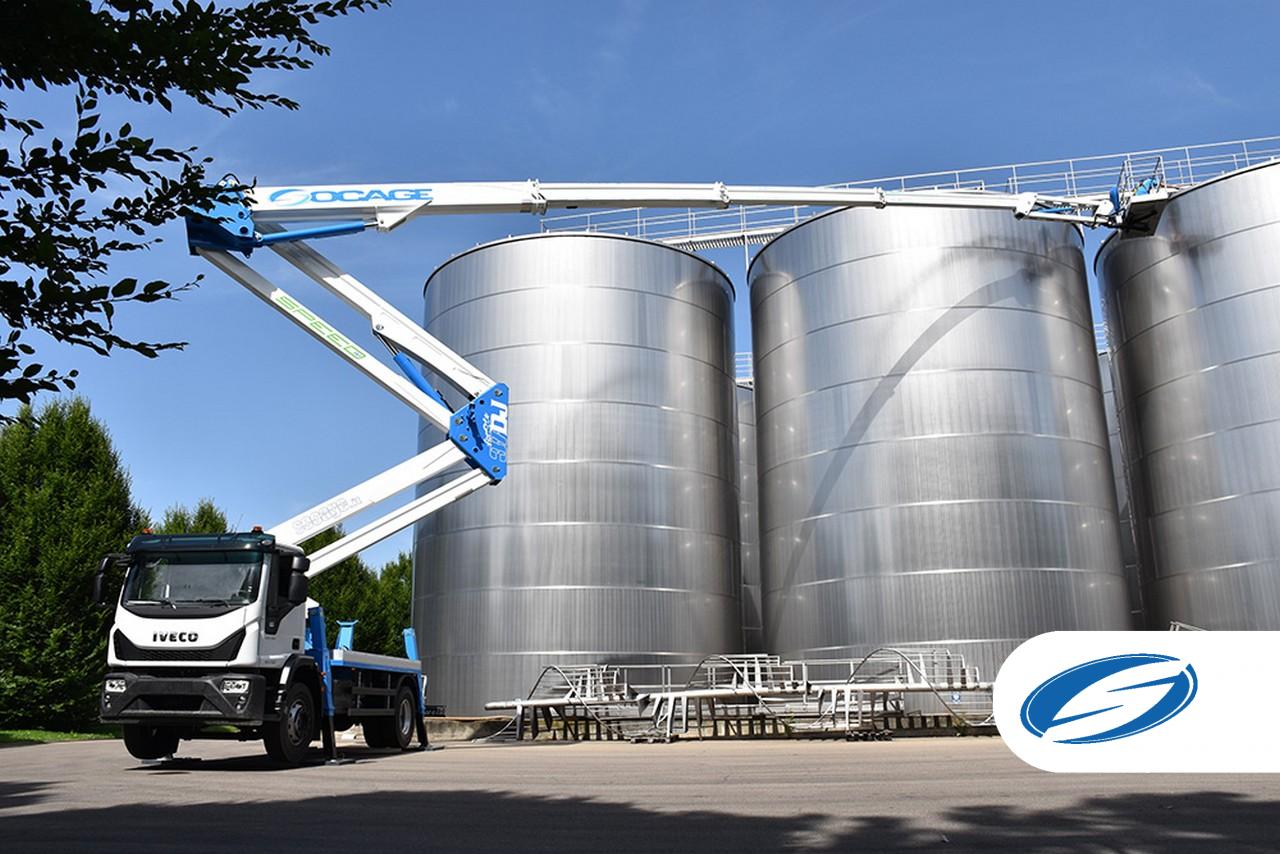

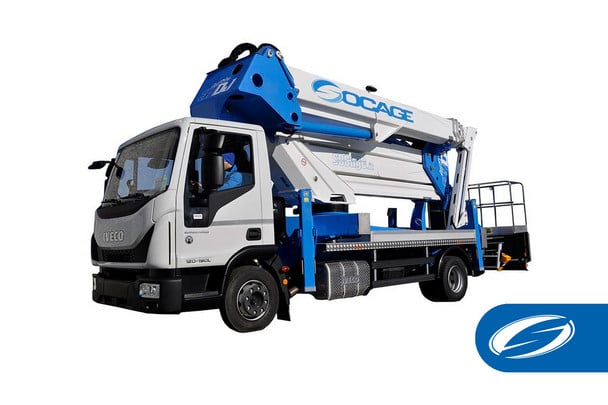

Assembly Available On Iveco  Trucks.

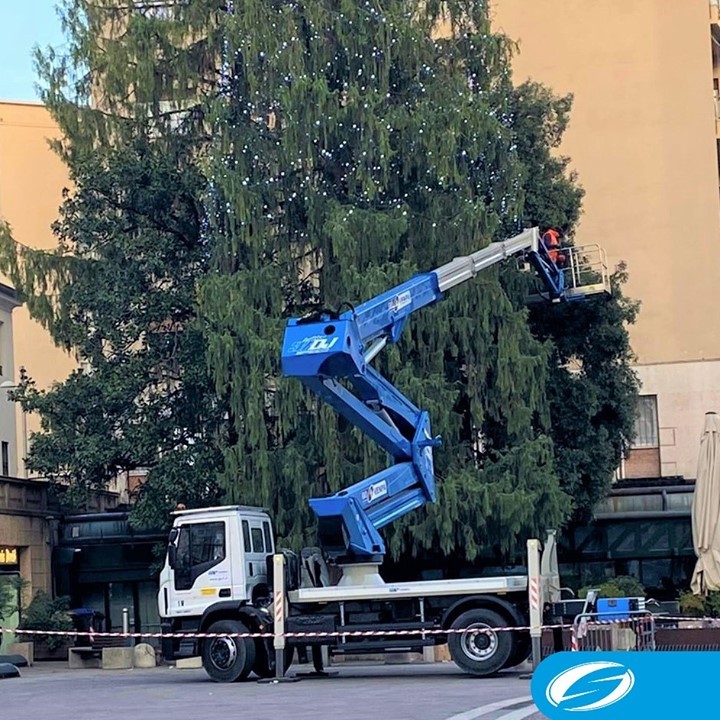

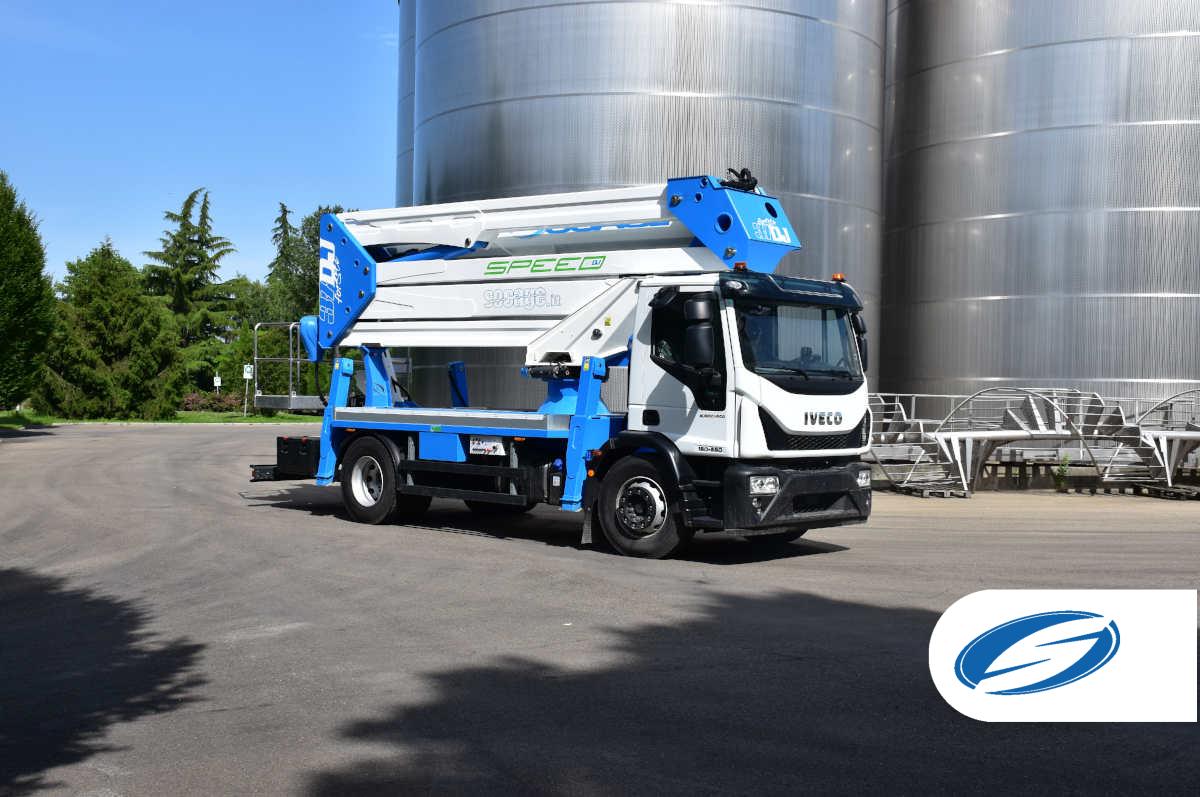

The compact dimensions of the 37DJ ensure great mobility that improves the profitability of the equipment, and allows greater uses in urban and industrial areas.

Compare

Description

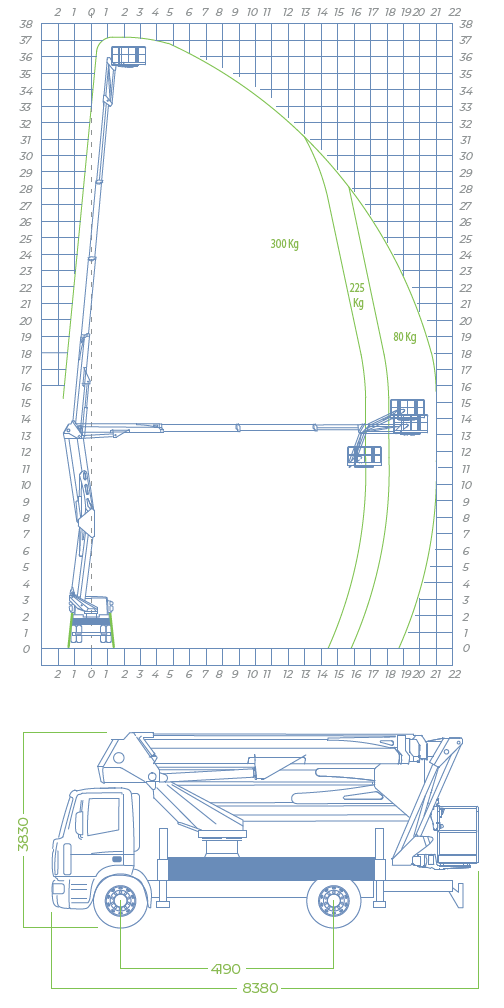

Working height, max. 37,30 m
Platform height, max. 35,30 m
Outreach, max. 21,00 m
Basket load capacity, max. 300 kg
Turret rotation 7000
Basket dimensions 200 x 80 x 110 cm
Basket Aluminum
Basket rotation 900+900

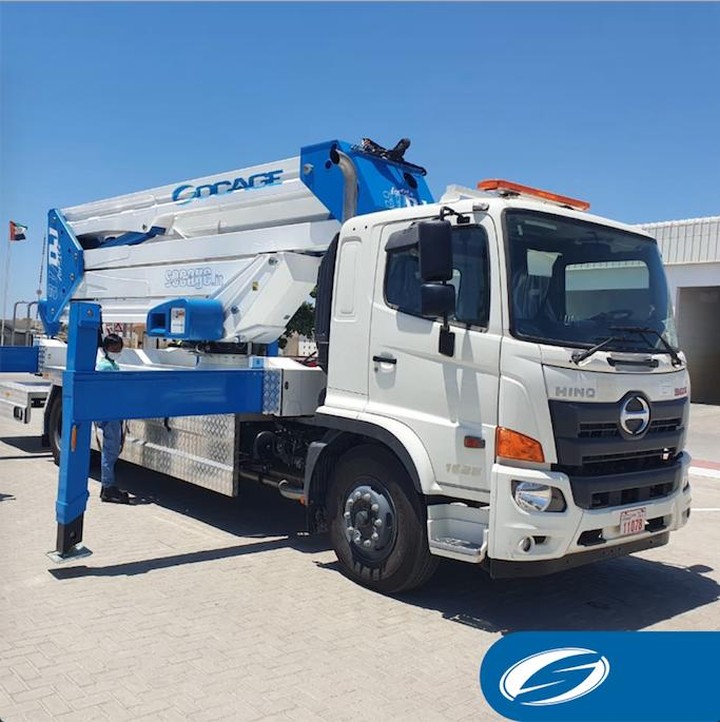

Outrigger H+H
Controls Electric
GVW 18 ton

Standard Equipment:

  • Aluminum basket: dimensions 2000 x 800 x 1100 mm
  • Hydraulic rotation basket 90° + 90°
  • Rotation turret 700°
  • Articulated final jib
  • SPEED automatic stabilization
  • Vertical stabilizers H + H with extra stroke
  • Double or triple work area depending on the installation

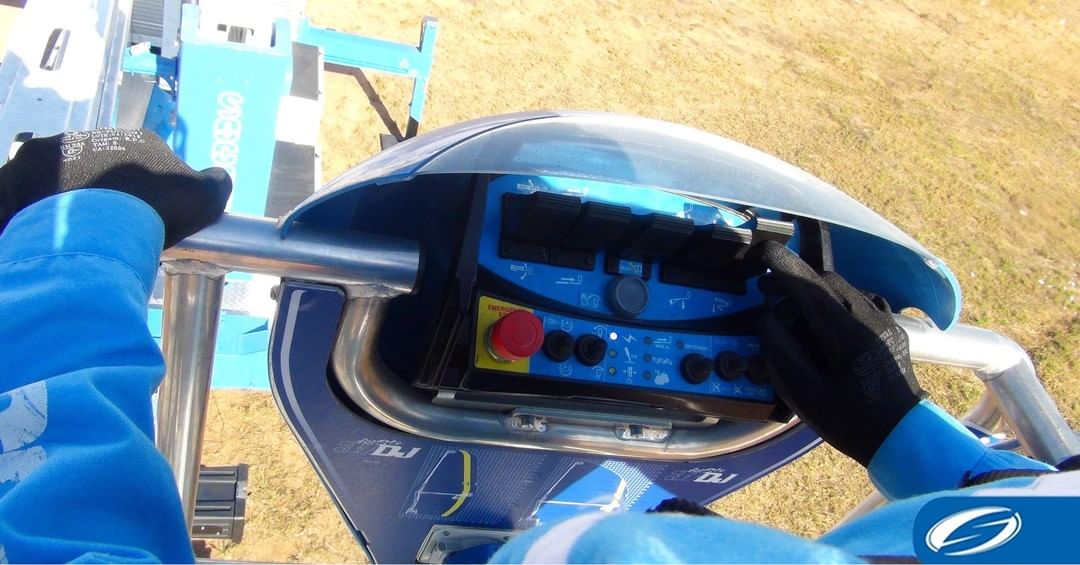

  • Automatic stabilization controls from the basket and from the ground
  • Proportional electro-hydraulic controls with speed regulation of all movements
  • CAN BUS electronic management system
  • Engine start/stop control from the basket
  • Heat exchanger
  • Digital hour counter
  • 4 plates to stand to the ground
  • Socket 230v
  • Magnetic roto-lamp on the vehicle cabin
  • Powder-coated cataphoresis treatment
  • Tool trunk
  • Under-run
  • 150 mm aluminum sides

Safety Devices:

  • Emergency and stop button
  • Cross-check of open stabilizers
  • Multi-axial device for visual control of frame stabilization
  • Intelligent cabin anti-collision sensor
  • Load limiter in the basket
  • Moment-limiting device with double security
  • Emergency manual pump
  • Chassis flatness sensor
  • Flanged block valves
  • Differentiated filtering hydraulic system with high-efficiency filters both on the delivery lines and on the return lines
  • Automatic leveling of the basket
  • PTO automatic cut-off
  • Warning horn from the basket
