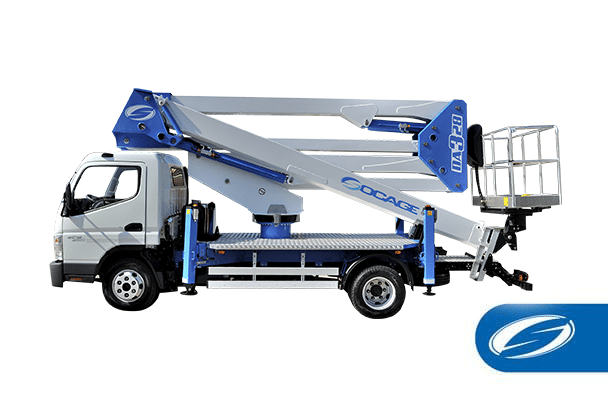

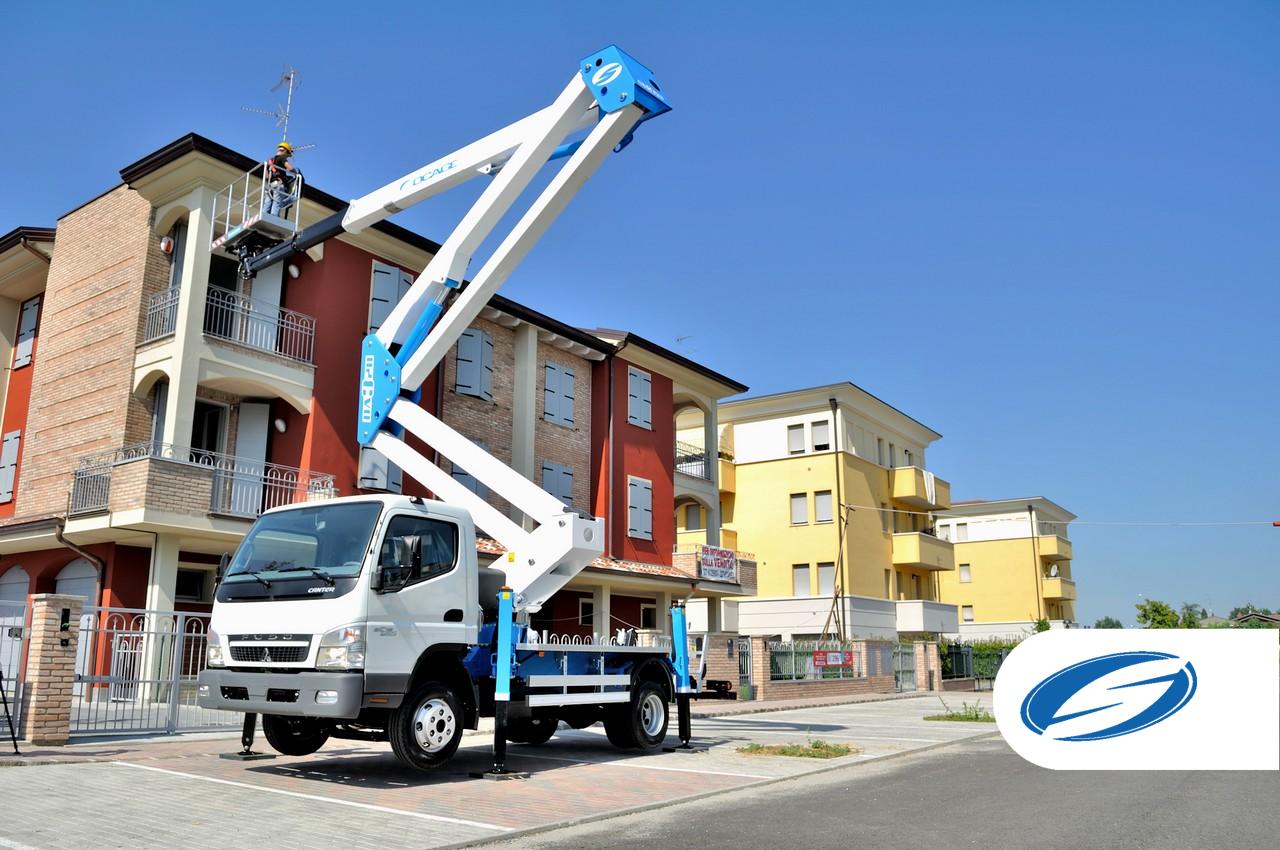

SOCAGE forSte 28DA is an articulated aerial platform from Socage’s mid-height range, installed on trucks from 5.6 tons. It reaches a working height of 28m and a horizontal reach of 16m, in addition, has a large load capacity of 225 kg (2 operators + material).
Equipped with SOCAGE HE + HE stabilization, a multi-zone stabilization system with hydraulically extendable vertical stabilizers that automatically calculates the safe working area depending on the opening of the stabilizers, allowing the operator to take advantage of the available space for stabilization.
Assembly Available On Isuzu, Fuso Trucks.
Ideal solution for all types of work in industries and in urban centers with high traffic and difficult access, where other platforms with the same performance have difficulty moving or cannot access.
| Working height, max. | 28,00 m |
| Platform height, max. | 26,00 m |
| Outreach, max. | 16,00 m |
| Basket load capacity, max. | 225 kg |
| Turret rotation | 7000 |
| Basket dimensions | 180 x 70 x 110 cm |
| Basket | Aluminum |
| Basket rotation | 900+900 |
| Outrigger | H+H |
| Controls | Electric |
| GVW | ≥ 5,6 ton |
Standard Equipment:
Safety Devices:
