Socage forSte 15T Speed
Socage forSte 15T Speed

forSte 15T Speed

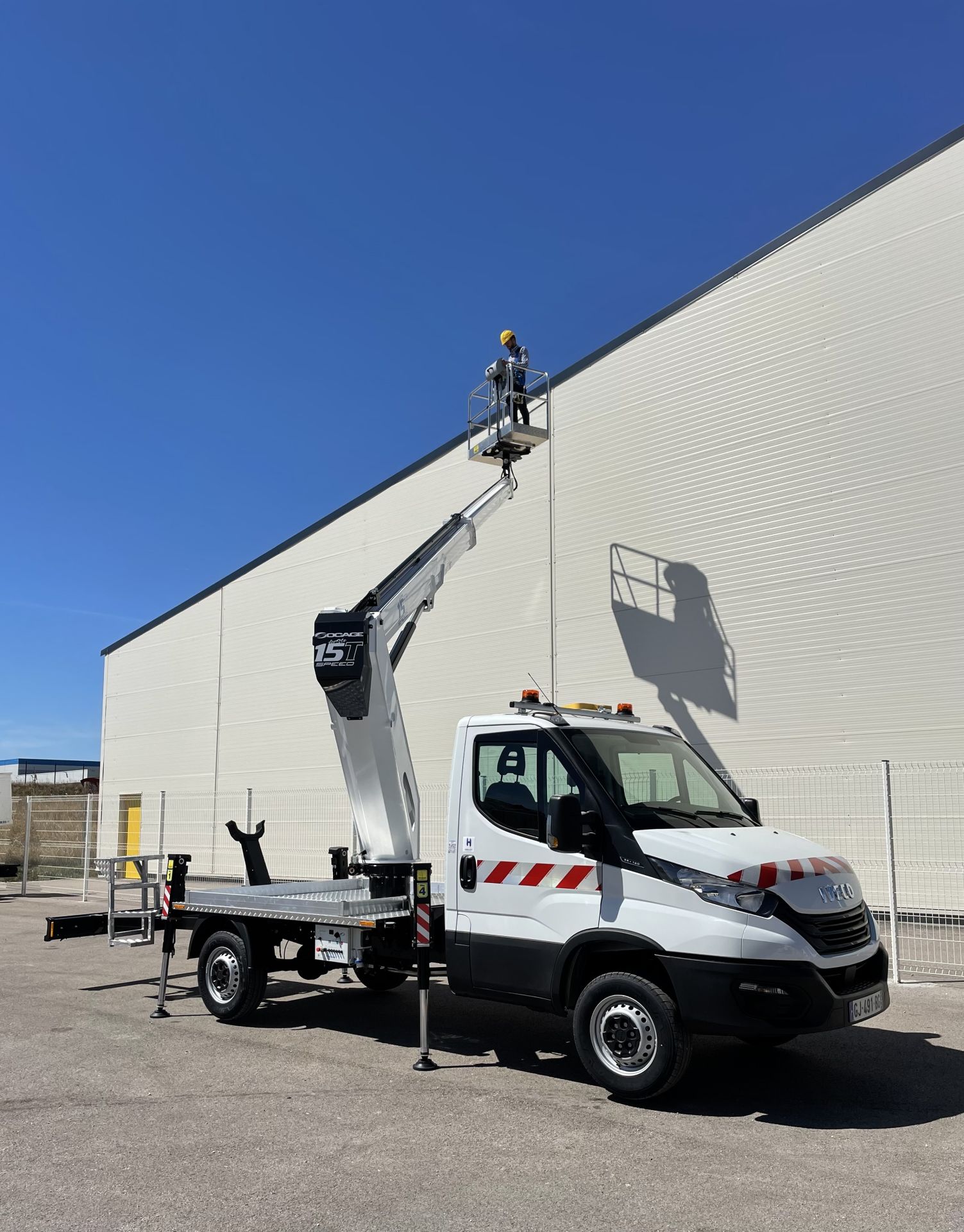

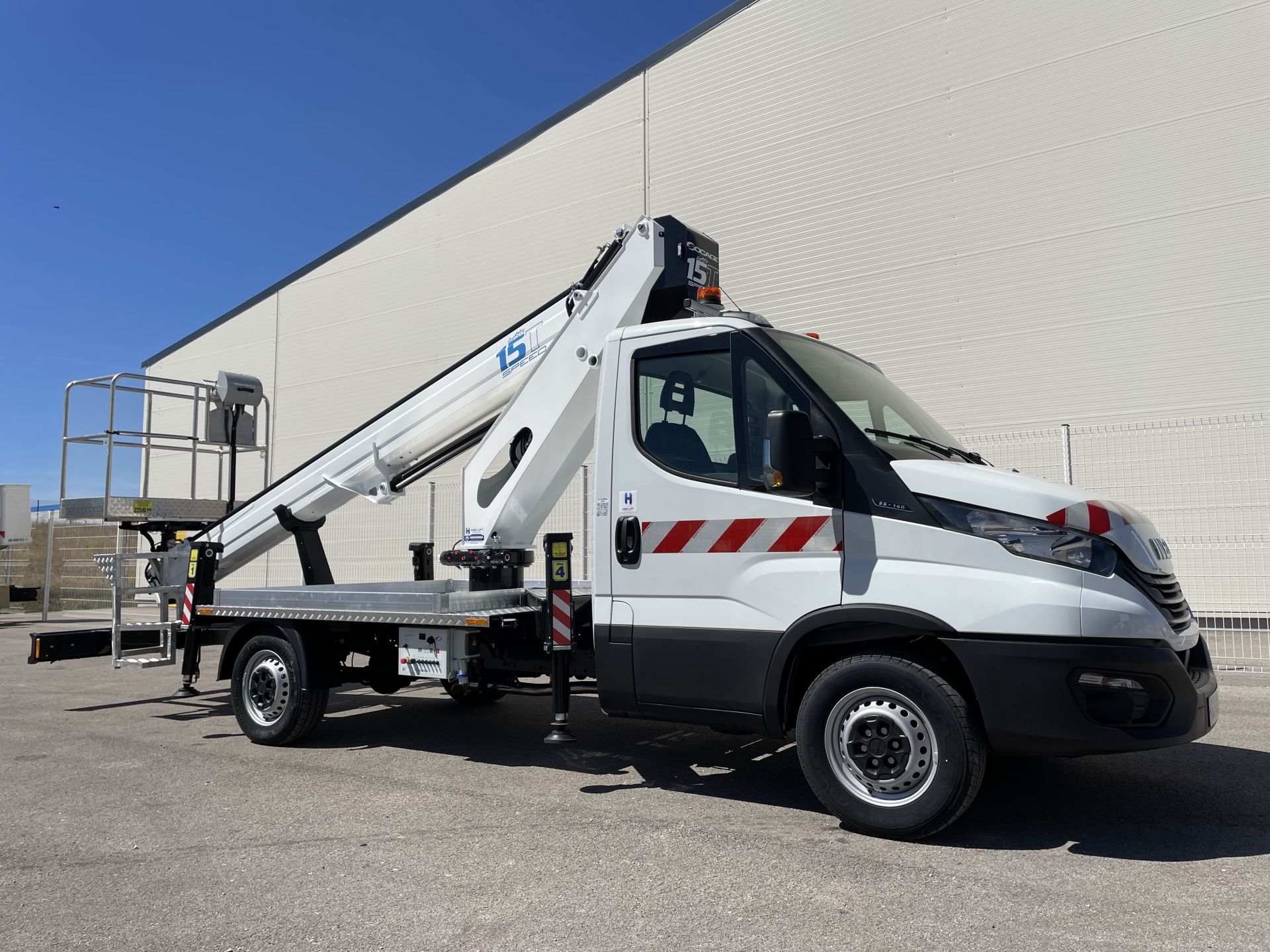

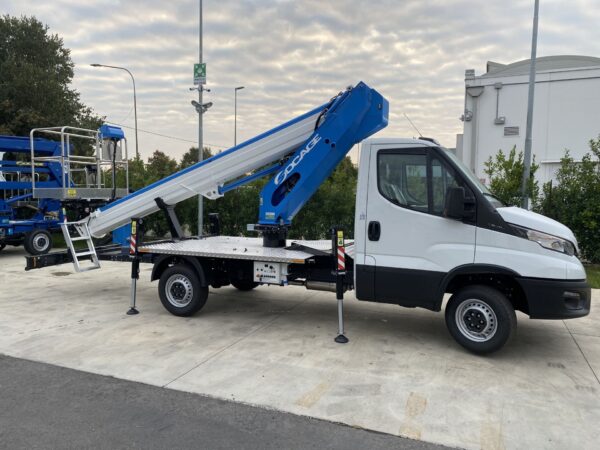

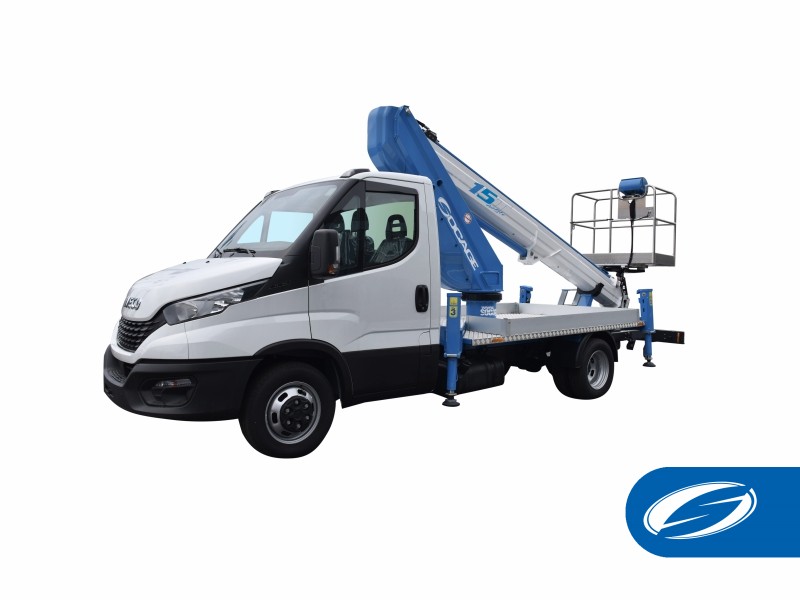

SOCAGE forSte 15T SPEED is a bucket lift truck-mounted telescopic platform with automatic stabilization as standard. It can provide up to 15.20 m high and 10 m of outreach with a basket payload of 230 kg.

It stands out for its good performance with the SPEED H+H stabilization system. The Socage forSte 15T SPEED is one of the easiest platforms to stabilize on the market.

The automatic stabilization SPEED guarantees a safe and simple stabilization to overcome slopes. The boom lift truck forSte 15T SPEED is also fitted with automatic closing, even from the basket.

The reduced weight of the assembly allows great customization of the equipment by the customer.

Assembly Available On IsuzuFord, Iveco, Mercedes, Renault Trucks.

Ideal for working in urban areas with difficult access, as well as in industrial areas.

Compare

Description

Working height, max. 15,20 m
Platform height, max. 13,20 m
Outreach, max. 10 m
Basket load capacity, max. 230 kg
Turret rotation 7000
Basket dimensions 140 x 70 x 110 cm
Basket Aluminum  / Fiberglass
Polyethylene
Basket rotation 900+900
Outrigger H+H
Controls Electric
GVW 3,5 t

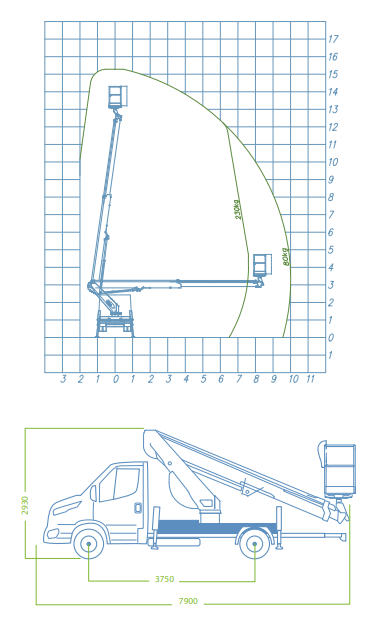

SOCAGE forSte15T Speed Load Chart

Standard Equipment:

  • Aluminium basket: 1400 x 700 x 1100
  • Hydraulic basket rotation 90 + 90
  • Rotation turret 700°
  • Pipes and hoses inside the booms
  • Automatic closing
  • Automatic SPEED Stabilization from the basket and from the ground
  • H+H vertical outriggers
  • Proportional electro-hydraulic controls with speed regulation of the speed of all movements
  • Electronic safe system CAN BUS
  • 4 plates to stand on the ground
  • Socket 230v and 12v in the basket
  • Possibility of simultaneous movements
  • Automatic regulation of engine revolutions
  • Cataphoresis treatment with powder coating
  • Aerial part centering light on the basket
  • Automatic motor speed adjustment

Safety Devices:

  • Socage Security System
  • Unintentional maneuvering protection bar
  • Controls protection of the basket
  • Circuit braker with differential protection on the 230V line
  • Safety bypass for operator rescue
  • Automatic stabilization
  • Moment limiting device with double security
  • Self levelling system for the basket
  • Inclinometer
  • Flanged block valves
  • Emergency button
  • Emergency manual hand pump
  • Possibility of emergency remote rescue
  • Automatic PTO deactivation
  • Sensor anti-crash smart cab
  • Electrical hour counter light closed outriggers
  • Maintenance light
