forSte 28T

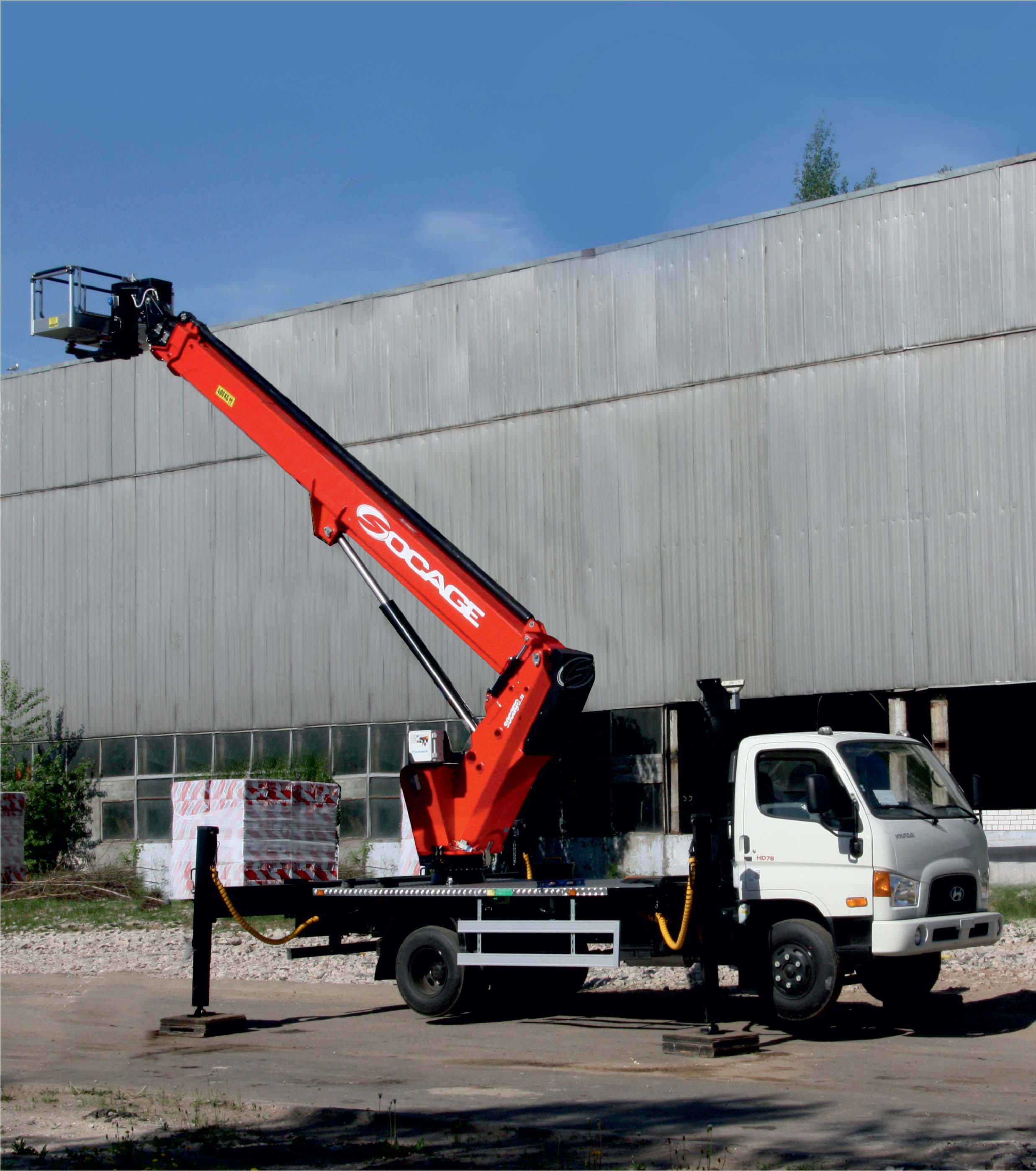

The SOCAGE forSte 28T is a versatile 28.5 m telescopic truck-mounted machine that can be installed on several 12-ton vehicle models. It has a horizontal reach of 17.30m, in addition, has a large load capacity of 400 kg (2 operators + material). SOCAGE H + H stabilization provides the equipment with great simplicity and versatility of use, facilitating the stabilization maneuver.

Compare
Category: Tag:

Description

Performance

Working height, max. 28,50 m
Platform height, max. 26,50 m
Outreach, max. 17,30 m
Basket load capacity, max. 400 kg
Turret rotation ∞
Basket dimensions 140 x 70 x 110 cm
Basket Aluminum
Basket rotation 900+900
Outrigger H+H
Controls Electro-Hydraulic
GVW 12 t

Standard Equipment:

    • Toolbox
    • Aluminum basket 1400 x 700 x 1100 mm
    • Buzzer from the basket
    • Start-stop from the basket
    • Electric hour counter
    • Spirit level
    • Differential filtering system with high-efficiency filters both on delivery and return lines
    • Emergency hand-pump
    • N. 4 spreader plates and holder
    • Electric plug 230V
    • Continuous turret rotation
    • Hydraulic basket rotaiton 90° + 90°
    • Beacon light on the truck cabin
    • Electric inclinometer
    • Flanged holding valves
    • Booms painting: white RAL 9016
    • Turret painting: blue RAL 5015
    • Sub-frame painting: blue RAL 5015
    • Electro and powder coating painting
    • Aluminum side-boards 150 mm

Optional Equipment:

    • Anemometer
    • Truck side protections
    • Polyethylene basket 1400x700xh 1150 mm blue RAL
    • Fiberglass basket 1400x700x1100 mm (200 kg capacity)
    • Load limiting device in the basket
    • Safety belts (each)
    • Sub-frame for truck G.V.W. up to 5 ton
    • Auxiliary electric pump 230V/50Hz mono-phase with battery charger
    • Emergency electric pump 12 or 24 V
    • White adjustable light in the basket
    • Inverter ( 12 V/230 V, 50 Hz, 1000 W )
    • 1 kV basket insulation
    • Air-water plug (max 100 bar)
    • Additional beacon light
    • Fixed beacon light
    • Customized painting
    • Radio-control
    • Cable-control
    • Aerial part color different from standard
    • Sub-frame color different from standard
    • Sub-frame for truck G.V.W. over 12 ton to agree
    • Buzzer for reverse gear to agree
    • Front hydraulic outriggers
