SOCAGE forSte 24D SPEED is a double-articulated truck platform with automatic stabilization as standard. A true revolution in the 3,500 kg vehicle market that makes the wishes of the most demanding professionals come true. Capable of reaching a working height of 23.60 m and a lateral reach of 12,70 m with a load capacity of 230 kg (2 operators + material).
The SPEED H + H finish incorporates the standard automatic stabilization that increases safety and facilitates a correct stabilization maneuver, even from the basket. It also includes the automatic closing of the aerial part.
Assembly Available On Isuzu, Ford, Iveco, Mercedes, Renault Trucks.

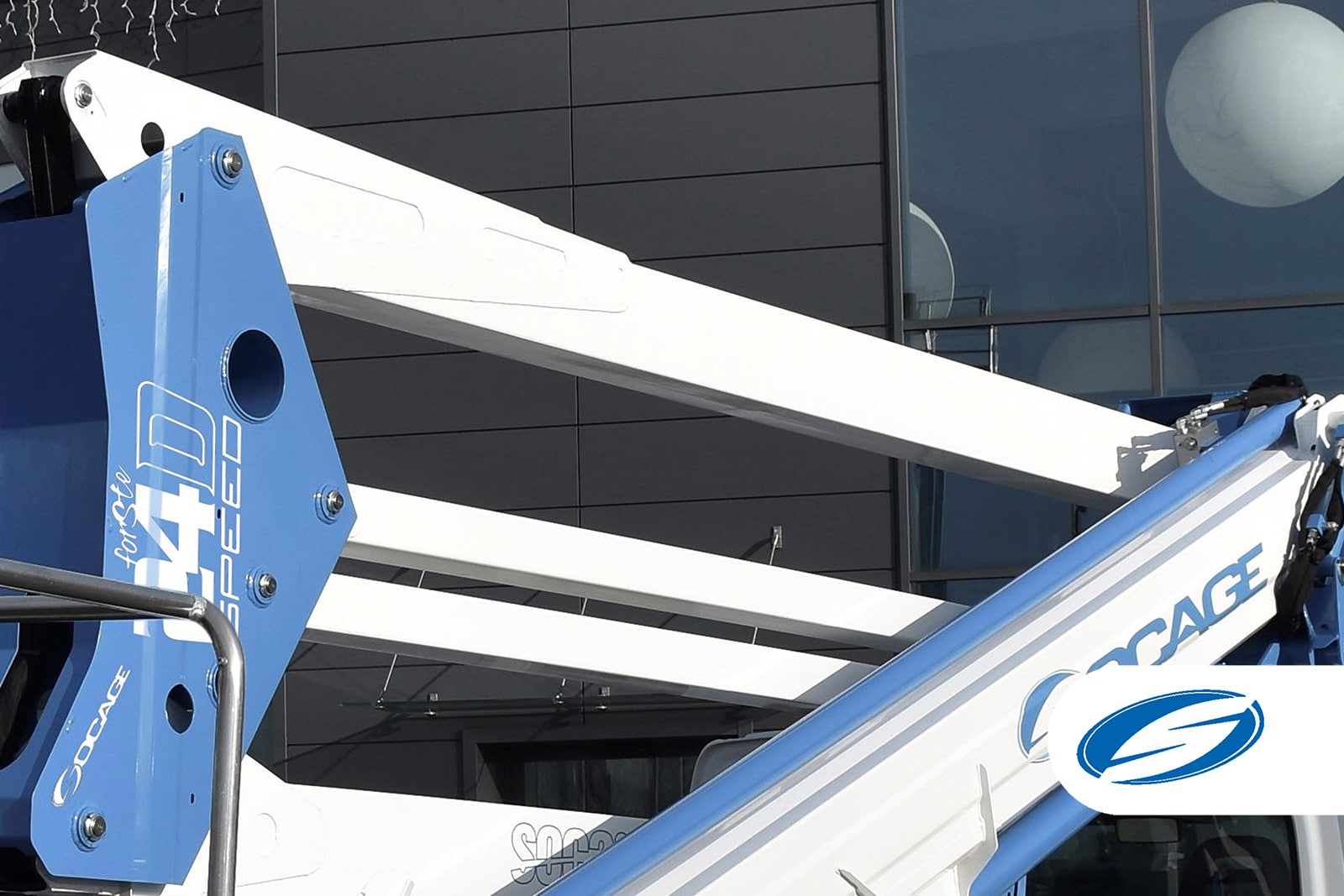

The articulated aerial part of the pantograph with front fastening of the basket. It allows not having the arm under the basket and improves the approach without danger of collision and greater precision to roofs, structures, or certain maneuvers in pruning work. In addition, it facilitates and increases safety in the possible exits of the operator at height to hook to the mandatory lifeline.

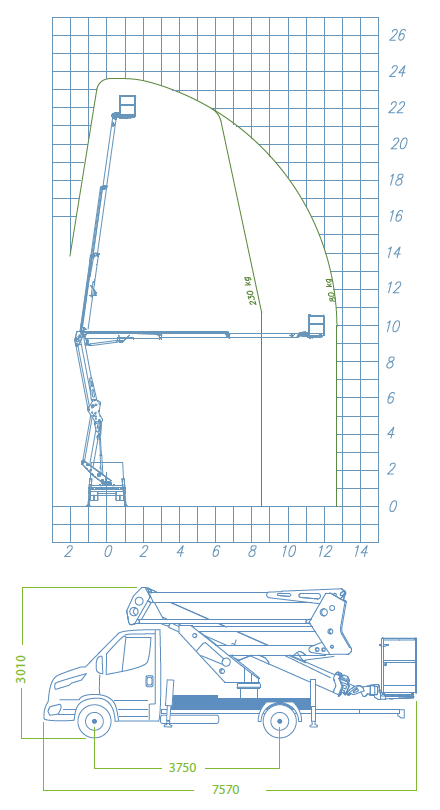

| Working height, max. | 23,60 m |
| Platform height, max. | 21,60 m |
| Outreach, max. | 12,70 m |
| Basket load capacity, max. | 230 kg (optional 300 kg) |
| Turret rotation | 7000 |
| Basket dimensions | 140 x 70 x 110 cm |
| Basket | Aluminum / Fiberglass Polyethylene |
| Basket rotation | 900+900 |
| Outrigger | H+H |
| Controls | Electric |
| GVW | 3,5 t |
Standard Equipment:
Safety Devices:
