forSte 44TJ

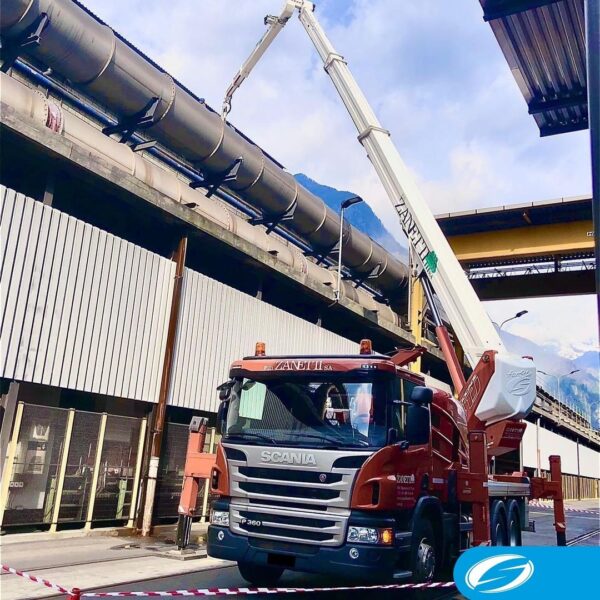

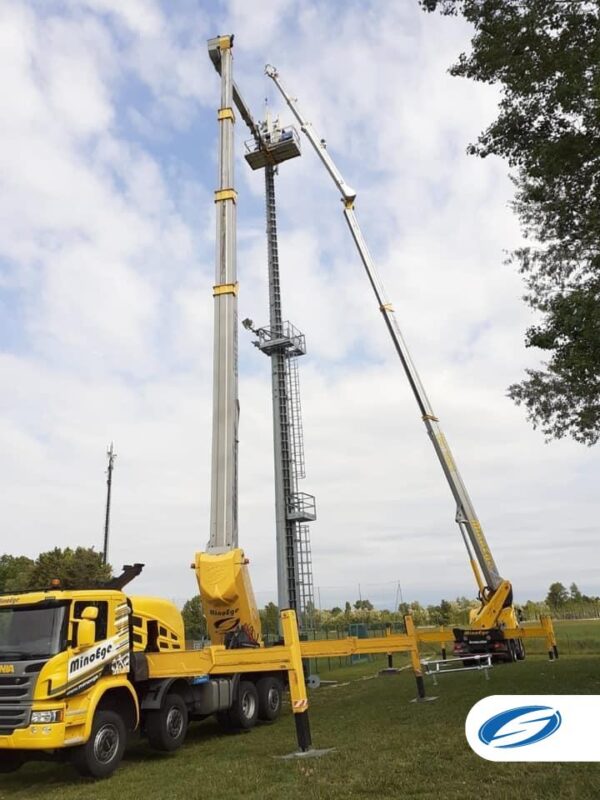

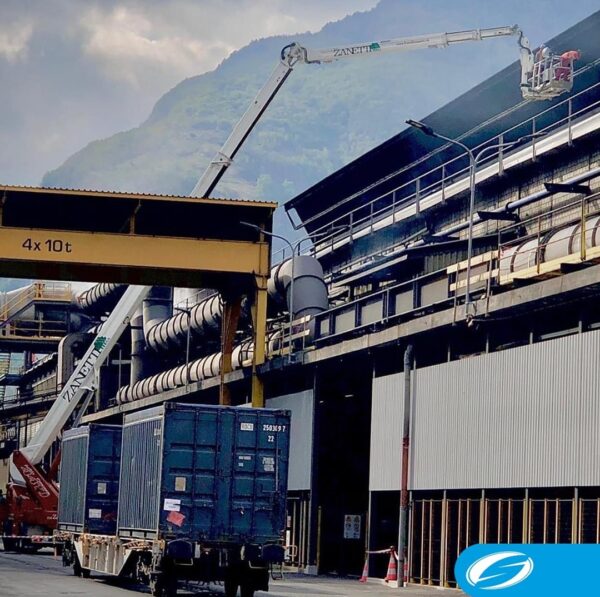

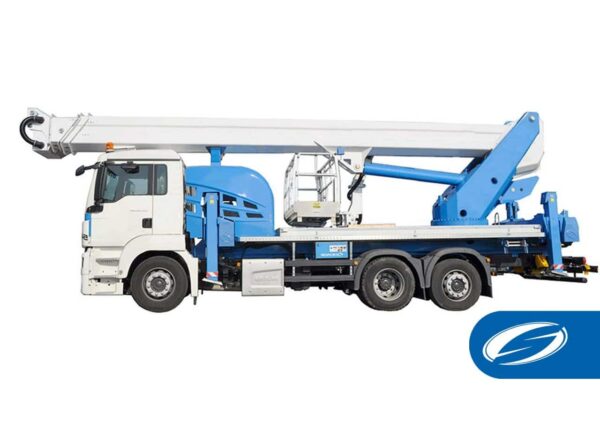

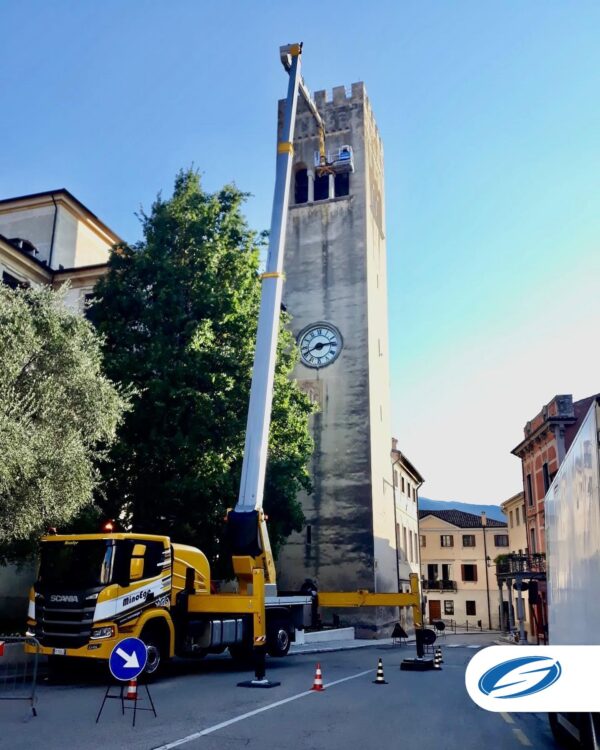

SOCAGE forSte 44TJ is a telescopic boom lift with articulated jib that can be installed on trucks with a minimum weight of 26 tons. It reaches a working height of 44m and a horizontal reach of 34m, in addition, has a large load capacity of 600 kg (6 operators + material).

Equipped as standard with a multi-zone stabilization system that allows the operator to choose between different options depending on the available space and the required features, the electronic platform control system automatically calculates the safe work area, based on the open position of the four stabilizers.

Can be equipped with a 900/1500 kg capacity boom-mounted hydraulic winch, which can be used without the aluminum basket.

The emergency controls are remotely controlled by radio control to allow the operator to position himself according to the best point of visibility of the entire assembly during the maneuver.

Compare
Category: Tags: , ,

Description

Performance

Working height, max. 43,50 m
Platform height, max. 41,50 m
Outreach, max. 34,00 m
Basket load capacity, max. 600 kg
Turret rotation 7000
Basket dimensions 230/330 x 90 x 110 cm
Basket Aluminum
Basket rotation 3600
Outrigger HE+HE
Controls Electric
GVW 26 ton
Winch 900/1500 kg

Standard Equipment:

  • Extendable aluminum basket with dimensions 2300 / 3600x900x1100 mm
  • SOCAGE convertible basket possibility (Eternit)
  • Basket rotation 360°
  • Rotation turret 700°
  • 2 ° Jib 180 ° manual rotation
  • Possibility of winch on removable JIB
  • Automatic stabilization
  • Partially stabilized work areas
  • Auto lock
  • Basket control station with console on Socage design including joystick and 7 “LCD display with real-time information
  • Intercom with headphones for basket-ground communication
  • Main and auxiliary motor start / stop control from the basket
  • Multifunction radio remote control for ground emergency control of the aerial part and stabilization
  • Electric hour counter
  • PTO automatic cut-off
  • N ° 2 fixed roto-lamp on the vehicle cabin
  • 230V / 400V electrical socket
  • Heat exchanger on the hydraulic system
  • 2 folding sides, 2 fixed (h 150 mm)
  • 4 plates to stand to the ground (700 x 700 x 50 mm)
  • Anti-corrosion treatment on unpainted components
  • Aerial part  painting: white RAL 9016
  • Painted frame and hydraulic cylinders: blue RAL 5015

Safety Devices:

  • Emergency and stop button
  • Cross-check of open stabilizers
  • Anemometer
  • Load limiter in the basket
  • Moment limiter with double safety and control of correct operation
  • Multi-axial device for visual control of frame stabilization
  • Emergency descent with electric pump (in the absence of the auxiliary motor)
  • Rotation brake of the turret with automatic insertion
  • Hydraulic system with differentiated filtering with high efficiency filters both on the delivery lines and on the return lines
  • Multifunction radio control for emergency control
  • Automatism for rotation lock with extension of the stabilizers on one side only
  • Chassis flatness sensor
  • Flanged block valves
