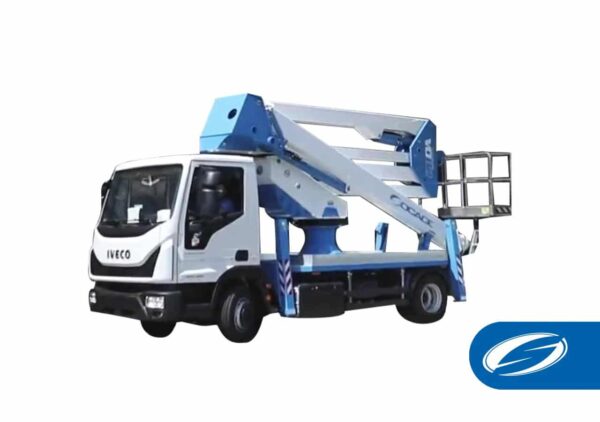

SOCAGE forSte 28DA Speed is an articulated aerial platform from Socage’s mid-height range, which can be mounted on 2-axle trucks from 10T. It reaches a working height of 28m and a horizontal reach of 16m, in addition, has a large load capacity of 230 kg (2 operators + material).
Equipped with SOCAGE H + H stabilization, achieves a single stabilization zone for easy and safe stabilization with high performance, greater ability to overcome slopes, and less space occupied by the truck during work.
Assembly Available On Iveco Trucks.
Ideal solution for all types of work in industries and in urban centers with high traffic and difficult access.

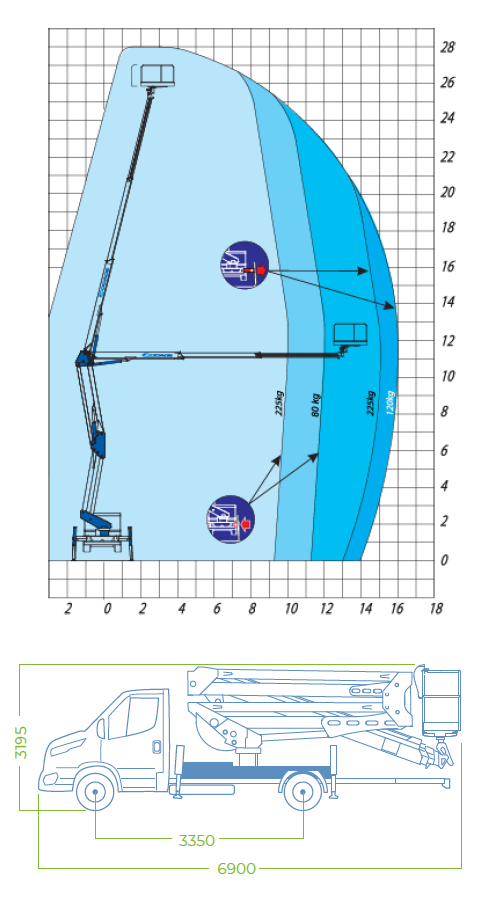

| Working height, max. | 28,00 m |
| Platform height, max. | 26,00 m |
| Outreach, max. | 16,00 m |
| Basket load capacity, max. | 230 kg |
| Turret rotation | 7000 |
| Basket dimensions | 180 x 70 x 110 cm |
| Basket | Aluminum |
| Basket rotation | 900+900 |
| Outrigger | H+H |
| Controls | Electric |
| GVW | ≥ 10 ton |
Standard Equipment:
Safety Devices:
