forSte 20T Speed

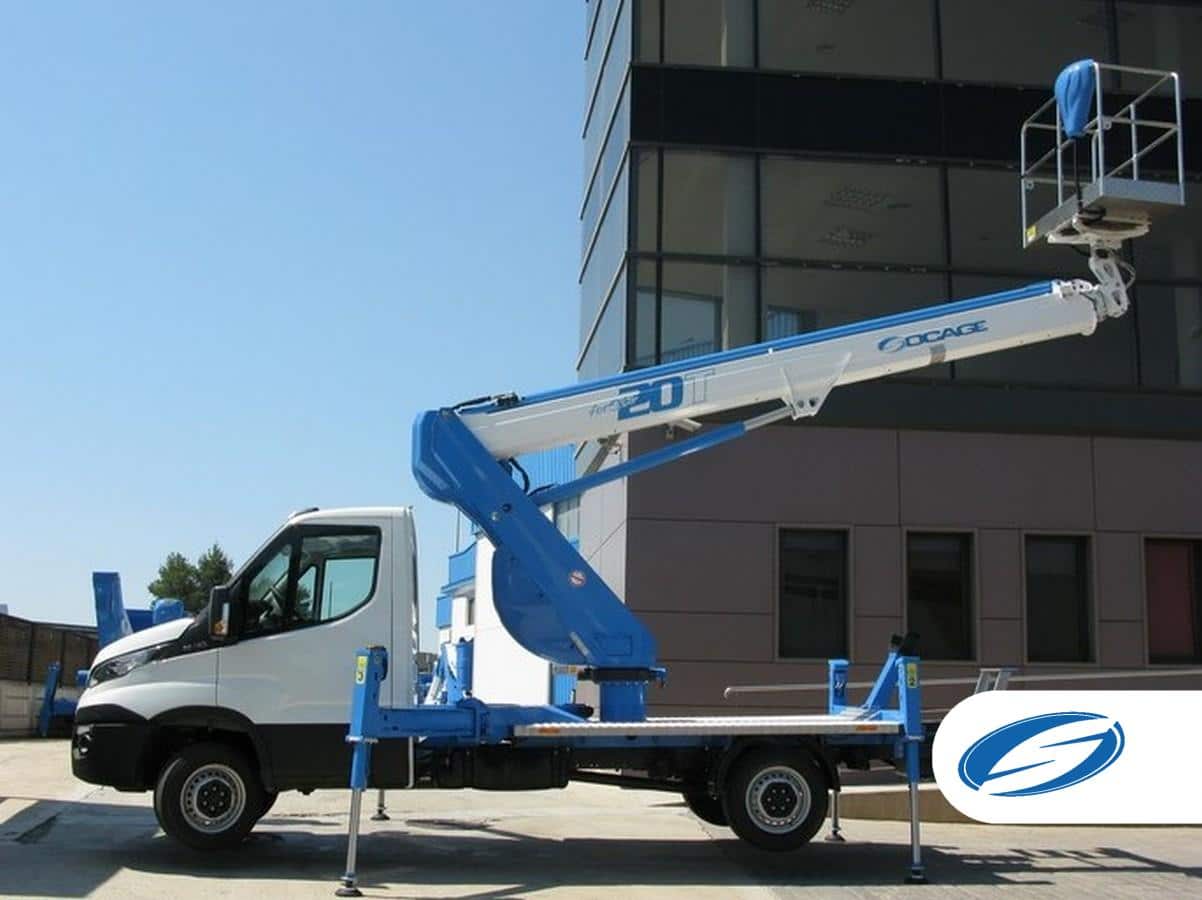

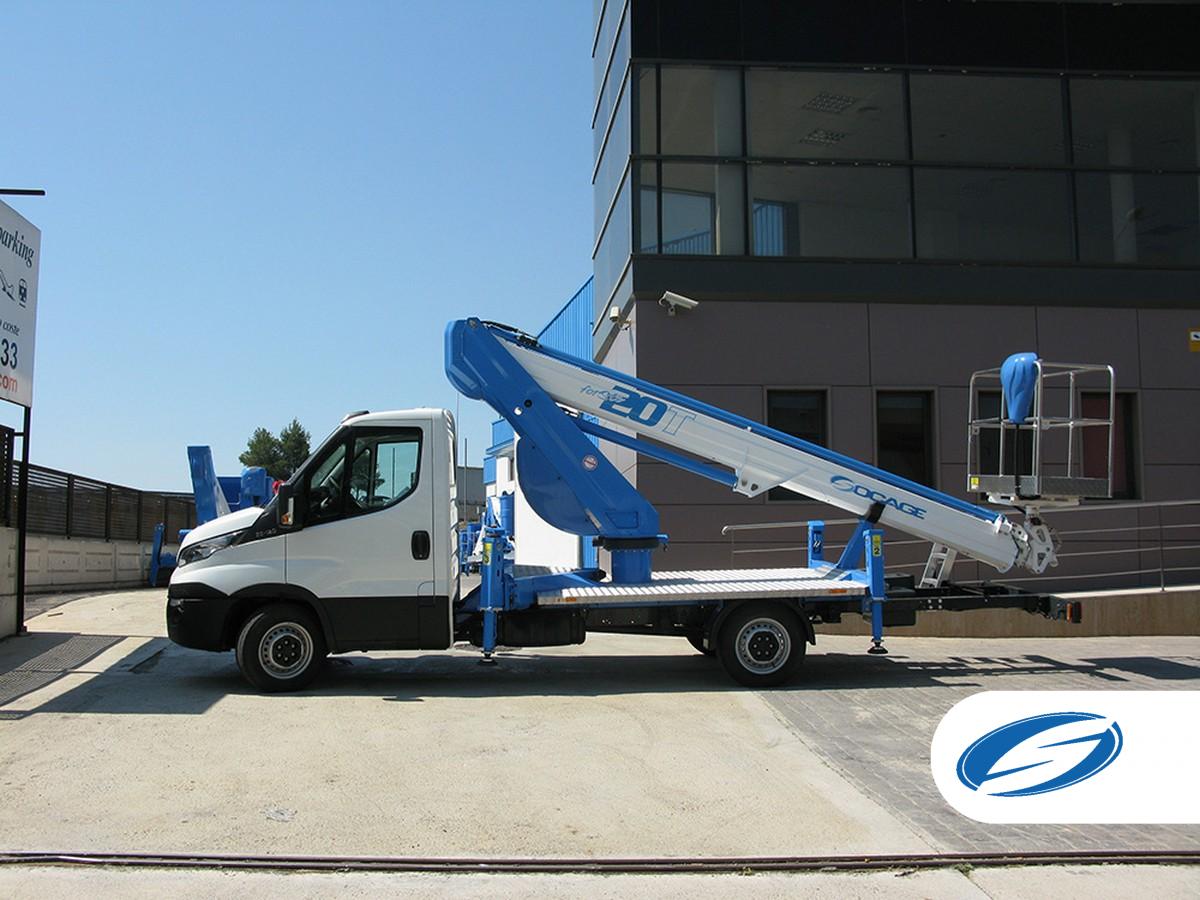

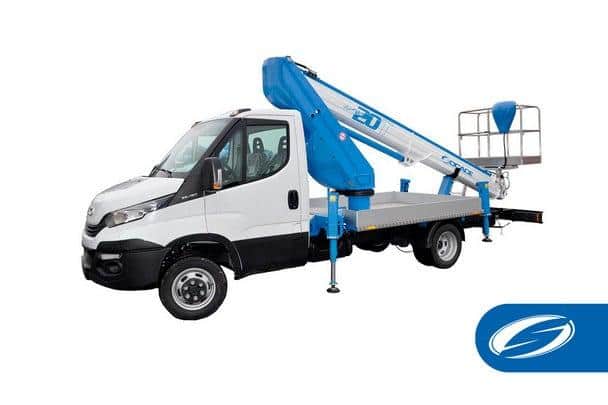

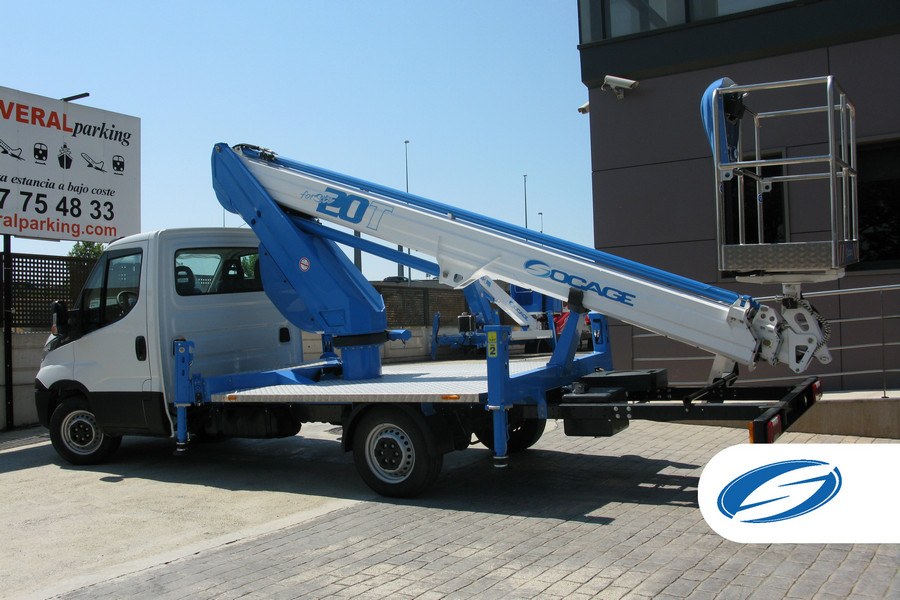

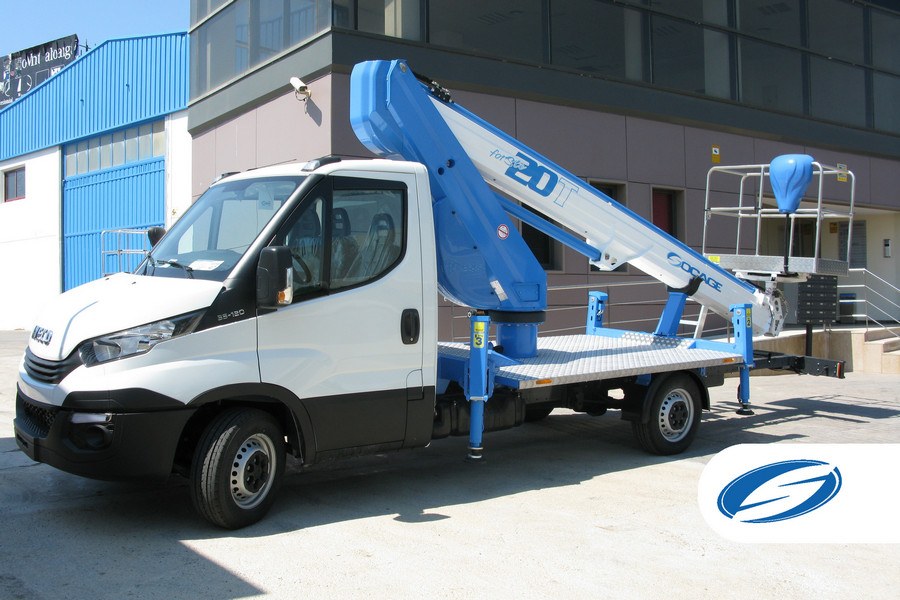

SOCAGE forSte 20T SPEED is a boom lift truck, with high performance and automatic stabilization as standard. It reaches a working height of 19.60m and a horizontal reach of 12,50m, in addition, has a large load capacity of 230 kg (2 operators + material).

Socage’s SPEED HE + H finish increases safety and facilitates a correct stabilization maneuver. It incorporates the SOCAGE’s HE + H automatic stabilization as standard with vertical stabilizers and automatic platform closure from the basket. It even allows the stabilization of the equipment from the basket as standard.

Assembly Available On Fuso, Isuzu,  Ford, Iveco, Mercedes, Renault Trucks.

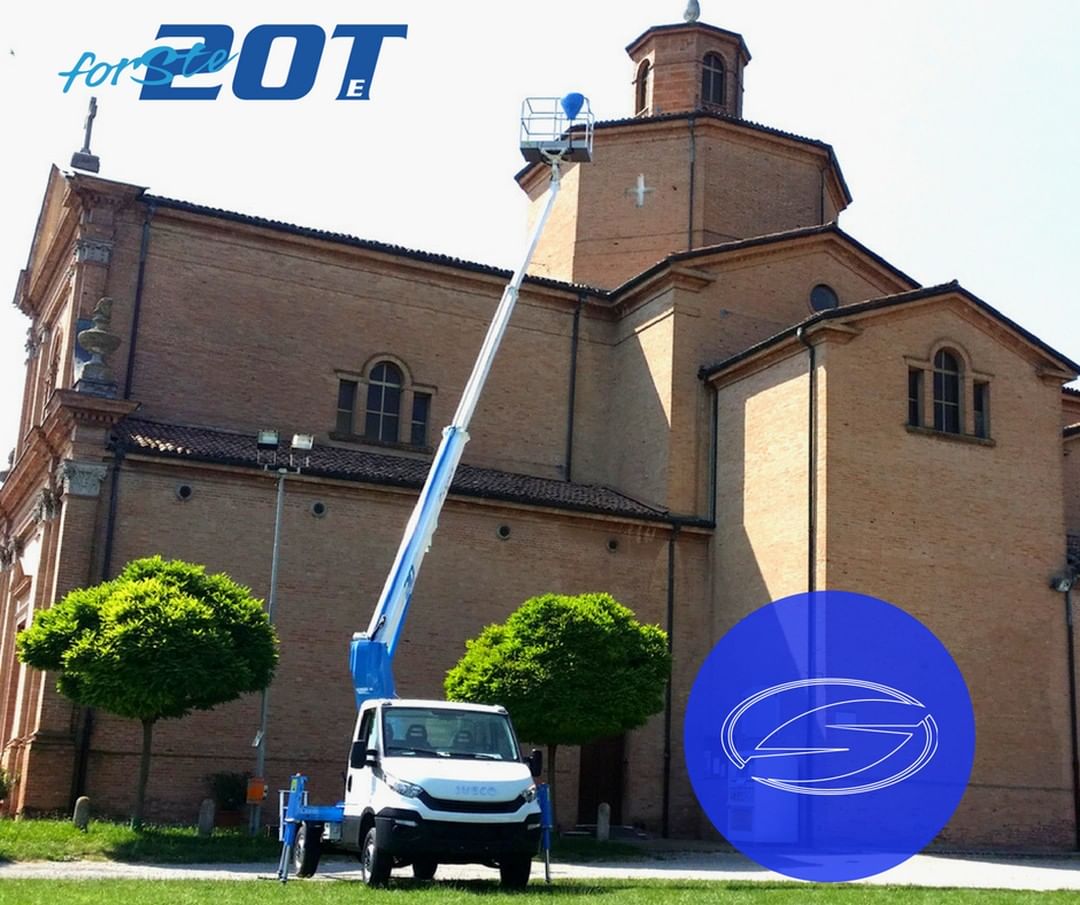

Ideal solution for work in urban or industrial areas with difficult access.

Compare
Category: Tags: , ,

Description

Performance

Working height, max. 19,60 m
Platform height, max. 17,60 m

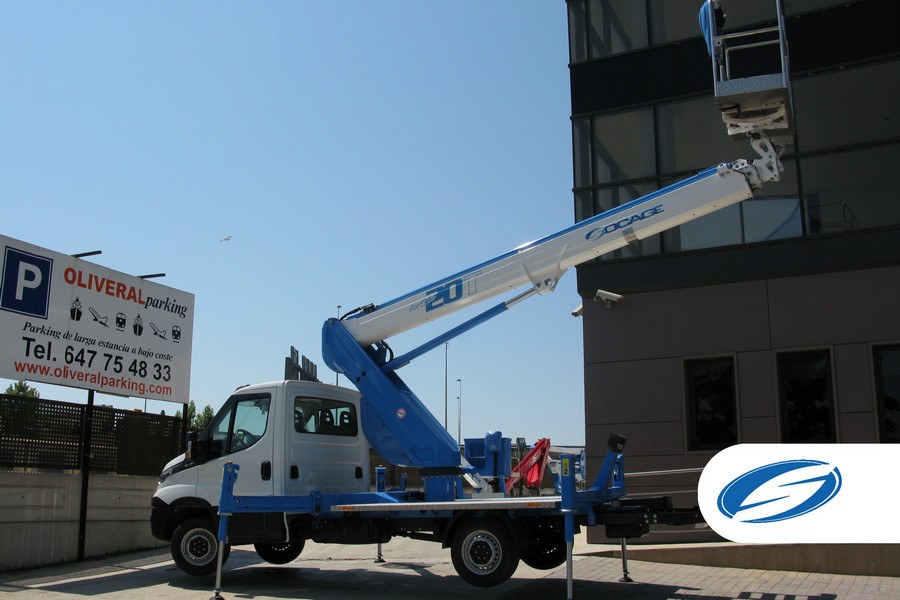

Outreach, max. 12,50 m
Basket load capacity, max. 230 kg
Turret rotation 7000
Basket dimensions 140 x 70 x 110 cm
Basket Aluminum  / Fiberglass
Polyethylene
Basket rotation 900+900
Outrigger Extensible HE+H
Controls Electric
GVW 3,5 t

Socage forSte 20T Speed Load Chart

Standard Equipment:

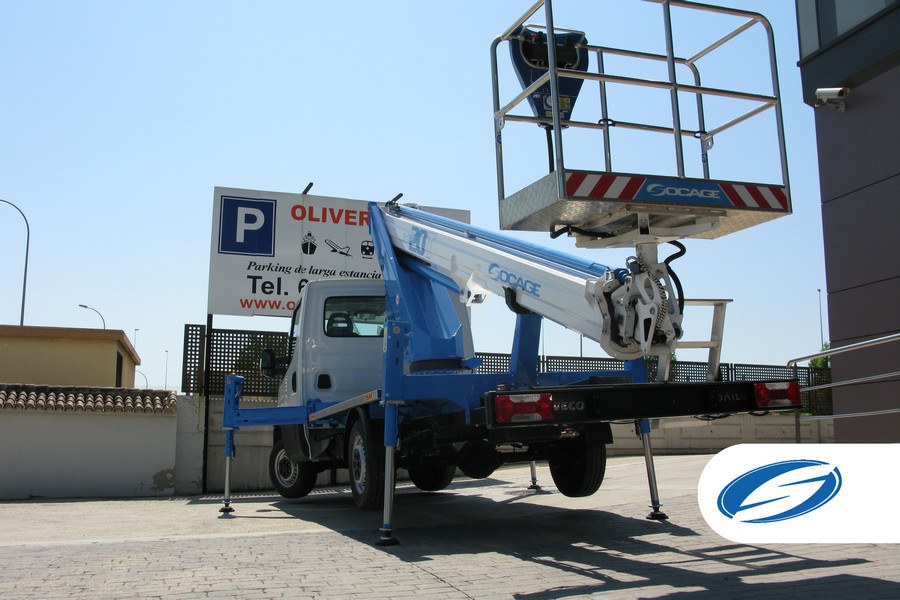

  • Hydraulic rotation basket 90° + 90°
  • Rotation turret 700°
  • Pipes and cables installed inside the boom
  • Automatic closing of the aerial part
  • Stabilization from the basket
  • Automatic multi-zone stabilization SPEED HE+H
  • Hydraulic opening of the front crossmembers

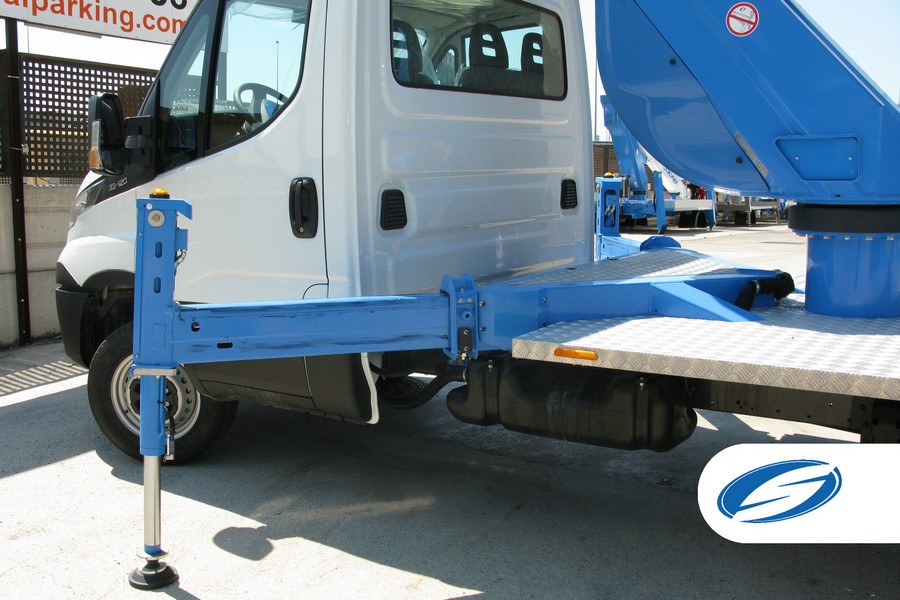

  • Vertical stabilizers with extra stroke
  • Automatic stabilization controls in the basket and on the ground
  • Electro-hydraulic controls in proportion with speed regulation of all movements
  • Possibility of simultaneous operation
  • Signal to center the aerial part on the basket
  • Socket 230v and 12v in the basket
  • Automatic regulation of engine revolutions
  • CAN BUS electronic management system
  • Cataphoresis
  • 4 plates to stand to the ground

Safety Devices:

  • Unintentional maneuvering control  E.C.S (Easy Control Security)
  • Protection bar for involuntary maneuvers
  •  Basket controls protection
  • Magnetothermic with 230V line differential protection
  • Safety bypass for operator recovery
  • Automatic stabilization
  • Moment limiting device with double security
  • Automatic stabilization from the basket
  • Inclinometer
  • Flanged block valves
  • Emergency and stop button
  • Emergency manual pump
  • Possibility of remote emergency operation
  • PTO with save changes
  • Boom / cabin anti-collision device
  • Digital hour meter in the cabin
  •  Cabin warning light of closed stabilizers
  • Maintenance light (Service)
