forSte 14A

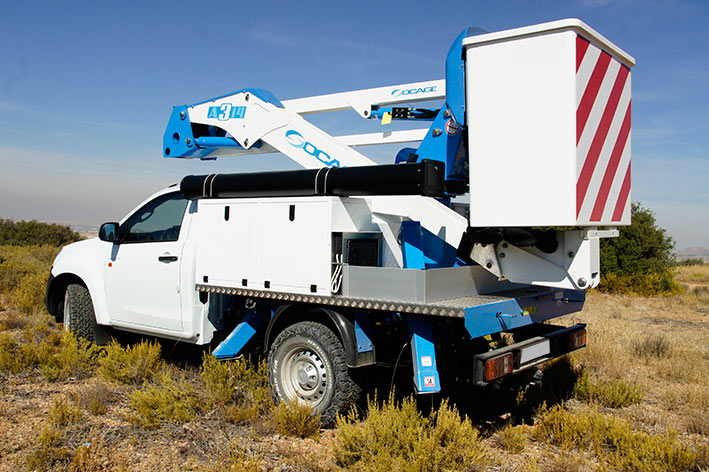

The SOCAGE forSte 14A is an articulated platform designed and optimized to be mounted on pickups, both 4×2 and 4×4.

Since its creation, it has become the European benchmark in the pickup market and the best-selling 4×4 aerial platform model in Europe, the authentic 4×4 platform.

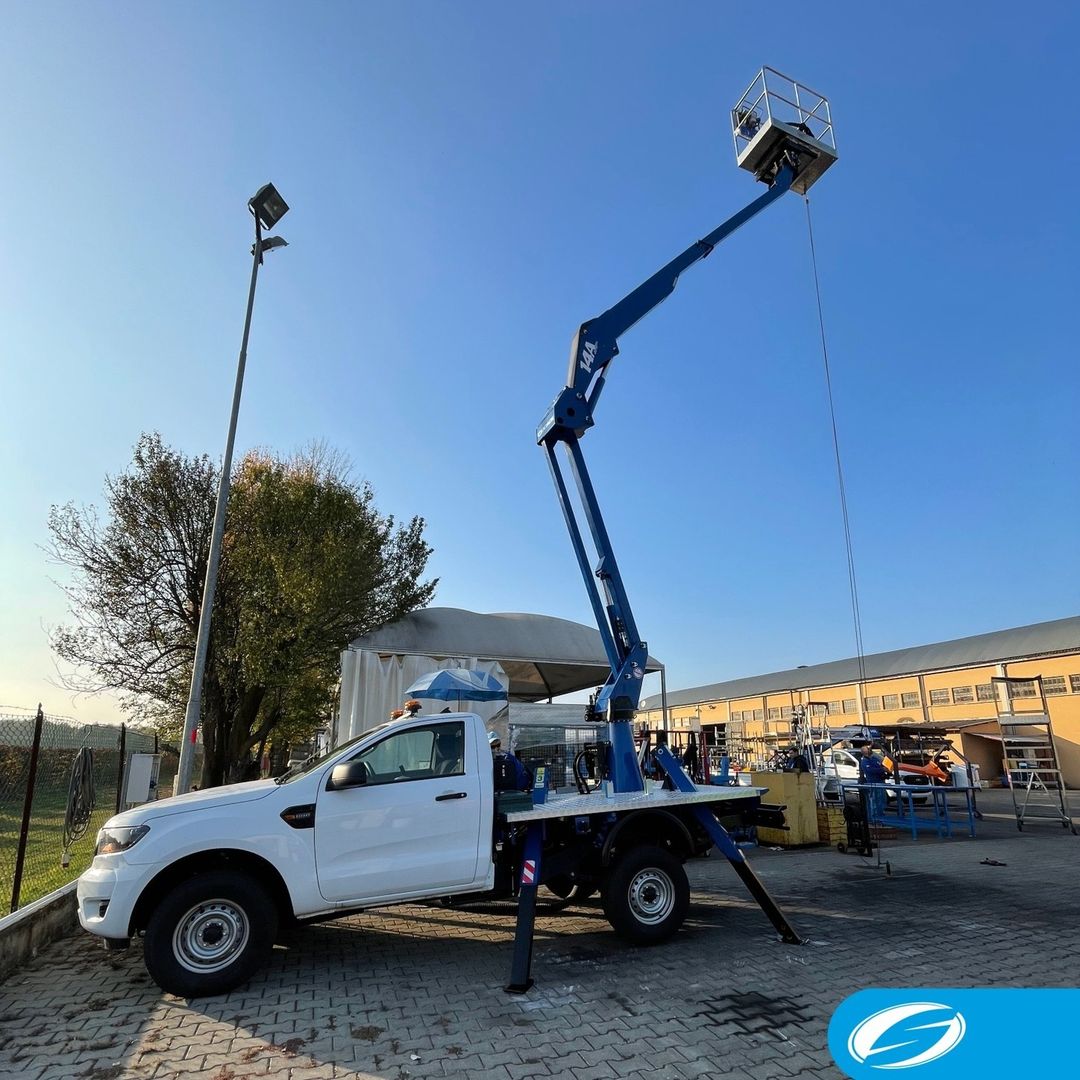

This model reaches a working height of 13.20 m with a horizontal reach of 7,20 m, in addition, has a large load capacity of up to 250 kg (2 operators + material), without limitations in the entire job area.

The comfort and great mobility of the pickup vehicle, 4×2 or 4×4, provide great functionality to the platform, making it an excellent solution both for outside and inside urban environments.

The electro-hydraulic controls allow great precision and simplicity in movements. All the components are protected inside the boom, including the extension cylinder, to avoid damage from impacts or external elements.

The electro-hydraulic controls allow great precision and simplicity in movements. All the components are protected inside the boom, including the extension cylinder, to avoid damage from impacts or external elements.

The reduced weight of the set, the large free space in the box, and the possibility of increasing the PMA of the pick up to 3500kg (*), allow offering high-quality optional equipment that together with the available payload allows satisfying the needs of each client.

The versatility and possibility of customization of the 14A on pick-up trucks have made it one of the vehicle platforms with the greatest presence in the fleets of the most important maintenance companies, especially in the energy and telecommunications sectors, among others.

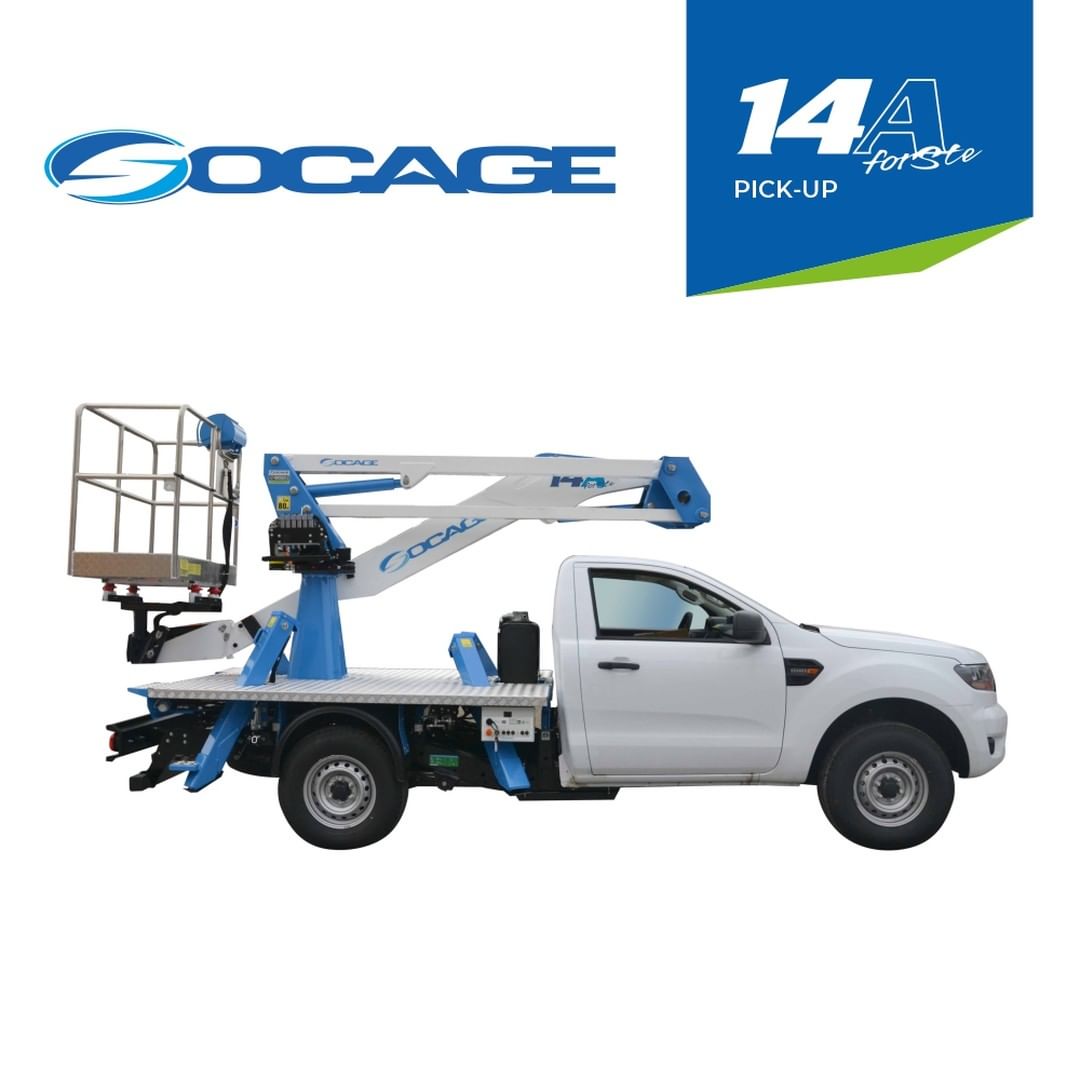

Available to be mounted on both 4×2 and 4×4 models of Toyota Hilux, Isuzu D-Max, and Ford Ranger pickups.


Compare

Description

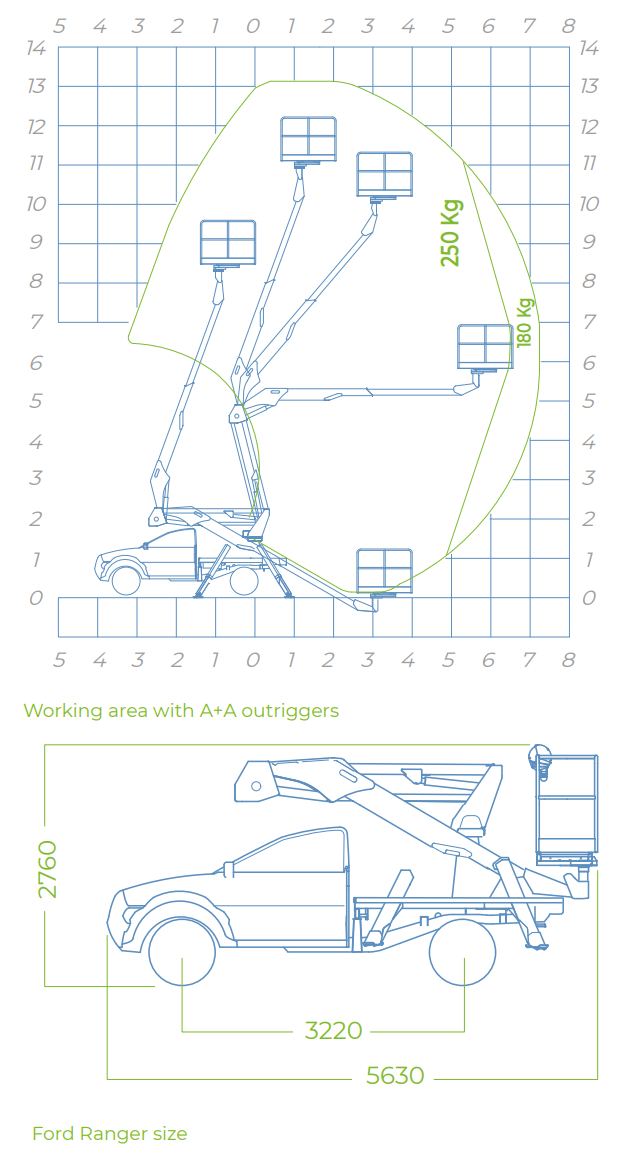

Working height, max. 13,20 m
Platform height, max. 11,20 m
Outreach, max. 7,20 m
Basket load capacity, max. 250 kg
Turret rotation 7000
Basket dimensions 140 x 70 x 110 cm
Basket Aluminum / Fiberglass
Polyethylene
Basket rotation 900+900
Outrigger H+H
Controls Electric
GVW 3,2 t

Standard Equipment:

    • Rotation turret 700º
    • Pipes and cables installed inside the boom
    • A+A/ H+H vertical outriggers
    • Proportional electro-hydraulic controls with speed regulation of all movements
    • Electronic safe system CAN BUS
    • Possibility of simultaneous operation
    • 230V and 12V socket on the basket
    • Cataphoresis treatment with powder coating
    • 4 plates to stand to the ground
    • Aerial part centering light on the basket
    • Automatic motor speed adjustment
    • Boom and column painting: white RAL 9016
    • Frame painting: black RAL 9005
    • Cylinder head and hydraulic cylinders painting: blue RAL 5015

Safety Devices:

    • ECS (Easy Control Security)
    • Unintentional maneuvering protection bar
    • Basket controls protection
    • Magnetothermic with 230V line differential protection
    • Safety bypass for operator rescue
    • Moment limiting device with double security
    • Self levelling system for the basket
    • Inclinometer
    • Flanged block valves
    • Emergency and stop button
    • Emergency manual hand pump
    • Possibility emergency remote rescue
    • Automatic PTO deactivation
    • Sensor anti-crash smart cab
    • Electrical hour counter
    • Digital hour meter in the cabin
    • Cabin warning light of closed stabilizers
    • Maintenance light (Service)
