forSte 23T Speed

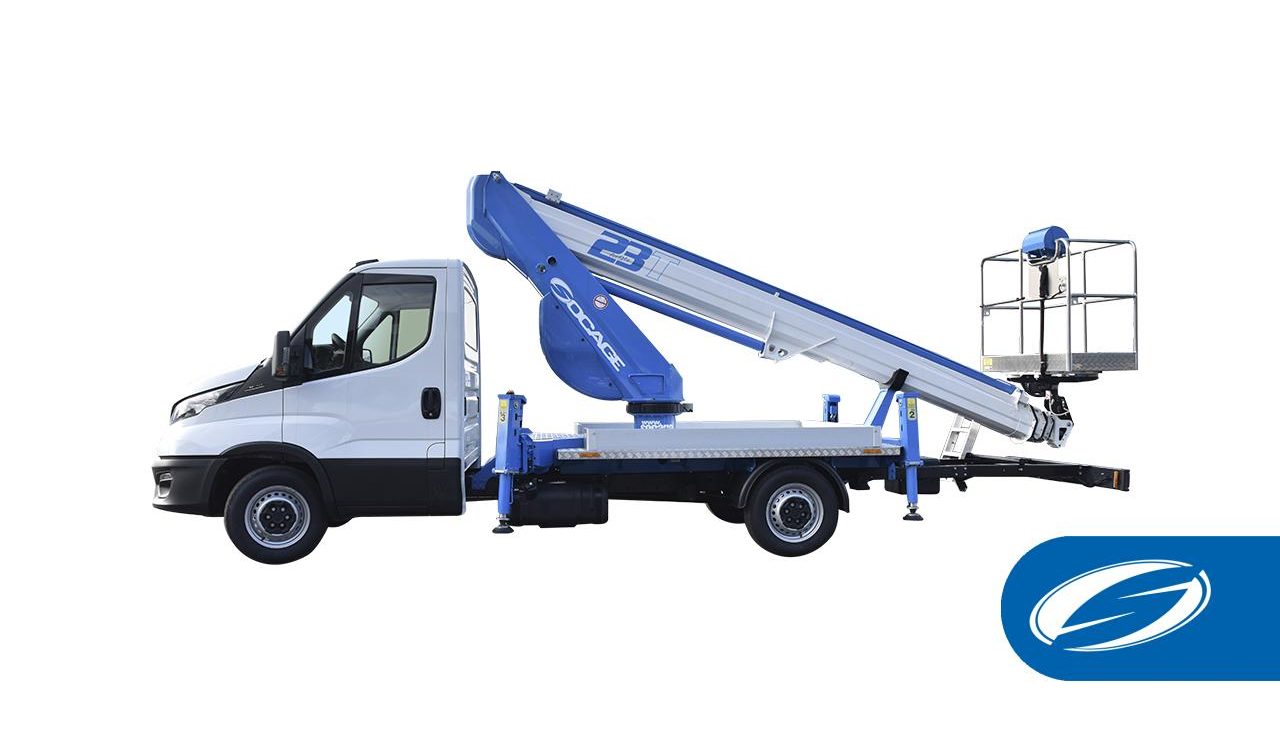

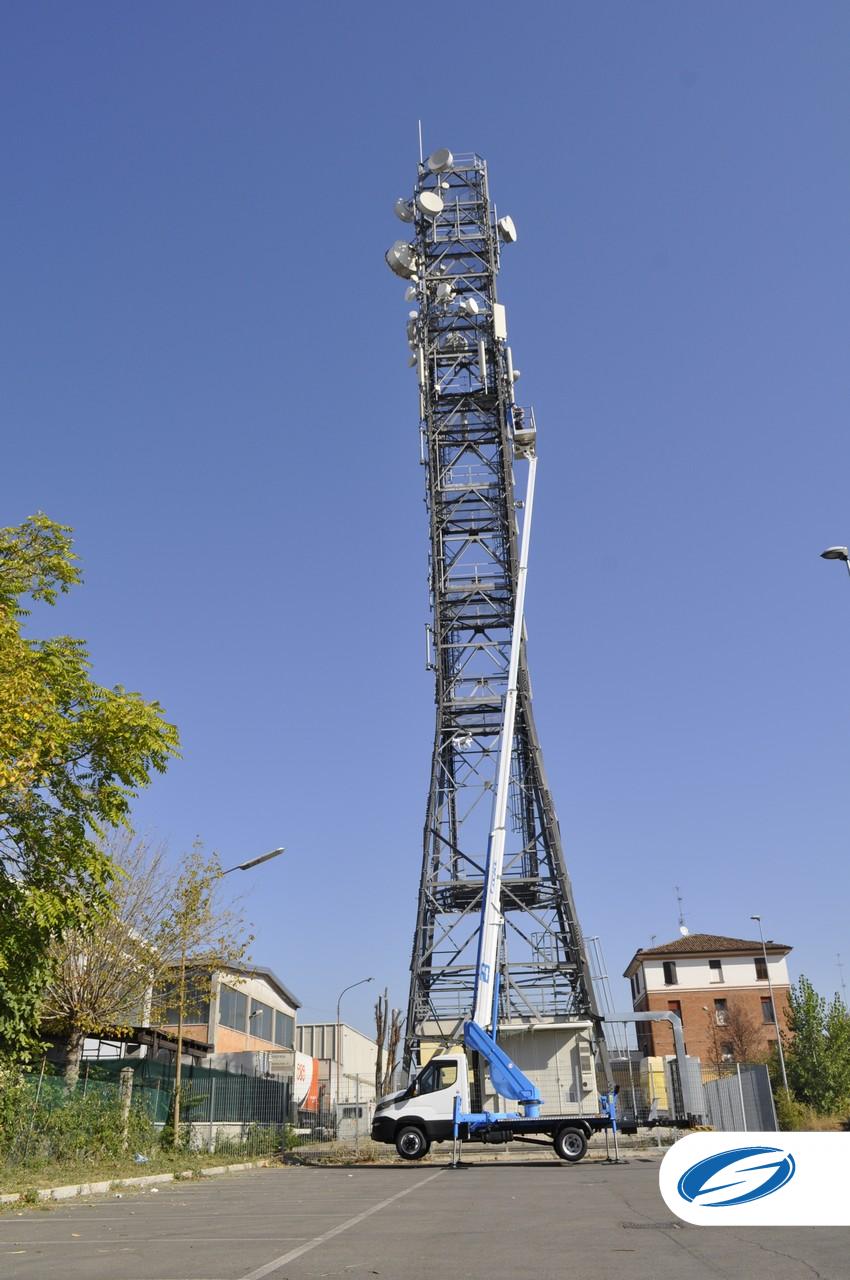

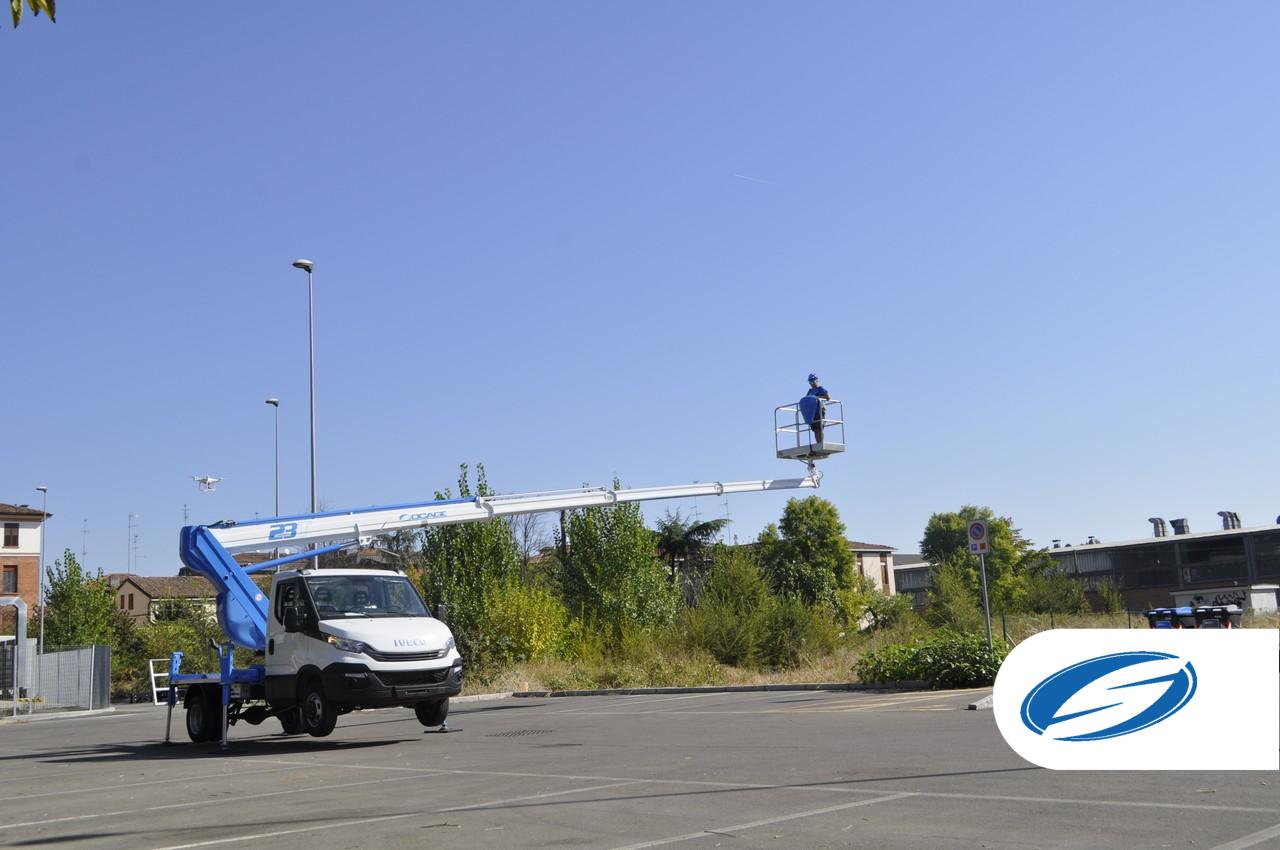

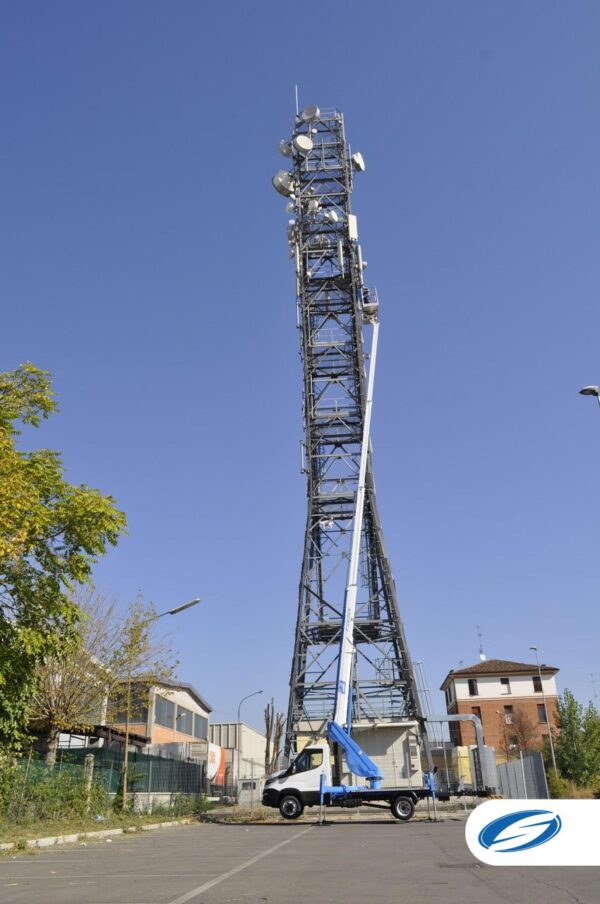

SOCAGE forSte 23T SPEED is a bucket lift truck; with high performance and automatic stabilization as standard with an optimal weight for assembly on 3.5t trucks. It reaches a working height of 23.10m and a horizontal reach of 13 m; in addition, has a large load capacity of 230 kg (2 operators + material).

The longest path of the SOCAGE vertical stabilizers allows greater ability to overcome slopes, making it easier to work without damaging the stabilization surface. Multi-zone stabilization with differentiated areas allows various stabilization possibilities to optimize the use of space in each situation. The front cross members are hydraulically extended to increase the stabilization plan.

Socage’s SPEED HE + H incorporates the standard automatic stabilization that provides the equipment with great simplicity and versatility of use. Increasing the safety of the stabilization maneuver. It enables stabilization from the basket and automatic closing of the aerial part.

Assembly Available On Fuso, IsuzuFord, Iveco, Mercedes, Renault Trucks.

Ideal solution for work in urban or industrial areas with difficult access.

Compare

Description

Working height, max. 23,10 m
Platform height, max. 21,10 m
Outreach, max. 13 m
Basket load capacity, max. 230 kg
Turret rotation 7000
Basket dimensions 140 x 70 x 110 cm
Basket Aluminum  / Fiberglass
Polyethylene
Basket rotation 900+900
Outrigger HE+H
Controls Electric
GVW 3,5 t

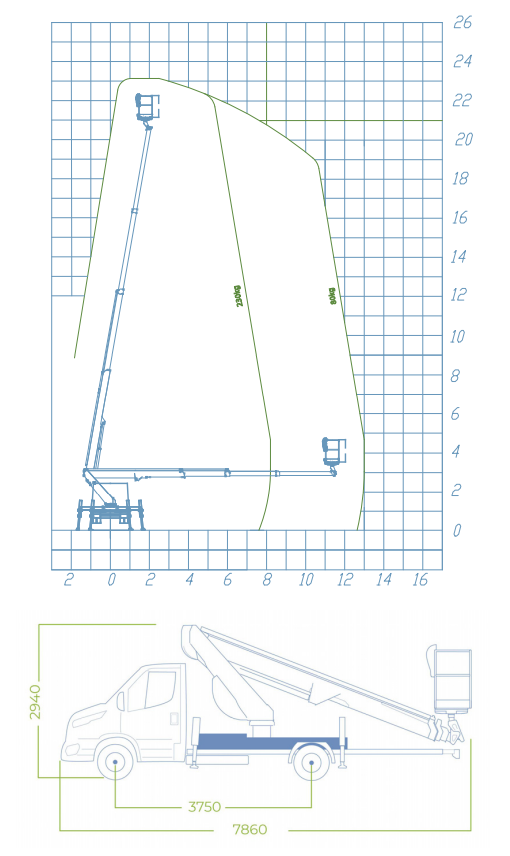

Socage forSte 23T Speed Load Chart

Standard Equipment:

  • Hydraulic rotation basket 90° + 90°
  • Rotation turret 700°
  • Pipes and cables installed inside the boom
  • Automatic closing of the aerial part
  • Stabilization from the basket
  • SPEED HE + H multizone automatic stabilization
  • hydraulic extension of the front crossmember
  • Vertical stabilizers with extra stroke
  • Automatic stabilization controls in the basket and on the ground
  • Proportional electro-hydraulic controls with speed regulation of all movements
  • Possibility of simultaneous operation
  • Signal to center the aerial part on the basket
  • Socket 230v and 12v in the basket
  • Automatic regulation of engine revolutions
  • CAN BUS electronic management system
  • Cataphoresis
  • 4 plates to stand to the ground

Safety Devices:

  • Unintentional maneuvering control E.C.S (Easy Control Security)
  • Protection bar for involuntary maneuvers
  • Basket controls protection
  • Magnetothermic with 230V line differential protection
  • Safety bypass for operator recovery
  •  Automatic stabilization
  • Moment limiting device with double security
  • Automatic stabilization from the basket
  • Inclinometer
  • Flanged block valves
  • Emergency and stop button
  • Emergency manual pump
  • Possibility of remote emergency operation
  • PTO with save changes
  • Boom / cabin anti-collision device
  • Digital hour meter in the cabin
  • Cabin warning light of closed stabilizers
  • Maintenance light (Service)
