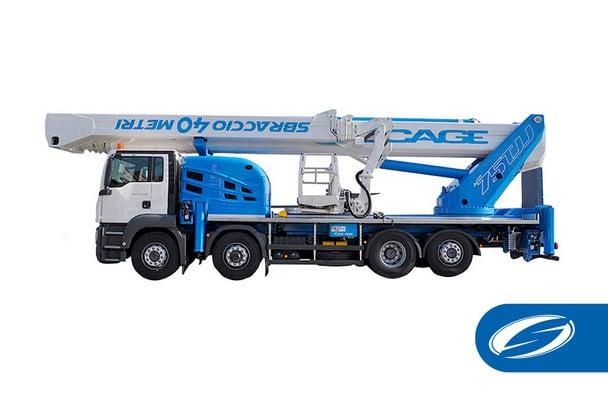

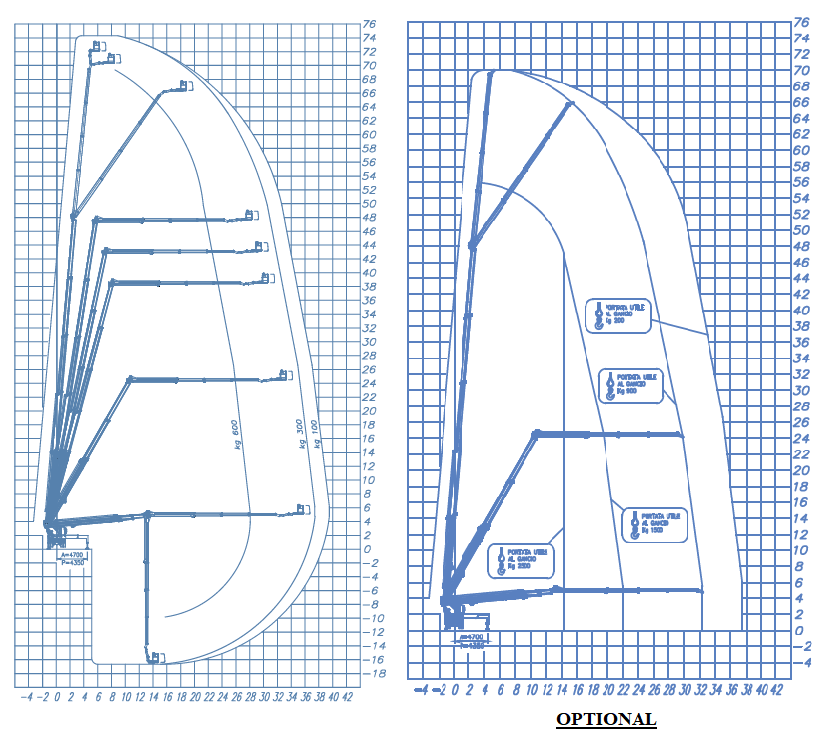

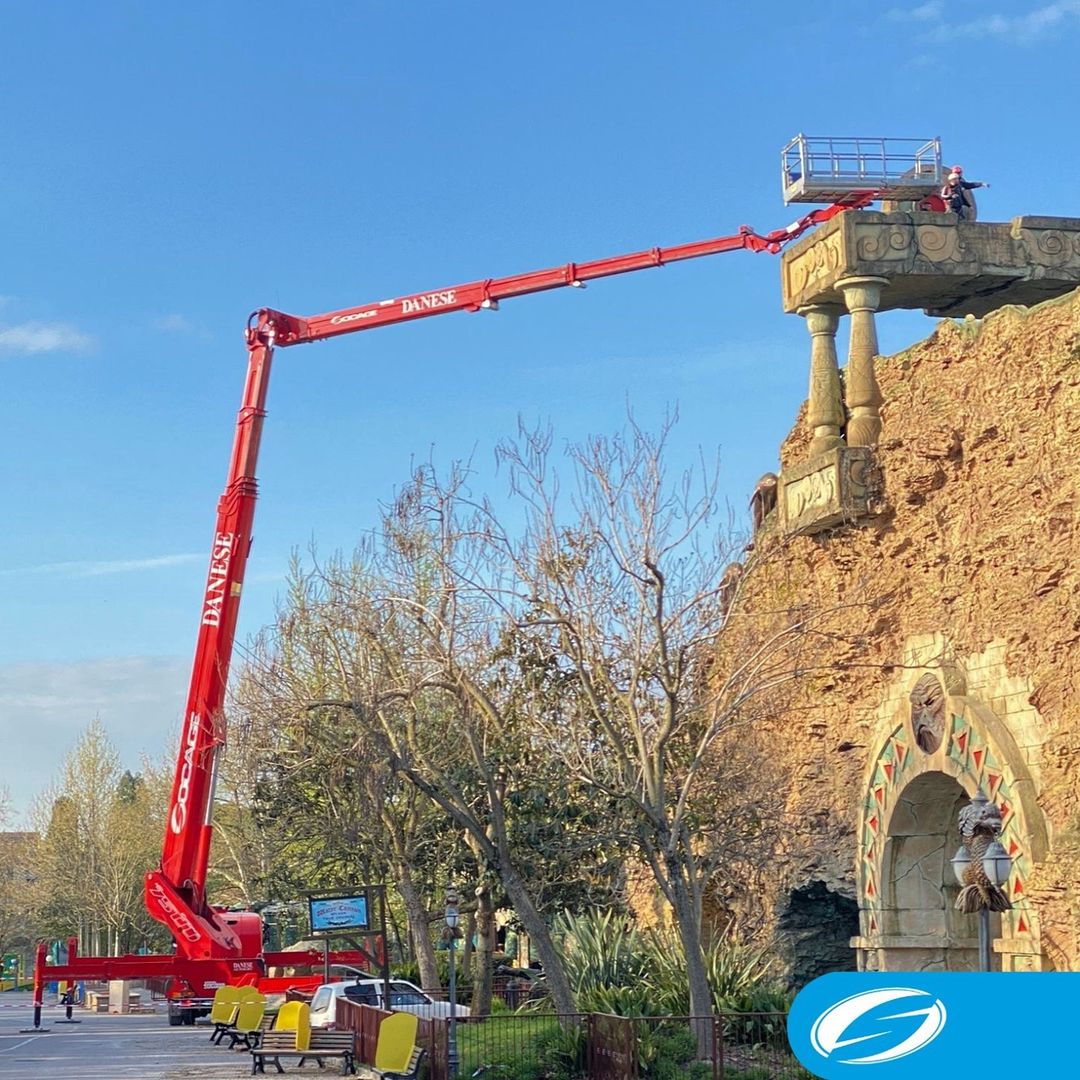

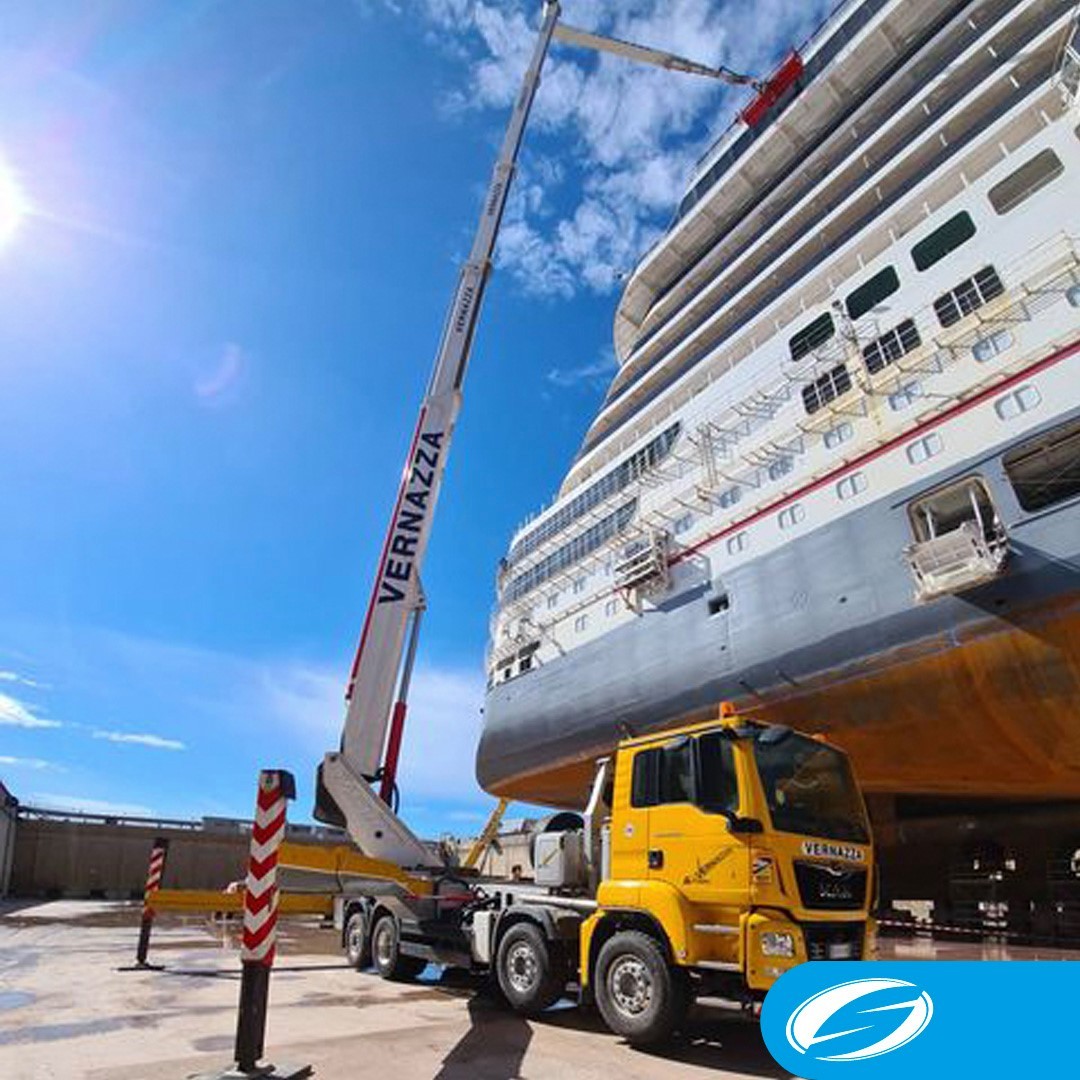

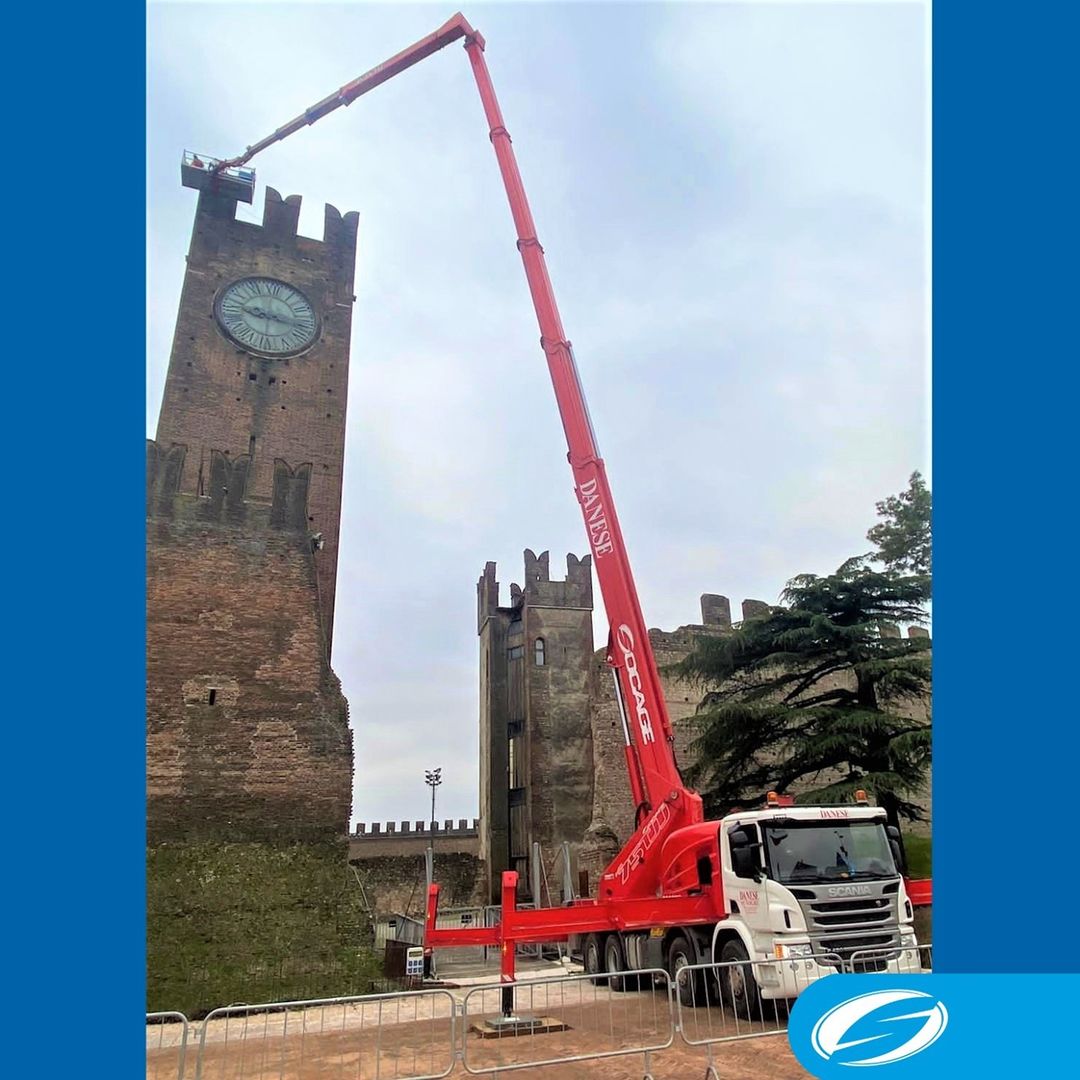

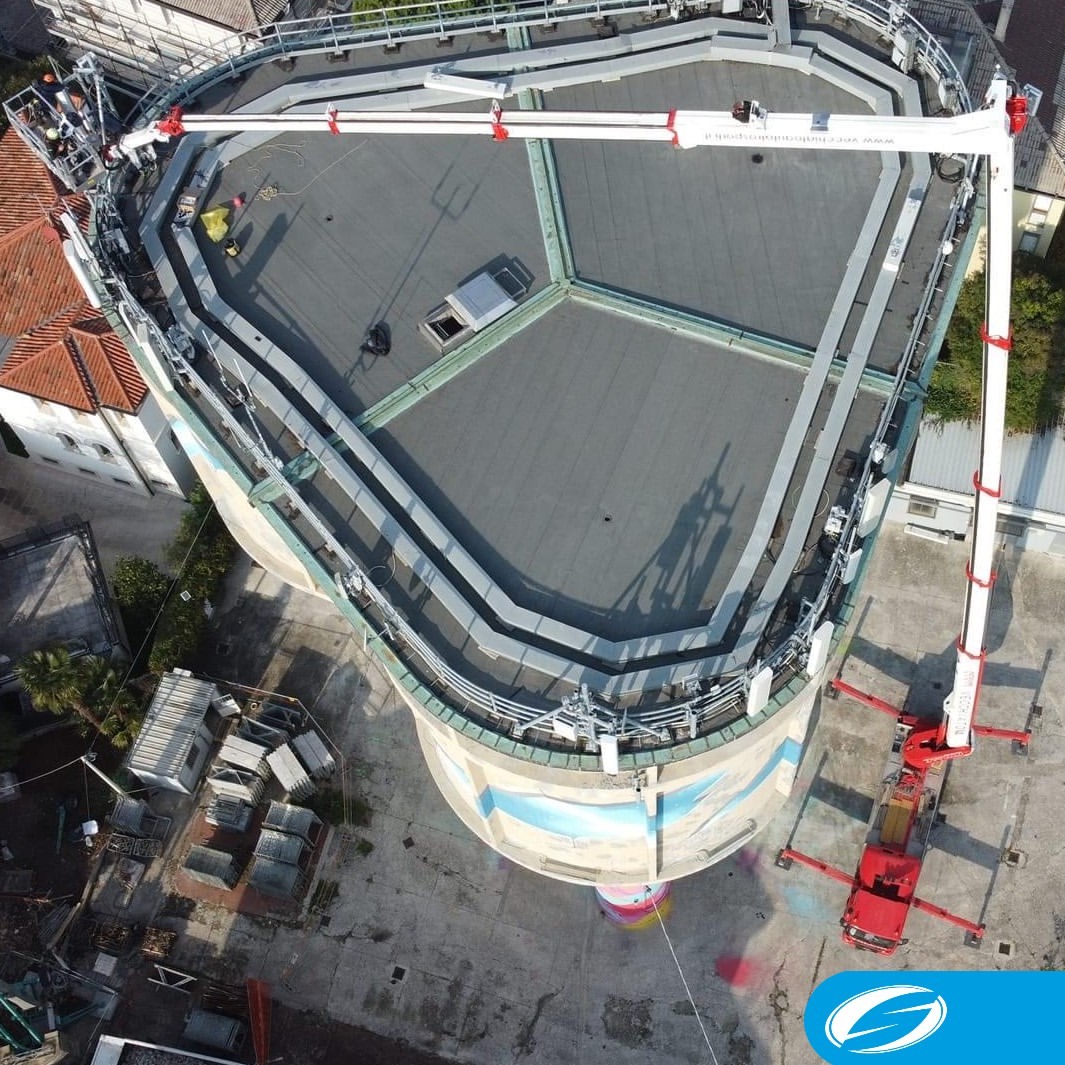

SOCAGE 75TJJ is an aerial work platform with a jib that can be installed on trucks with p.t.t. minimum from 32 tons. This model is provided with a secondary boom that allows the equipment to perform maneuvers that would not be possible with a basket with only one JIB. It reaches a working height of 75m and a horizontal reach of 40m, in addition, has a large load capacity of 600 kg (6 operators + material).

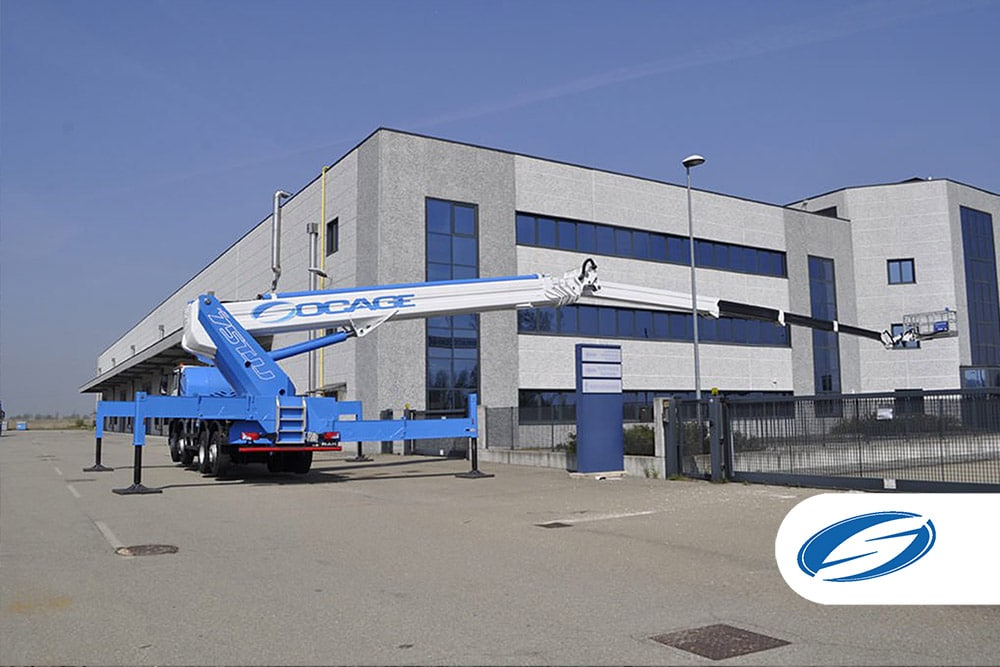

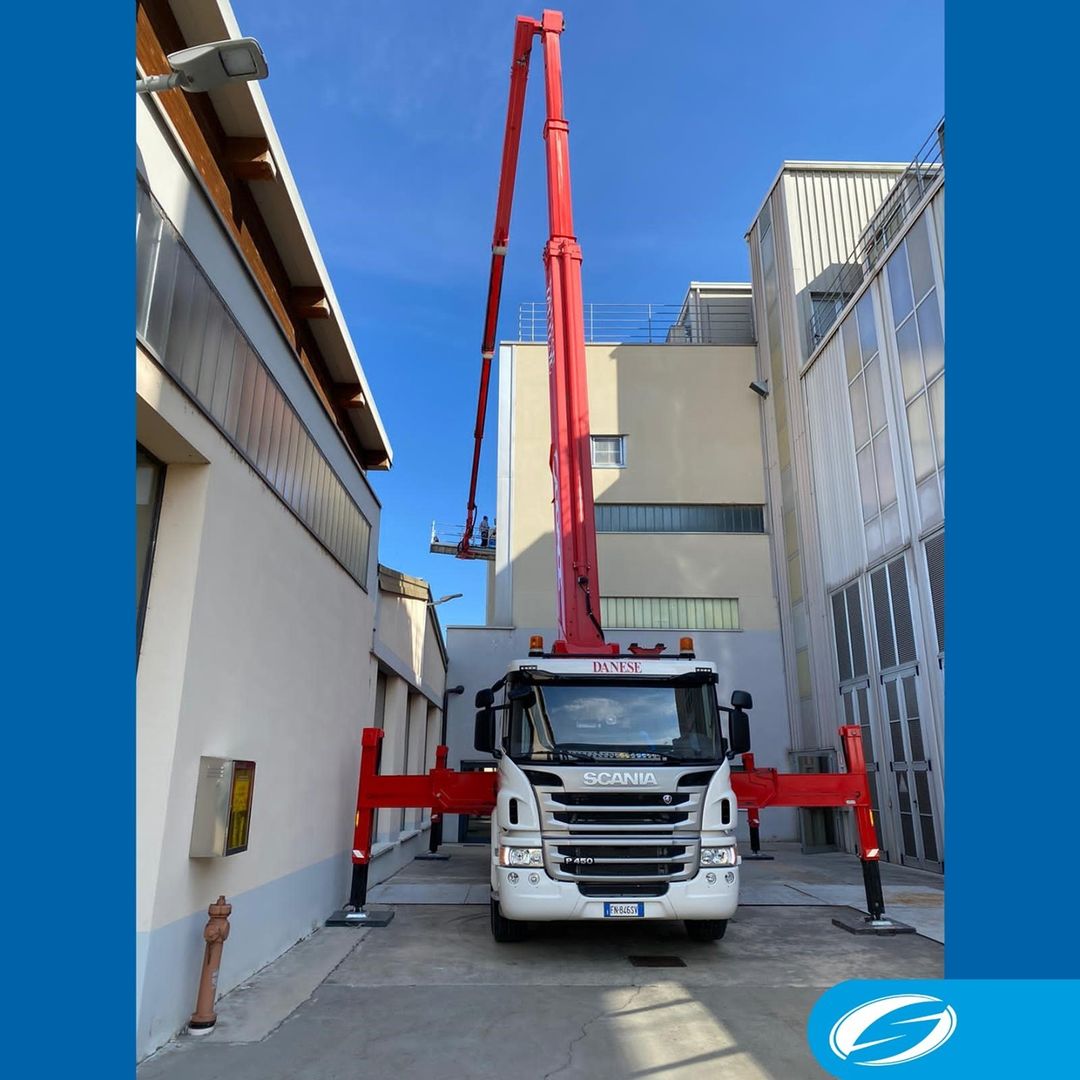

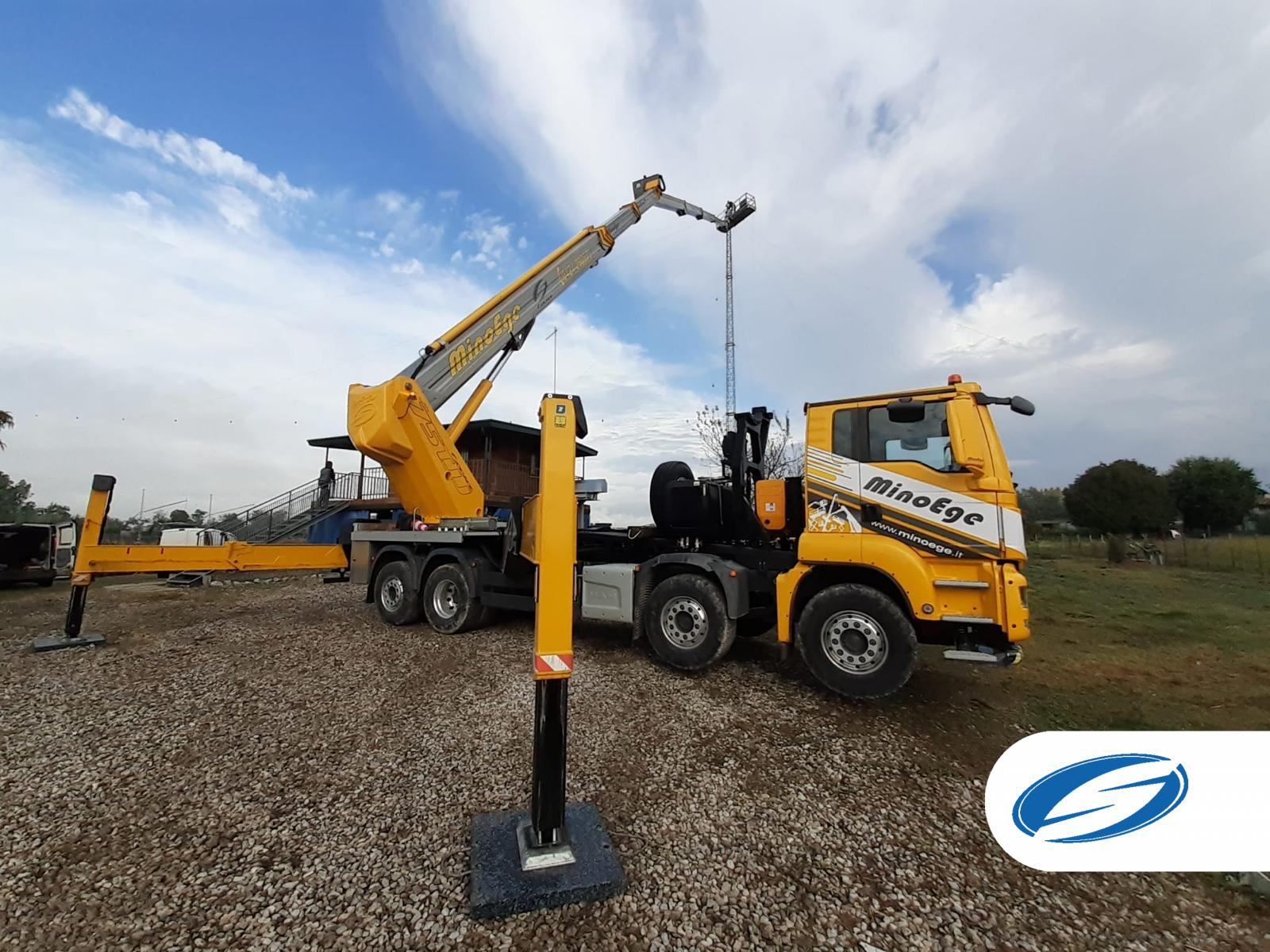

Equipped as standard with a multi-zone stabilization system that allows the operator to choose between different options depending on the available space for the truck; In addition, the rear stabilizing crossmembers have 2 hydraulic extensions that increase the stabilization area and, therefore, the maximum performance of the equipment.

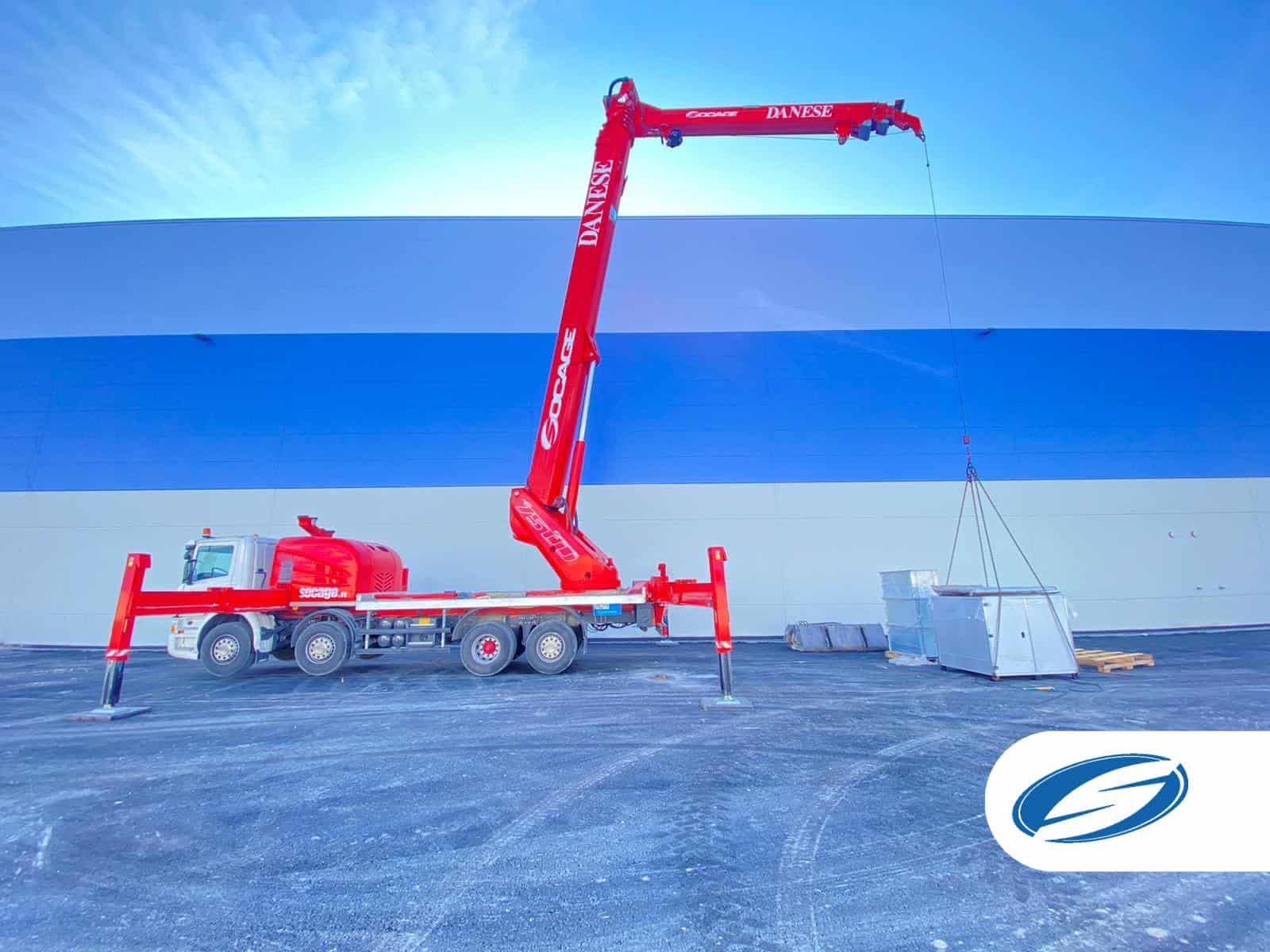

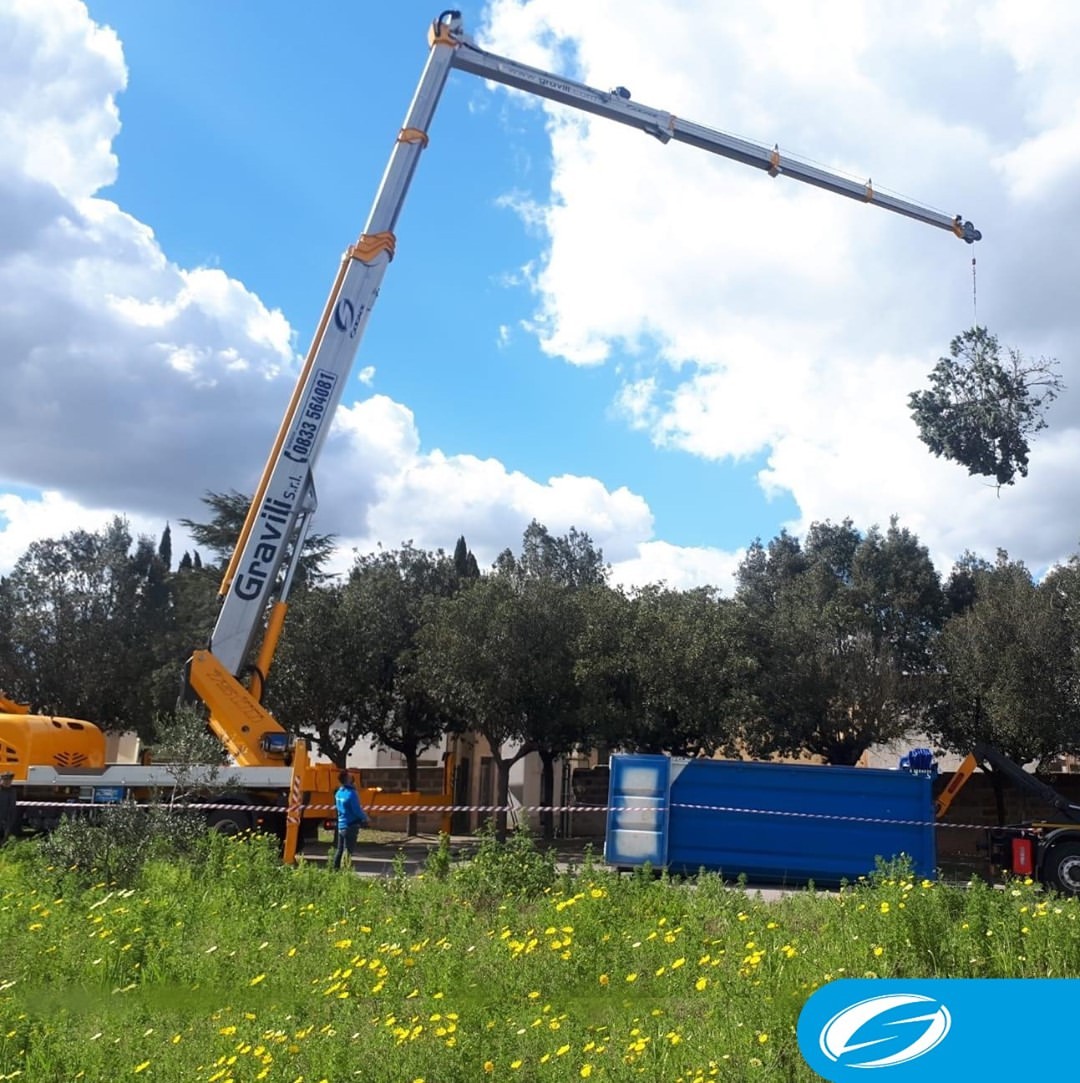

Can be equipped with a boom-mounted hydraulic winch, with a capacity of 900/1500 kg, to be used as a crane after removing the aluminum basket.
The dimension of the aluminum basket is 2300 x 900 x h 1100 mm, expanding hydraulically to 3600 mm to increase the workspace. The rotation of the basket is 360º (180 ° left + 180 right) allowing great versatility of positioning for the job, even under a bridge.
| Working height, max. | 74,50 m |
| Platform height, max. | 72,50 m |
| Outreach, max. | 40,00 m |
| Basket load capacity, max. | 600 kg |
| Turret rotation | 7000 |
| Basket dimensions | 230/360 x 90 x 110 cm |
| Basket | Aluminum |
| Basket rotation | 3600 |
| Outrigger | HE+HE |
| Controls | Electric |
| GVW | 32 ton |
| Winch | 900/1500 kg |
Standard Equipment:
Safety Devices:
