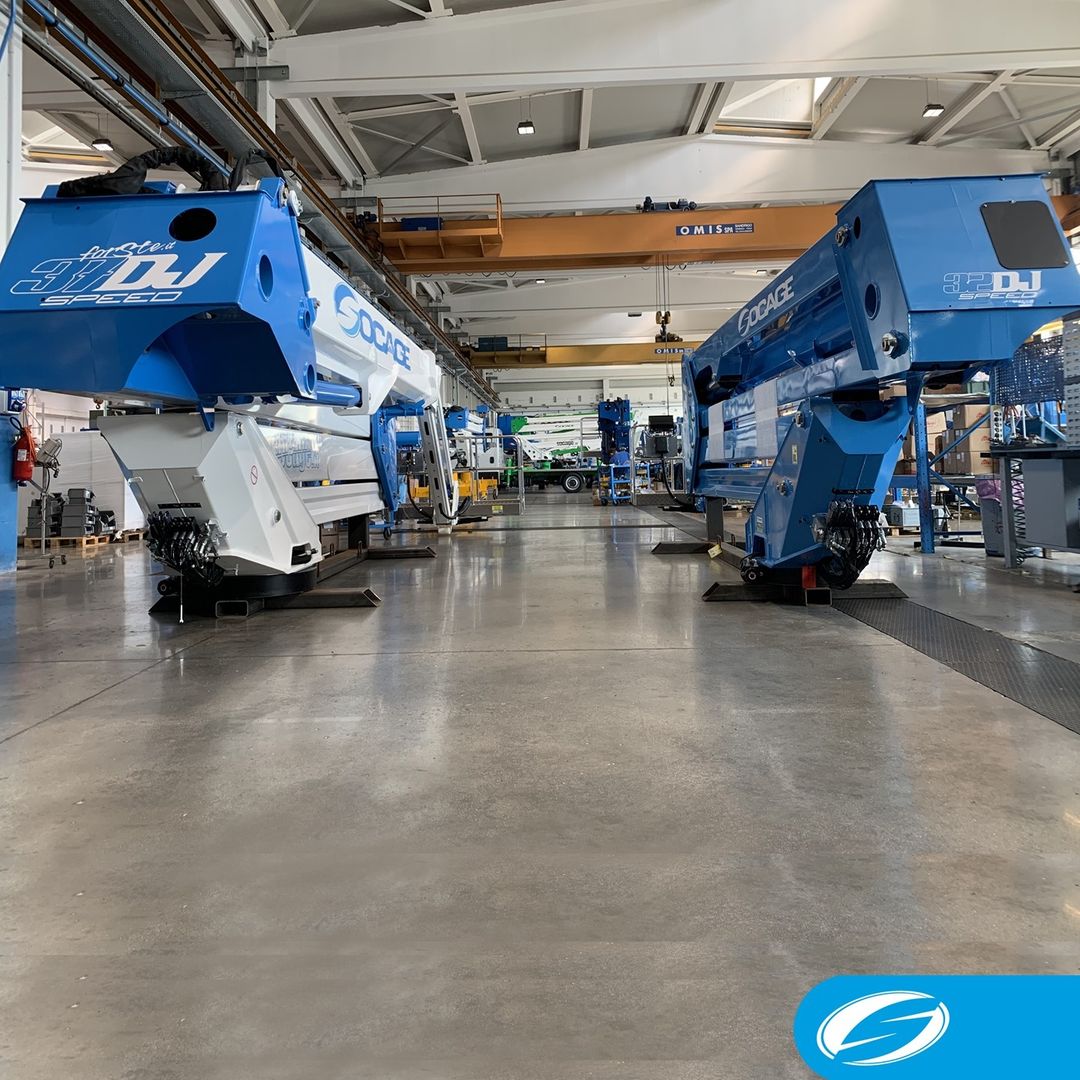

forSte 32DJ Speed

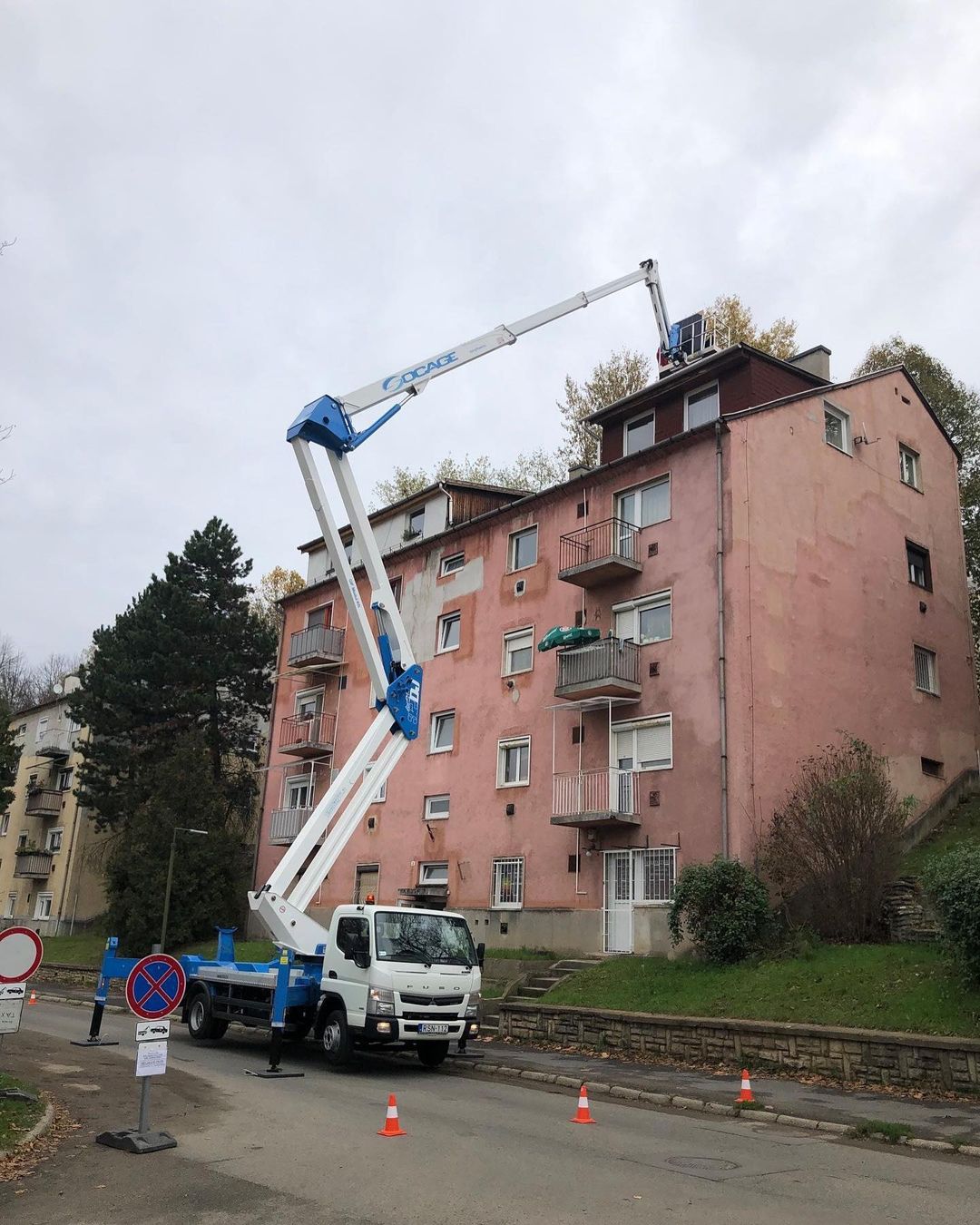

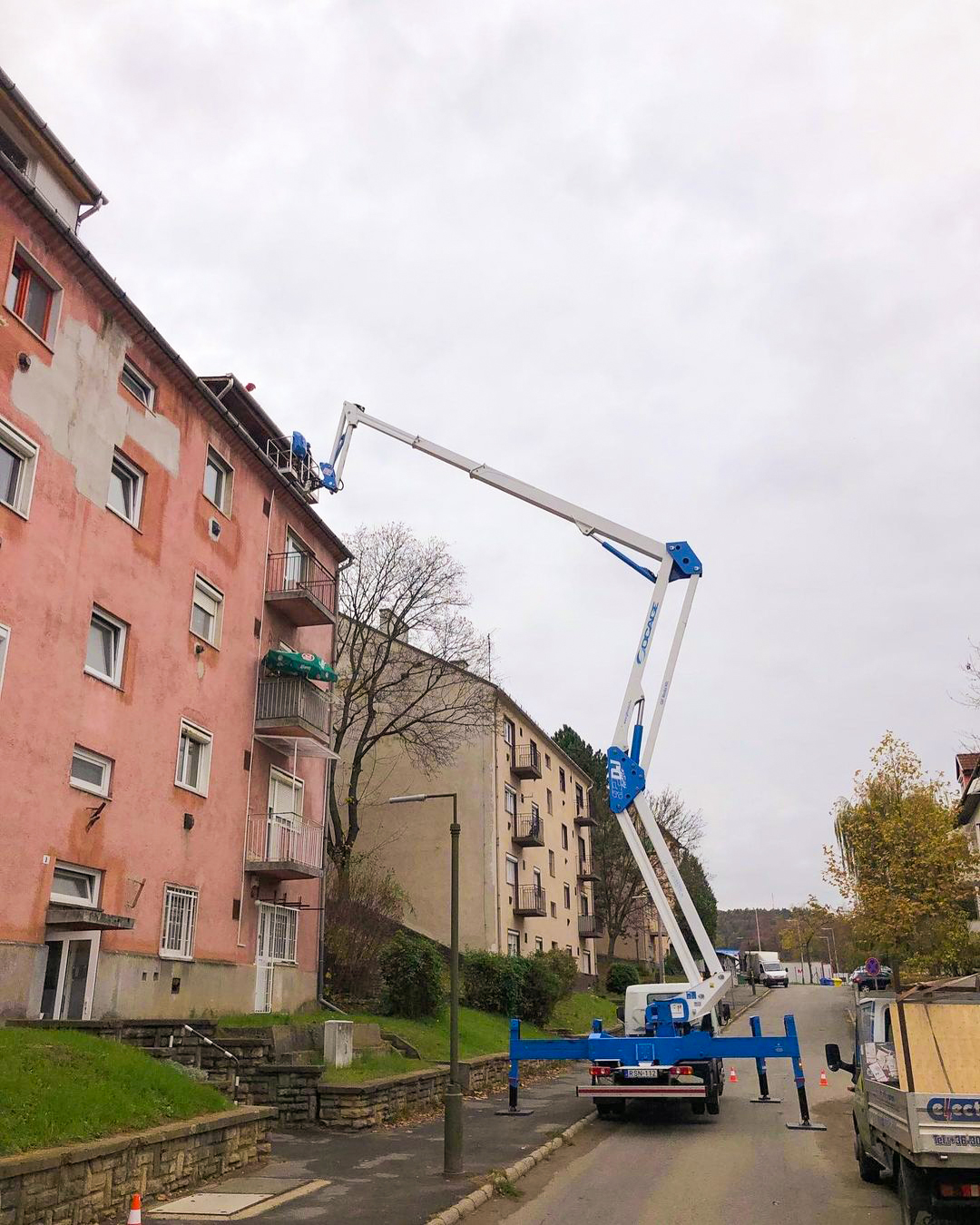

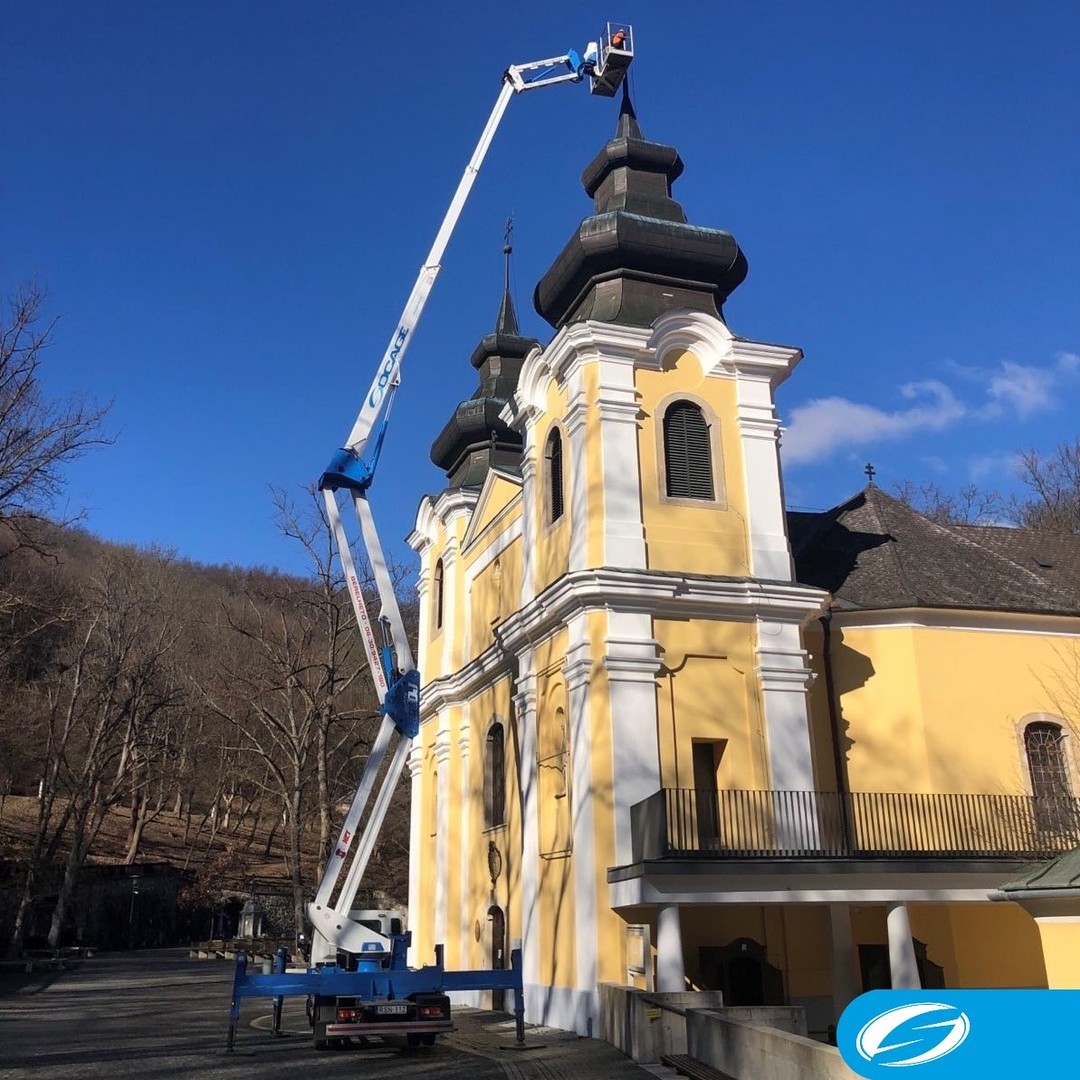

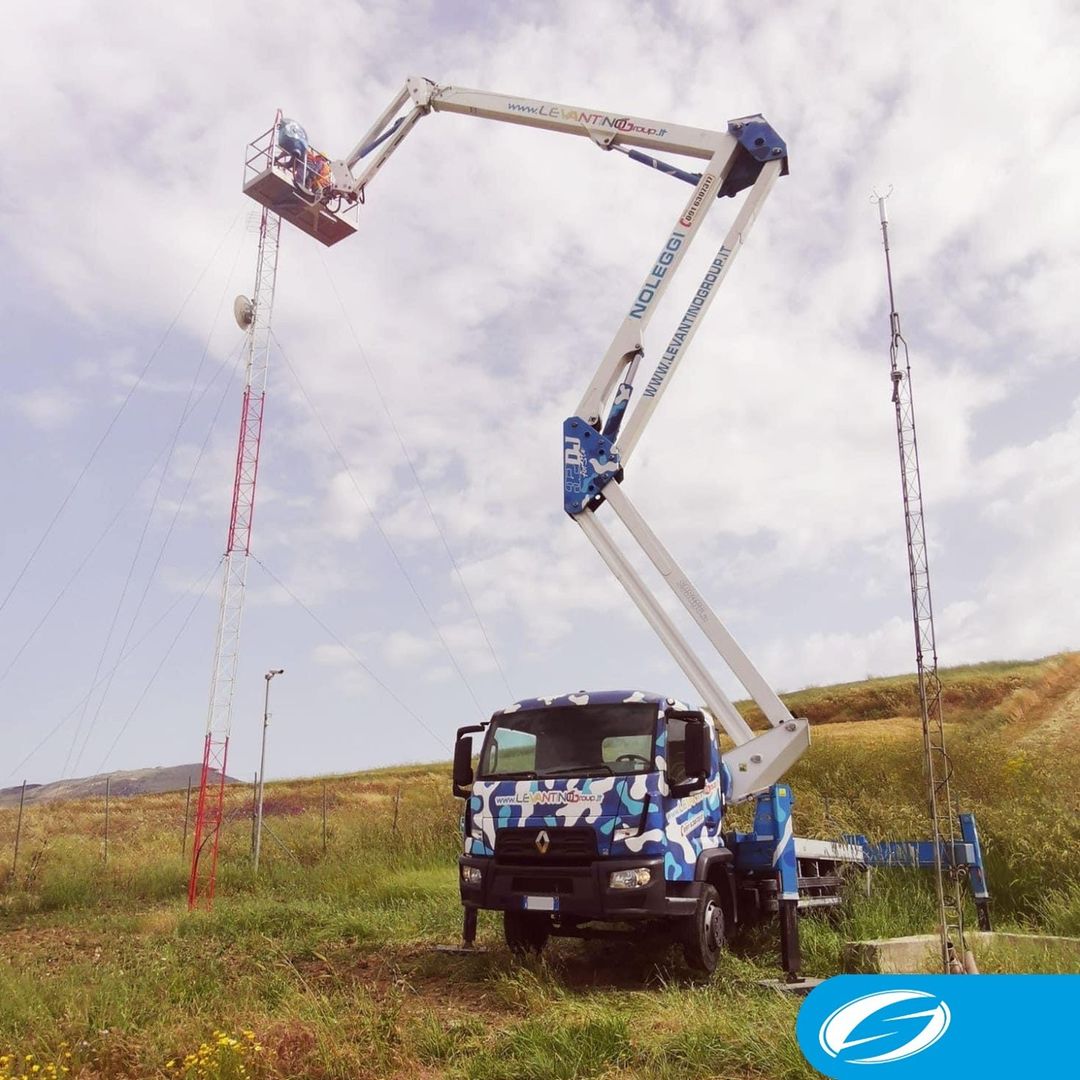

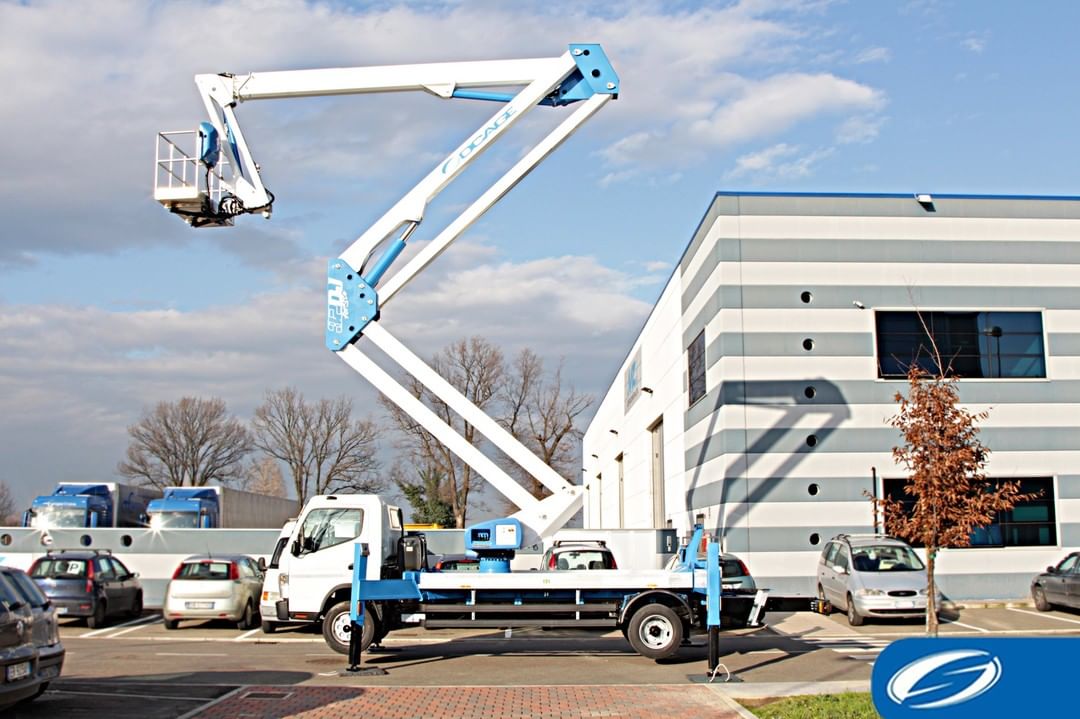

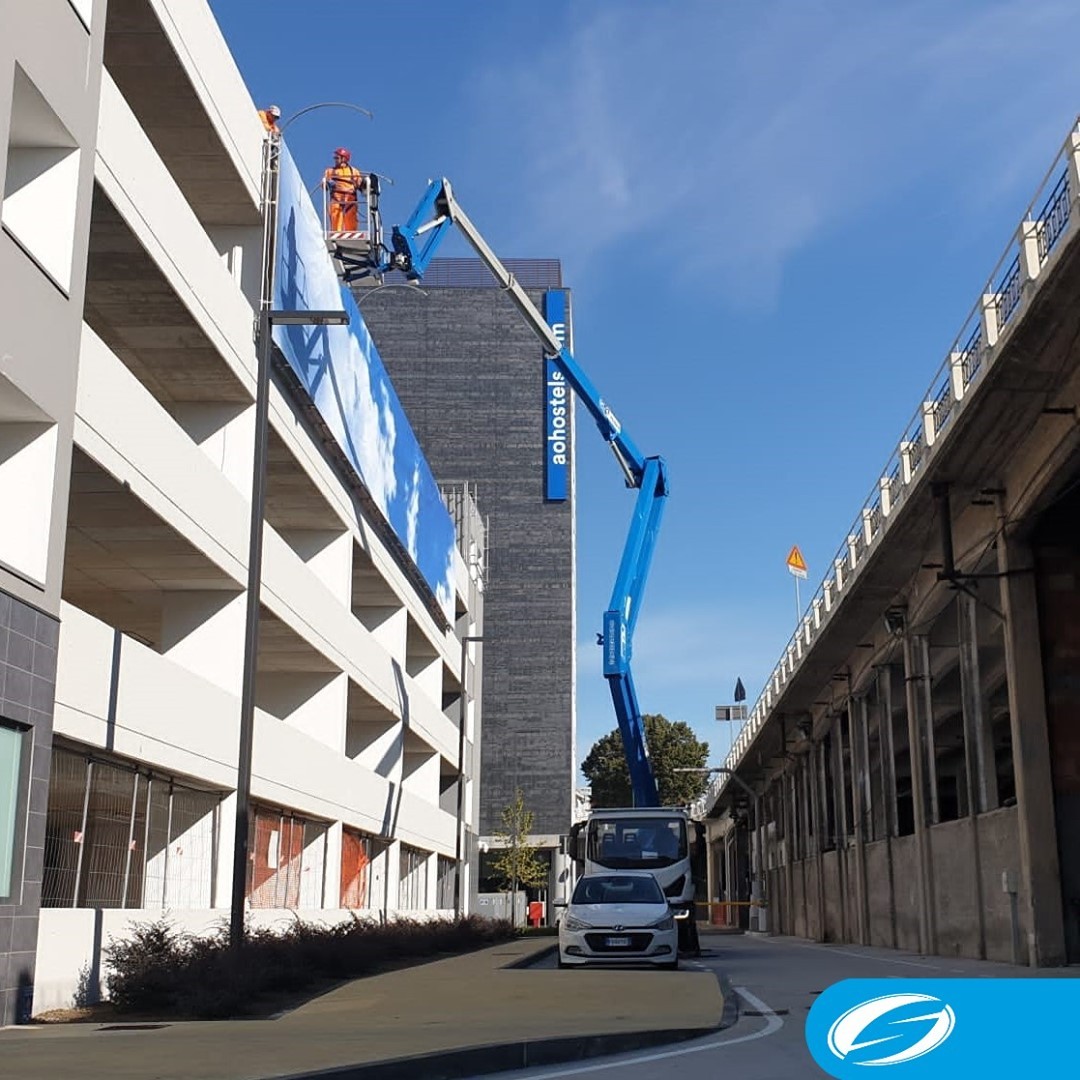

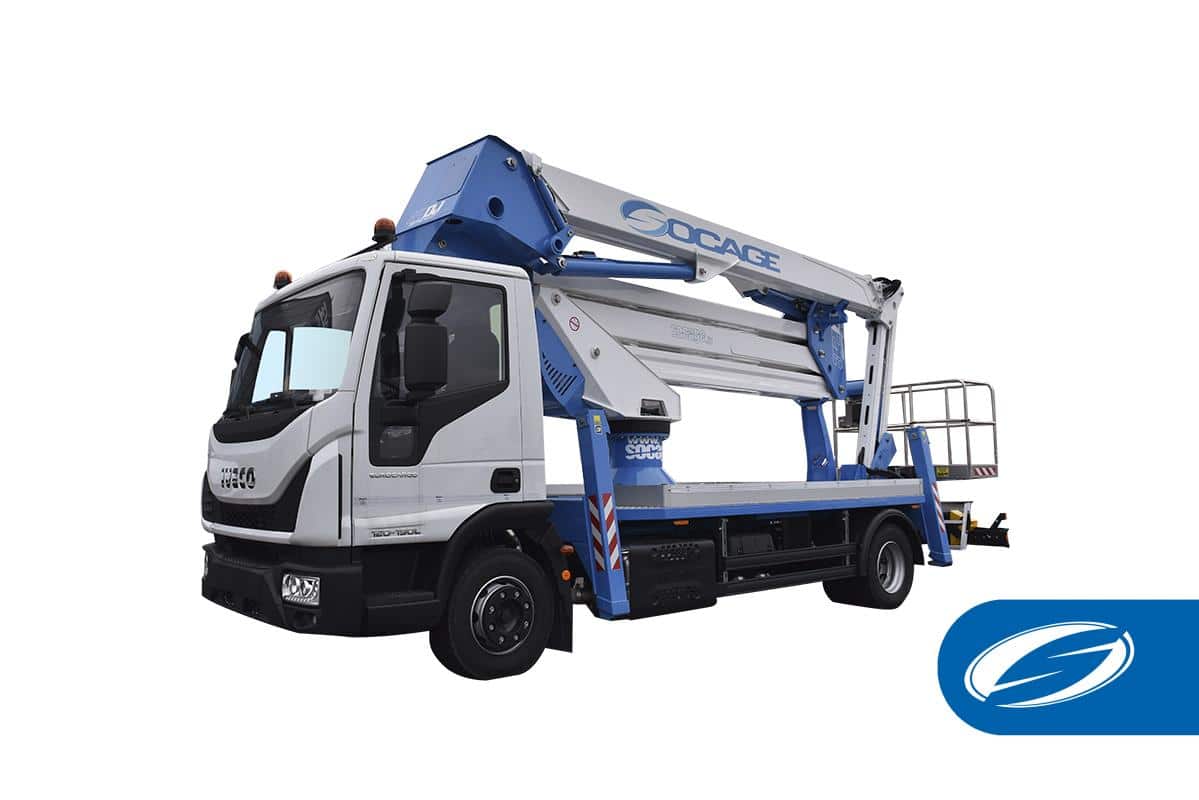

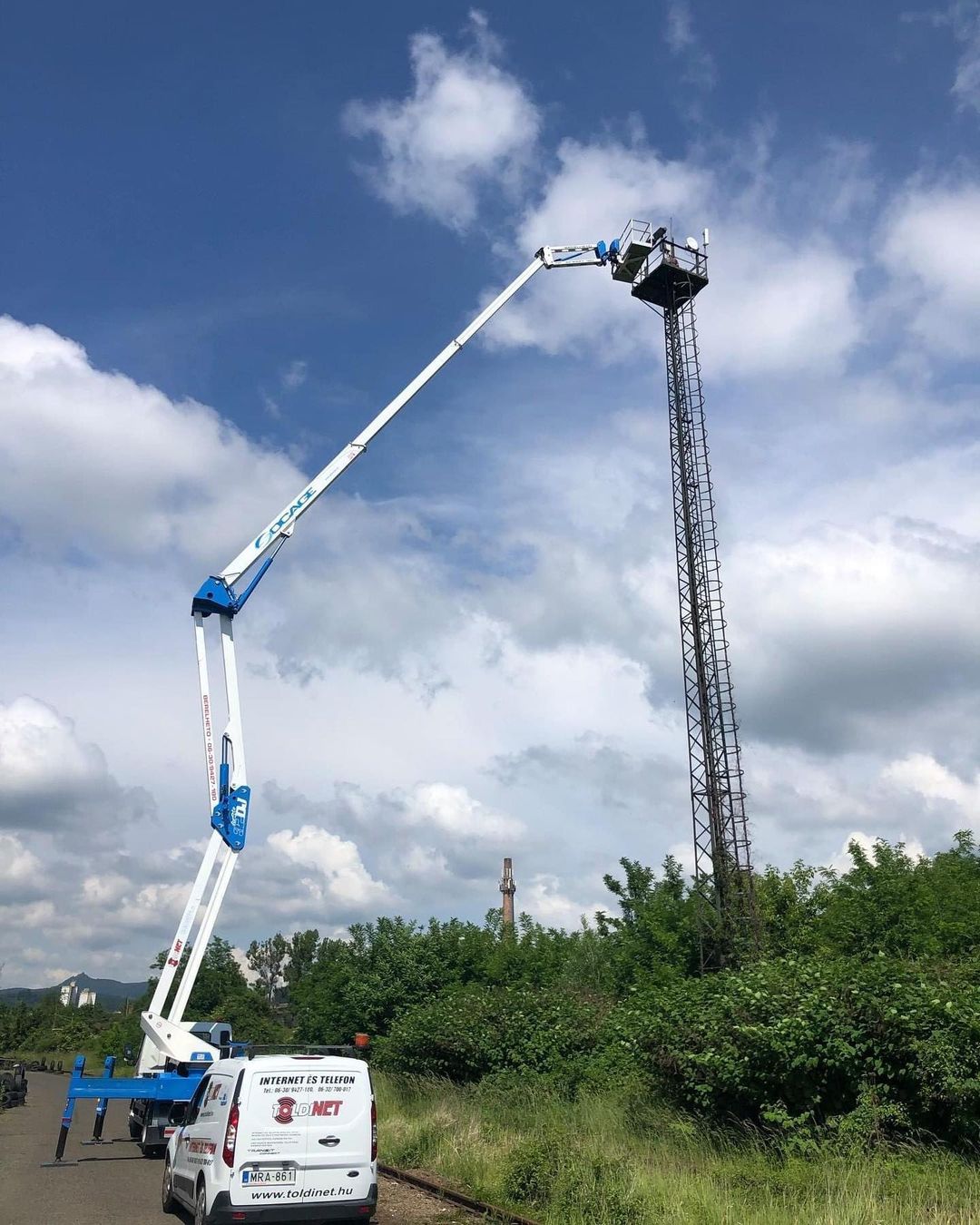

SOCAGE forSte 32DJ Speed is a truck-mounted aerial platform with JIB, that can be mounted on 2-axle trucks of 10T. It reaches a working height of 32m and a horizontal reach of 18m, in addition, has a large load capacity of 280 kg (3 operators + material).

As standard, it has automatic stabilization together with a fixed vertical stabilization SOCAGE H + H. A combination that guarantees a stabilization maneuver of great simplicity of use, fast and safe with a minimum occupation of the stabilization surface.

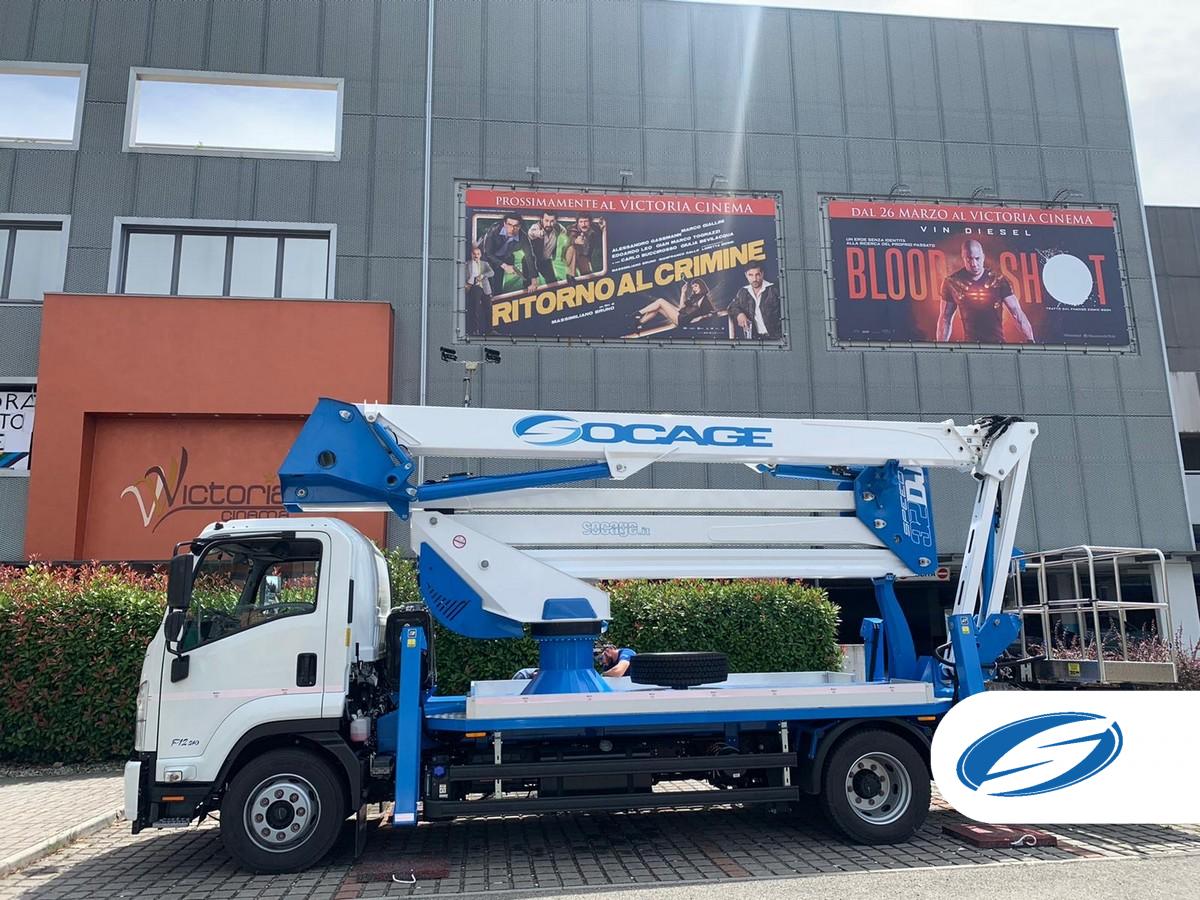

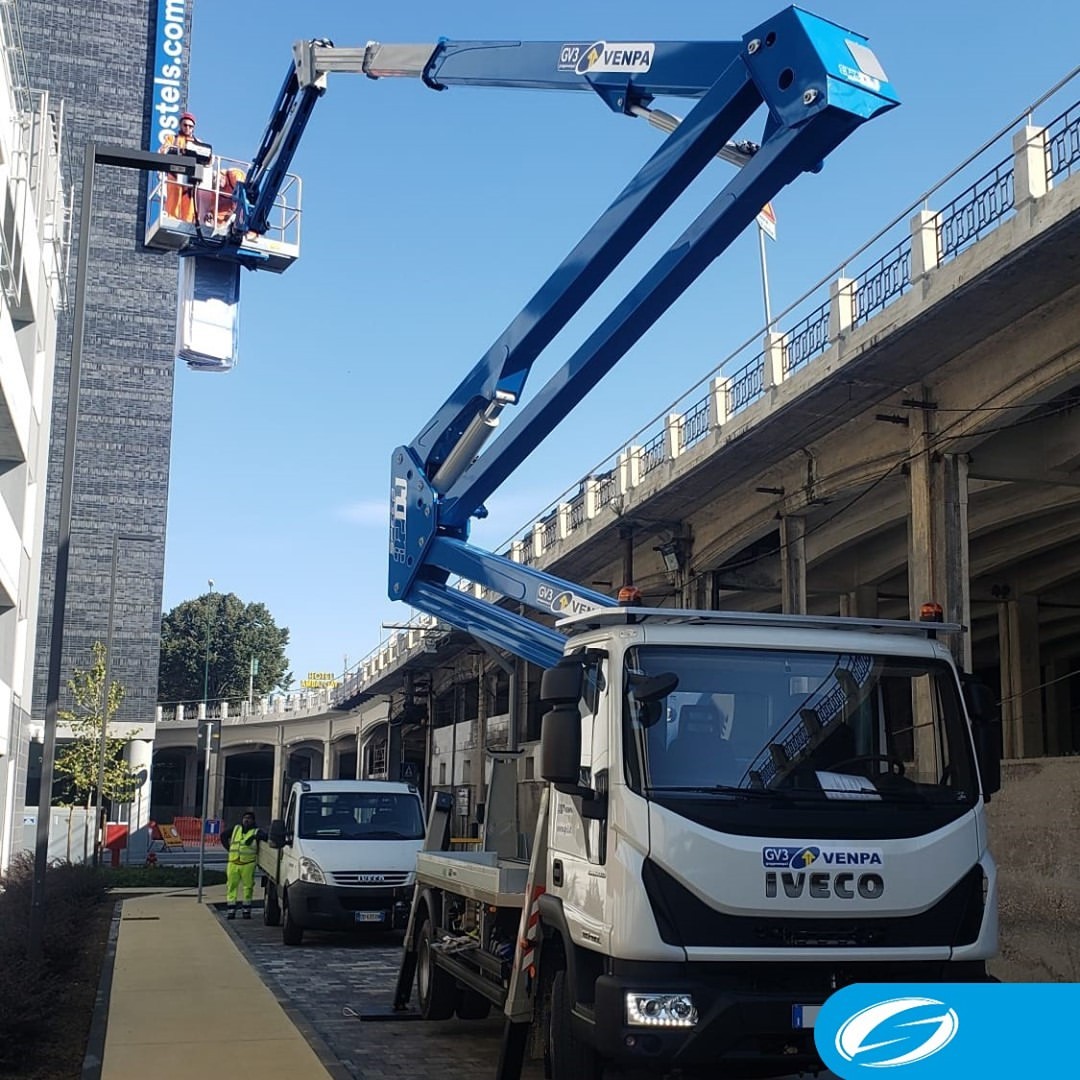

Assembly Available On Iveco  & Isuzu Trucks.

The compact dimensions ensure great mobility that improves the profitability of the equipment, and allows greater uses in urban and industrial areas.

Compare
Category: Tags: , ,

Description

Performance

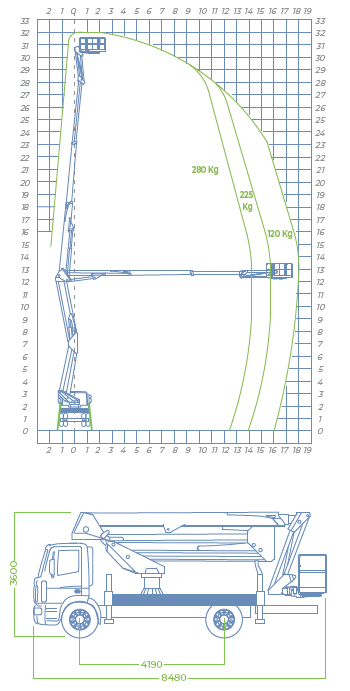

Working height, max. 32,00 m
Platform height, max. 30,00 m
Outreach, max. 18,00 m
Basket load capacity, max. 280 kg
Turret rotation 7000
Basket dimensions 180 x 80 x 110 cm
Basket Aluminum
Basket rotation 900+900
Outrigger H+H
Controls Electric
GVW ≥ 12 ton

Standard Equipment:

  • Aluminum basket: dimensions 1800 x 700 x 1100 mm
  •  Hydraulic rotation basket 90° + 90°
  • Rotation turret 700°
  • Automatic stabilization SPEED
  • Vertical stabilizers with extra stroke H+H
  • Double or triple work area depending on the installation
  • Automatic stabilization controls from the basket and from the ground
  • Proportional electro-hydraulic controls with speed regulation of all movements
  • CAN BUS electronic management system
  • Engine start/stop control from the basket
  • Heat exchanger
  • Digital hour counter
  • 4 plates to stand on the ground
  • Socket 230v
  • Magnetic roto-lamp on the vehicle cabin
  • Powder-Coated Cataphoresis Treatment
  • Tool trunk
  • Under-run
  • 150 mm aluminum side rails

Safety Devices:

  • Emergency and stop button
  • Cross-check of open stabilizers
  • Multi-axial device for visual control of frame stabilization
  • Intelligent cabin anti-collision sensor
  • Load limiter in the basket
  • Moment-limiting device with double security
  • Emergency manual pump
  • Chassis flatness sensor
  • Flanged block valves
  • Differentiated filtering hydraulic system with high efficiency filters both on the delivery lines and on the return lines
  • Automatic basket leveling
  • PTO automatic cut-off
  • Control from the basket for acoustic signal
