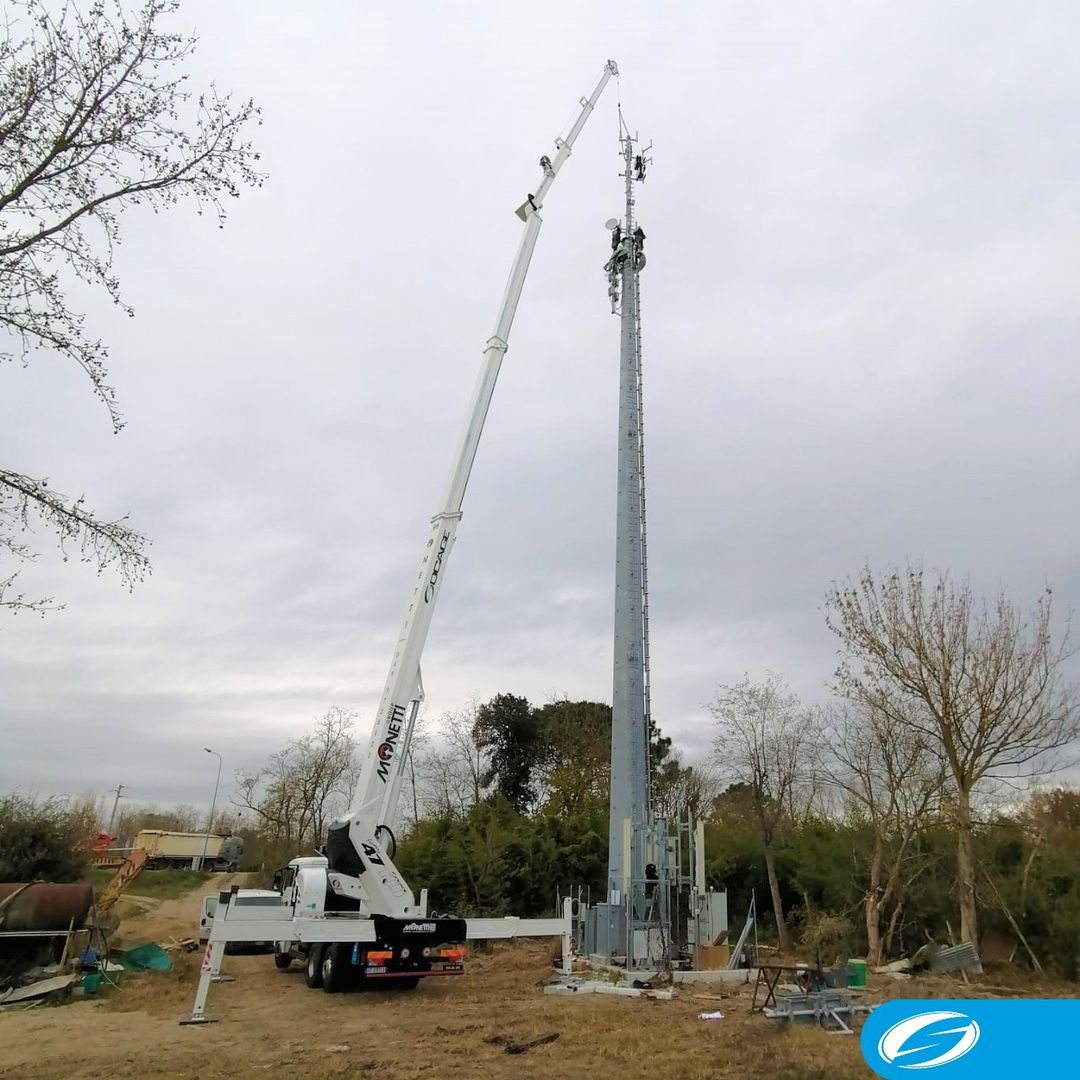

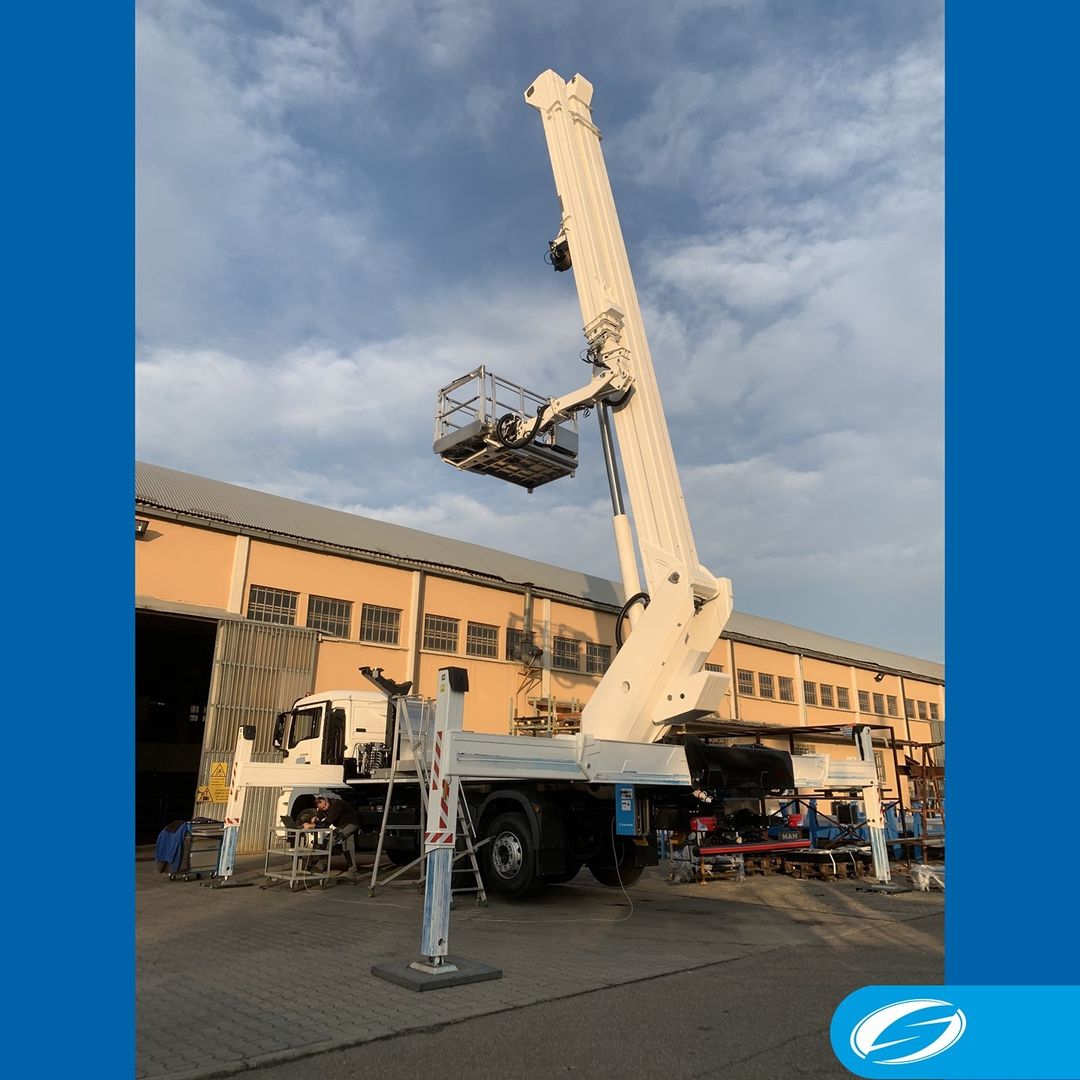

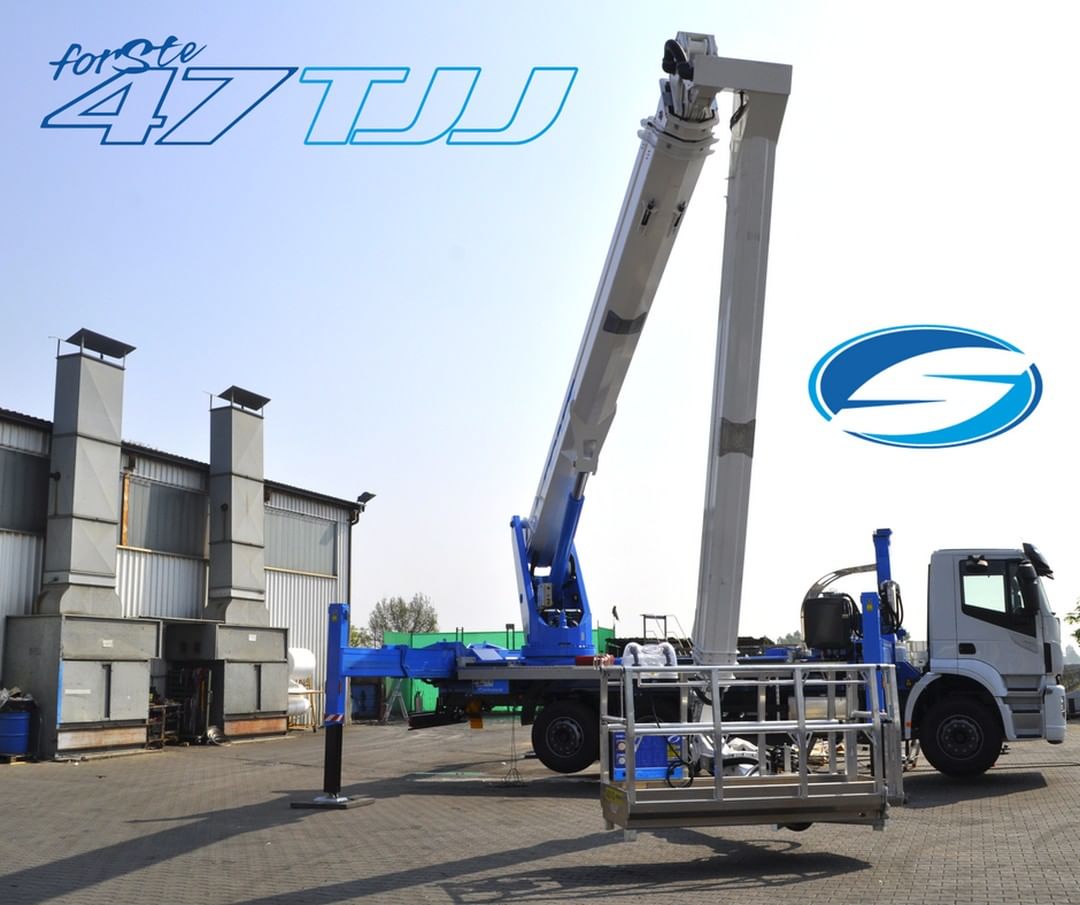

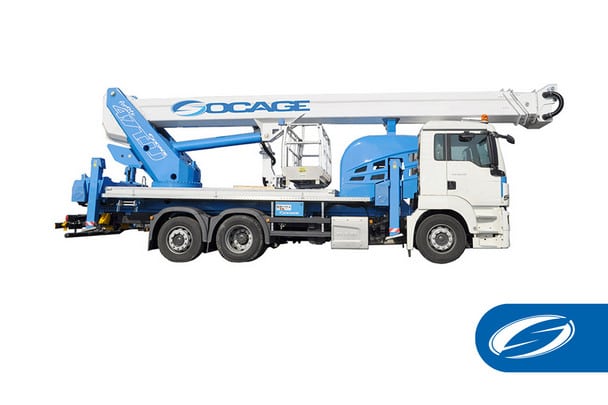

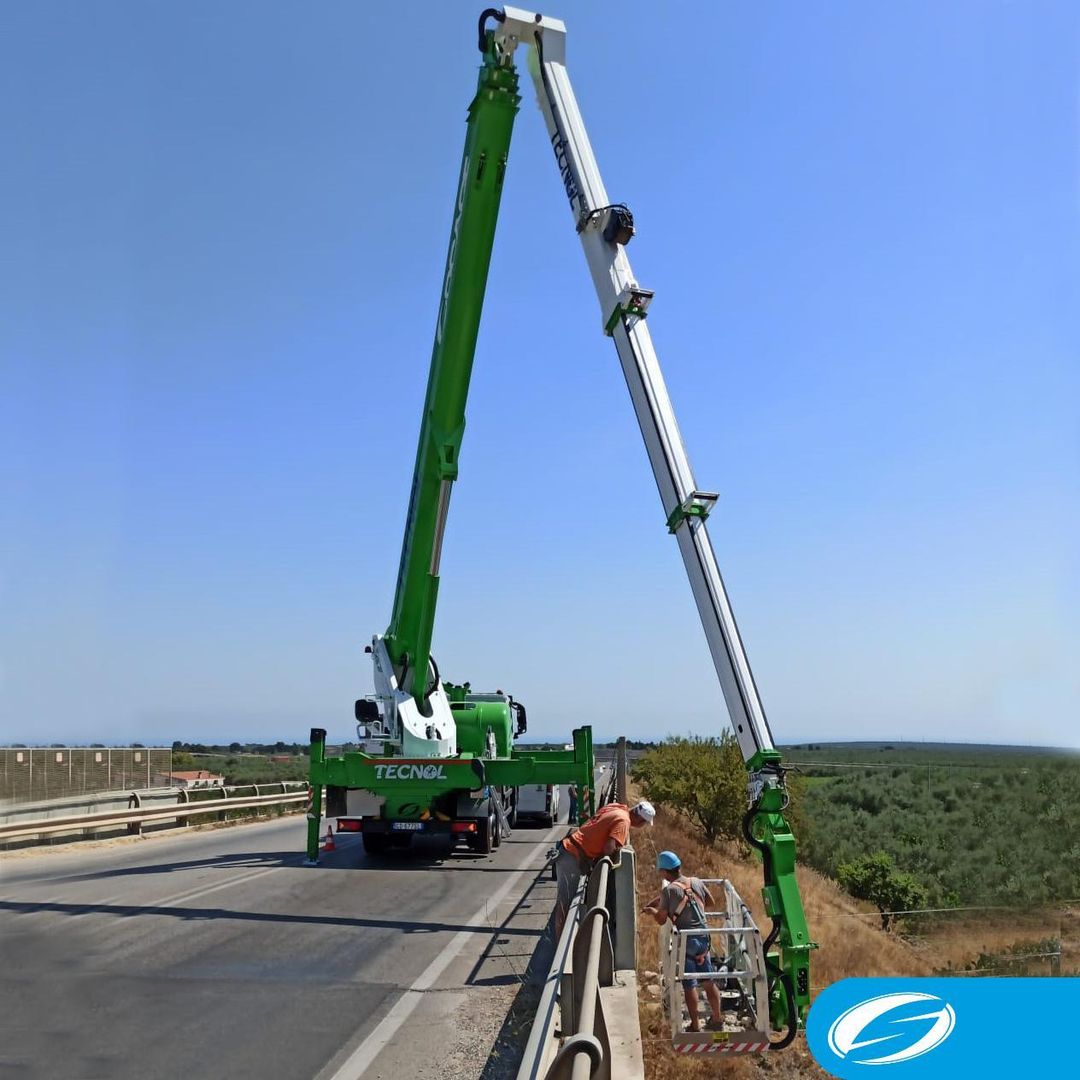

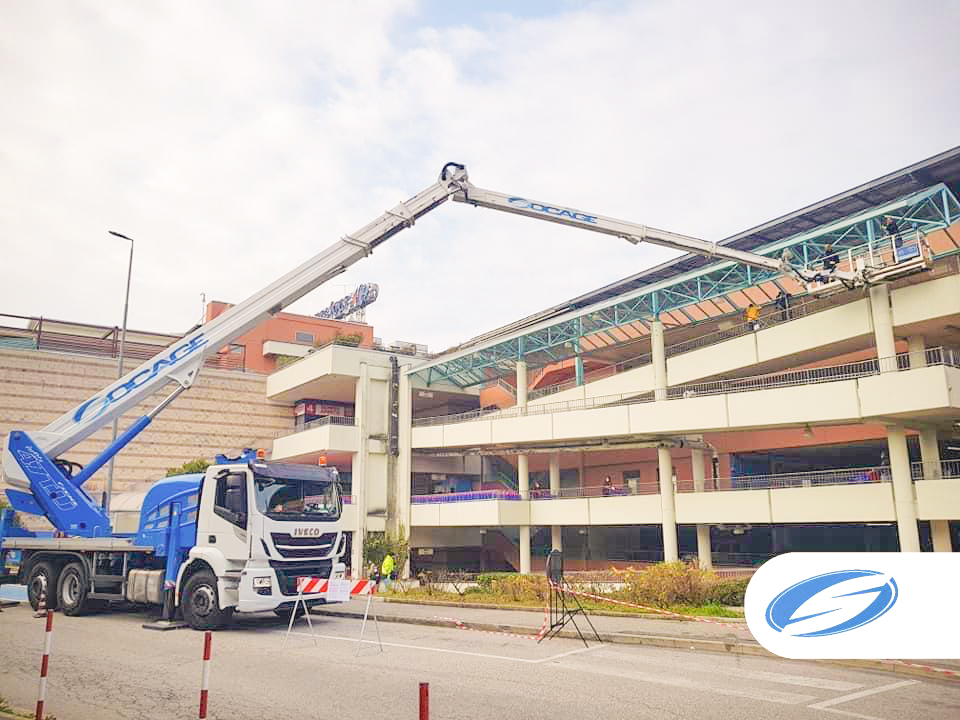

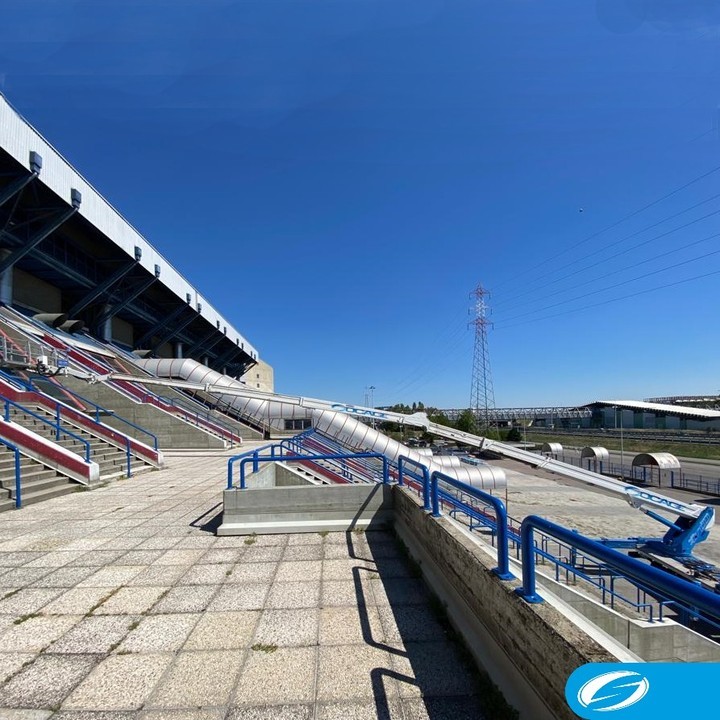

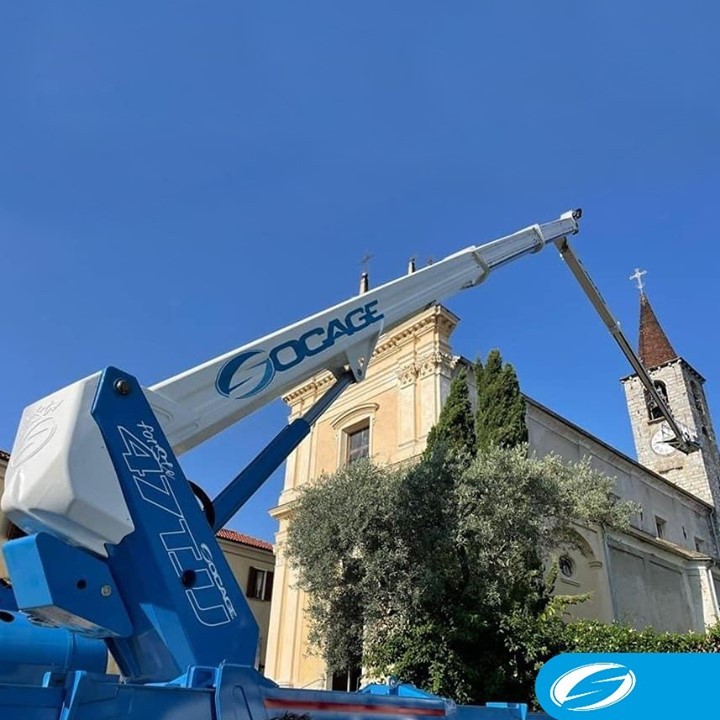

SOCAGE forSte 47TJJ is a double JIB / jib telescopic aerial platform that can be installed on trucks with p.t.t. minimum from 18 tons. It reaches a working height of 47m and a horizontal reach of 30m, in addition, has a large load capacity of 600 kg (6 operators + material).

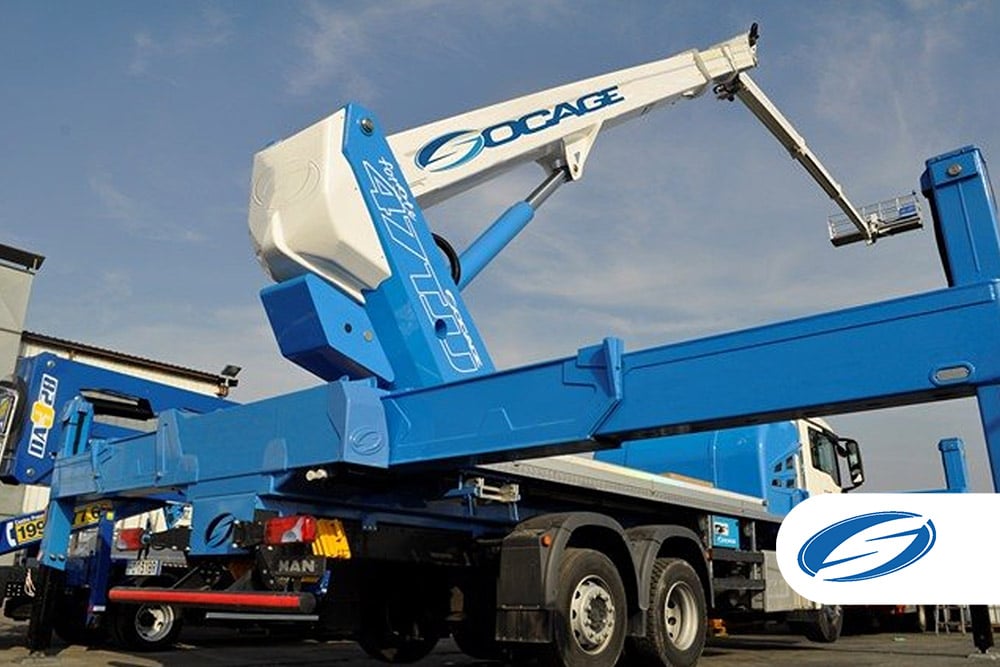

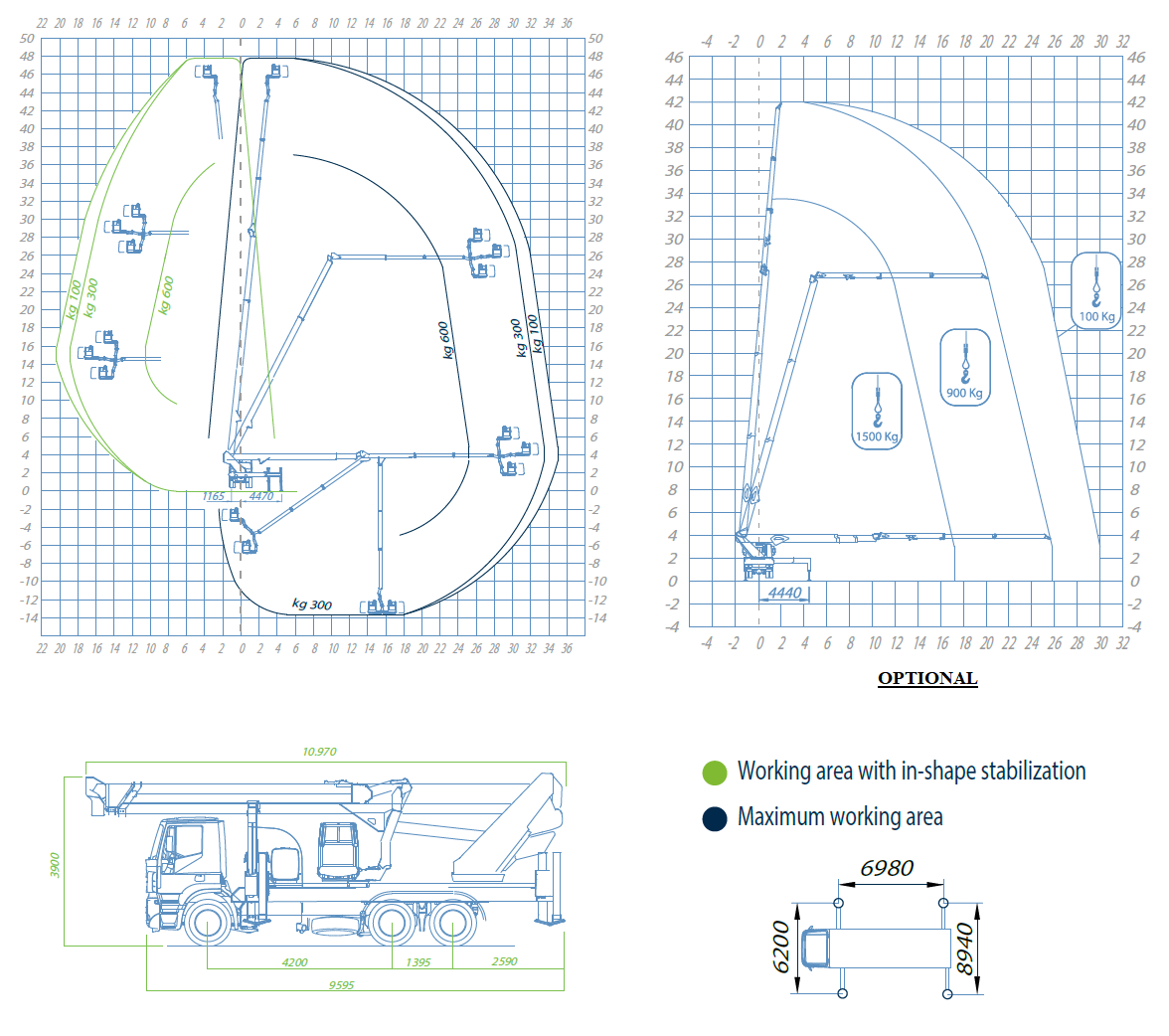

Equipped as standard with a multi-zone stabilization system that allows the operator to choose between different options depending on the available space for the truck; In addition, the rear stabilizers of the 47TJJ consist of 2 hydraulic extensions that increase the stabilization area and, therefore, the maximum performance of the equipment.
Can be equipped with a 900/1500 kg capacity boom-mounted hydraulic winch, which can be used as a crane after removing the aluminum platform.
The emergency controls are remotely controlled by radio control to allow the operator to position himself according to the best point of visibility of the entire assembly during the maneuver.
| Working height, max. | 47,70 m |
| Platform height, max. | 45,70 m |
| Outreach, max. | 30,00 m |
| Basket load capacity, max. | 600 kg |
| Turret rotation | 7000 |
| Basket dimensions | 230/330 x 90 x 110 cm |
| Basket | Aluminum |
| Basket rotation | 3600 |
| Outrigger | HE+HE |
| Controls | Electric |
| GVW | 26 ton |
| Winch | 900/1500 kg |
Standard Equipment:
Safety Devices:
