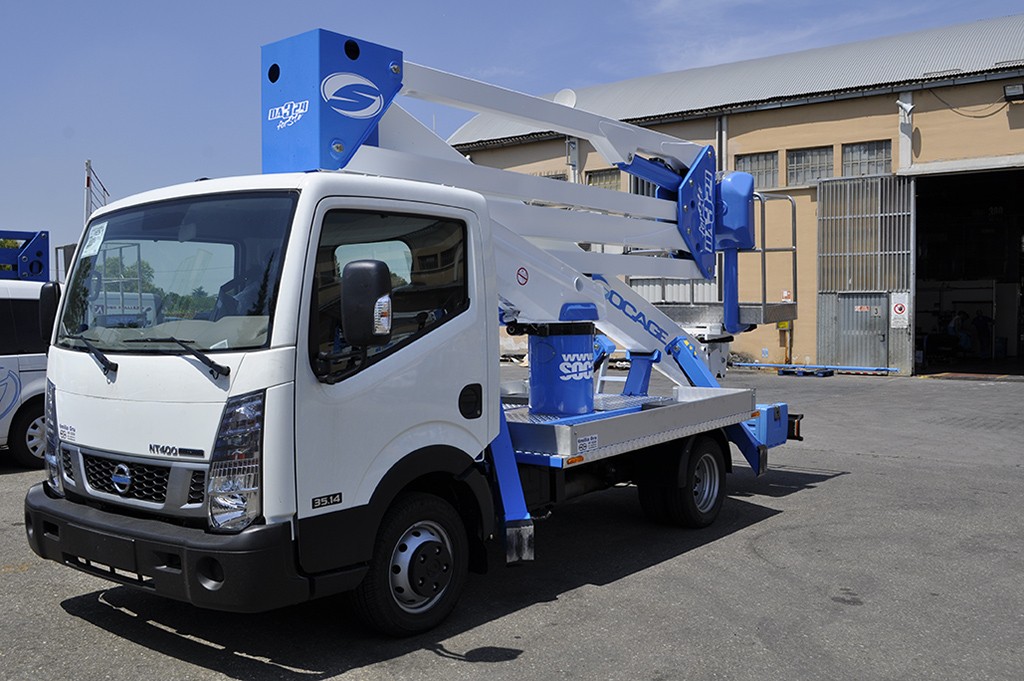

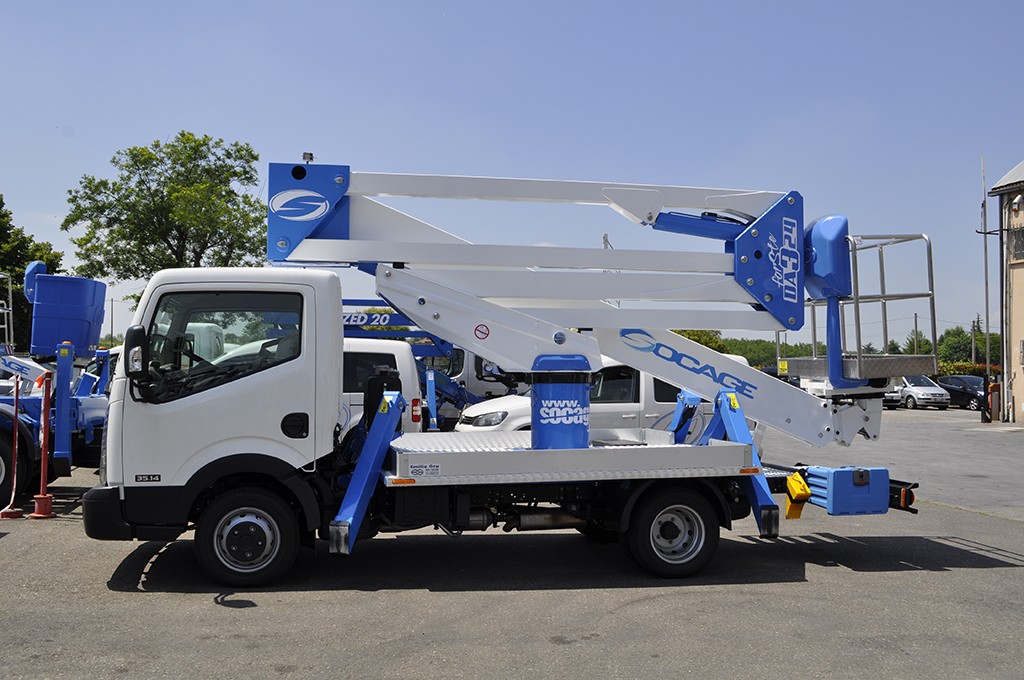

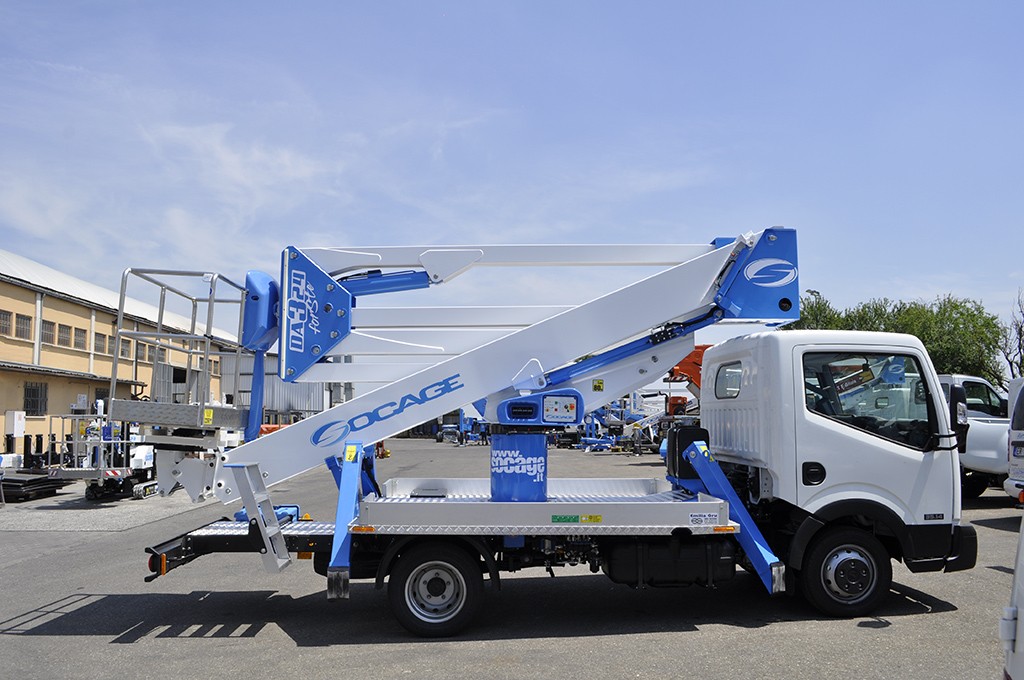

Socage DA324 forSte is a double articulated aerial platform installed on a 4.0-ton vehicle, it is a model characterized by its double articulation and has a bi-telescopic boom, to ensure greater precision in the work.

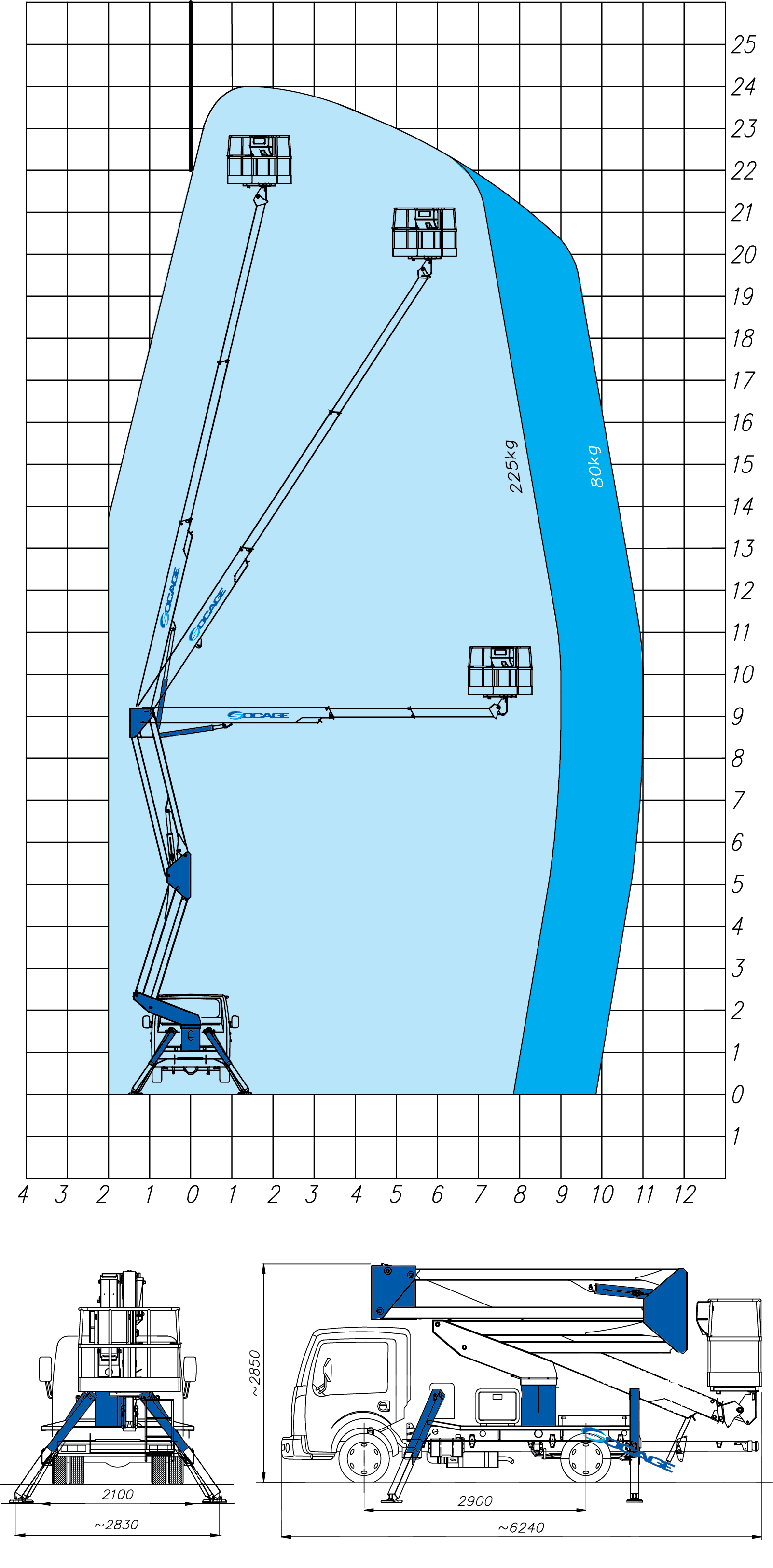

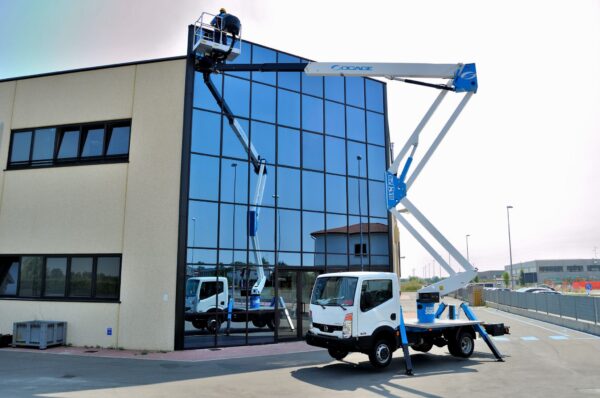

Light and compact equipment, capable of a maximum working height of 24 m, and with a maximum outreach of 11 m, it has a load capacity of 225 kg (02 operators + material + tools), without limitation in the entire area of work.
The turret rotation is continuous, this feature increases the productivity of the aerial platform, avoiding time for repositioning.
| Working height, max. | 24,00 m |
| Platform height, max. | 22,00 m |
| Outreach, max. | 11,00 m |

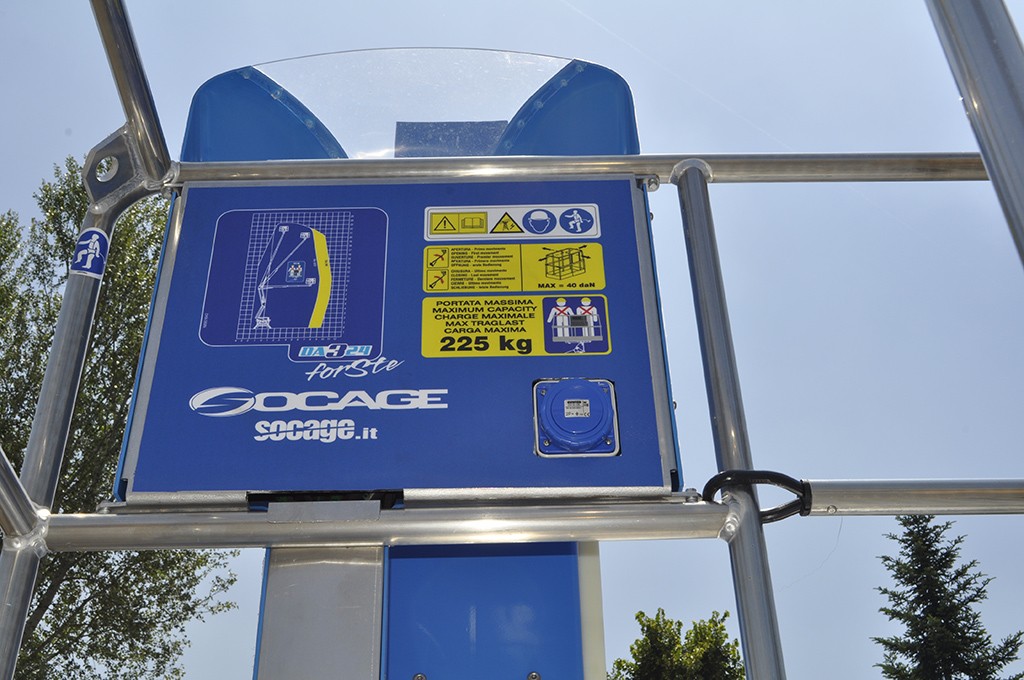

| Basket load capacity, max. | 225 kg |
| Turret rotation | ∞ |
| Basket dimensions | 140 x 70 x 110 cm |
| Basket | Aluminum |
| Basket rotation | 900+900 |

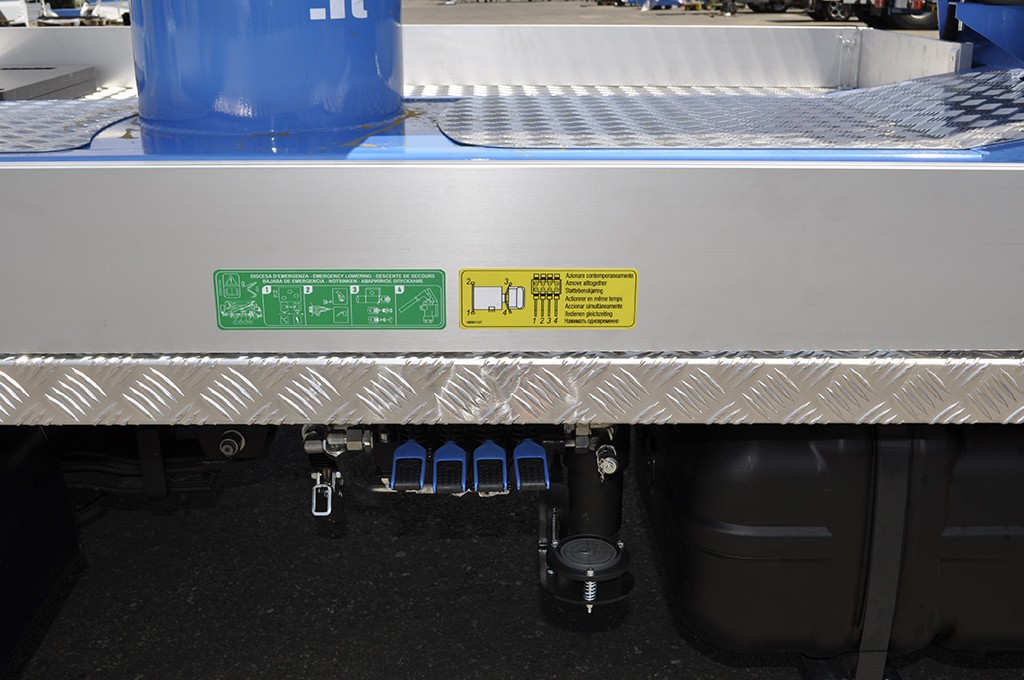

| Outrigger | A+A |
| Controls | Hydraulic |
| GVW | 3.5 t |
Standard Equipment:
Optional Equipment:
