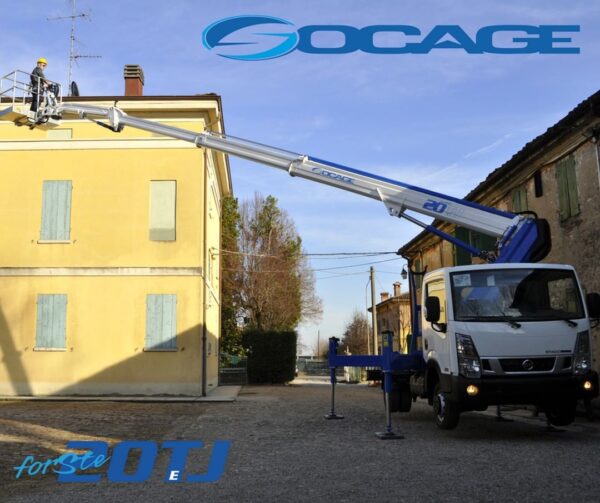

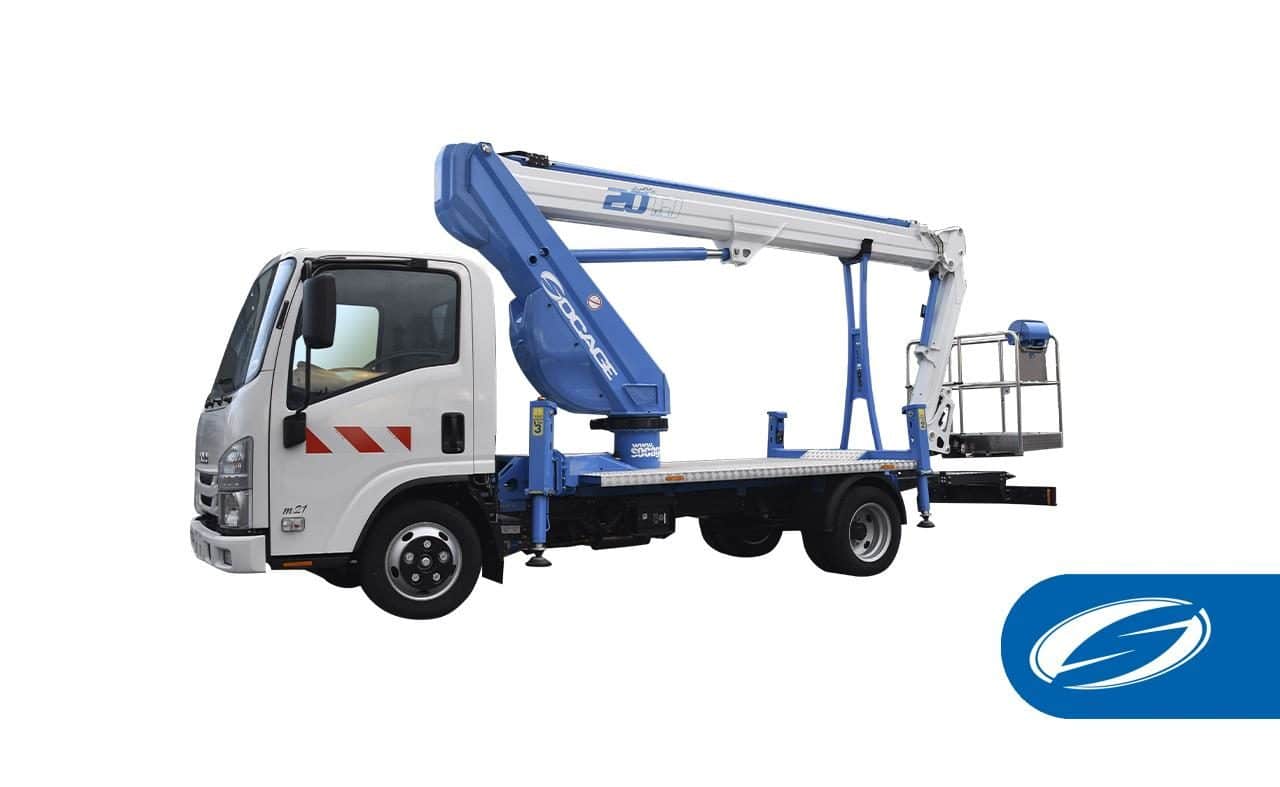

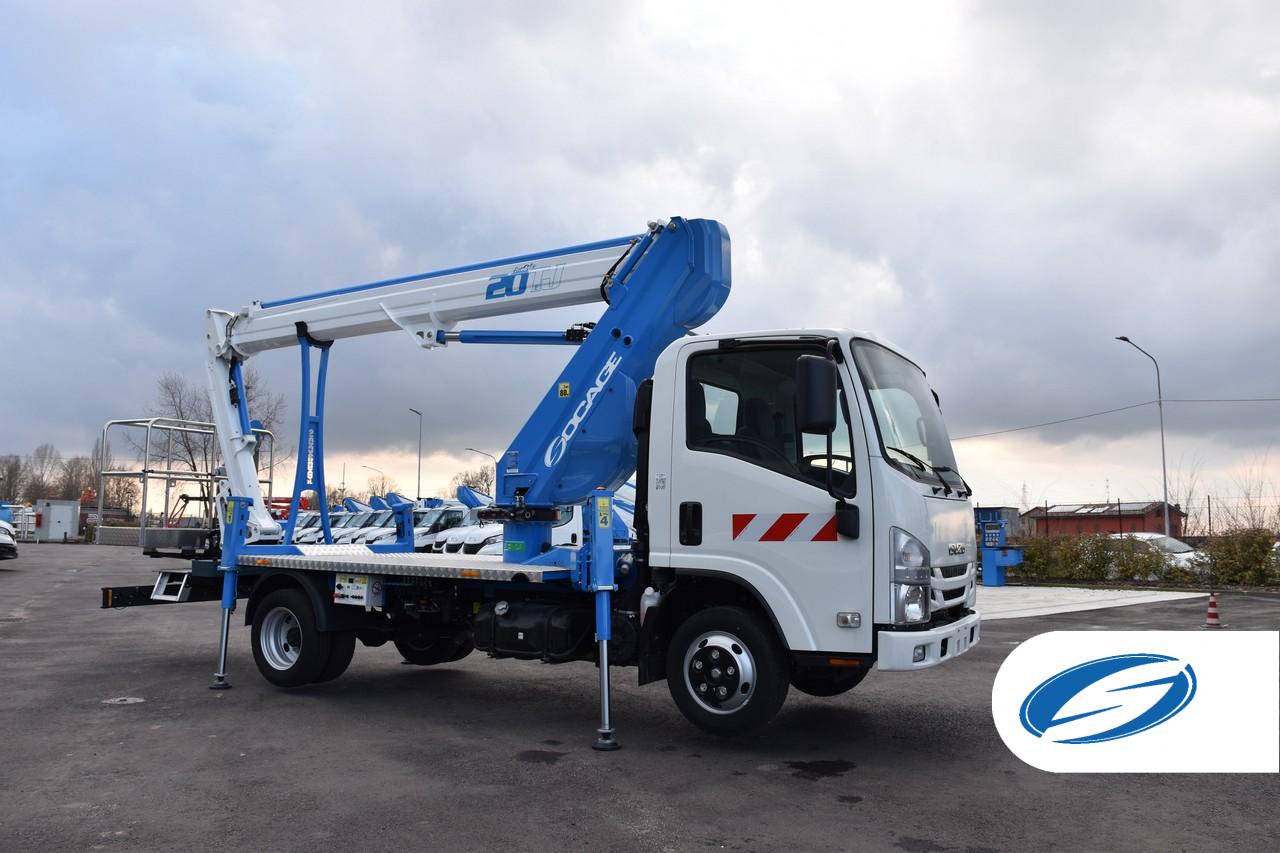

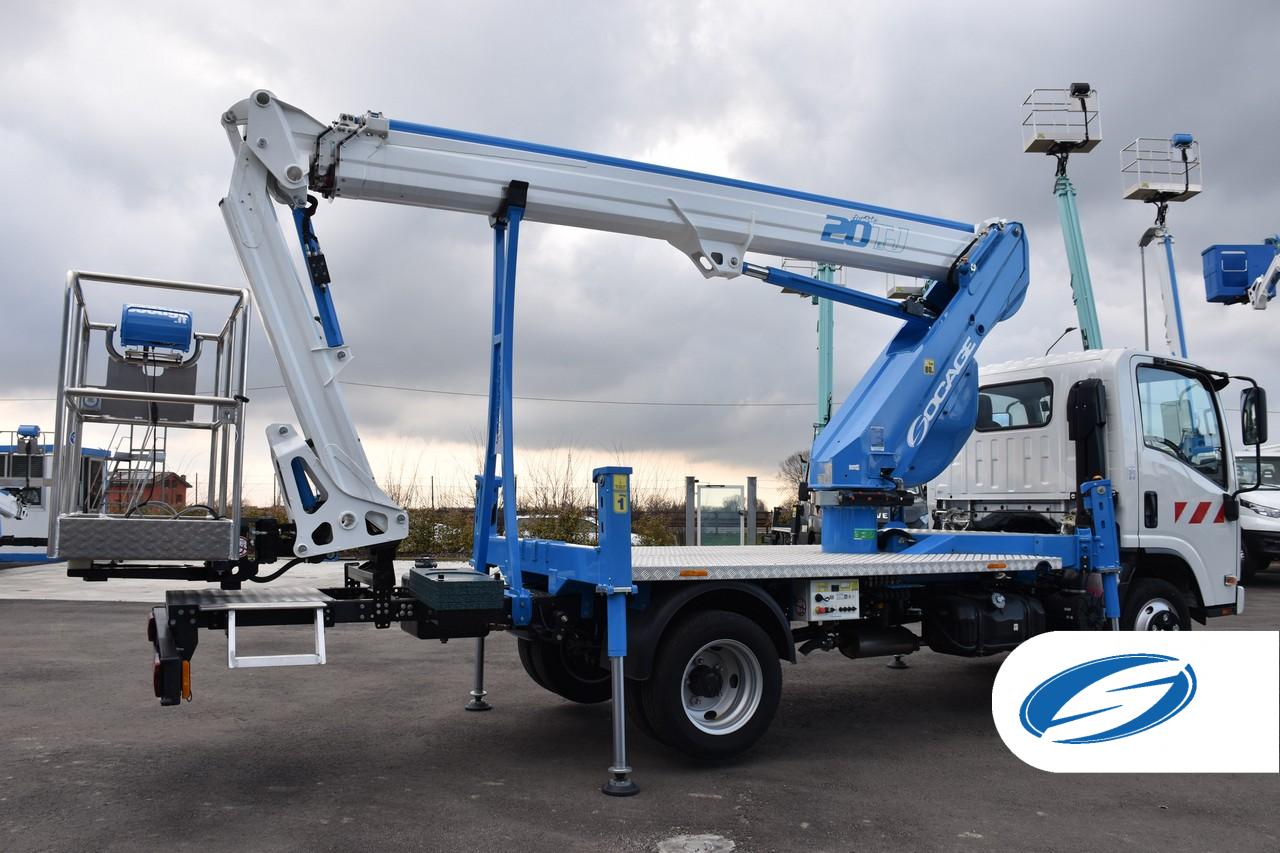

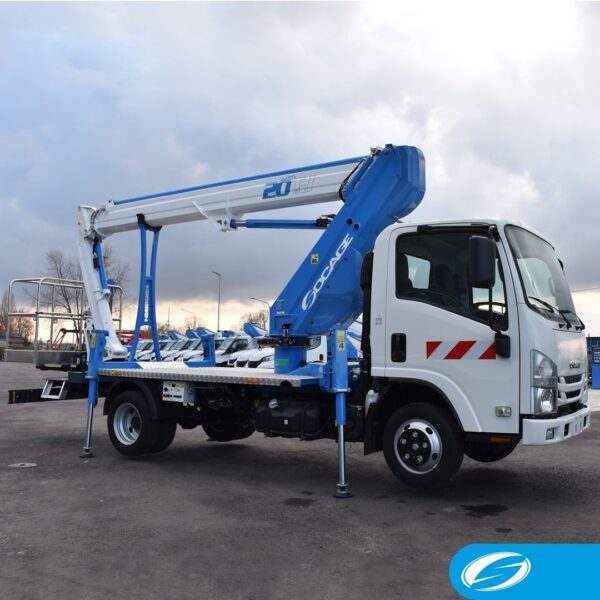

SOCAGE forSte 20TJ SPEED is a boom lift truck, with high performance and automatic stabilization as standard. It reaches a working height of 19.70m and a horizontal reach of 12m, in addition, has a large load capacity of 230 kg (2 operators + material).
Among its features, it has an excellent lateral reach that together with the JIB makes it easier to overcome obstacles at height; and at the same time, it provides versatility and productivity at use when working at height.
Socage’s SPEED HE + H incorporates the standard automatic stabilization that provides the equipment with great simplicity and versatility of use. Increasing the safety of the stabilization maneuver. It enables stabilization from the basket and automatic closing of the aerial part.
Assembly Available On Fuso, Isuzu, Ford, Iveco, Mercedes, Renault Trucks.
Ideal solution for work in urban or industrial areas with difficult access.

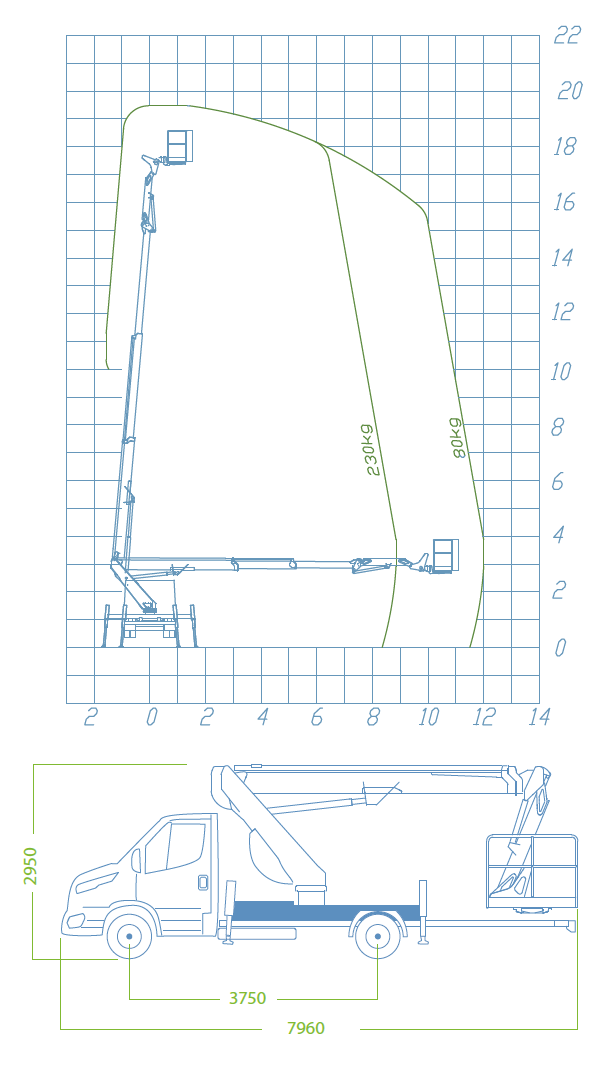

| Working height, max. | 19,70 m |
| Platform height, max. | 17,70 m |
| Outreach, max. | 12 m |
| Basket load capacity, max. | 230 kg |
| Turret rotation | 7000 |
| Basket dimensions | 140 x 70 x 110 cm |
| Basket | Aluminum / Fiberglass Polyethylene |
| Basket rotation | 900+900 |
| Outrigger | HE+H |
| Controls | Electric |
| GVW | 3,5 t |
Standard Equipment:
Safety Devices:
