forSte 21DJ Speed

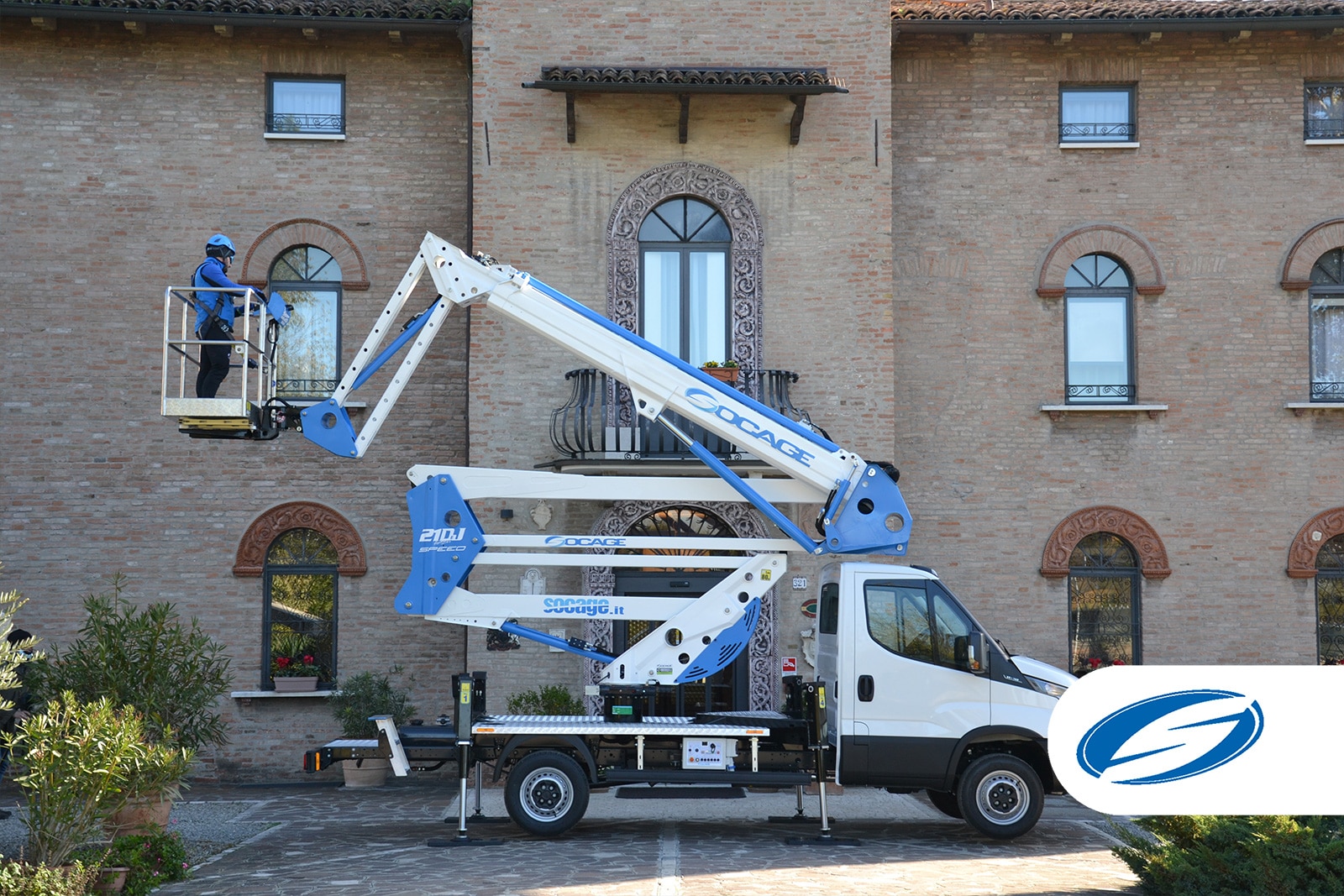

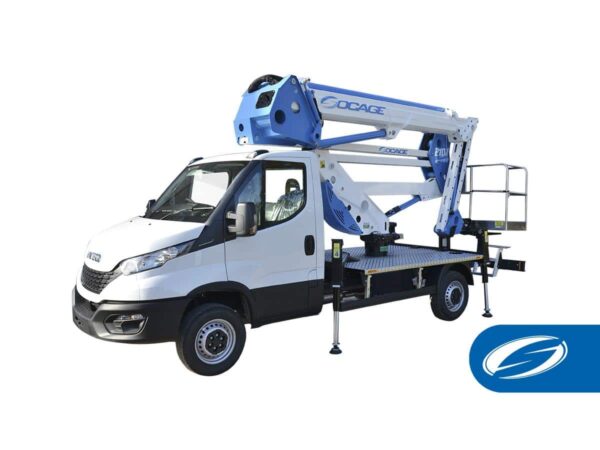

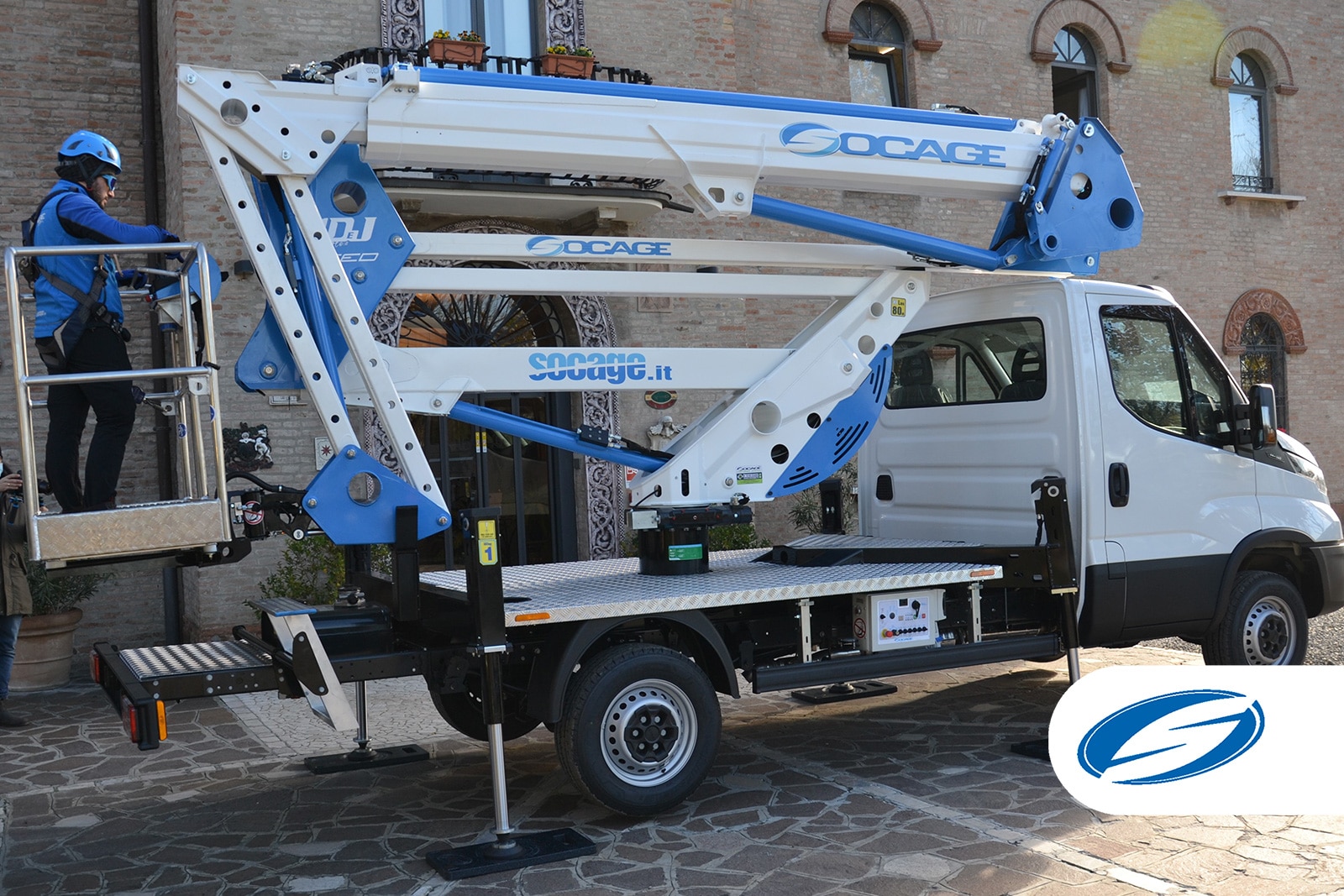

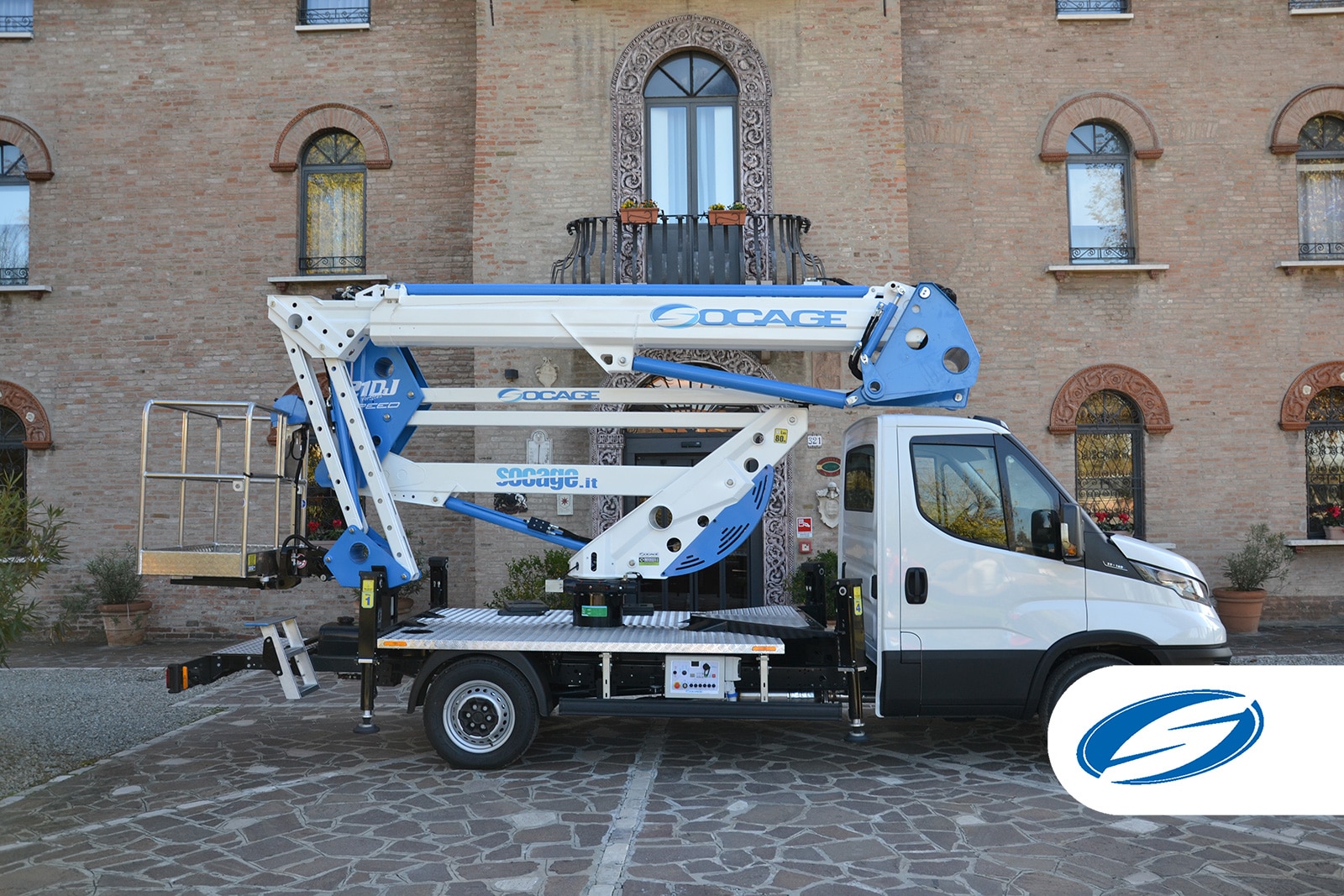

SOCAGE forSte 21DJ SPEED is a double articulated boom lift truck and automatic stabilization as standard that can be installed on 3500 kg trucks. It reaches a working height of 20.30m and a horizontal reach of 9,50m, with a large load capacity of 230 kg or 300 kg (2 operators + material).

Developed from the successful Socage forSte 20D, it stands out for being a compact articulated platform that incorporates a hydraulic jib that provides great positioning versatility.

Assembly Available On Isuzu,  Ford, Iveco, Mercedes, Renault Trucks.

The compact dimensions ensure great mobility and make the Socage forSte 21DJ an ideal solution for both industrial and urban professional uses with difficult access and reduced mobility.

Compare
Category: Tags: , ,

Description

Performance

Working height, max. 20,30 m
Platform height, max. 18,30 m
Outreach, max. 9,50 m
Basket load capacity, max. 230 kg (optional 300 kg)
Turret rotation 7000
Basket dimensions 140 x 70 x 110 cm
Basket Aluminum  / Fiberglass
Polyethylene
Basket rotation 900+900
Outrigger H+H
Controls Electric
GVW 3,5 t

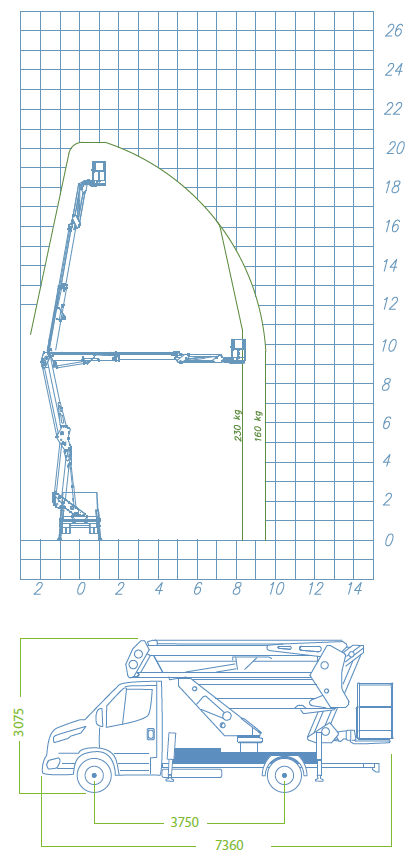

Socage forSte 21DJ Speed Load Chart

Standard Equipment:

  • Hydraulic rotation basket 90° + 90°
  • Rotation turret 700°
  • Hydraulic JIB
  • Pipes and cables installed inside the boom
  • Automatic closing of the aerial part
  • Automatic stabilization
  • Stabilization from the basket
  • Vertical stabilizers with extra stroke, SOCAGE H+H
  • Automatic stabilization controls in the basket and on the ground
  • Proportional electro-hydraulic controls with speed regulation of all movements
  • Possibility of simultaneous operation
  • Signal to center the aerial part on the basket
  • Socket 230v and 12v in the basket
  • Automatic regulation of engine revolutions
  • CAN BUS electronic management system
  • Cataphoresis
  • 4 plates to stand to the ground

Safety Devices:

  • Unintentional maneuvering control E.C.S (Easy Control Security)
  • Protection bar for involuntary maneuvers
  • Basket controls protection
  • Magnetothermic with 230V line differential protection
  • Automatic stabilization
  • Safety bypass for operator recovery
  • Moment-limiting device with double security
  • Automatic stabilization from basket
  • Inclinometer
  • Flanged block valves
  • Emergency and stop button
  • Emergency manual pump
  • Possibility of remote emergency operation
  • PTO with save changes
  • Boom / cabin anti-collision device
  • Digital hour meter in the cabin
  • Cabin warning light of closed stabilizers
  • Maintenance light (Service)
