forSte 27D Speed

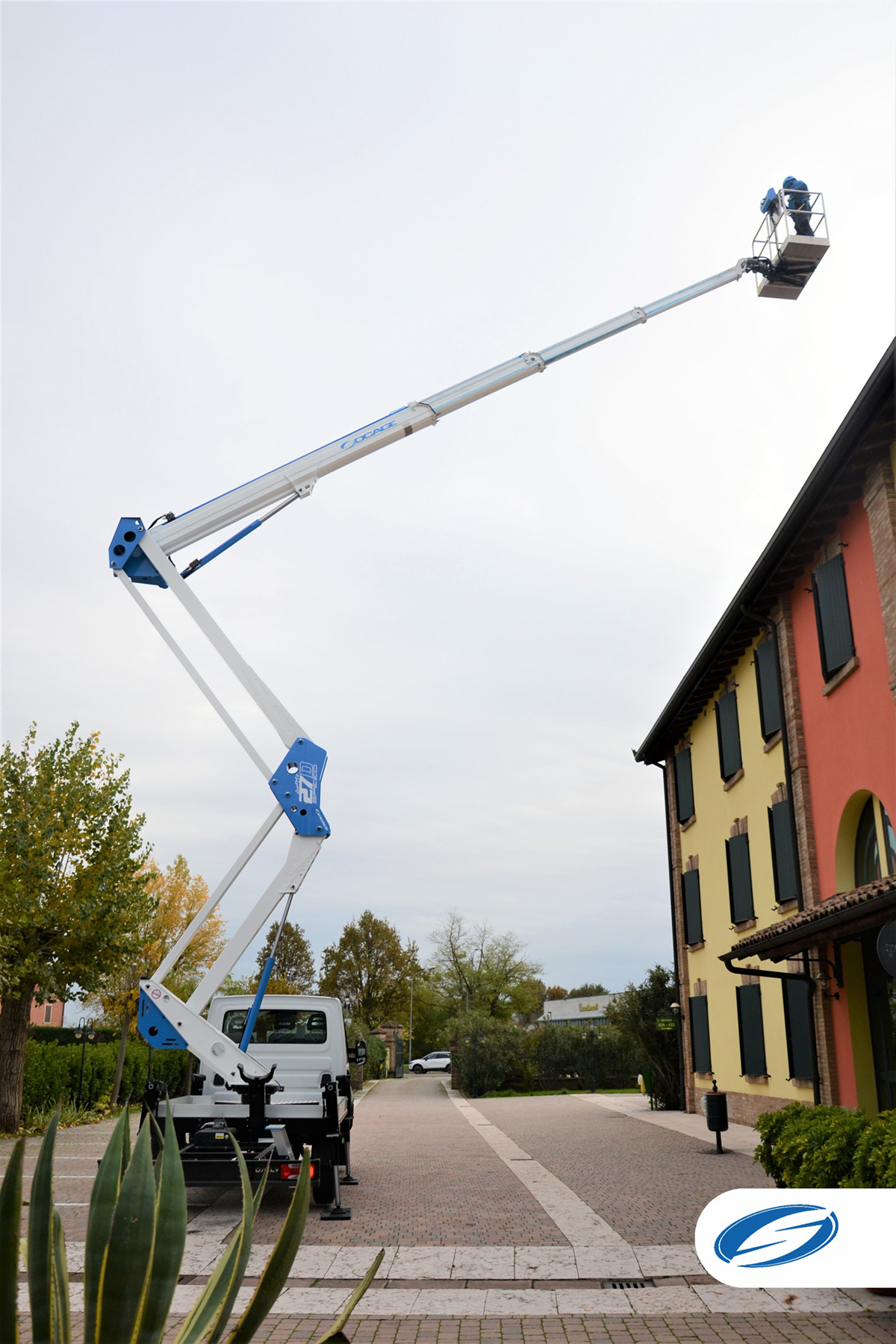

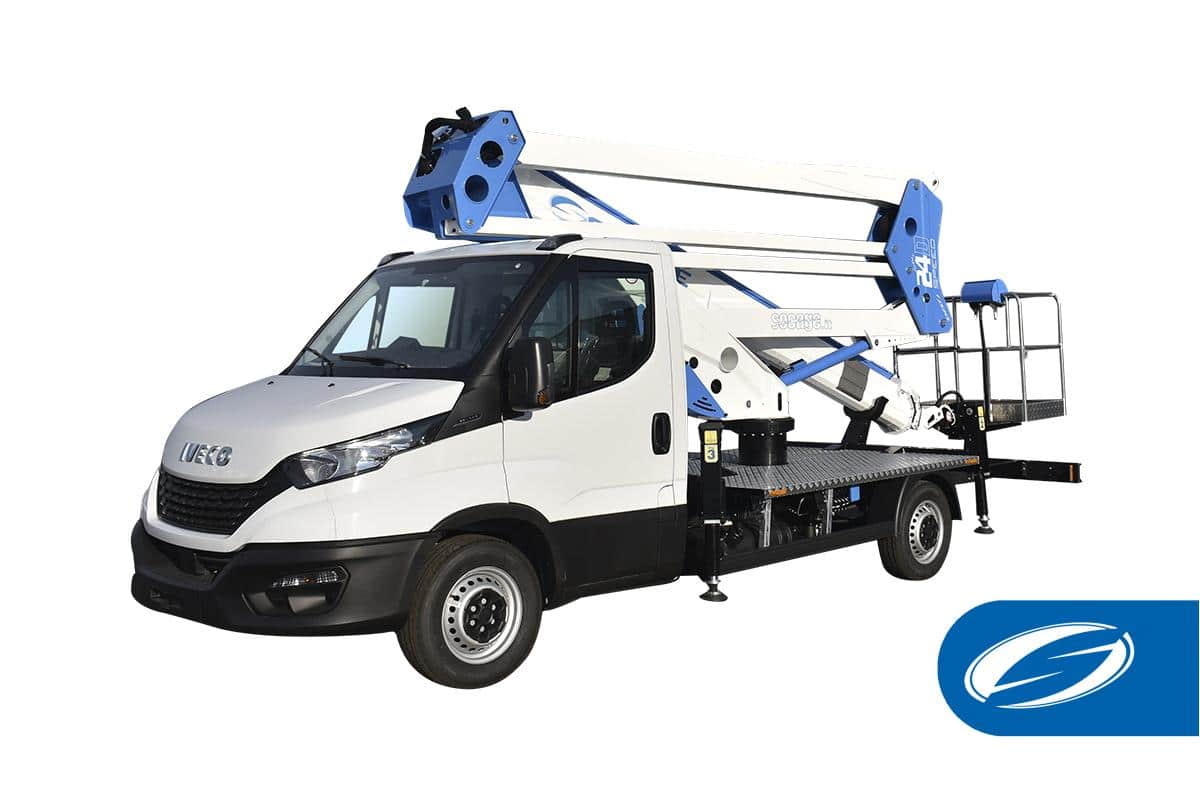

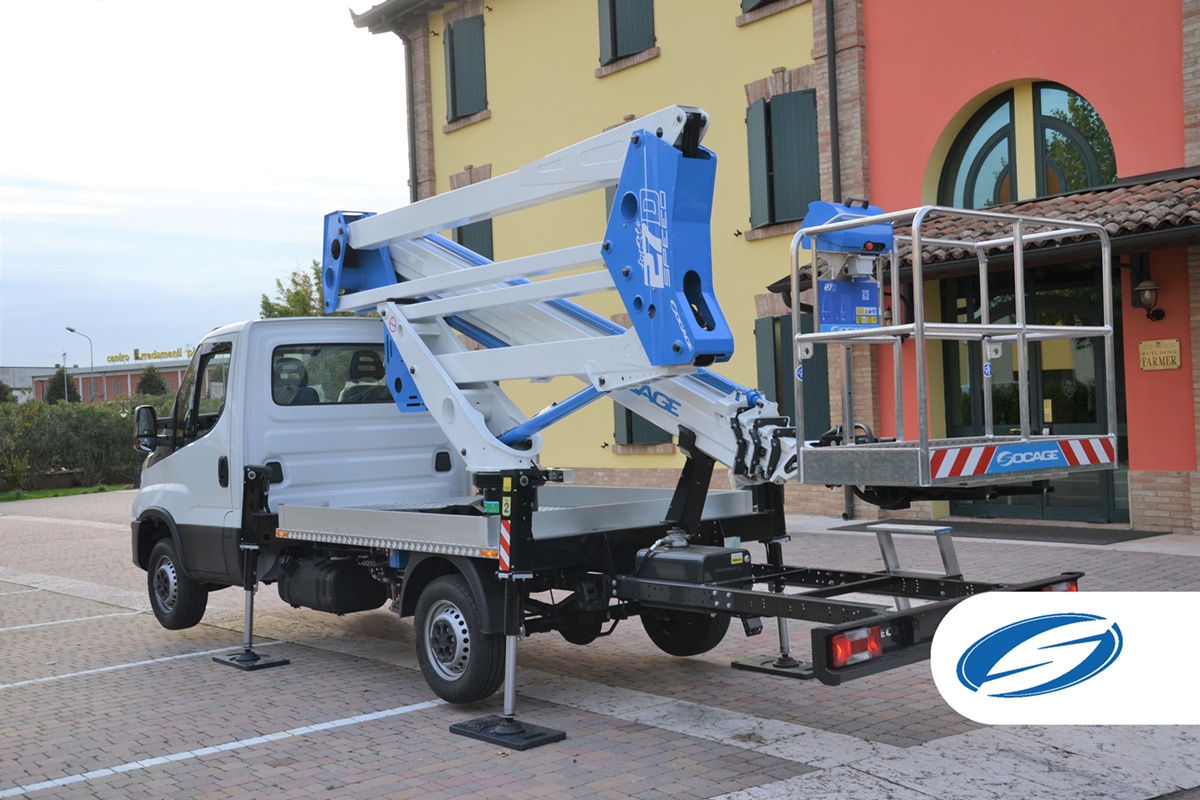

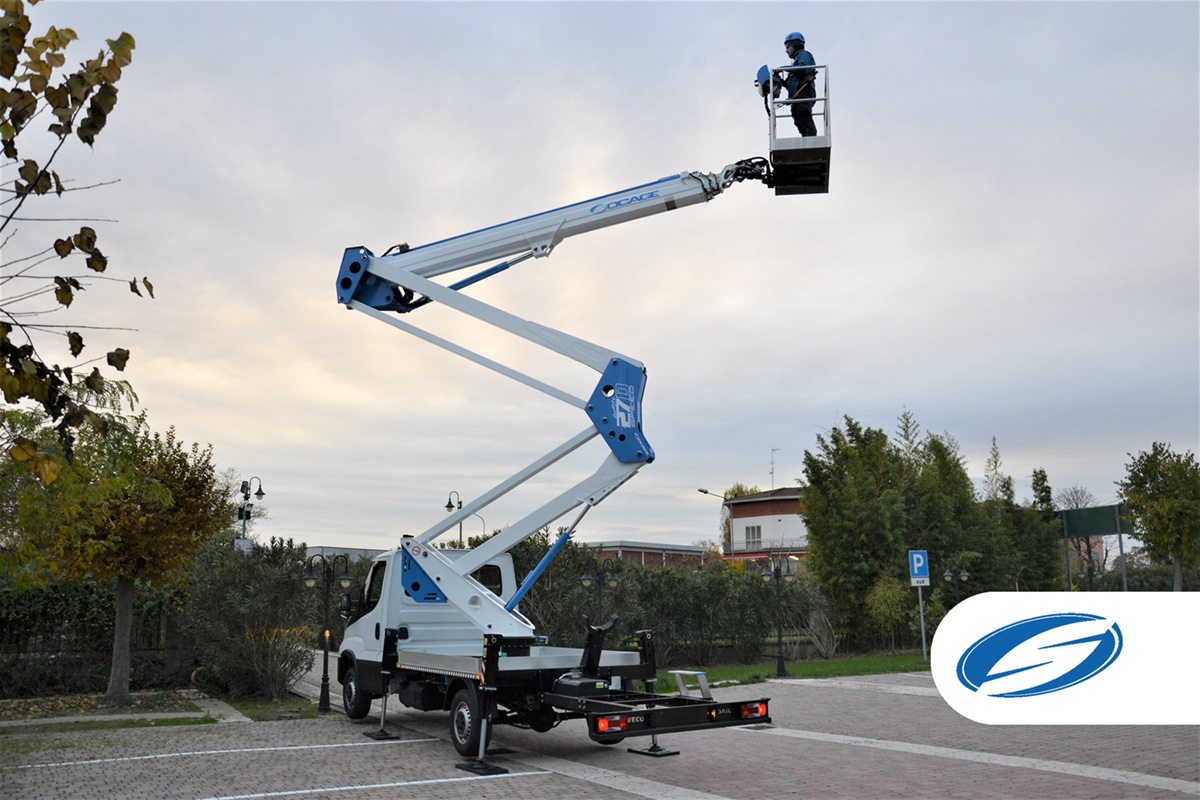

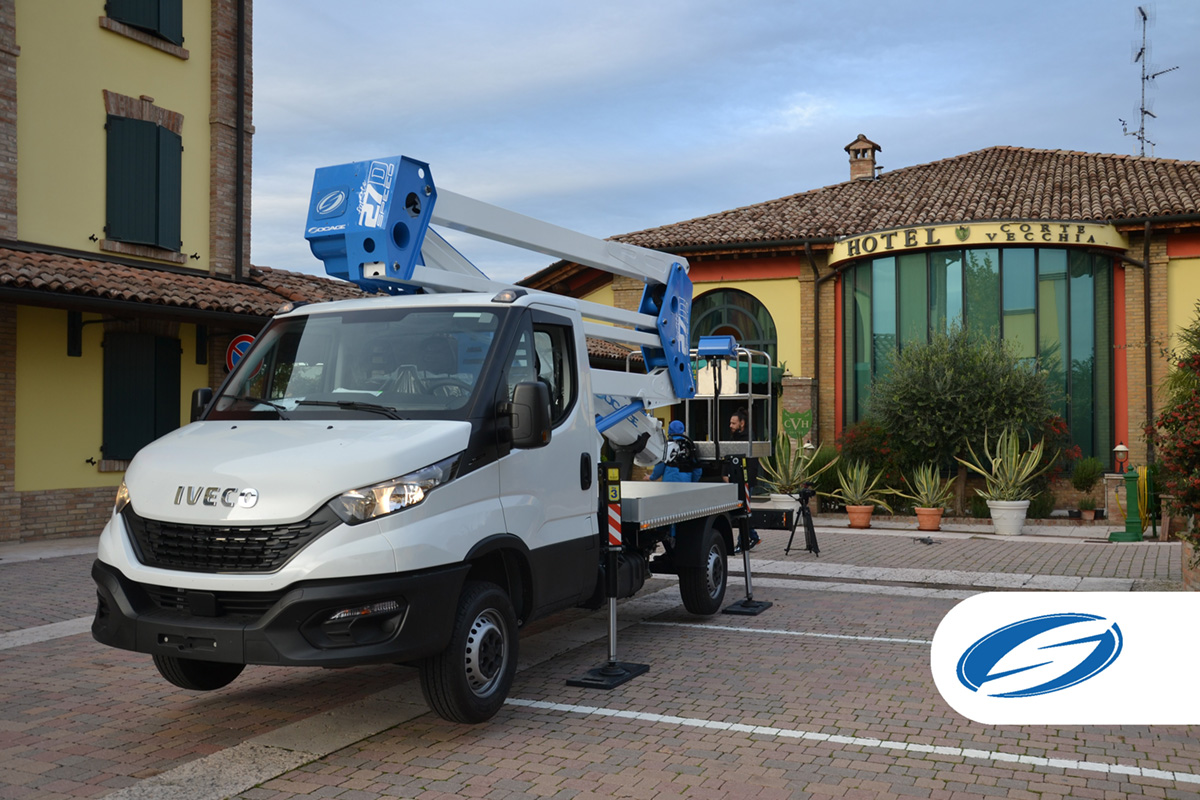

SOCAGE forSte 27D SPEED is a high-performance double-articulated platform with standard automatic stabilization mounted on a 3500kg truck. It reaches a working height of 27 m and a lateral reach of 12 m with a load capacity of 230 kg or 300 kg in the basket, (2 operators + material).

The SPEED H + H finish incorporates the standard automatic stabilization that provides the equipment with simplicity and versatility of use, increasing the safety of the stabilization maneuver. It enables stabilization from the basket and automatic closing of the aerial part.

Assembly Available On IsuzuFord, Iveco, Mercedes, Renault Trucks.

 Ideal solution for all types of companies and professionals with the highest demands.

Compare

Description

Working height, max. 27,00 m
Platform height, max. 25,00 m
Outreach, max. 12,00 m
Basket load capacity, max. 230 kg (optional 300 kg)
Turret rotation 7000
Basket dimensions 140 x 70 x 110 cm
Basket Aluminum
Basket rotation 900+900
Outrigger H+H
Controls Electric
GVW 3,5 t

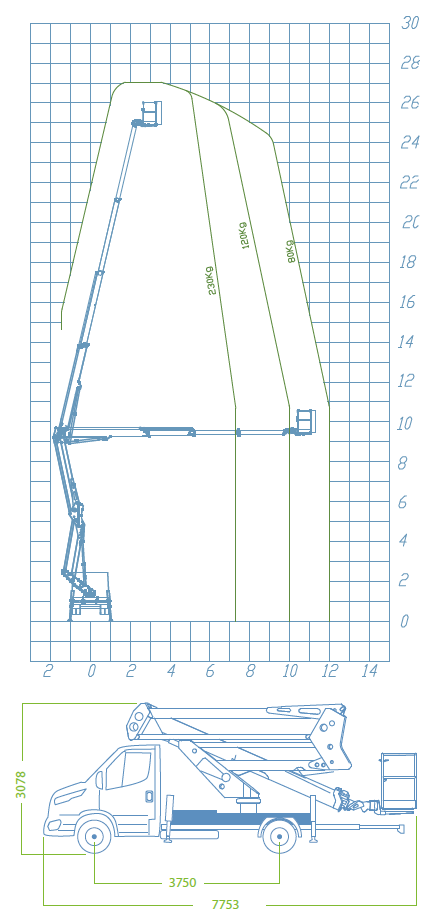

Socage forSte 27D Speed Load Chart

Standard Equipment:

  • Hydraulic rotation basket 90° + 90°
  • Rotation turret 700°
  • Pipes and cables installed inside the boom
  • Automatic closing of the aerial part
  • Stabilization from the basket
  • SPEED H + H multizone automatic stabilization
  • Hydraulic extension of the front crossmember
  • Vertical stabilizers with extra stroke
  • Automatic stabilization controls in the basket and on the ground
  • Proportional electro-hydraulic controls with speed regulation of all movements
  • Possibility of simultaneous operation
  • Signal to center the aerial part on the basket
  • Socket 230v and 12v in the basket
  • Automatic regulation of engine revolutions
  • CAN BUS electronic management system
  • Cataphoresis
  • 4 plates to stand to the ground

Safety Devices:

  • Unintentional maneuvering control E.C.S (Easy Control Security)
  • Protection bar for involuntary maneuvers
  • Basket controls protection
  • Magnetothermic with 230V line differential protection
  • Automatic stabilization
  • Safety bypass for operator recovery
  • Moment limiting device with double security
  • Automatic stabilization from the basket
  • Inclinometer
  • Flanged block valves
  • Emergency and stop button
  • Emergency manual pump
  • Possibility of remote emergency operation
  • PTO with save changes
  • Boom / cabin anti-collision device
  • Digital hour meter in the cabin
  • Cabin warning light of closed stabilizers
  • Maintenance light (Service)
