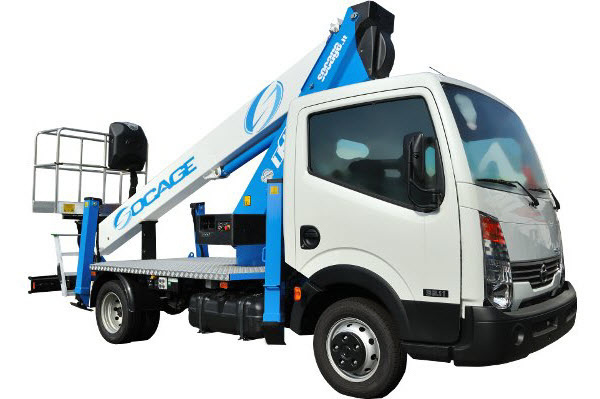

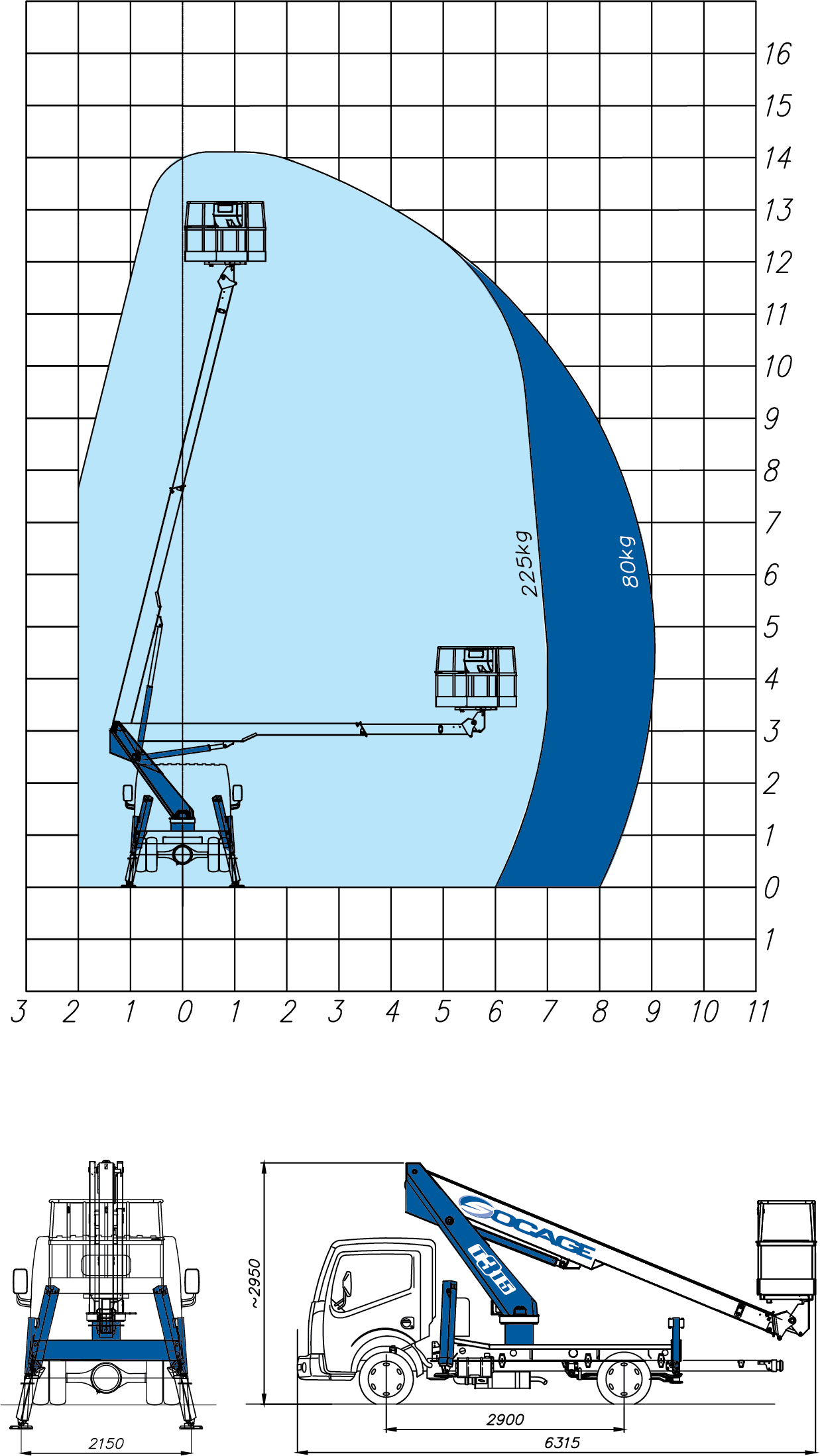

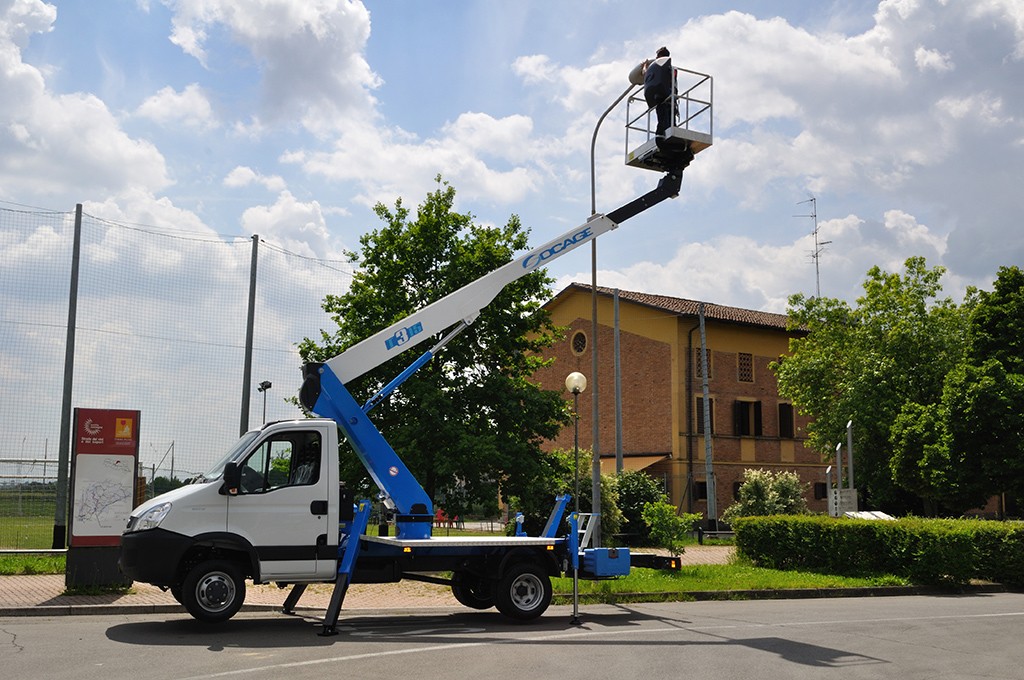

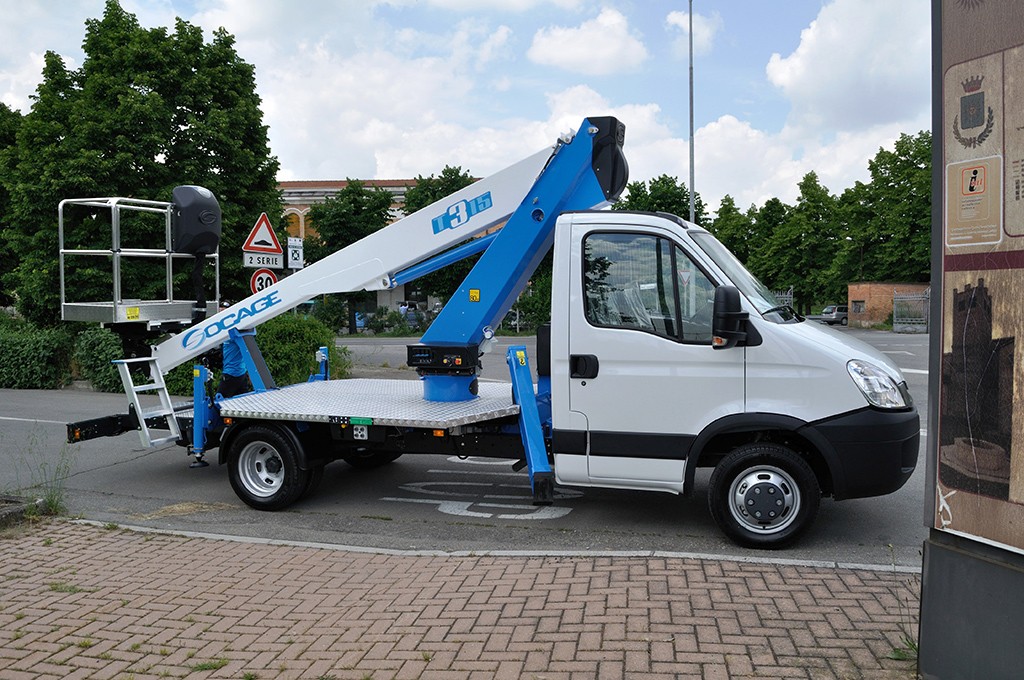

The SOCAGE T315 forSte is a telescopic aerial platform that can be installed on several 3.5-ton vehicle models, including Nissan Cabstar, Renault Maxity, and Iveco Daily. Capable of reaching a working height of 14.9 m, and with a horizontal reach of 9.1 m, it has a load capacity of 225 kgs (2 operators + equipment), without limitation throughout the work area. The T315 stabilization system reduces the width for vehicle stabilization. The rotation of the superstructure is continuous; this feature increases the productivity of the platform avoiding time for repositioning. The rotation of the basket in aluminum (dimensions 140x70x110 cm) and 90º + 90º.
| Working height, max. | 14,50 m |
| Platform height, max. | 12,50 m |
| Outreach, max. | 9,10 m |
| Basket load capacity, max. | 225 kg |
| Turret rotation | ∞ |
| Basket dimensions | 140 x 70 x 110 cm |
| Basket | Aluminum |
| Basket rotation | 900+900 |
| Outrigger | A+H |
| Controls | Hydraulic |
| GVW | 3,5 t |
Standard Equipment:
Optional Equipment:
