DA328 forSte

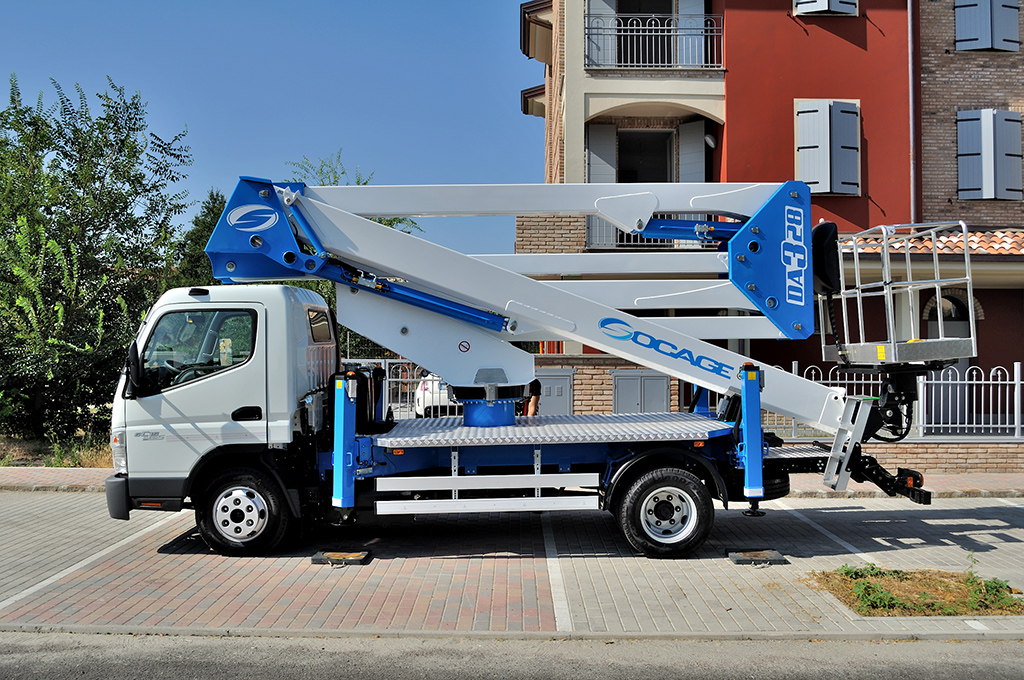

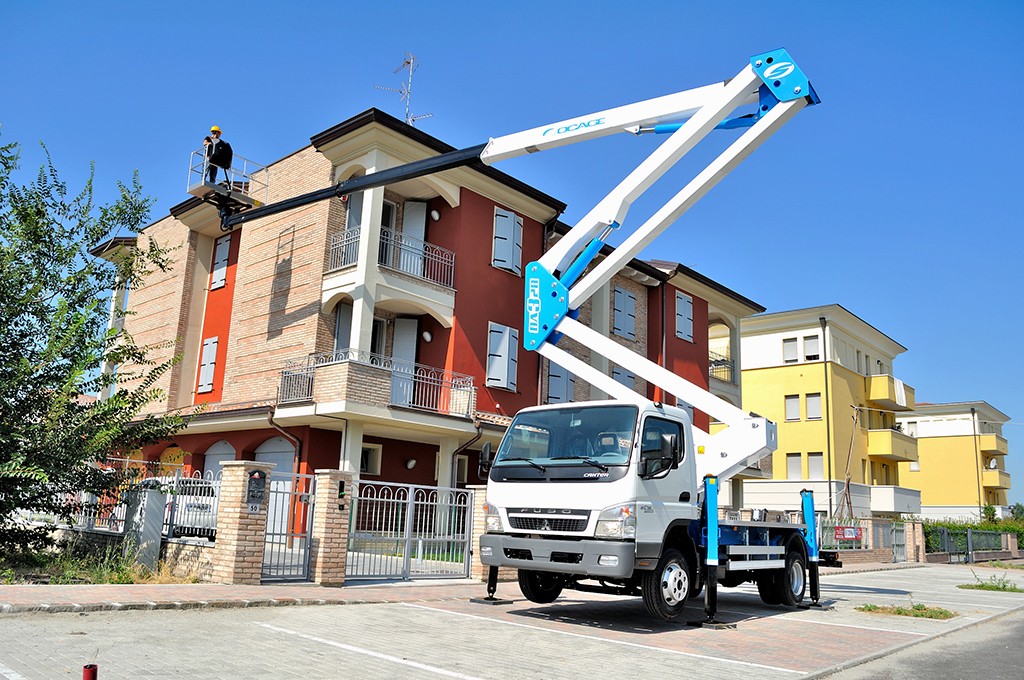

The model Socage DA328 forSte is an aerial work platform with a double articulated aerial platform, installed on vehicles from 5.6 tonnes.

This model has the best performance of the DA series of Socage aerial platforms, is capable of achieving a maximum height of 28 m and a maximum lateral working reach of 16 m, with a basket capacity of 225 kg (two operators + material + tools).

The DA328 is equipped with a stabilization system with a horizontal extensible opening, for both the rear and front stabilizers. This system allows you to choose which configuration to use to roll the equipment, for example, extend the stabilizers on one side only, thus avoiding encroaching on the street or passable access that cannot be impeded.

It is also characterized by extremely compact dimensions during operation, which is similar to aerial work platforms from this same series installed on 3.5-ton vehicles.

The turret rotation is continuous, this feature increases the productivity of the aerial platform, avoiding time for repositioning.

Compare

Description

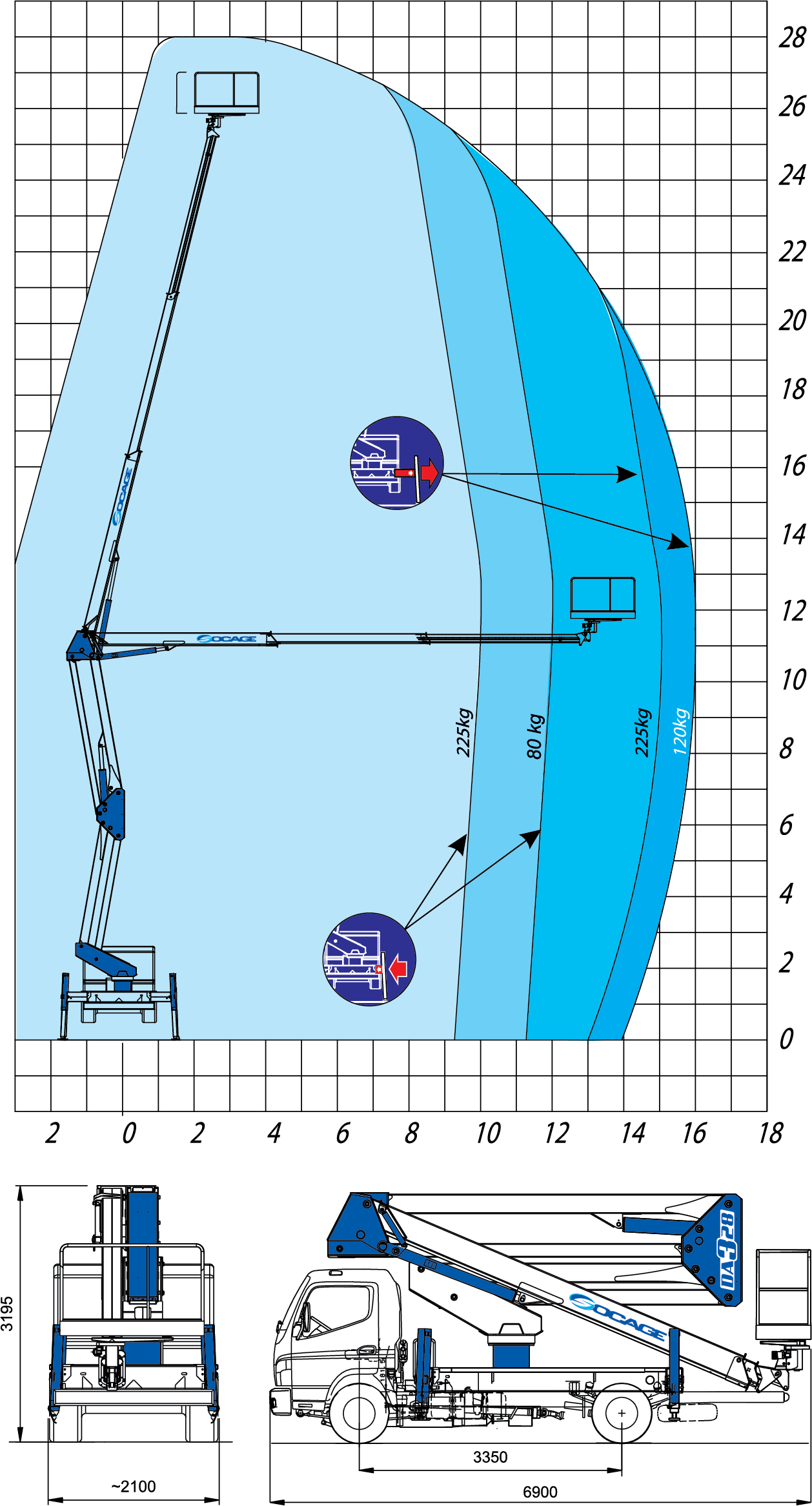

Working height, max. 28,00 m
Platform height, max. 26,00 m
Outreach, max. 16,00 m
Basket load capacity, max. 225 kg
Turret rotation
Basket dimensions 180 x 70 x 110 cm
Basket Aluminum
Basket rotation 900+900
Outrigger HE+HE
Controls Hydraulic
GVW 5,6 t

Standard Equipment:

    • Toolbox
    • Aluminum basket 1400 x 700 x 1100 mm
    • Buzzer from the basket
    • Start-stop from the basket
    • Electric hour counter
    • Spirit level
    • Differential filtering system with high-efficiency filters both on delivery and return lines
    • Emergency hand-pump
    • N. 4 spreader plates and holder
    • Electric plug 230V
    • Continuous turret rotation
    • Hydraulic basket rotaiton 90° + 90°
    • Beacon light on the truck cabin
    • Electric inclinometer
    • Flanged holding valves
    • Booms painting: white RAL 9016
    • Turret painting: blue RAL 5015
    • Sub-frame painting: blue RAL 5015
    • Electro and powder coating painting
    • Aluminum side-boards 150 mm

Optional Equipment:

    • Anemometer
    • Truck side protections
    • Polyethylene basket 1400x700xh 1150 mm blue RAL
    • Fiberglass basket 1400x700x1100 mm (200 kg capacity)
    • Load limiting device in the basket
    • Safety belts (each)
    • Sub-frame for truck G.V.W. up to 5 ton
    • Auxiliary electric pump 230V/50Hz mono-phase with battery charger
    • Emergency electric pump 12 or 24 V
    • White adjustable light in the basket
    • Inverter ( 12 V/230 V, 50 Hz, 1000 W )
    • 1 kV basket insulation
    • Air-water plug (max 100 bar)
    • Additional beacon light
    • Fixed beacon light
    • Customized painting
    • Radio-control
    • Cable-control
    • Aerial part color different from standard
    • Sub-frame color different from standard
    • Sub-frame for truck G.V.W. over 12 ton to agree
    • Buzzer for reverse gear to agree
    • Front hydraulic outriggers
