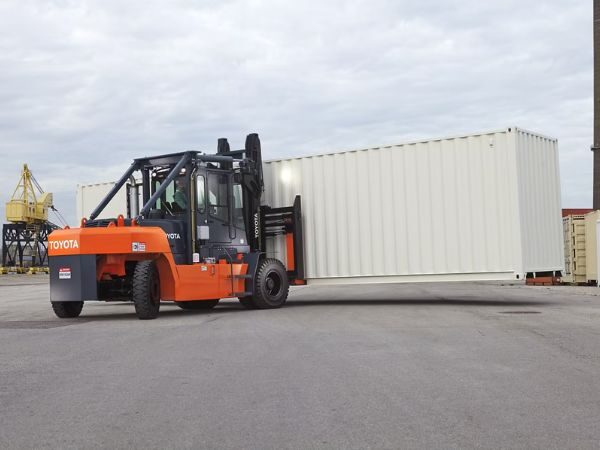

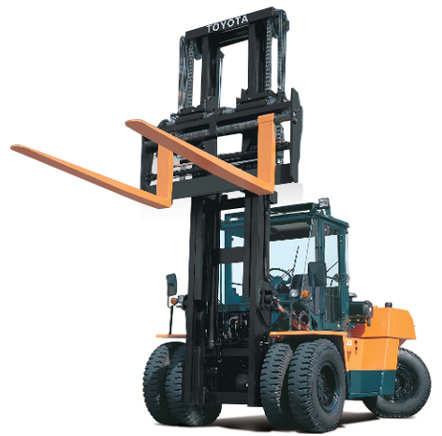

TOYOTA 3FD135

Key Specs

  • Rated load: 13500 kg
  • Lift height: 3000 mm
  • Fork dimensions (length/width/thickness): 1220/180/90 mm
  • Gross weight (with load): 29600 kg

Key Features

  • Equipped with a number of devices, such as a highly durable 2-stator torque converter and a highly economical wet disc brake, which eliminates the labor and waste required for maintenance and is considered for safety during work.
  • 1st product in the industry about low emission advanced engine series.
  • Power and maneuverability.
Compare

Description

Load capacity/Rated load  13500 kg
Load center 600 mm
Lift height 3000 mm
Tilt of mast forward/backward 60/120
Overall width 2420 mm
Turning radius (outside) 4300 mm
Overhead guard height  2755 mm
Length to fork face 4540 mm
Fork dimensions (length/width/thickness) 1220/180/90 mm
Overall length 5760 mm
Wheelbase 3100 mm
Machine weight (no load) 16100 kg
Gross weight (with load) 29600 kg

Drawbar pull (max.) 106 kN
Lift speed, with load 345 mm / sec.
Lift speed, no load 370 mm / sec.
Travel speed forward, with load 24.5 kph
Travel speed forward, no load 25.5 kph
Travel speed reverse, with load 24.5 kph
Travel speed reverse, no load 25.5 kph
Climbing performance, with load (%) 39
Climbing performance, no load (%) 26

Engine, brand HINO
Engine, model H07D
Rated power (kW/r.p.m) 105/2150
Rated torque (Nm/r.p.m) 480/1600
Piston Displacement  7412 cc
Transmission, type Powershift
Gears forward/reverse 2/2

Wheel number 6
Wheels driven 4
Tyres, type Pneumatic
Tyre size, front 11.00-20-14PR
Tyre size, rear 11.00-20-14PR
Brakes, type (service) Hydraulic
