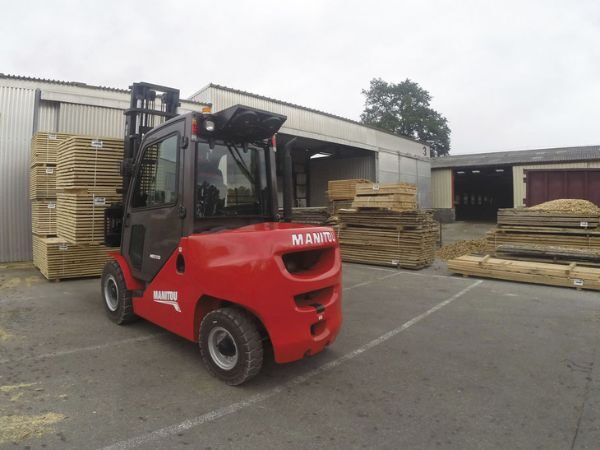

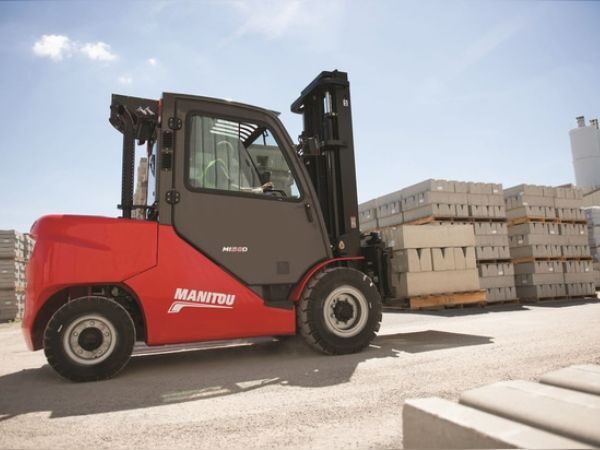

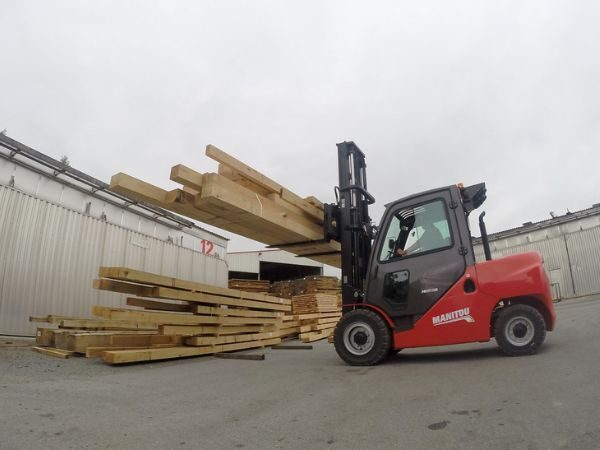

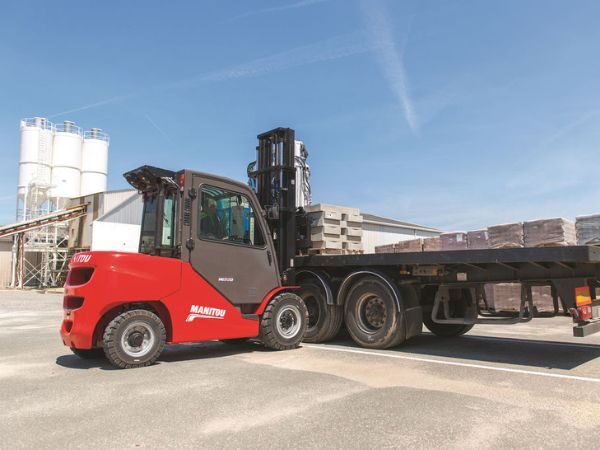

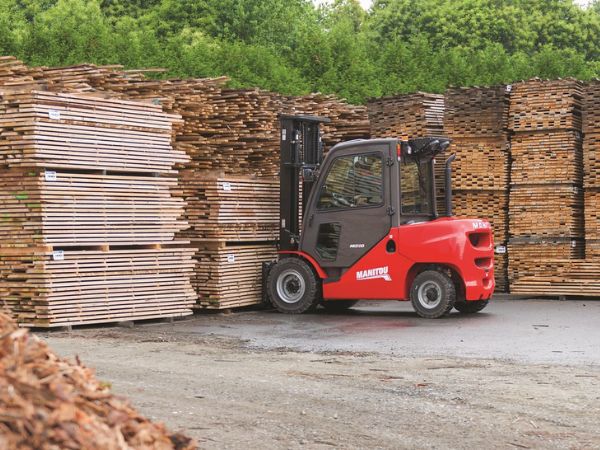

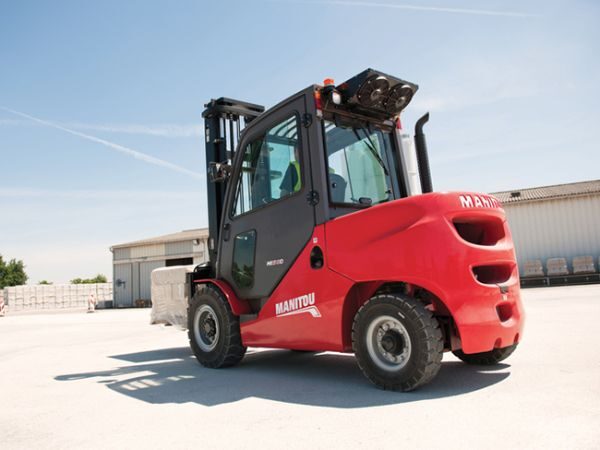

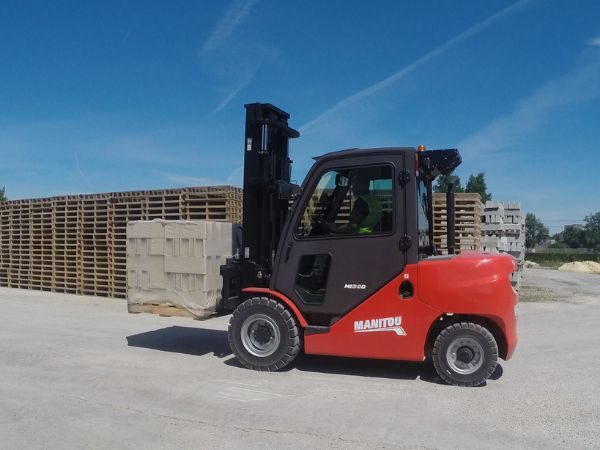

MANITOU MI-X 50D

Key Specs

Key Features

High-performance engine.
Easy-to-use and maintain.
Easily access the driver’s cab from both sides.
Visibility & safety.

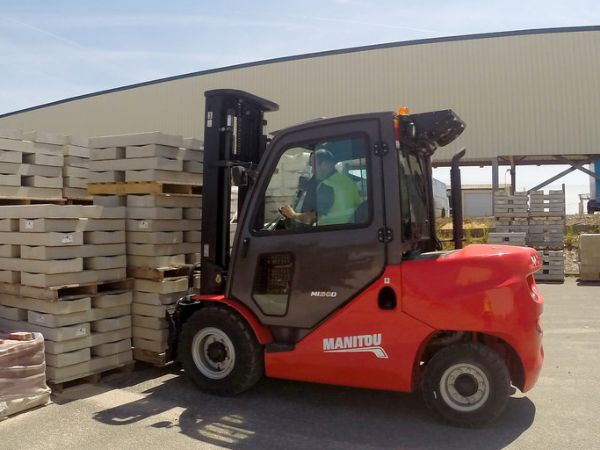

The spacious and comfortable driver’s cab provides the operator with outstanding driving comfort, making work less tiring and improving productivity.

Compare

Description

Power Source	Diesel
Operator Type	Seated
Load capacity/Rated load	5000 kg
Load center of gravity	500 mm
Load distance, center of drive axle of fork	560 mm
Lift height	3000 mm
Tilt of mast forward/backward	6⁰/12⁰
Overall width	1490 mm
Turning radius (outside)	2920 mm
Overhead guard height	2390 mm
Length to fork face	3255 mm
Fork dimensions (length/width/thickness)	1220/150/50 mm
Overall length	4475 mm
Wheelbase	2150 mm
Service weight	6800 kg
Weight on front axle (laden)/rear axle (laden)	10450/1350 kg
Weight on front axle (unladen)/rear axle (unladen)	3000/3800 kg

Travel speed (laden/unladen)	22/24 km/h
Lift speed (laden/unladen)	0.40/0.43 m/s
Lowering speed (laden/unladen)	0.5/0.5 m/s
Drawbar pull (laden/unladen)	3800/2300 daN
Gradeability (laden/unladen)	34%/32%

Engine, brand	Perkins
Engine, model	1104D-44
Engine power	56 kW
Rated speed	2200 rpm
Number of cylinders / Capacity of cylinders	4 – 4400 cm³
Fuel consumption according to VDI cycle	6.2 l/h
