forSte 35TJ

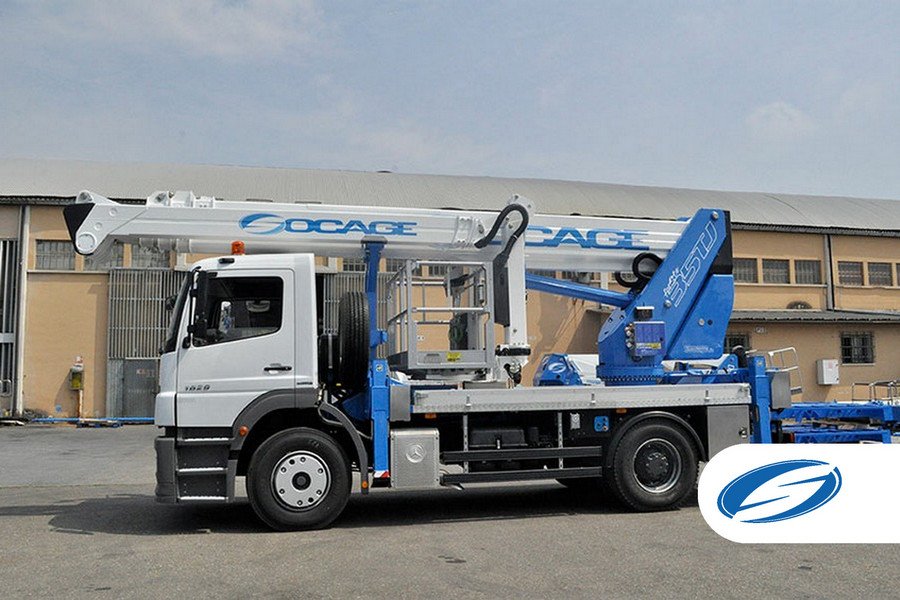

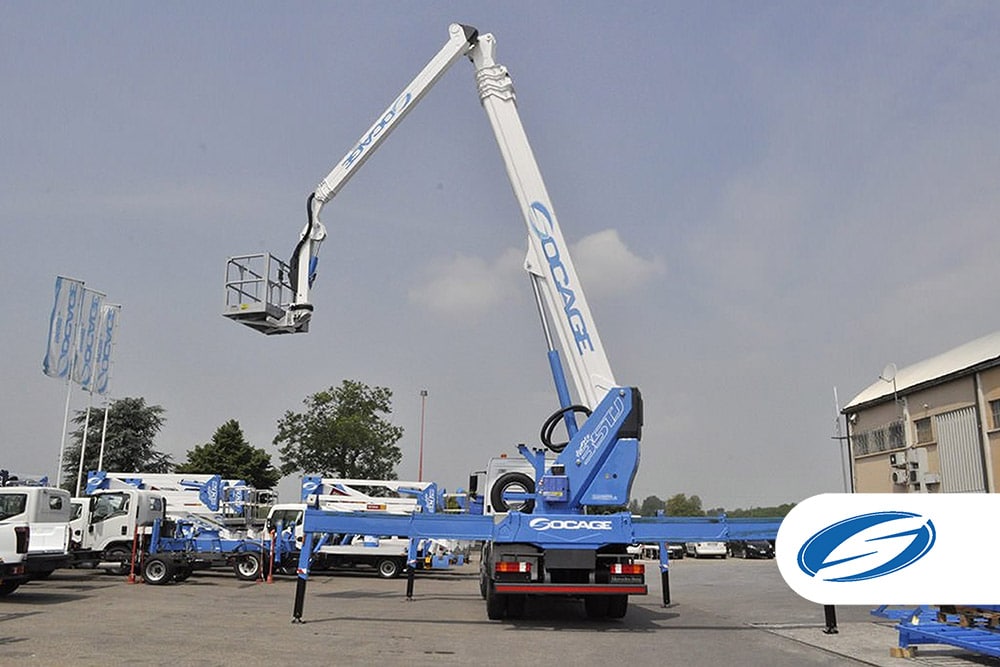

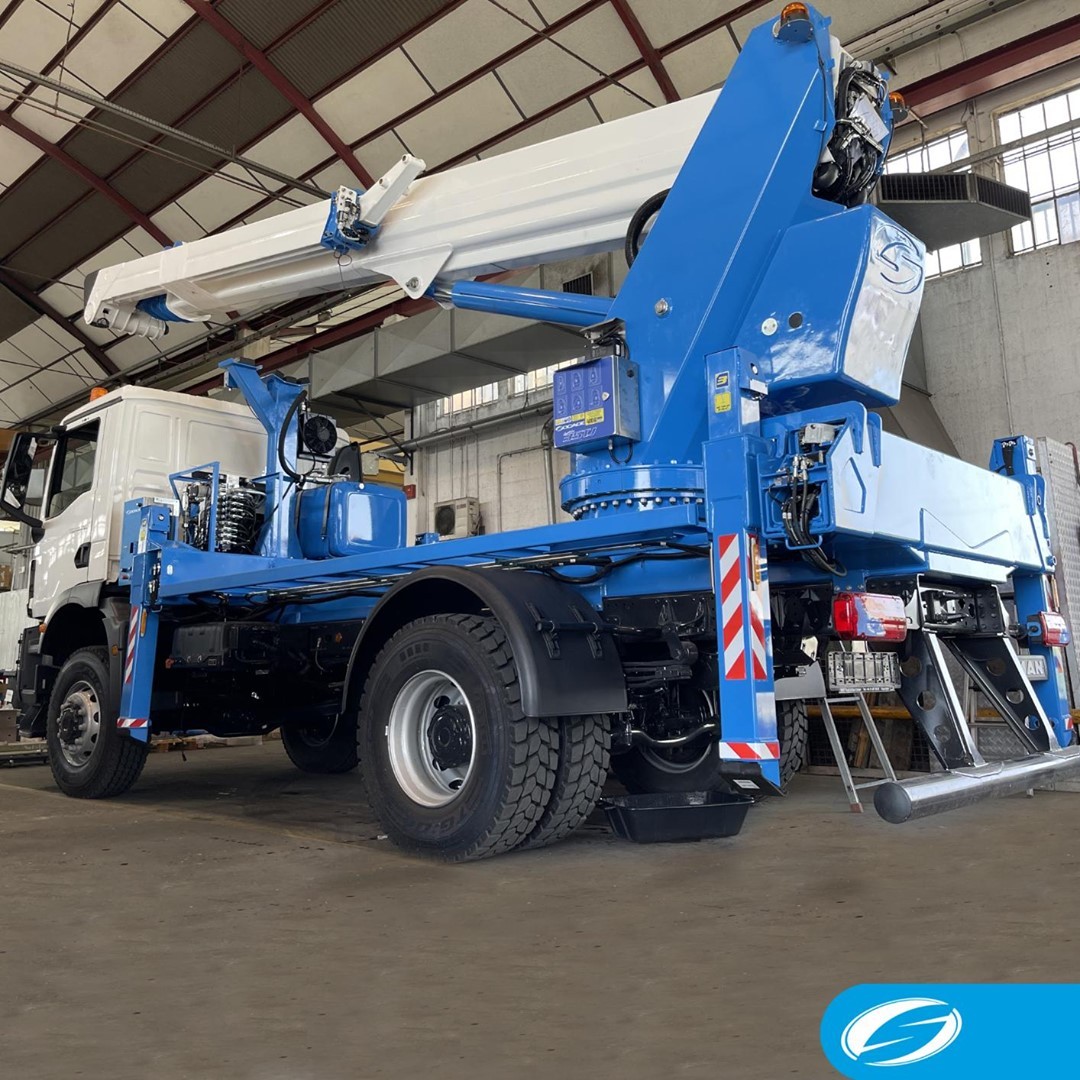

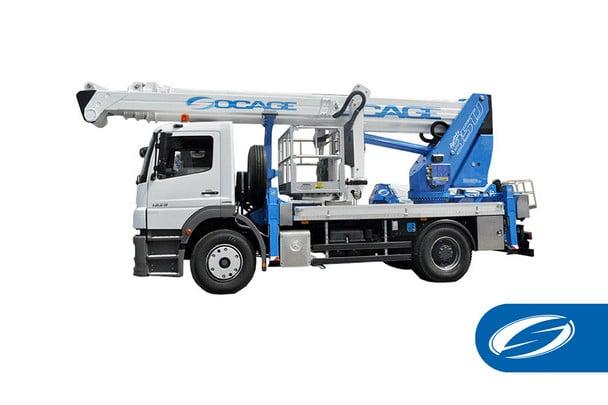

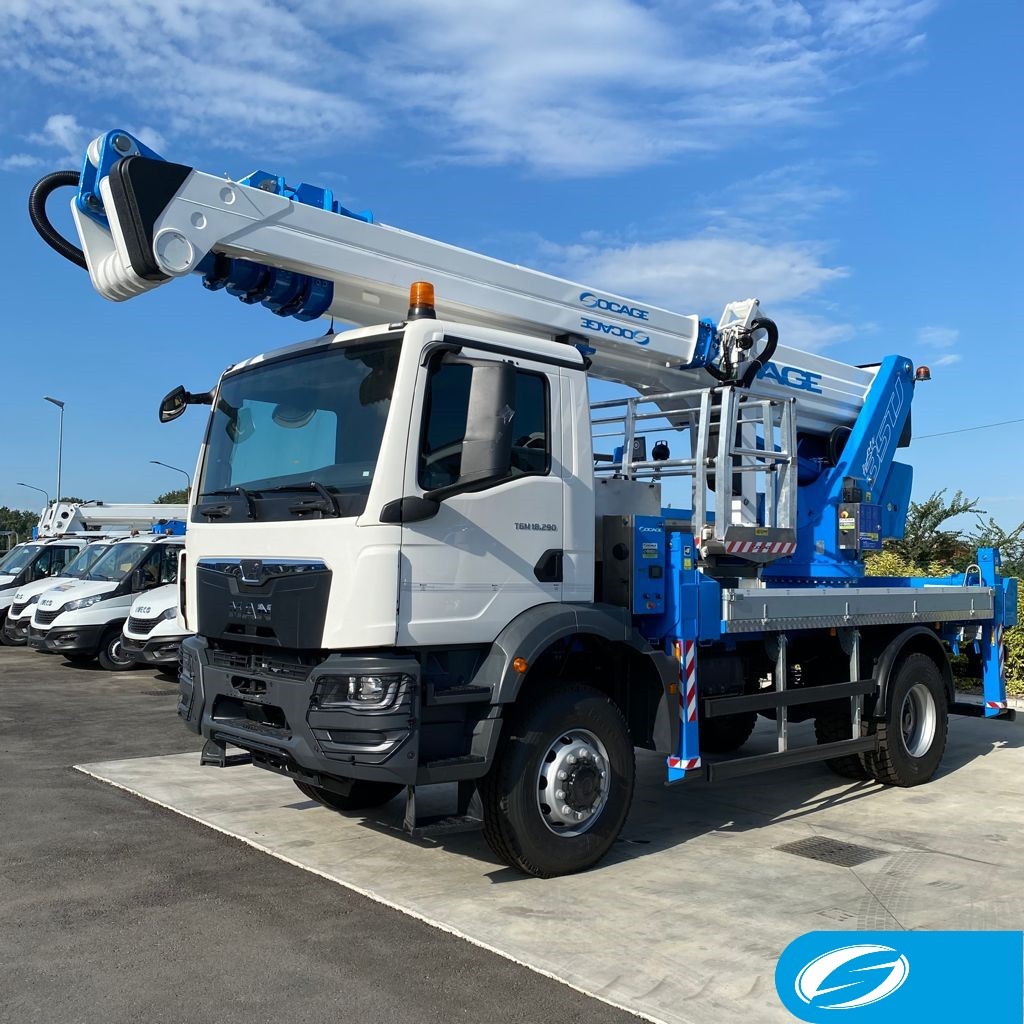

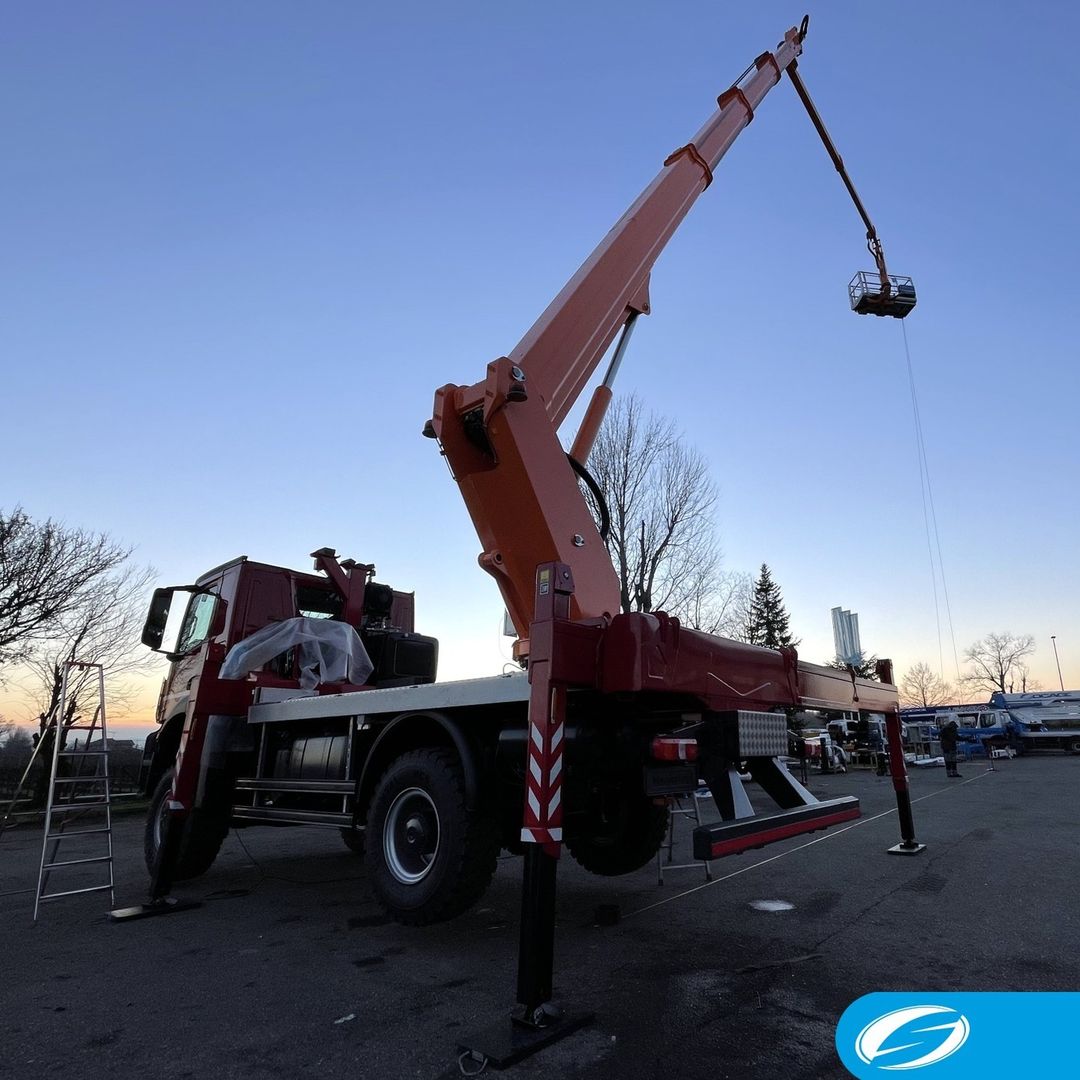

SOCAGEforSte 35TJ is a truck-mounted boom lift telescopic with articulated jib that can be installed on trucks from 18 tons. It reaches a working height of 35m and a horizontal reach of 30m, in addition, has a large load capacity of 400 kg (4 operators + material).

Equipped as standard with a multi-zone stabilization system that allows the operator to choose between different options depending on the available space and the required features, the electronic platform control system automatically calculates the safe work area, based on the open position of the four stabilizers.

It is equipment with extremely compact measurements that make it an excellent solution to work in hard-to-reach industrial and urban areas.

Compare
Category: Tags: , ,

Description

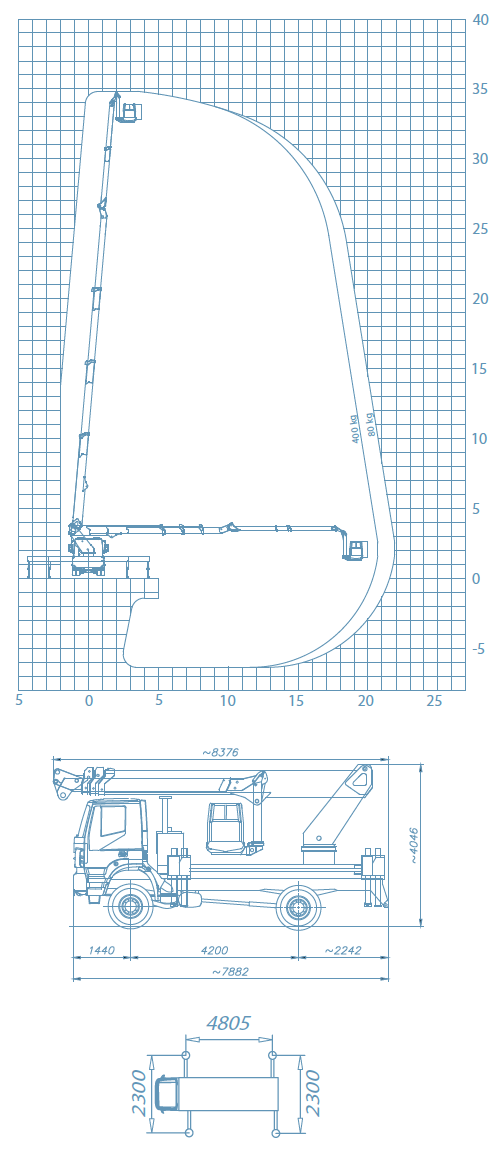

Performance

Working height, max. 35,00 m
Platform height, max. 33,00 m
Outreach, max. 30,00 m
Basket load capacity, max. 400 kg
Turret rotation 7000
Basket dimensions 230/330 x 90 x 110 cm
Basket Aluminum
Basket rotation 900+900
Outrigger HE+HE
Controls Electric
GVW 18 ton
Winch 500/1000 kg

Standard Equipment:

  • Extendable aluminum basket with dimensions 2300/3300 x900x1100 mm
  • Basket rotation 360°
  • Rotation turret 00°
  • Possibility to mount winch
  • Automatic stabilization
  • Partially stabilized work areas
  • Auto lock
  • Basket control station with console on Socage design including joystick and 7 “LCD display with real-time information
  • Intercom with headphones for basket-ground communication
  • Main and auxiliary motor start / stop control from the basket
  • Multifunction radio remote control for emergency control of the aerial part from the ground and stabilization
  • Electric hour counter
  • PTO automatic cut-off
  • N ° 2 fixed roto-lamp on the vehicle cabin
  • Socket 230V/400V
  • Heat exchanger on the hydraulic system
  • 2 folding sides, 2 fixed (h 150 mm)
  • 4 plates to stand to the ground(700 x 700 x 50 mm)
  • Anti-corrosion treatment on unpainted components
  • Aerial part painting: white RAL 9016
  • Frame and hydraulic cylinders painting: blue RAL 5015

Safety Devices:

  • Emergency and stop button
  • Cross-check of open stabilizers
  • Load limiter in the basket
  • Moment limiter with double safety and control of correct operation
  • Multi-axial device for visual control of frame stabilization
  • Emergency descent with electric pump (in the absence of the auxiliary motor)
  • Rotation brake of the turret with automatic insertion
  • Hydraulic system with differentiated filtering with high efficiency filters both on the delivery lines and on the return lines
  • Multifunction radio control for emergency control
  • Automatism for rotation lock with extension of the stabilizers on one side only
  • Chassis flatness sensor
  • Flanged block valves
