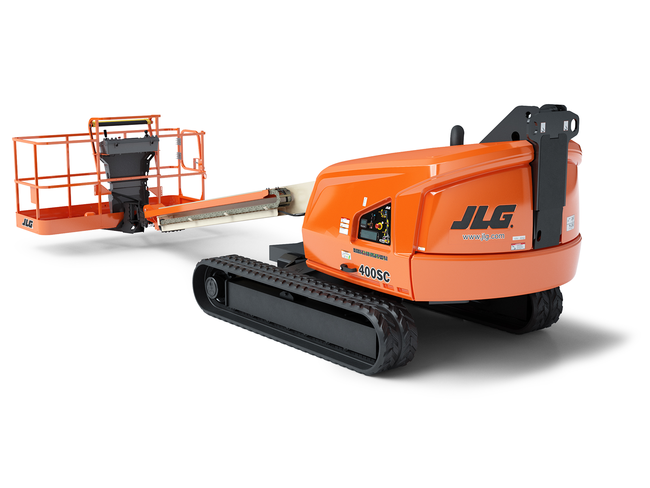

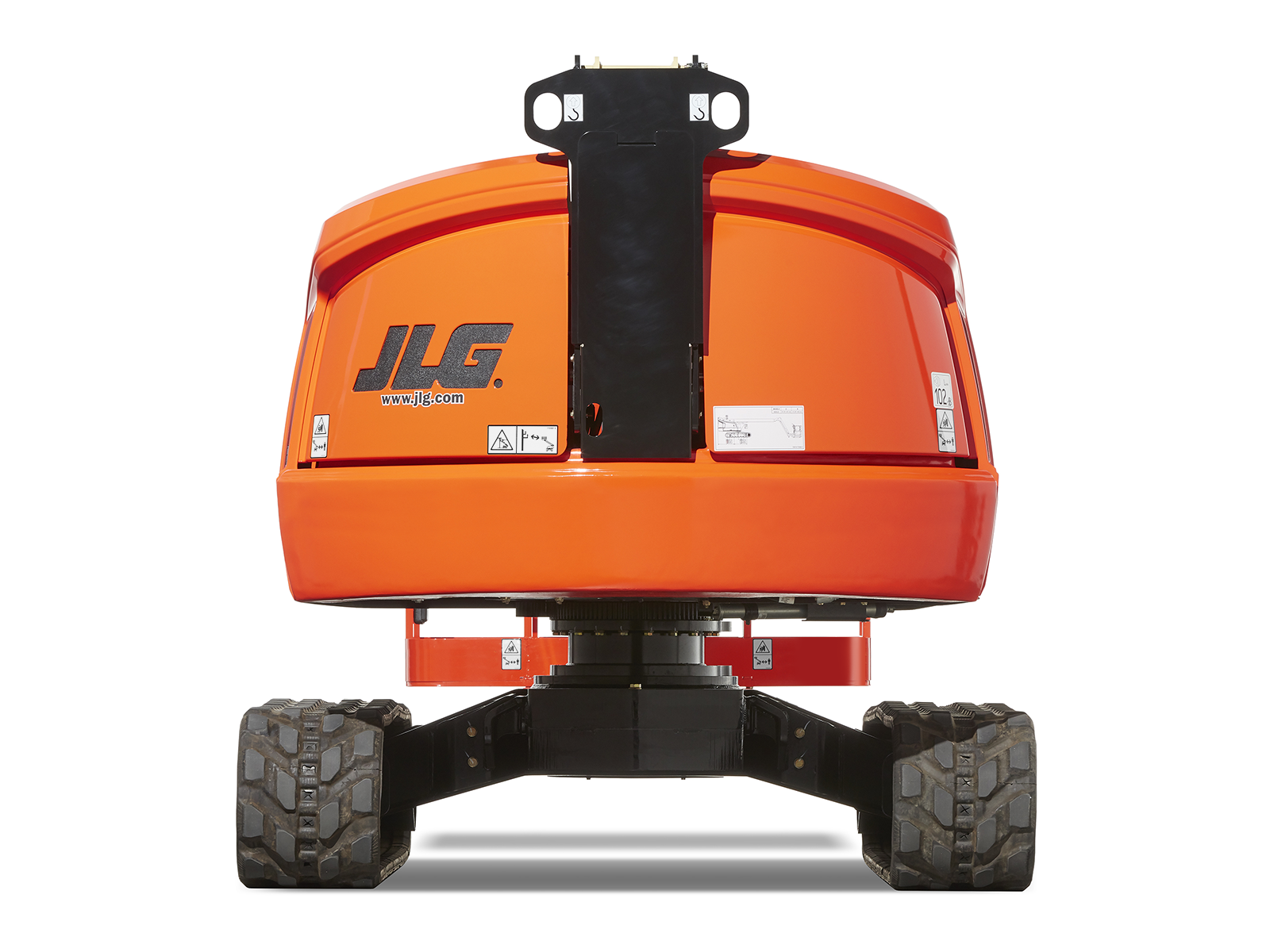

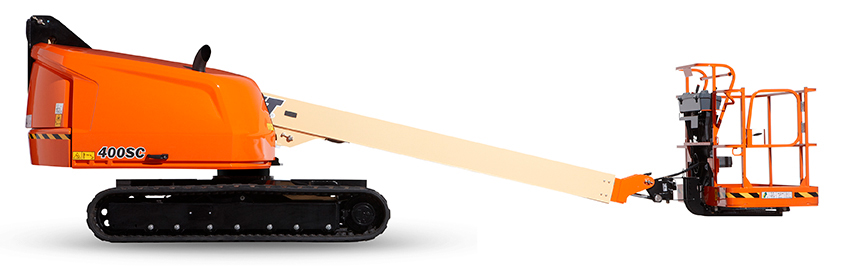

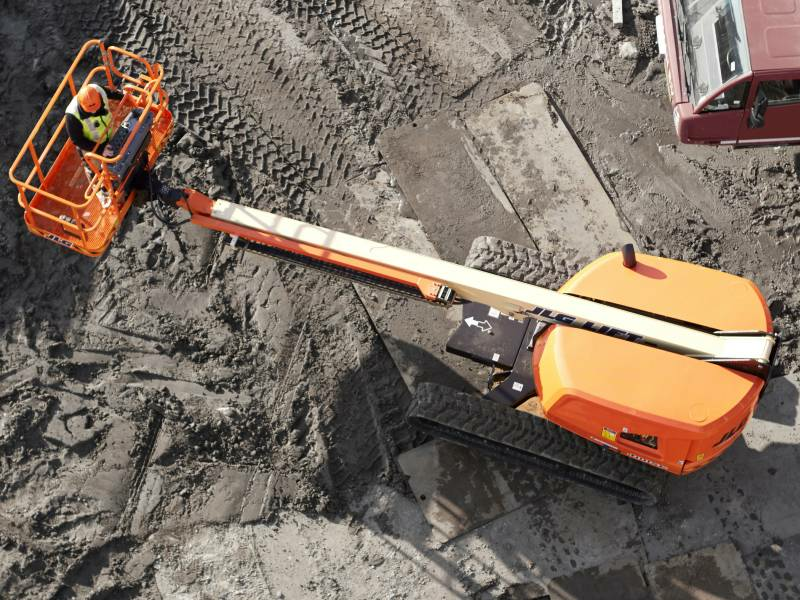

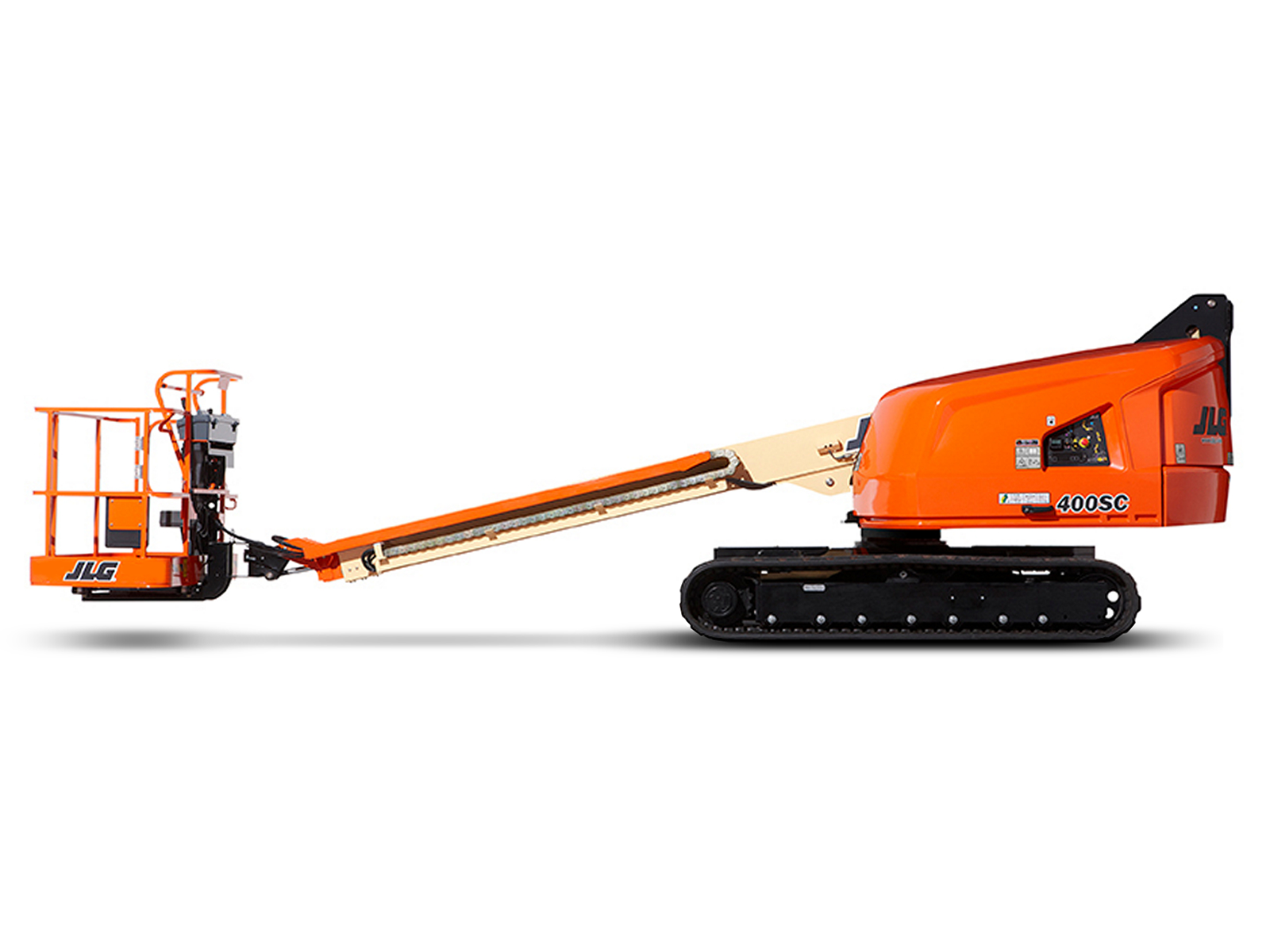

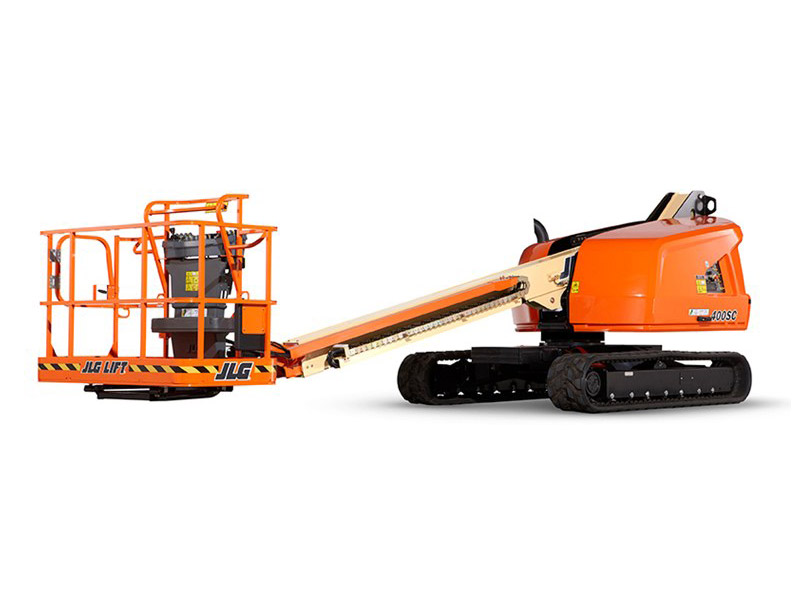

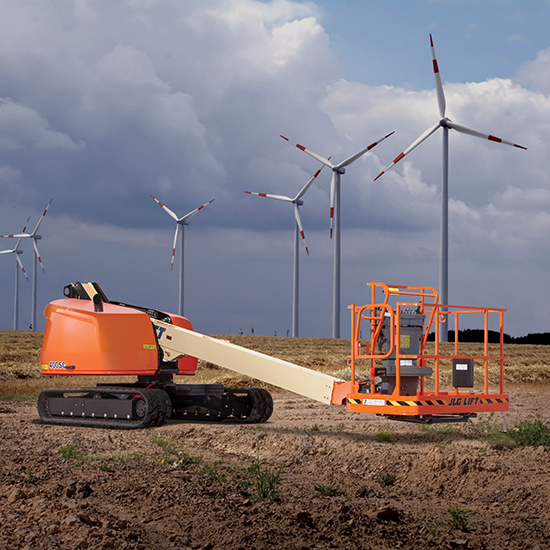

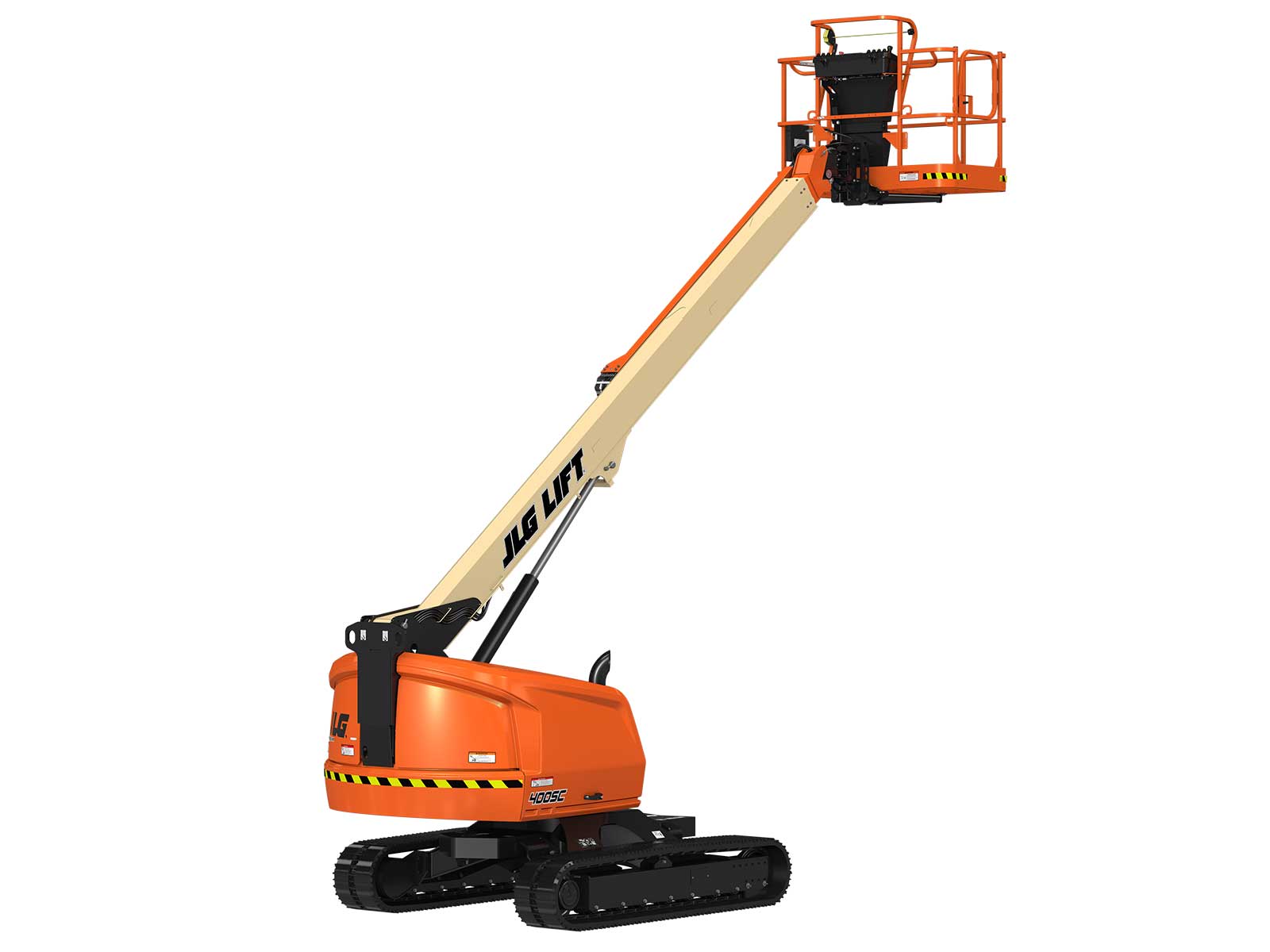

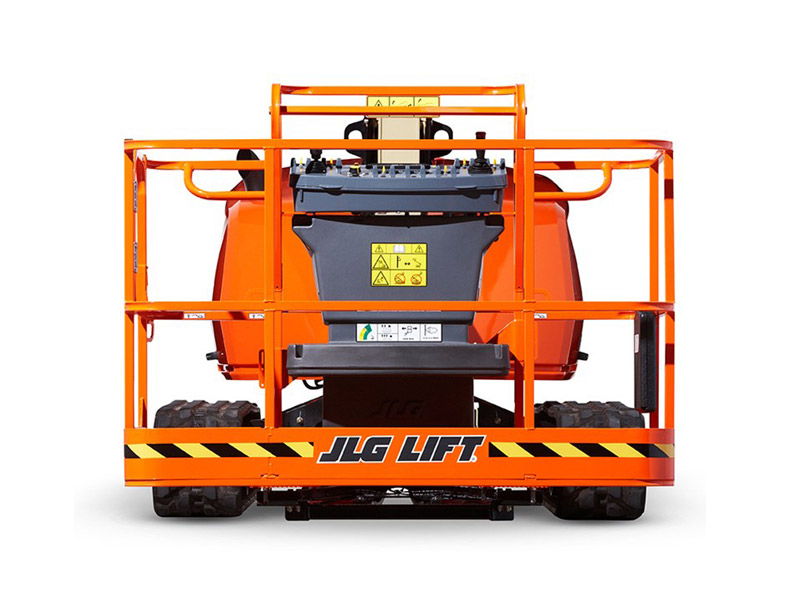

Used Telescopic Boom Lift JLG 400SC for sale

Key specifications

Model: JLG 400SC
Available stock: 5 units
YOM: 2018
Working height:  14 m
Working Hour: ~200 hrs
Condition: Very good
Machine location: Japan

Highlight features

  • More Economic: Cut fuel consumption and operating costs with variable engine control.
  • More Productive: Carry more tools and materials and stay on the job longer with dual 270kg/450kg (restricted/unrestricted) basket capacity.
  • More Access: Get full access in every direction with 360-degree step-less rotation.
  • Smart Design: Reduce maintenance with a DuraTough turnable hood. High impact resistance and protects components.
Compare
Category: Tags: , , ,

Description

TECHNICAL DESCRIPTION
Manufacturer JLG
Model 400SC
Working height, max. 14,50 m
Horizontal Outreach 10,06 m
Platform capacity, Unrestricted 272,16 kg
Platform capacity, Restricted 453,59kg
Swing 360°
Drive Speed – 4WD 2,90 km/h
Gradeability – 4WD 51 %
Ground Clearance 0,41 m
Platform Size 0,91 x 2,44 m
Track Width 0,4 m
Machine Height x Length x Width 2,32 x 7,57 x 2,24 m
Capacity – Fuel Tank 83,28 L
Engine Type – Diesel Deutz D2.9L4 Tier 4 Final 36.4 kW
Capacity – Hydraulic Reservoir 136,27 L
Machine Weight 6603,85 kg
Maximum Ground Bearing Pressure 0,36 Kg/cm2
COMMENTS:

Please note that we can deliver to anywhere within the Philippines, please contact us for a delivered price.
If you are purchasing from outside the Philippines delivery and transportation will be your responsibility.

Standard Features:
  • 0.91 m x 1.83 m (36 x 72 in) Platform Side Entry
  • Side entry with drop bar mid-rail
  • Multiple function operation
  • Full proportional drive joystick control with integral thumb steer switch
  • Full proportional main boom and swing joystick control
  • Multiple speed controls for telescope and platform rotate
  • Selectable creep speed on drive/lift and swing functions
  • 180-degree powered platform rotator
  • Platform console machine status light panel * (Provides indicator lights at platform control console for system distress, low fuel, 5-degree tilt light, and foot switch status)
  • Load sensing system
  • AC cable to platform
  • Engine distress warning/shut down system
  • Dura Tough gull-wing turntable hoods
  • Swing-out engine tray
  • Control ADE® – Advanced Design Electronics System
  • Hydrostatic drive transmission
  • Horn
  • 5-degree tilt alarm and indicator light
  • Lifting/tie down lugs
  • Hour meter
  • Ground control selector switch with key lock
  • Platform tool tray
  • 12V DC auxiliary power
  • Interactive Display at Ground Controls
  • Motion Alarm
  • Dual-rated platform capacity of up to 450 kg
  • Cast Aluminum Control Box
  • JLG Skyguard active system
Options:
  • Hydraulic oil cooler
