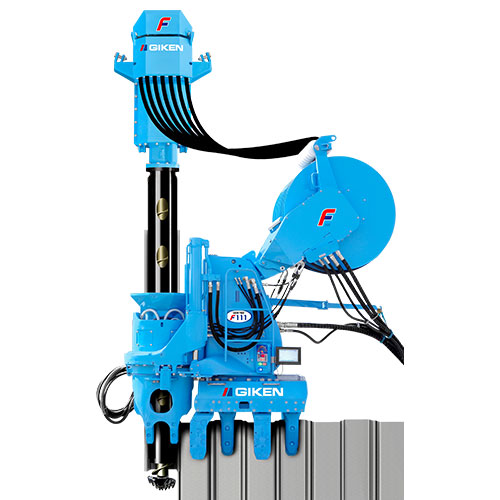

Silent Piler GIKEN F111

Key Specs

  • Max. Press-in Force: 1000 kN
  • Max. Extraction Force: 1100 kN
  • Press-in Speed: 2.0 ~ 43.5 m/min
  • Extraction Speed: 1.5 ~ 55.0 m/min
  • Mass (Silent Piler Main Body): 7050 kg
  • Mass (Power Unit): 7250 kg
  • Rated Output: 265 kW(360 ps)/1800 min-1

Key Features

  • New control system
  • Increased machine rigidity and guiding precision
  • Addition of abrasion-resistant plates
  • Longer applicable pile length
  • Compact machine size
Compare
Categories: , Tags: , ,

Description

Technical Parameters

Manufacturer

GIKEN

Model Name

F111

Applicable sheet piles

U Sheet Piles 400mm wide
(SPII, SPIII, SPIV)

Max. Press-in Force

800 kN (Super Crush Mode)

1000 kN (Standard / WJ Mode)

Max. Extraction Force

900 kN (Super Crush Mode)

1100 kN (Standard / WJ Mode)

Stroke

850 mm

Press-in Speed

2.0 ~ 43.5 m/min

Extraction Speed

1.5 ~ 32.3 m/min

Control System

Radio Control

Movement

Self-Moving

Mass

 Super Crush Mode
(Main Body & Hose Reel)

10600 kg

Water Jetting Mode
(Main Body & Piler Jet Reel)

7870 kg

Standard Mode (Main Body)

7050 kg
