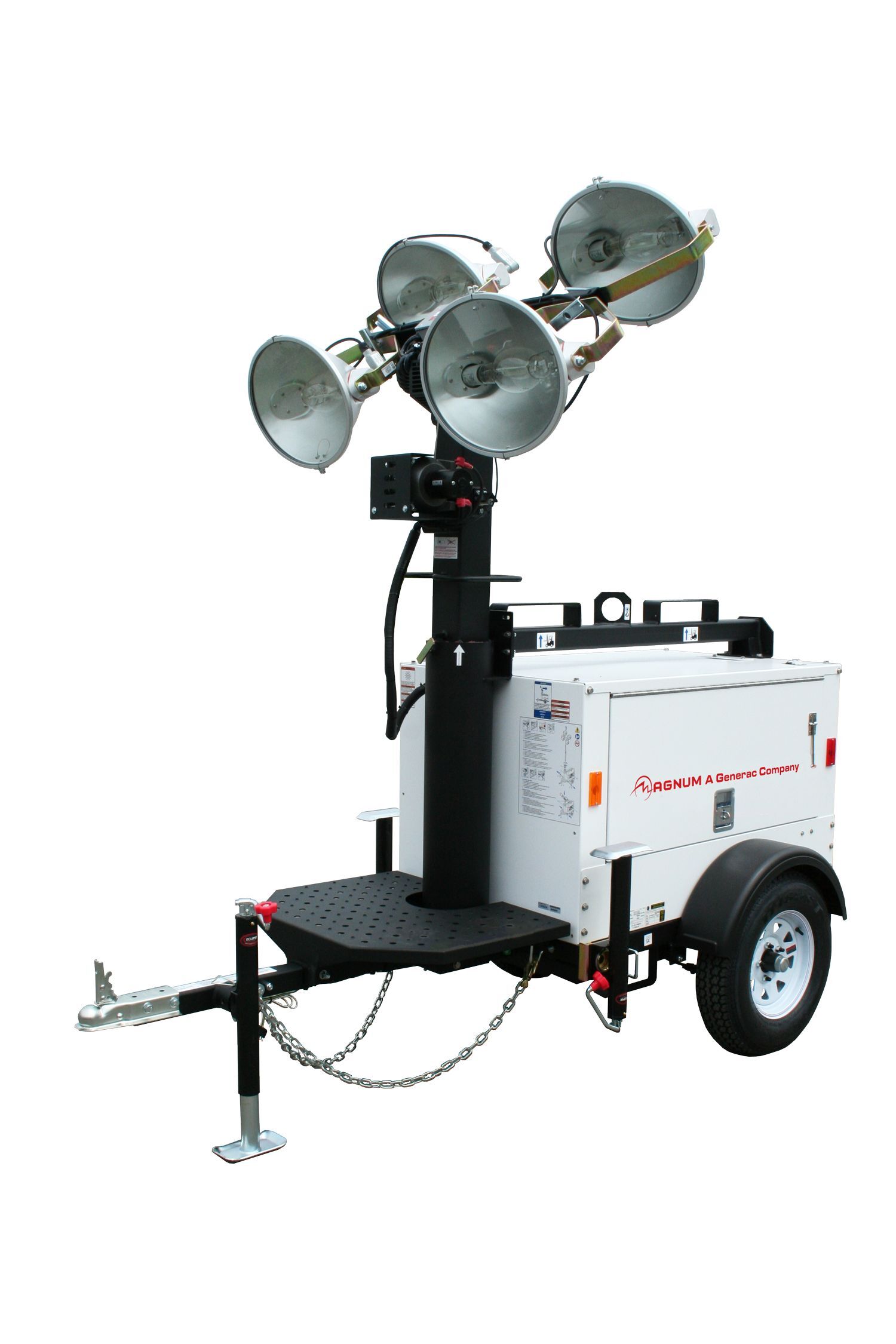

MAGNUM MLT3060

Key Specs

  • Lamp Capacity: 1000W x 4 Lights
  • Lamp Type: Metal Halide
  • Max. Mast Height: 9.14 m
  • Total Lumens: 440,000 lm
  • Light Coverage: 20,234~28,328 m2

Key Features

  • The light tower can extend to a max height of 9.14m.
  • Designed for extended run times, often lasting up to approx. 60 hours on a single tank of fuel.
  • The mast can often be rotated both vertically and horizontally to direct light where it is needed most.
  • Comes with a trailer for easy transport between job sites.
  • User-friendly control panel for managing lighting and engine functions.
  • Built to withstand harsh weather conditions, ensuring reliability on outdoor job sites.
  • Ideal for construction sites, film and photography shoots, emergency response scenarios, outdoor events, and festivals.
Compare
Categories: , Tags: , ,

Description

Lighting

Lighting Capacity (W x Lamps) 1000 x 4
Lighting Type Metal halide
Ballast Type Coil & Core
Total Lumens  440,000
Light Coverage (m2) 20,234 ~ 28,328

Dimensions

Length w/ Mast Stowed (m) 4.32
Width (m) 1.25
Width w/ Outriggers Extended (m) 2.49
Height w/ Mast Stowed (m) 1.73
Maximum Height of Tower (m) 9.14

Trailer

Number of Axles 1
Capacity – Axle Rating (kg) 998
Tire Size (m) 0.33
Hitch – Standard 2″ Ball
Maximum Tire Pressure (psi) 50

Generator Set (Engine/Generator)

Output kW (kVA) 6.0 (6.0)
Output Voltage (V) 120/240, single phase
Output Amperes 120V (240V) A 50 (25)
Frequency (Hz) 60
Power Factor 1 (1Ø)

Weights

Dry Weight (kg) 744
Operating Weight (kg) 841

Capacities

Fuel Tank Volume (L) 114
Usable Fuel Volume (L) 114
Coolant (incl. engine) (L) 4.3
Oil (incl. filter) (L) 3.6
Maximum Run Time (hrs) 58

AC Distribution

Circuit Breaker Size 30
Voltage Regulation Capacitor +/-6%
Voltages Available 1Ø 120, 240

COOLANT OPTIONS

  • 60/40 Coolant, 60% Ethylene glycol

ENGINE OPTIONS

  • Heated fuel filter
  • Oil drain valve kit
  • Lower radiator hose – engine heater

ELECTRICAL CONTROLS OPTIONS

  • 720 CCA wet cell battery
  • 720 CCA gel cell battery
  • 685 CCA gel cell battery
  • Battery disconnect
  • Battery charger – 2A trickle
  • Autolight controller

CABINET OPTIONS

  • Interior cabinet light
  • Level indicator

HITCH OPTIONS

  • 2.5” lunette ring
  • 3” lunette ring
  • 3” HD lunette ring
  • 2 5/16” ball
  • Combination hitch – 2.5” lunette ring / 2” ball

TRAILER OPTIONS

  • Tube and sleeve jack
  • 6-pin or 7-spade connectors
  • Spare tire and carrier

LIGHT OPTIONS

  • High-pressure sodium, quick disconnect lights

MAST CORD OPTIONS

  • Drape cord

MAST, WINCH, & FINISH OPTIONS

  • Galvanized, manual, dual winch
  • Galvanized, electric, dual winch
  • Galvanized, electric, dual winch, quick disconnect
  • Black, electric, dual winch
  • Black, electric, dual winch, quick disconnect
