LEO15GT

Key Specs

  • Working Height: 14,70 m
  • Platform Capacity: 200 kg
  • Weight: 1 790 kg

Key Features

  • Compact design
  • Ideal traffic load
  • Intuitive control system
  • High-performance stabilizer system
  • Easy to transport
  • TEUPEN “Fuzzy”
  • Dual power source



Compare
Categories: , Tags: , ,

Description

Performance

Working height, max. 14,70 m
Side reach, max. 7,60 m
Basket capacity, max. 200 kg
Length with/without basket 5,25 m / 4,52 m
Transport height x width, min. 1,99 m x 0,78 m
Gradeability, max. 16,7 ° / 30,0 %
Total weight 1790 kg
Tracks, adjustable Mechanical (optional)
Stabilisation system Automatic
Power source – standard 230 V electric motor + Diesel
Power source – optional 230 V electric motor + Battery drive (AGM)

Benefits

Extremely versatile

The LEO15GT is a high-performance, easy-to-handle aerial lift that can be an all-around solution for many different applications either indoors or outdoors. A multi-tool for many installation or maintenance jobs or in building cleaning and upkeep.

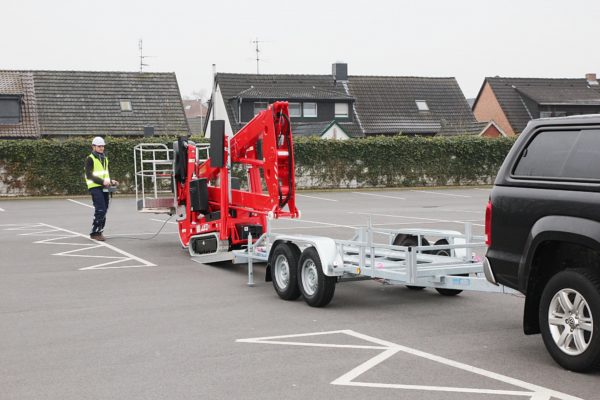

Easy transport

The light and compact LEO15GT is ideally transported on a light trailer with a small van. Always mobile and quick at the jobsite.
The TEUPEN track drive

The track drive with non-marking rubber tracks provides easy, precise maneuvering and protects sensitive flooring. Optional the track drive is mechanically height- and width-adjustable: The narrow setting decreases the width of the machine, in wide it increases ground clearance and stability. Also levelled driving alongside slopes is possible.
Compact with detachable platform

The platform with its innovative geometry and rounded-off edges provides more positioning options. It is easily detachable for passing narrow entrances of only 78 cm.
Convenient automatic stabilizer levelling

On the jobsite, the LEO15GT is easily set up on every terrain and surface with the one-touch automatic levelling system.
Rigid boom design – maximum stability

A large knuckle assembly, strong boom design with only one articulation, a wide slewing ring assembly, and the patented TEUPEN “Fuzzy” electro-proportional control logic provide unrivaled smooth, stable, and precise lift operation.
Serval power sources

The LEO15GT is equipped with two power sources: A 230V electric motor for indoor and a Diesel engine for outdoor use.





CHASSIS

  • Powerful track drive with hydraulic braking system
  • Precise maneuvering via sensitive, electro-hydraulic cable remote control
  • White, non-marking rubber tracks with specially arranged profile for optimal grip

STABILISATION

  • Electrohydraulic stabilisation with automatic levelling and ground pressure sensor system
  • Wear-resistant, anti-friction outrigger pads

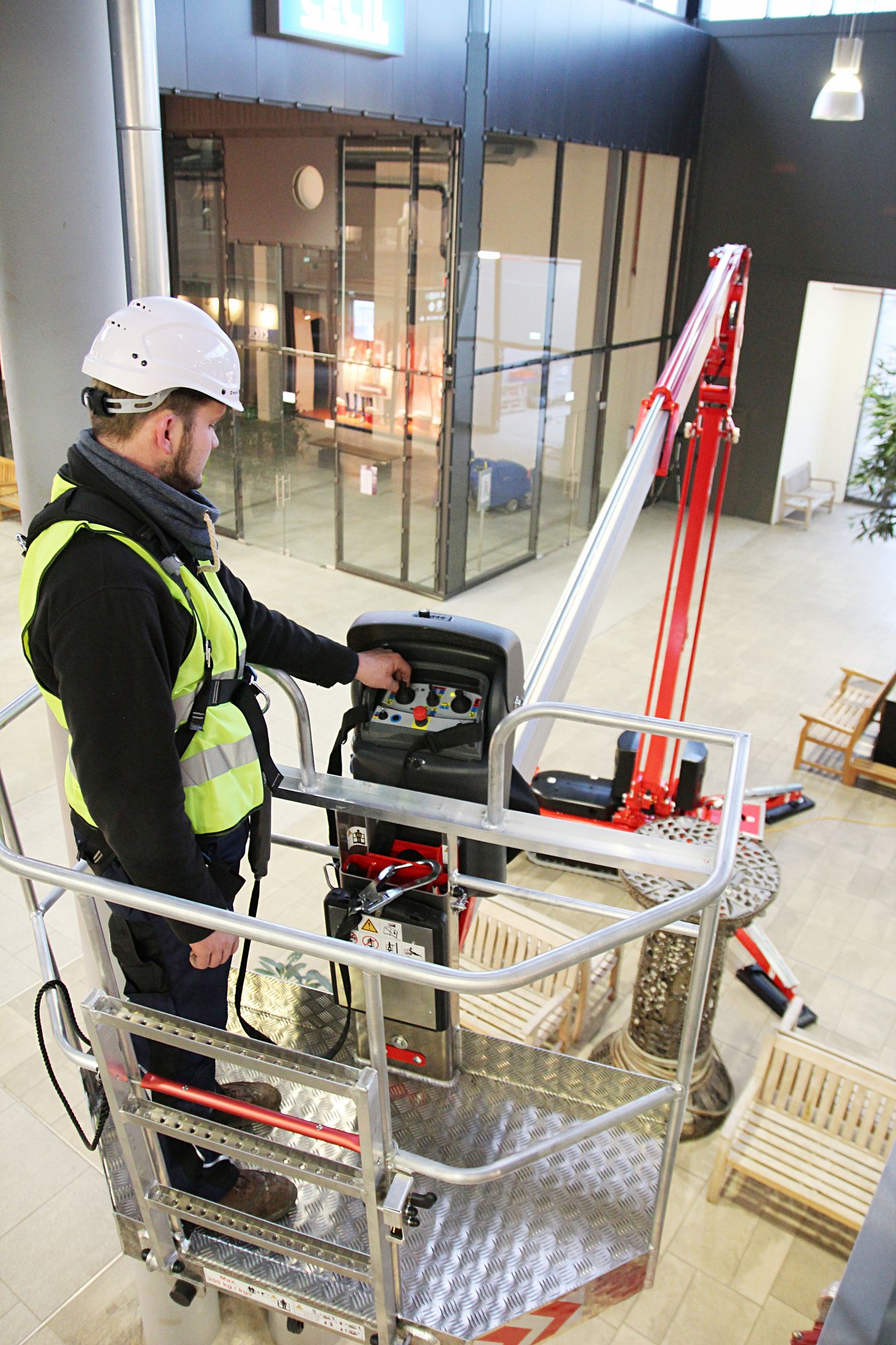

BOOM SYSTEM

  • All functions available from the platform
  • Removable cable remote control
  • Robust, lockable control panel

POWER SOURCE

  • Electric motor (230V, 12,9A, 2,2kW)
  • Diesel engine Hatz 1B30
  • Start-stop device for the combustion engine in the platform

PRODUCTIVITY, SAFETY, QUALITY

  • Hydraulic emergency lowering via hand pump
  • Power socket in the platform (110V/16A)
  • Detachable platform, including attachment point for safety harnesses
  • Drive operation without platform possible
  • Protected, internal power track for platform control
  • Impact-resistant cover over control box and control panel
  • Hydraulic system filled with biodegradable hydraulic oil
  • High-quality paint in RAL 3020 (red)
  • Hydraulic cylinders in RAL 9006 (white aluminum)
  • Engine unit & component support in RAL 9006 (white aluminum)
  • Unlockable check valves located directly on hydraulic cylinders
  • Hydraulic system protected by pressure relief valves
  • Solid base frame with full-length forklift pockets
  • Hour meter
