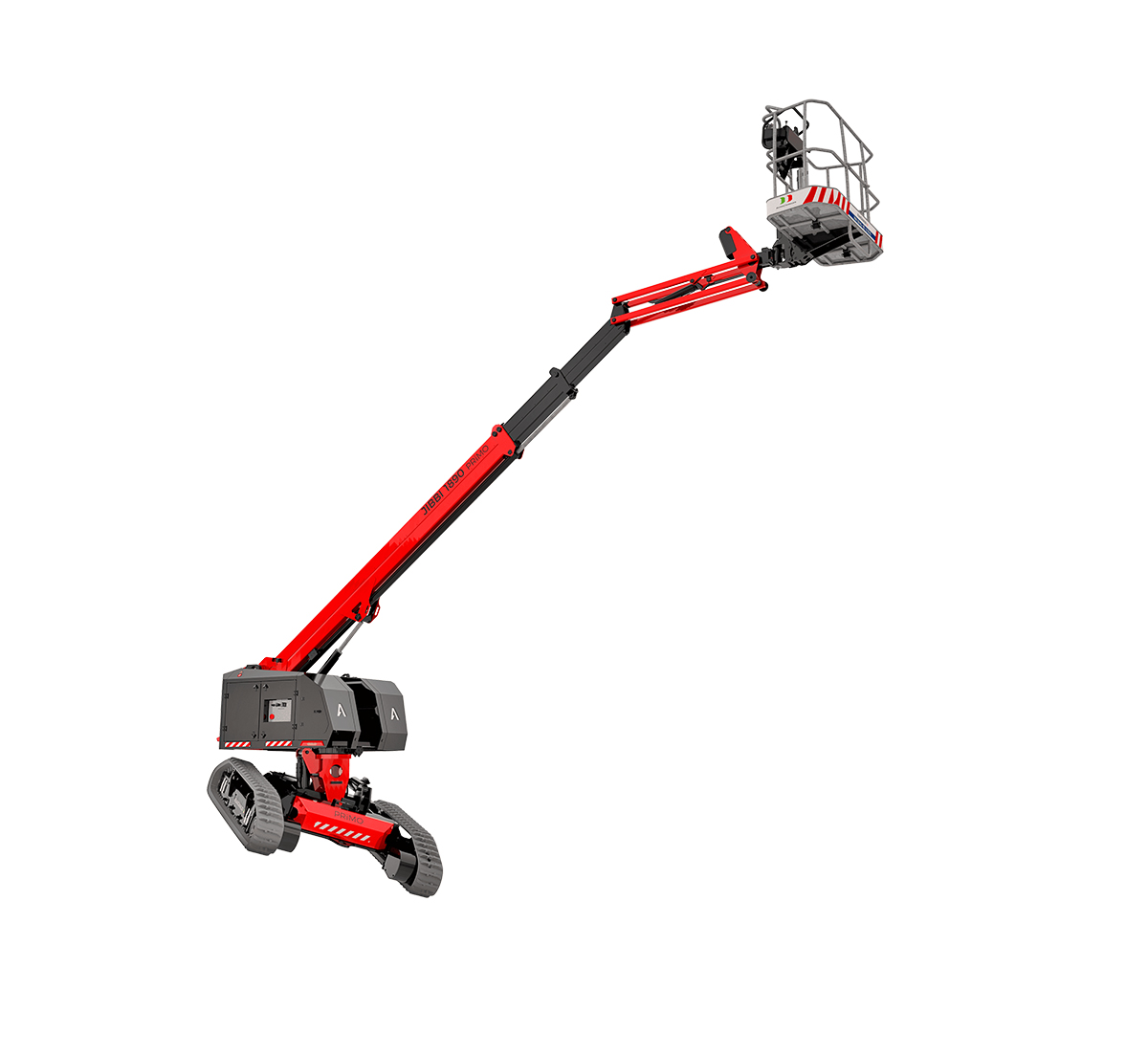

Jibbi 1890 EVO

Key Specs

  • Min. width: 2.2 m
  • Capacity: 250 kg
  • Max height: 17.90 m

Key Feature

  • Safely be driven up to 14m and on 15° lateral and longitudinal inclination, drastically enhancing operator efficiency, productivity, and safety
  • Possibility to operate on rough terrain and/or on steep slopes
  • Powered by a reliable Yanmar 3TNV-88F Diesel engine (23.9 HP), which guarantees high performance, low fuel consumption
  • The tracks are automatically tensioned and require no greasing or maintenance
  • Excellent compactness, versatility, and ease of use

Compare
Categories: , Tags: , , , ,

Description

Basket capacity 250 kg (2 persons)
Max working height 17.9 m
Max height basket floor 15.9 m
Moving height 13.8 m
Max outreach (load 140 kg) 9.92 m
Max outreach (load 250 kg) 8.32 m
Rotation angle +/- 190°
Basket size 1.80 x 0.70 m
Basket rotation angle +/- 70°
Longitudinal levelling +/-15.6°
Lateral levelling +/-15.6°
Max gradeability 25°
Max side gradeability 25°
Drive speed (fast) 3 km/h
Dirve speed while at high 0.6 km/h
Length in stowed position (with detached basket) 5.86 m
Width 2.2 m
Min height in stowed position 2.16 m
Main power source Diesel Yanmar 3TNV-88F (23,9 HP)
Traffic load 4.89 kN/m2
Total weight 6050 Kg

Standard specification:
  • New Controller
  • The ATS zero-maintenance track tensioning system is directly connected to and controlled by the main hydraulic system.
  • The AES anti-entrapment system is designed to prevent serious injury by stopping the unit but allowing space for the operator to safely remove himself.
Options:
  • Non-marking tracks
  • Kit work lights
  • Arctic lubricant for cold climates
  • Ultrasonic Anti-collision System sensors safeguard the aerial and travel operations by monitoring the area in front and behind the tracks, on the tail swing, and above and below the basket, preventing collisions with obstacles and offering pothole and drop-off protection.
