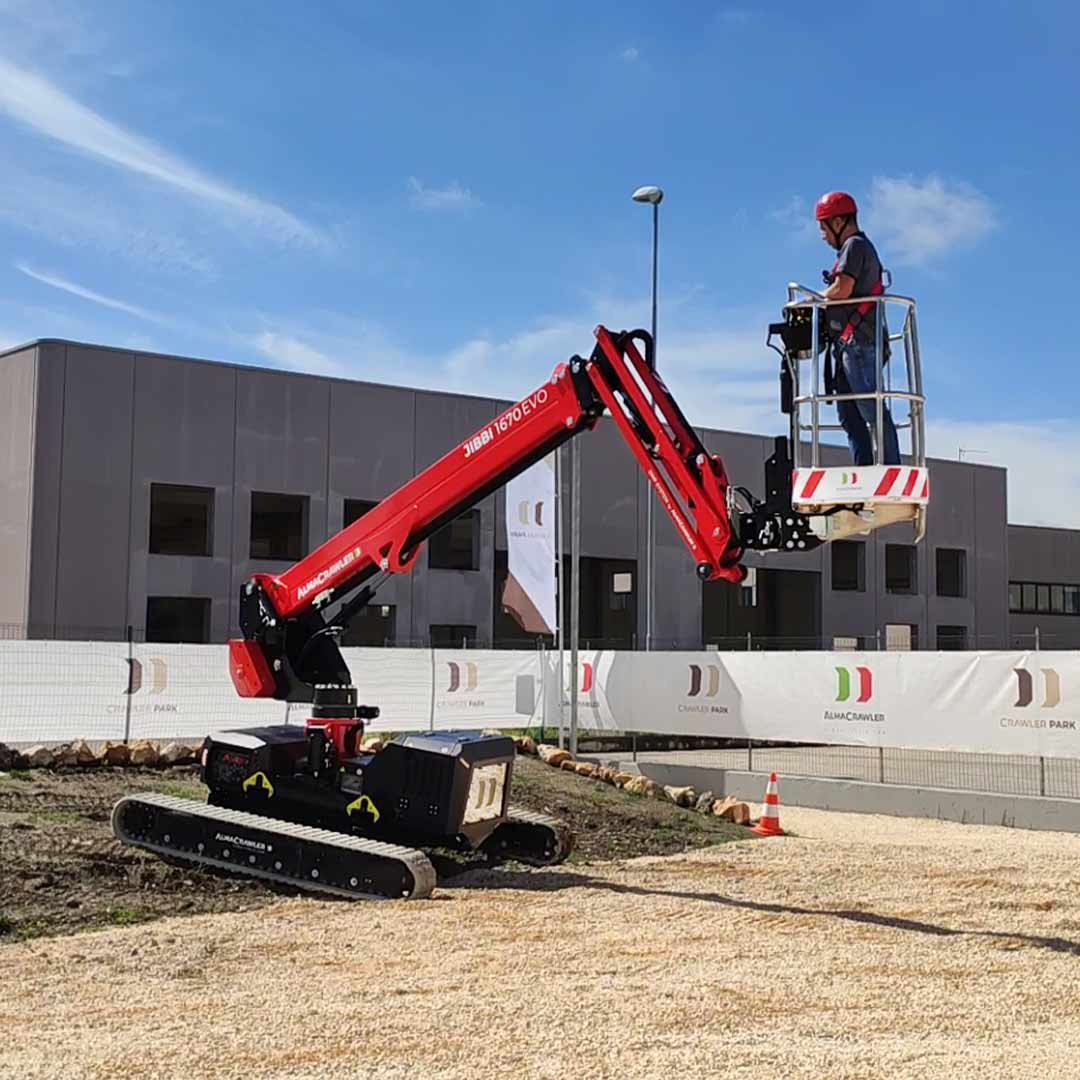

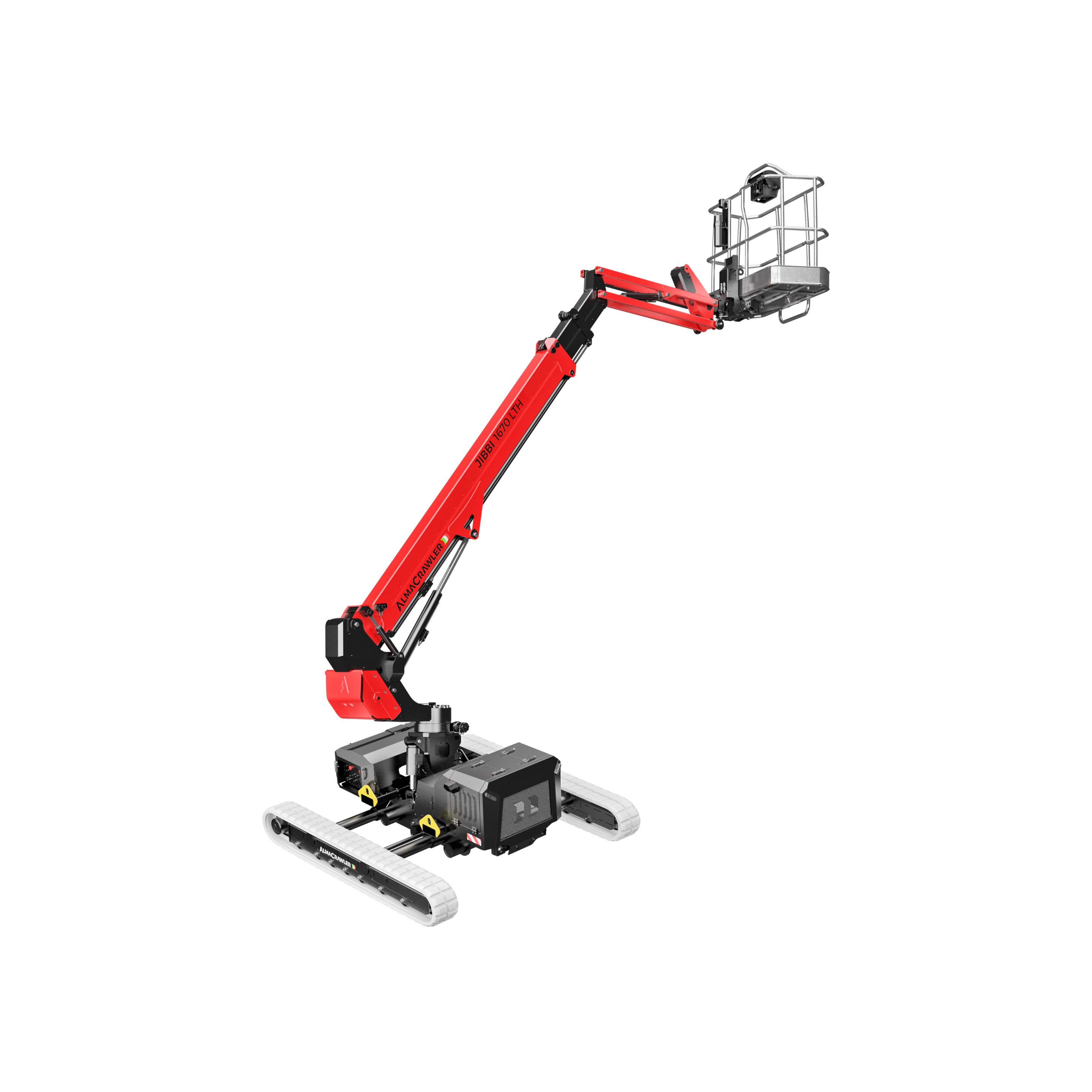

Jibbi 1670 LTH

Key Specs

  • Min. width: 1.35 m
  • Capacity: 230 kg
  • Max height: 16.00 m

Key Feature

  • Equipped with innovative bi-leveling technology, able to facilitate the various work activities of your operators
  • Possibility to operate on rough terrain and/or on steep slopes
  • Variable track widths
  • Excellent compactness, versatility, and ease of use


Compare
Categories: , Tags: , , , ,

Description

Basket capacity 230 kg
Max working height 16 m
Max height basket floor 14 m
Moving height 9.8 m
Max outreach (load 80 kg) 8.5 m
Max outreach (load 230 kg) 6.7 m
Rotation angle +/-110°
Basket size 1.4 x 0.7 m
Basket rotation angle +/-70°
Powered

Lithium battery pack
300Ah-48V DC 4 kW
Longitudinal levelling +/- 15°
Lateral levelling +/- 15°
Max gradeability 25°
Max side gradeability 25°
Drive speed (fast) 2.5 km/h
Security speed 0.4 km/h
Length in stowed position (with detached basket) 5.1 (4.4) m
Min width in stowed position 1.35 m
Max working width 2.45 m
Min height in stowed position 1.99 m
Traffic load 3.15 kN/m2
Total weight 3910 kg





Standard specification:
  • New Dynamic Work Performance (DWP by Almac)
  • Self-levelling tracked telescopic boom
  • Cable remote console by AUTEC
  • Safe-Lock System
  • Ultrasonic Anticollision System
  • Dynamic and Pro-Active Automatic Levelling
Options:
  • Non-marking tracks
  • Electric pump 220V-2,2KW / 50Hz (Weight +30 Kg)
  • Radio remote control
  • Arctic lubricant for cold climates
  • Winch kit 200 kg
  • Ultrasonic Anti-collision System
  • Wide basket (1.8 x 0.7 m)
