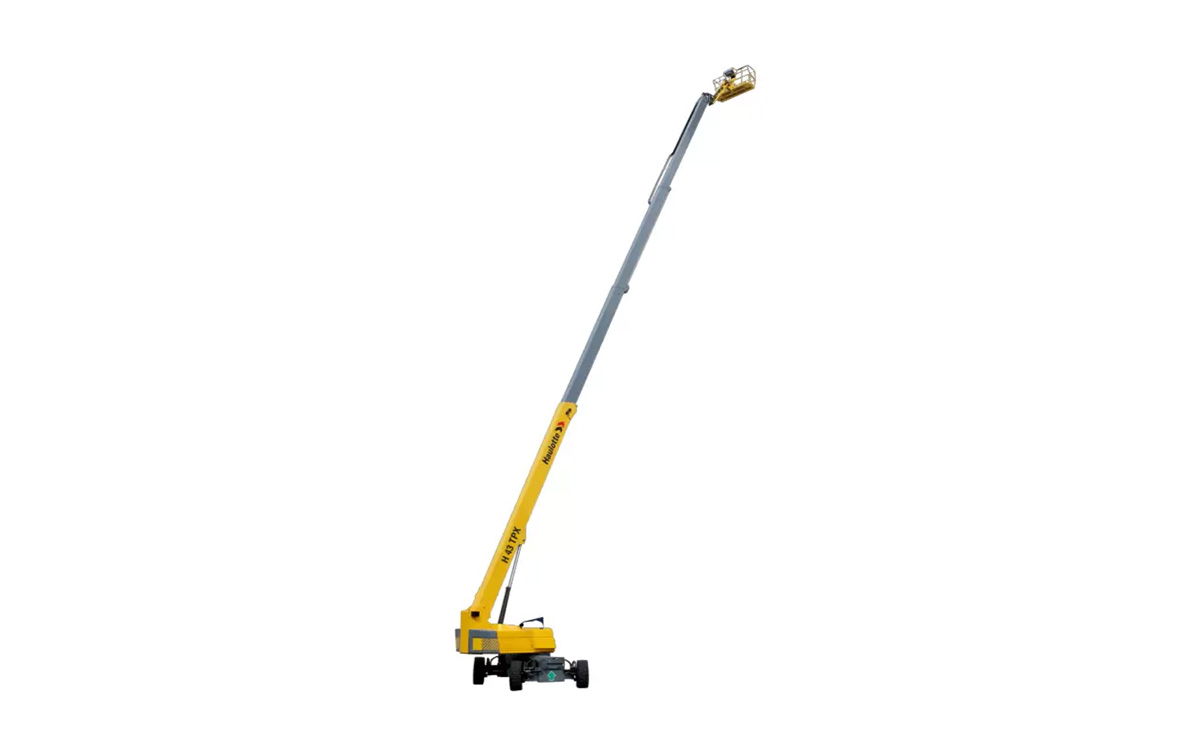

HAULOTTE H43TPX

Key Specs

  • Working Height: 42.20 m
  • Platform Capacity: 230 – 450 kg
  • Weight: 20,600 kg

Key Features

  • Continuous outreach control
  • 4-wheel drive and steer
  • Extending and oscillating axles
  • High ground clearance

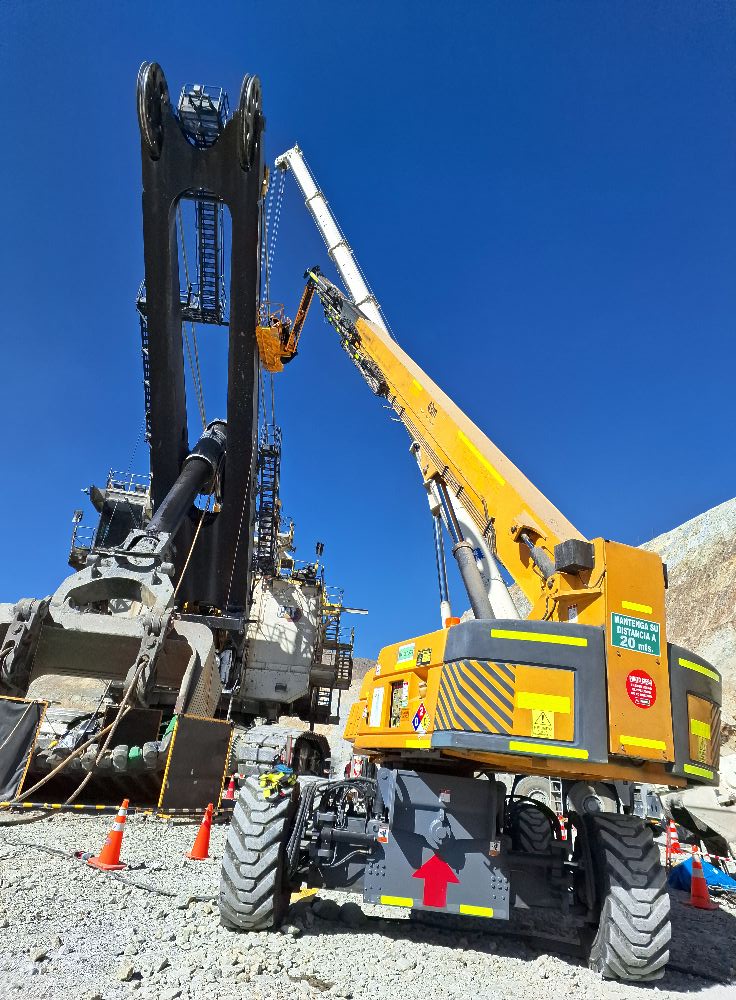

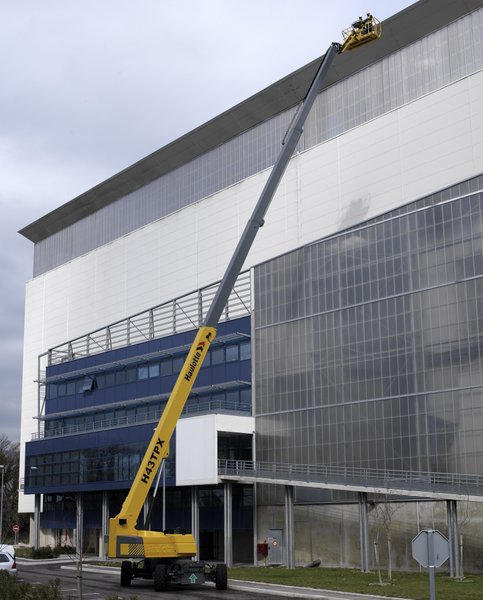

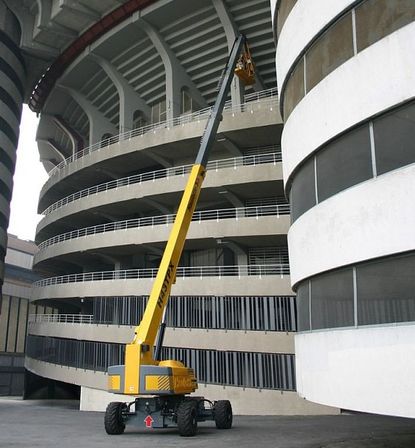

  • Suitable for a wide range of applications, including construction, maintenance, industrial work, and more.

Compare
Categories: , Tags: , ,

Description

Performance

Working height, max. 42.20 m
Horizontal outreach 20.00 m
Lift capacity 230 – 450 kg
Platform size 2.44 x 0.8 m

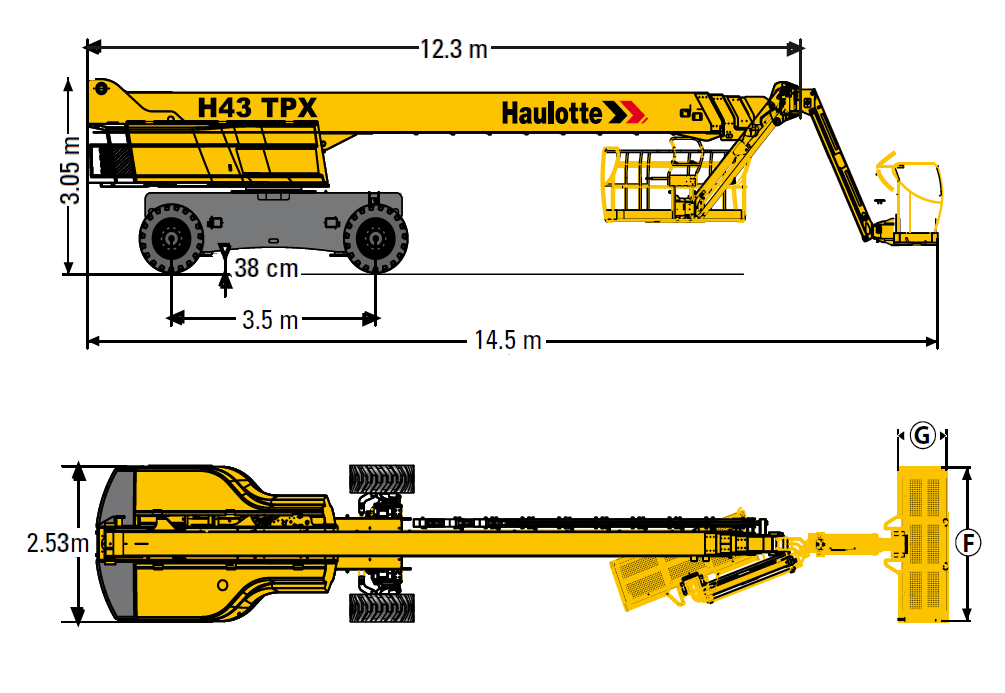

Stowed Dimensions (L x W x H) 14.5 x 2.53 x 3.05 m
Total weight 20,600 kg
Gradeability 40%
Drive speed 0.3-5 km/h
Tailswing 150 cm
Wheelbase 3.5 m
Ground clearance 38 cm
Tilt 4°
Turntable rotation
 360°
Vertical jib rotation 140° (+70/-70)
Platform rotation
 180° (+90/-90)
Boom rotation angle
 73° (+73/-0)
Outside turning radius 5.74 m
Power source  62.4 kW – 84.9 hp
Tyres (foam-filled)
 445/65-22.5
Hydraulic tank
 240 L
Fuel tank 140 L


Advantages:
  • Load capacity: 230 kg (2 persons) /450 kg (3 persons)
  • 2-axis jib rotation, 150° horizontal and 140° vertical
  • Strong, quick, and manoeuvrable boom
  • Compact and easy to transport
  • Faster lifting to full height
  • Unequalled all-terrain capabilities
  • Continuous movement control
  • Continuous outreach control
  • Smooth and precise controls
Standard Equipment:
  • Proportional and simultaneous controls
  • 4-wheel drive and steer
  • 2 extendable axles
  • Oscillating axle
  • Swing out engine tray for ease of maintenance
  • 12 V battery / electrical control system
  • Auxiliary power in platform
  • Differential lock
  • Hourmeter
  • Mechanical turret slewing hook
  • Towing hooks
  • Outside use: withstand winds up to 45 km/h
  • Sound and light signal for tilt and weighing
  • Gull-wing style cowlings
