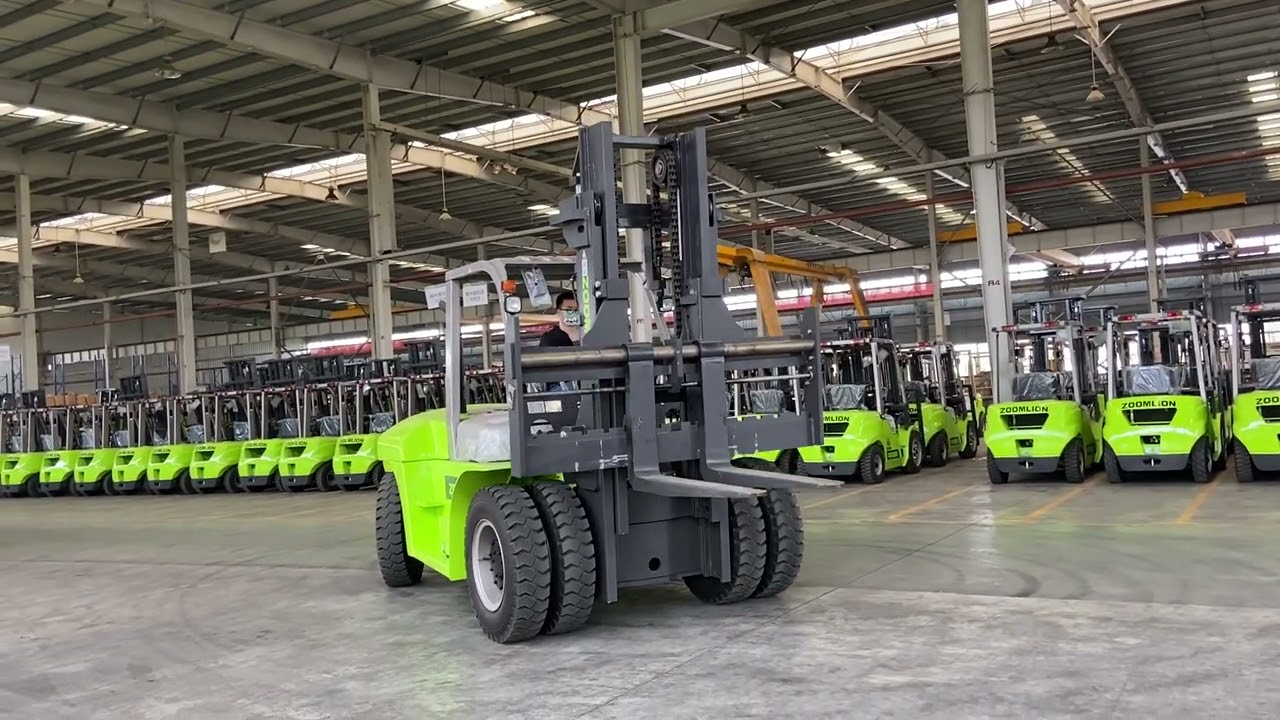

ZOOMLION FD100

Key Specs

Key Features

High torque and capacity engine, potent and capable of different operation demands.
The reinforced mast offers a wide view, increasing safety and efficiency while enhancing anti-force capacity.
Lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently.
Working stably with efficiency and good grade ability and can be operated in bad working conditions.
Scientific ergonomic design makes operation more portable and comfortable.

Compare

Description

Load capacity/Rated load	10,000 kg
Load center	600 mm
Lift height	3,000 mm
Free lift	220 mm
Tilt of mast forward/backward	6⁰/12⁰
Overall width	2,230 mm
Turning radius (outside)	4,280 mm
Overhead guard height	2,600 mm
Overall length (with forks)	5,475 mm
Fork dimensions (length/width/thickness)	1,220/175/80 mm
Wheelbase	2,800 mm
Curb weight (no load)	12,500 kg

Drawbar pull (max.) (full load/no load)	57 kN
Lift speed, with load	290 mm / sec.
Lift speed, no load	350 mm / sec.
Travel speed, with load	20 kph
Gradeability (%)	20

ZOOMLION FD100
