Description
TECHNICAL DESCRIPTION
| Manufacturer |
TEUPEN |
| Model |

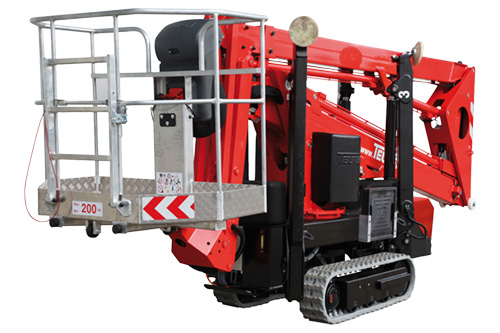

LEO18GTplus |
| Working height, max. |
18,30 m |
| Side reach, max. |
8,50 m |
| Up and over clearance, max. |
8,30 m |
| Platform capacity, max. |
200 kg |
| Jib, movable |
90° |
| Turntable rotation, max |
355° |
| To be jacked up on ground slope of |
12,0 ° / 21,0 % |
| Track drive, height- and width-adjustable |
8 / 16 cm |
| Gradeability, max. |
19,7 ° / 35,5 % |
| Slope angle, max. |
16,7 ° / 30,0 % |
| Travel speed, max. |
1,8 km/h |
| Length with/without platform |
5,20 m / 4,50 m |
| Transport width x height |
0,78 m x 1,99 m |
| Ground clearance, max. |
0,25 m |
| Total weight |
2650 kg |
| Live load in travelling position |
4,90 kN/m² |
| Live load in working position |
2,59 kN/m² |
| Point load per outrigger plate, max. |
17,30 kN |
| Fuel tank capacity (Diesel engine) |
12,0 l |
| Tracks, adjustable |
Hydraulic |
| Stabilisation system |
Automatic |
| Power source |
230 V electric motor + Diesel |
COMMENTS:
Please note that we can deliver to anywhere within the Philippines, please contact us for a delivered price.
If you are purchasing from outside the Philippines delivery and transportation will be your responsibility.
CHASSIS
- Powerful track drive with hydraulic braking system
- Precise maneuvering via sensitive, electro-hydraulic cable remote control

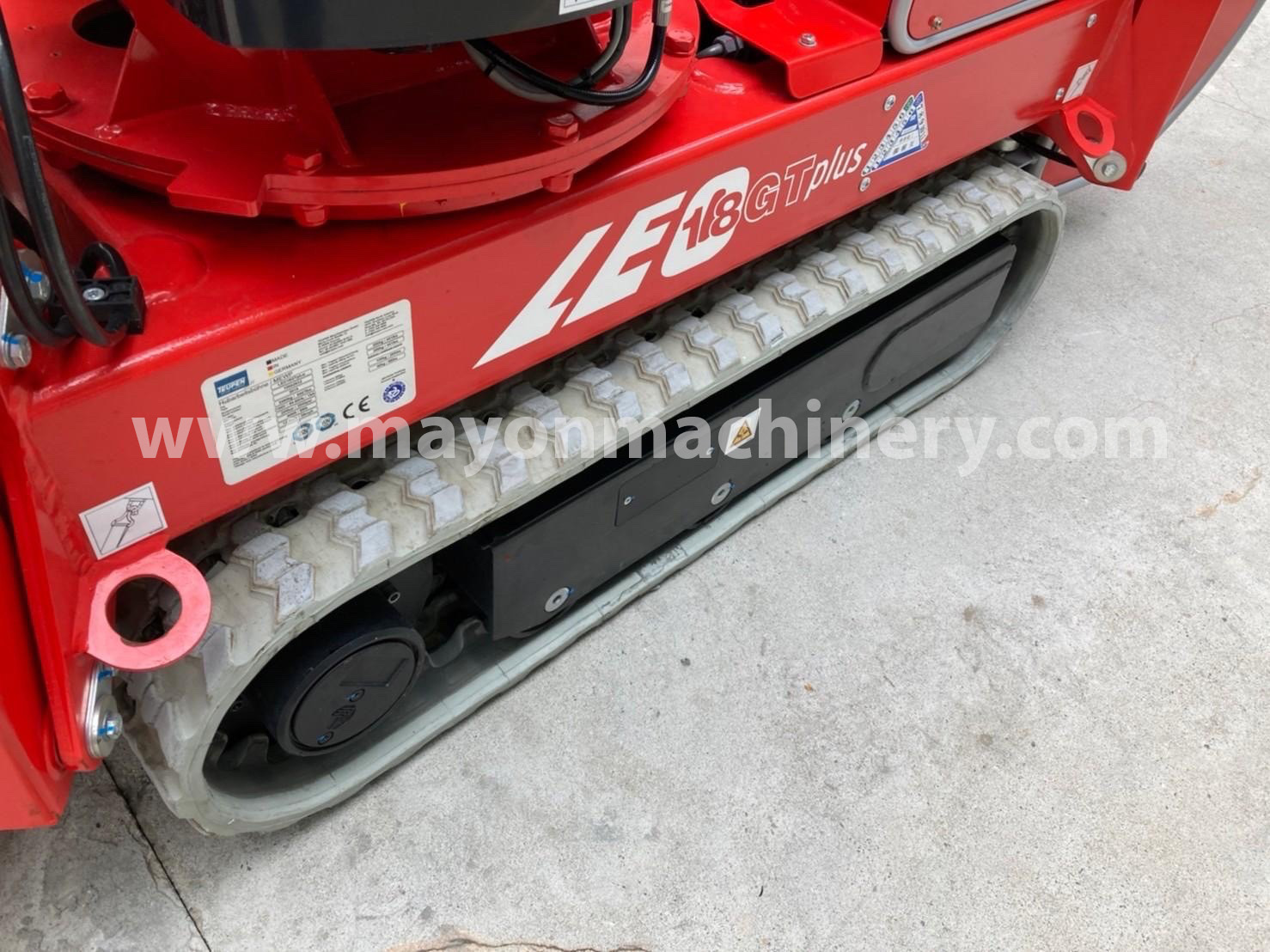

- White, non-marking rubber tracks with specially arranged profile for optimal grip
- Mechanically height- and width-adjustable track drive
STABILISATION
- Electrohydraulic stabilisation with automatic levelling and ground pressure sensor system
- Wear-resistant, anti-friction outrigger pads

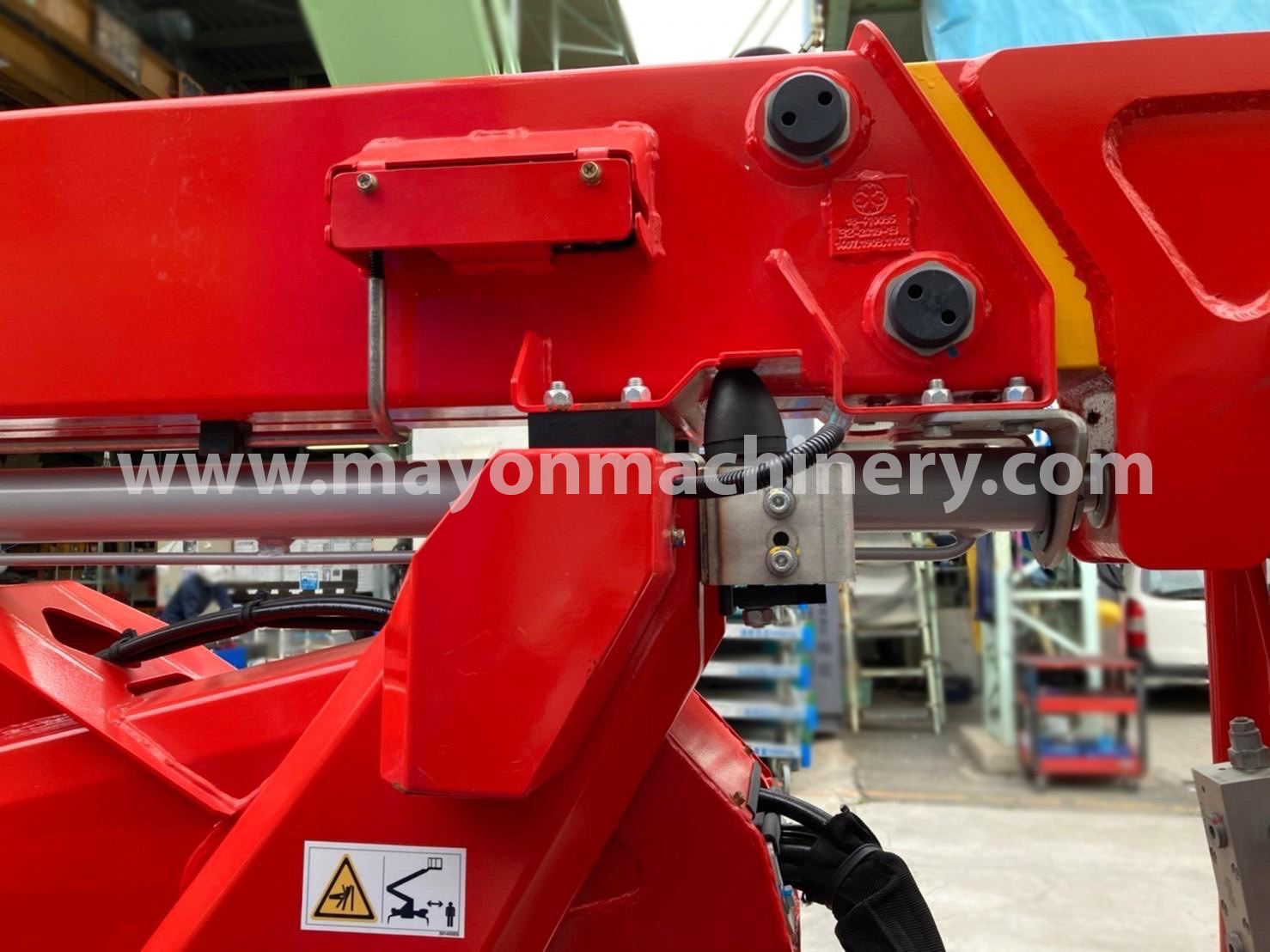

BOOM SYSTEM
- Telescopic lower and upper boom
- All functions available from the platform
- Removable cable remote control

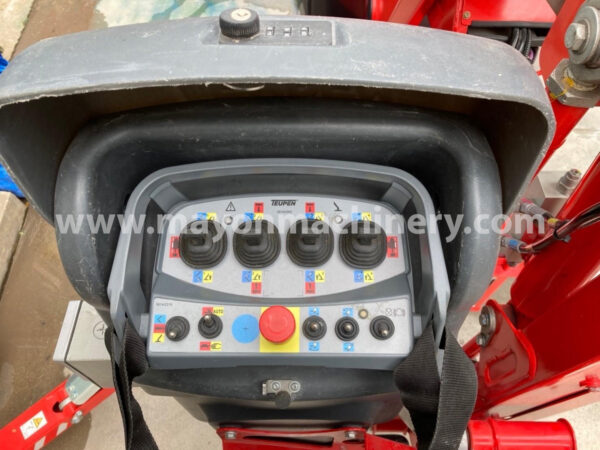

- Robust, lockable control panel
- Parallel guided platform with hydraulic levelling system
- Turntable rotation via high-performance slewing ring, worm gear, and hydraulic motor

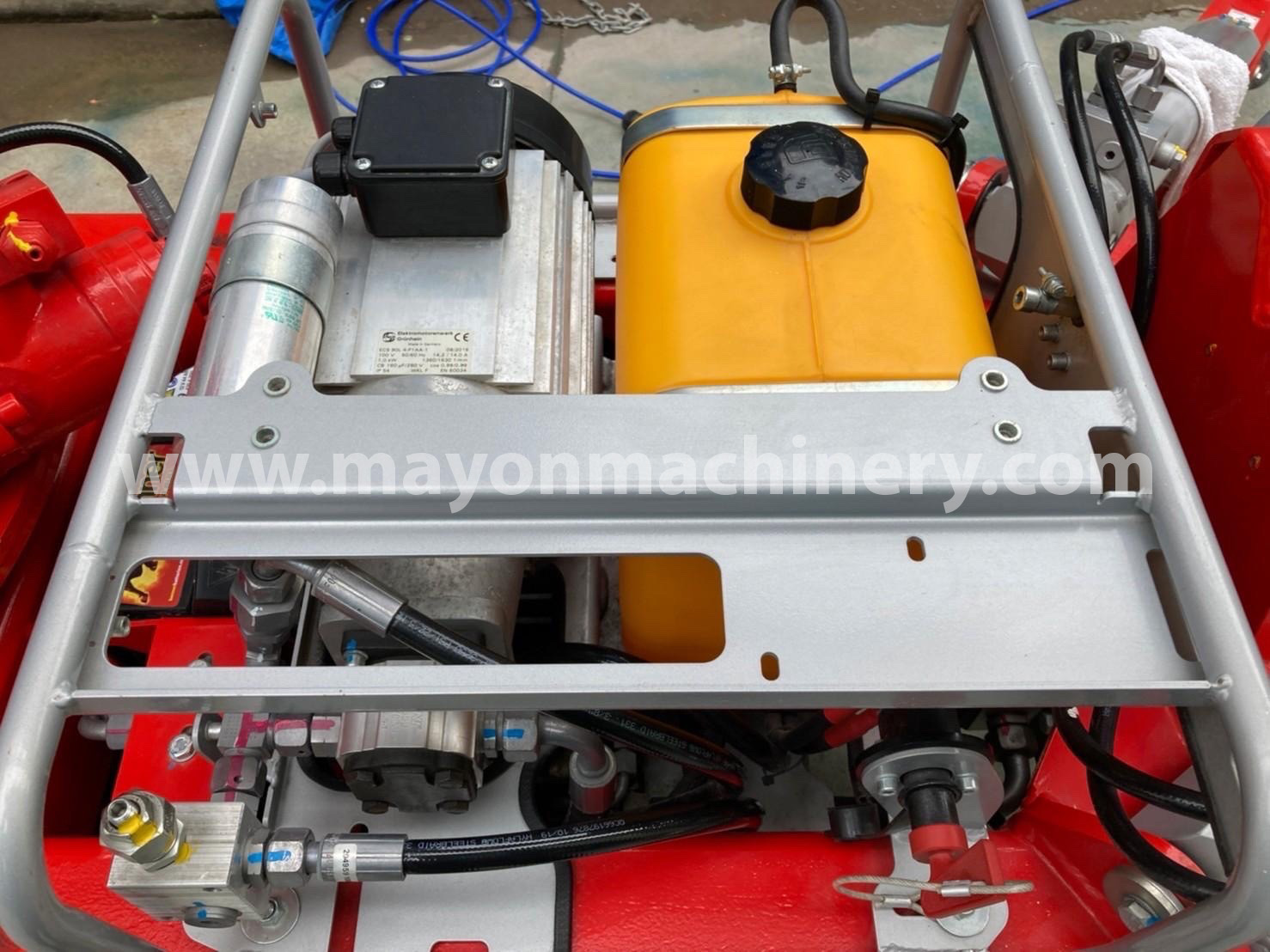

POWER SOURCE

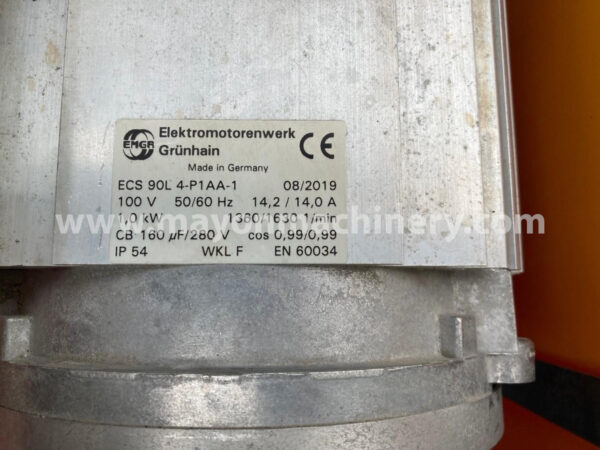

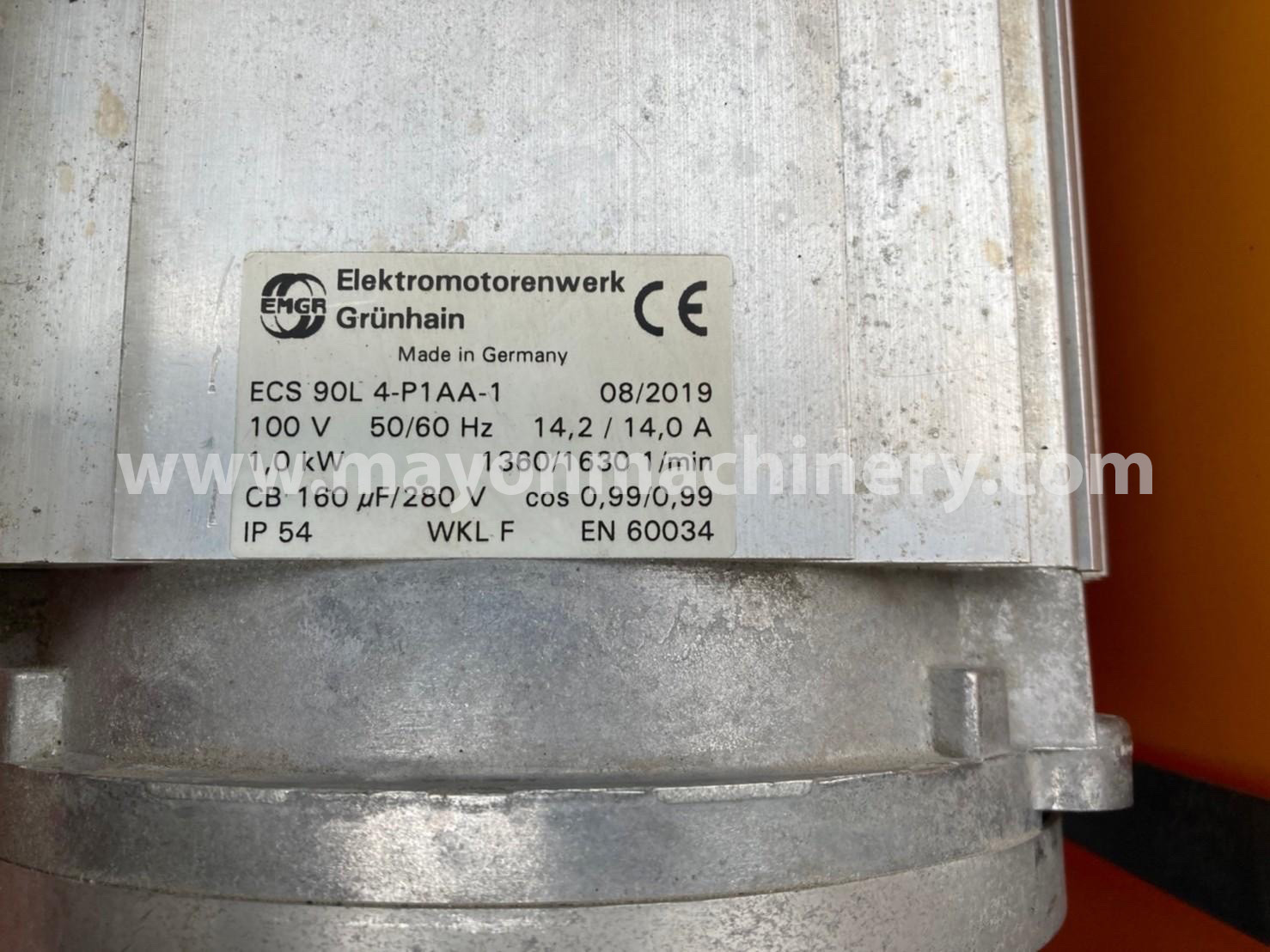

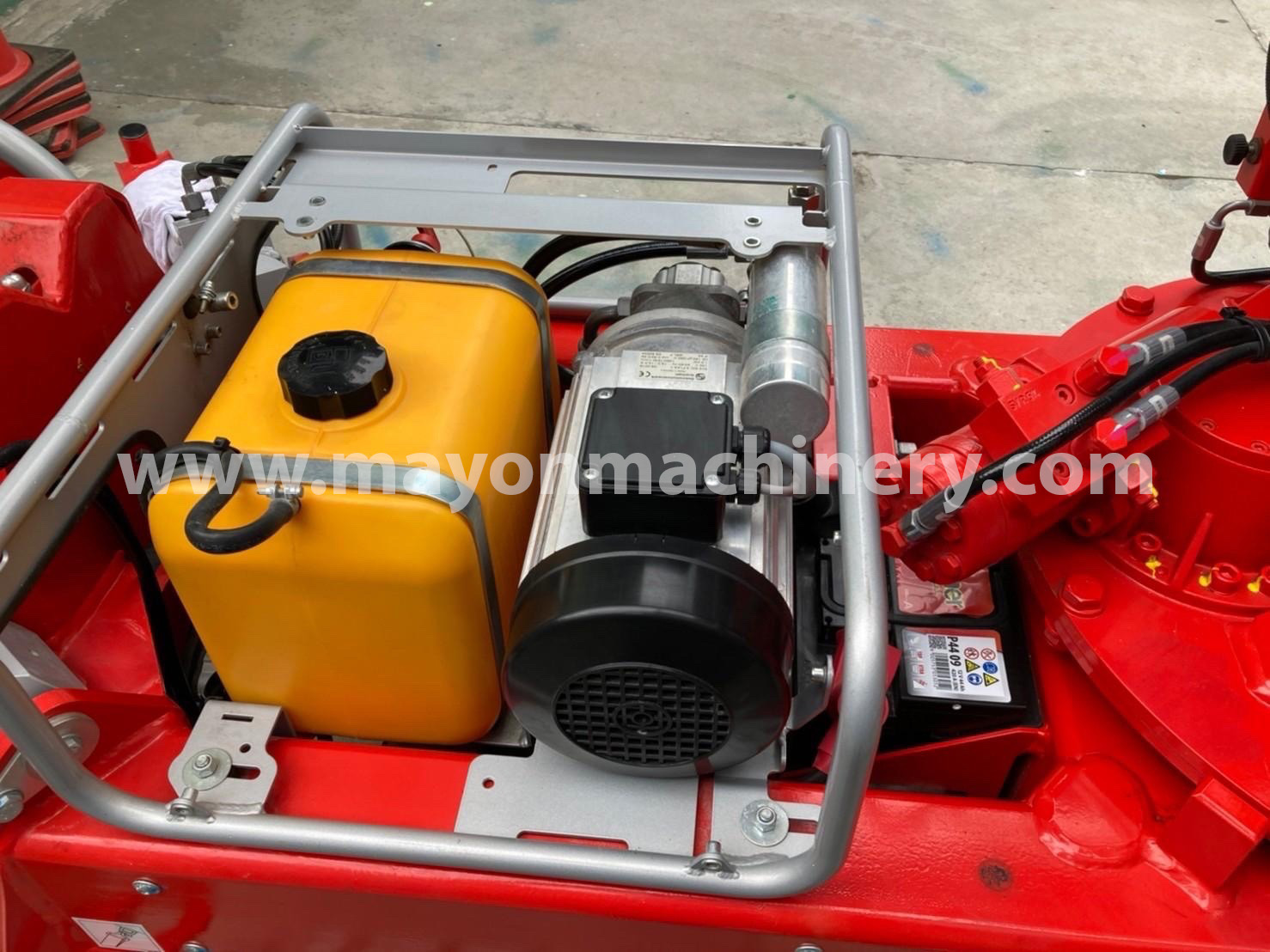

- Electric motor (country-specific 1-phase)
- Petrol engine Vanguard OHV 16HP (11,93 kW / 16,0 hp)
- Start-stop device for a combustion engine in the platform
PRODUCTIVITY, SAFETY, QUALITY
- Hydraulic emergency lowering via hand pump
- Power socket in the platform (country-specific 1-phase)

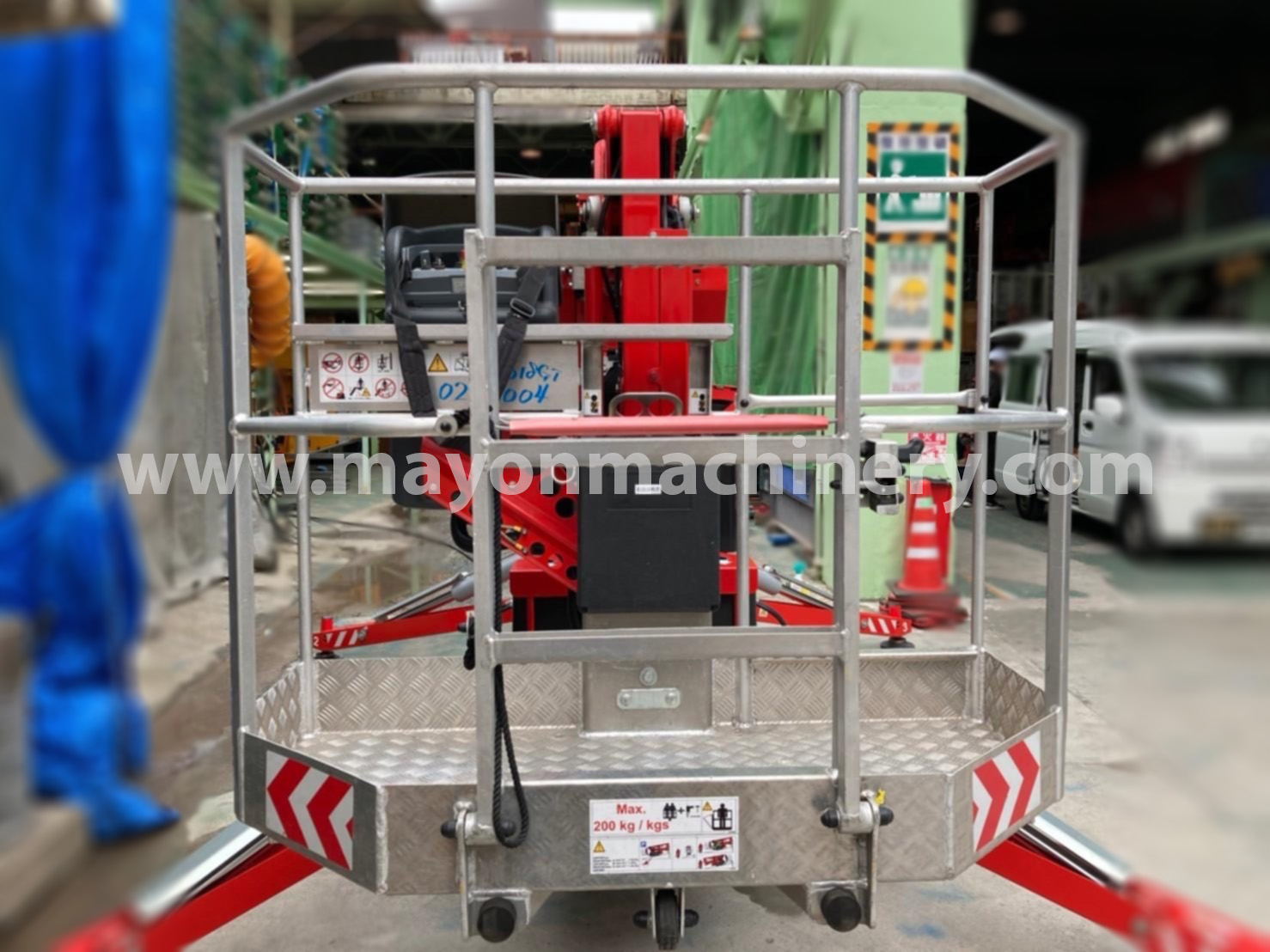

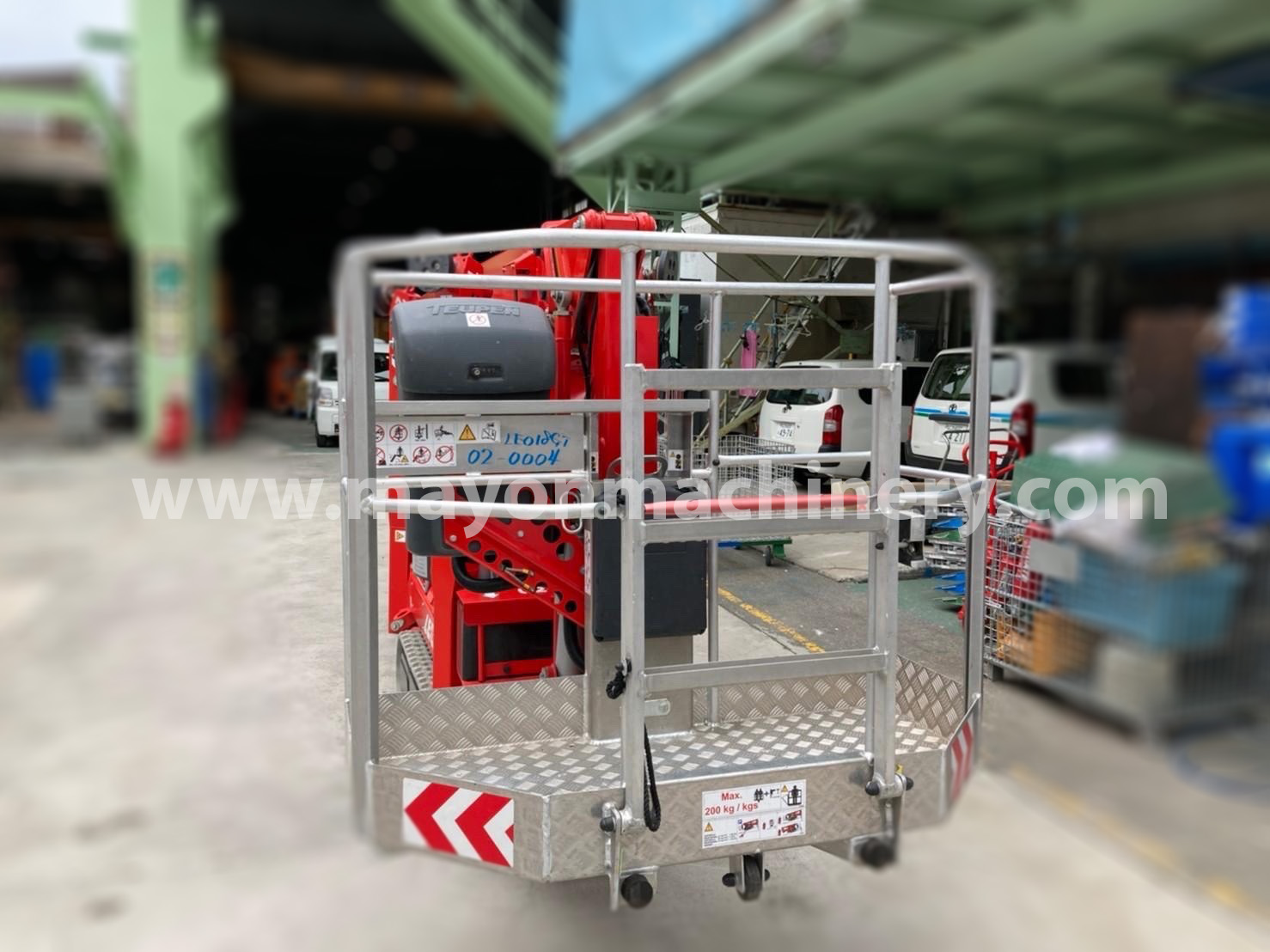

- Detachable platform, including attachment point for safety harnesses
- Drive operation without platform possible
- Protected, internal power track for platform control

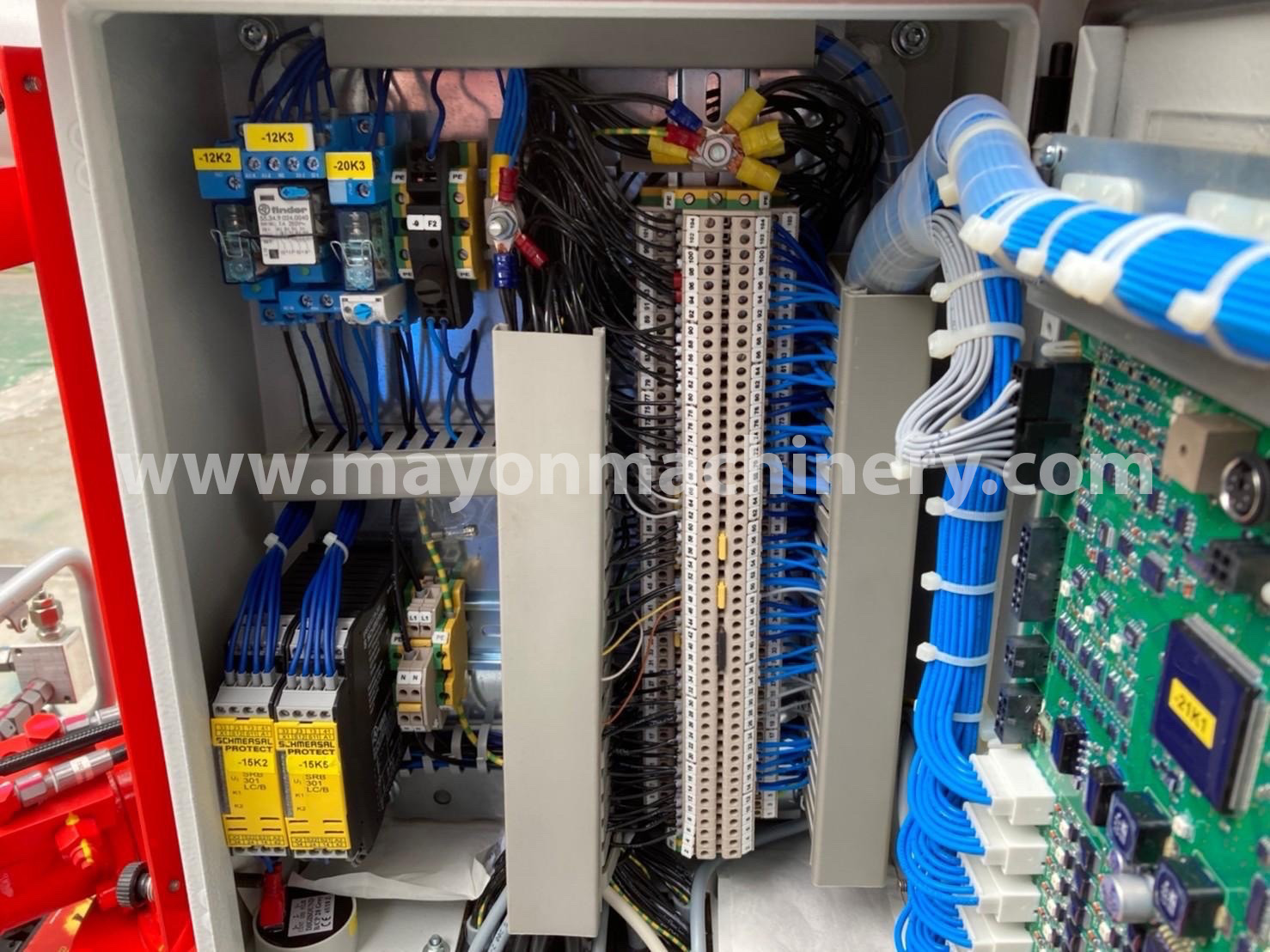

- Impact-resistant cover over control box and control panel
- Hydraulic system filled with biodegradable hydraulic oil
- High-quality paint in RAL 3020 (red) – Hydraulic cylinders in RAL 9006 (grey)

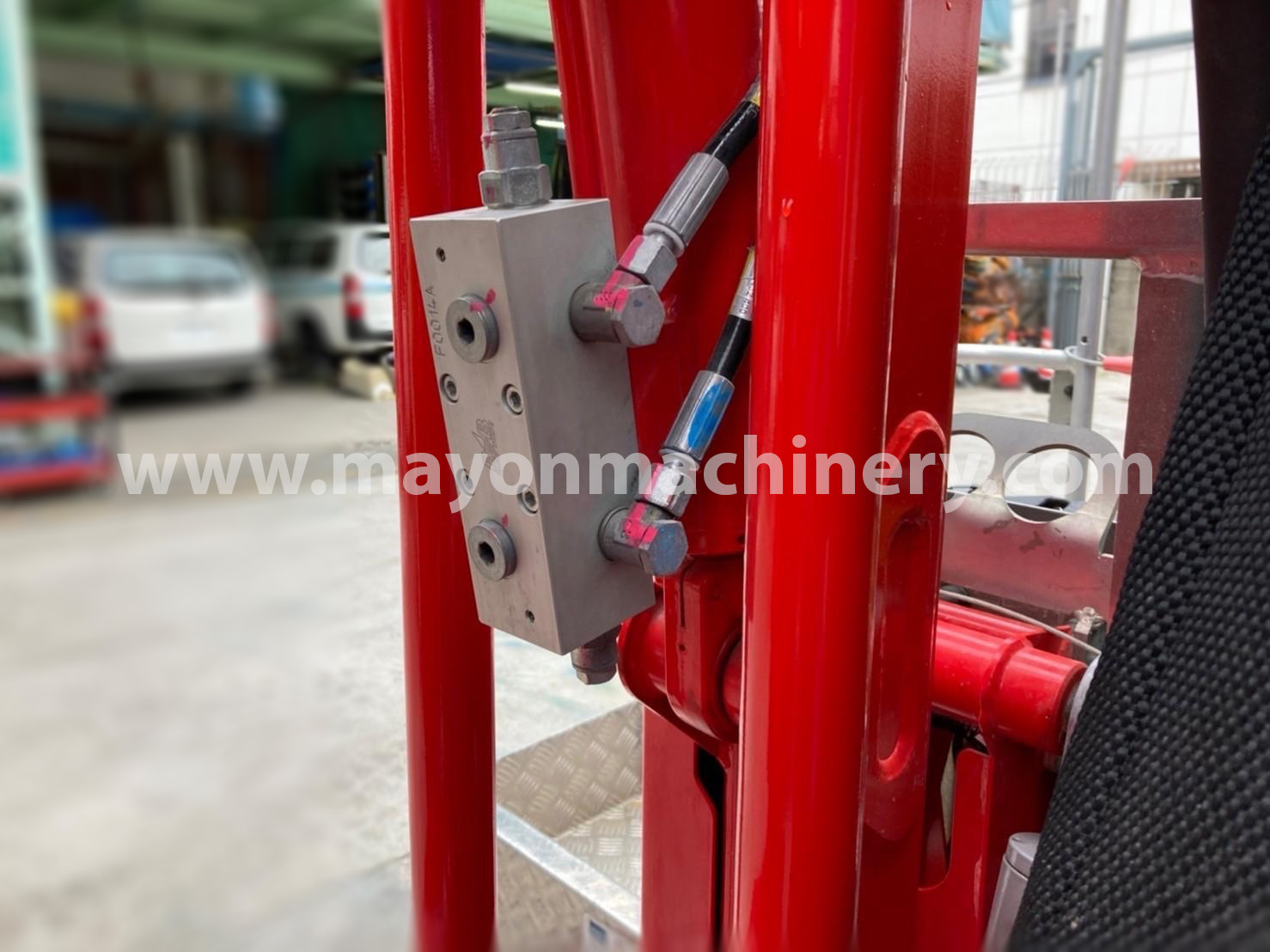

- Unlockable check valves located directly on hydraulic cylinders
- Hydraulic system protected by pressure relief valves
- Hydraulic tank, emergency control, connecting cables, and hoses are mounted protected
- Solid base frame with full-length forklift pockets

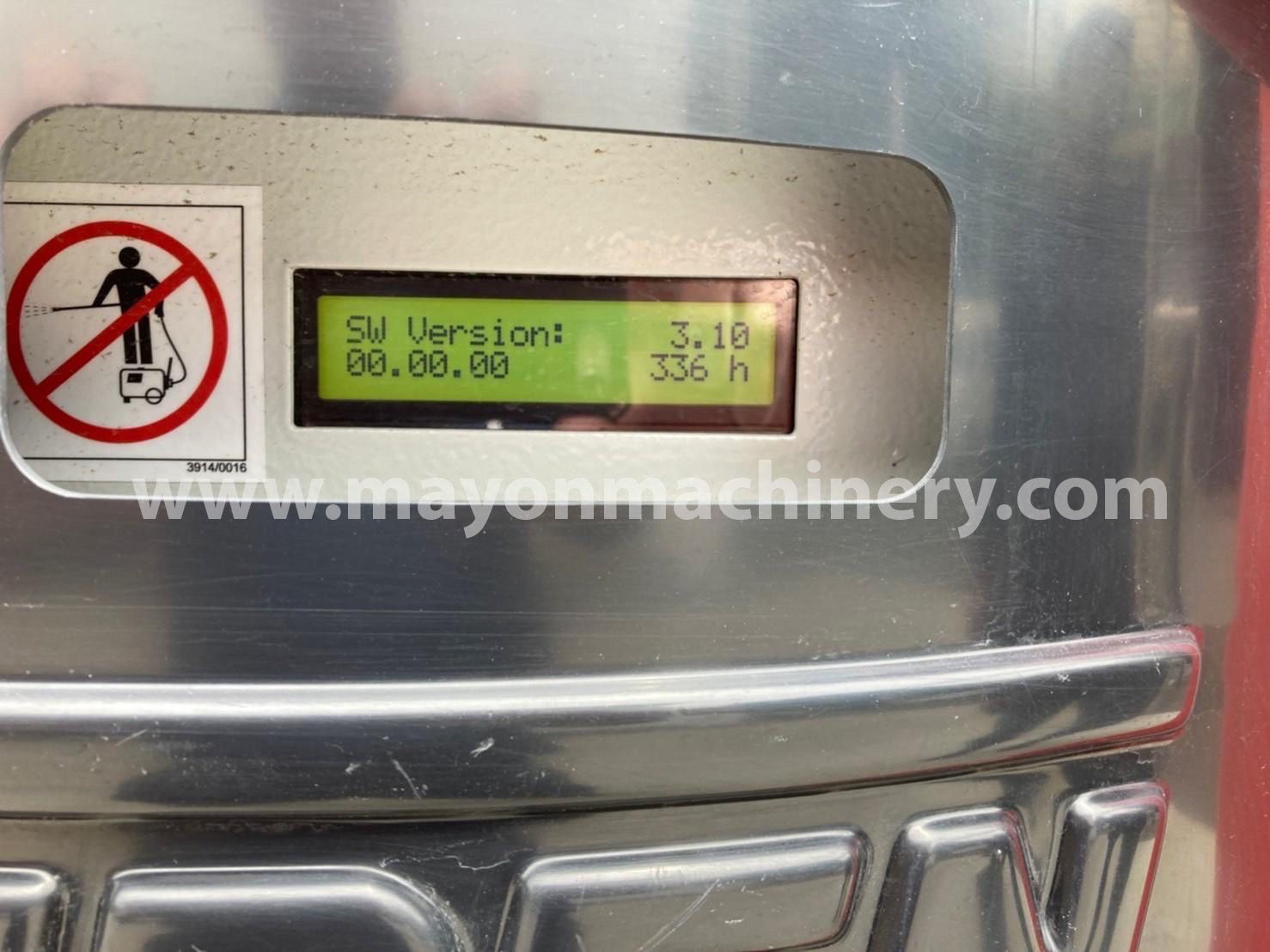

- Hour meter
- Fuzzy control technology
OPTIONS ADDED-ON OUR MACHINE

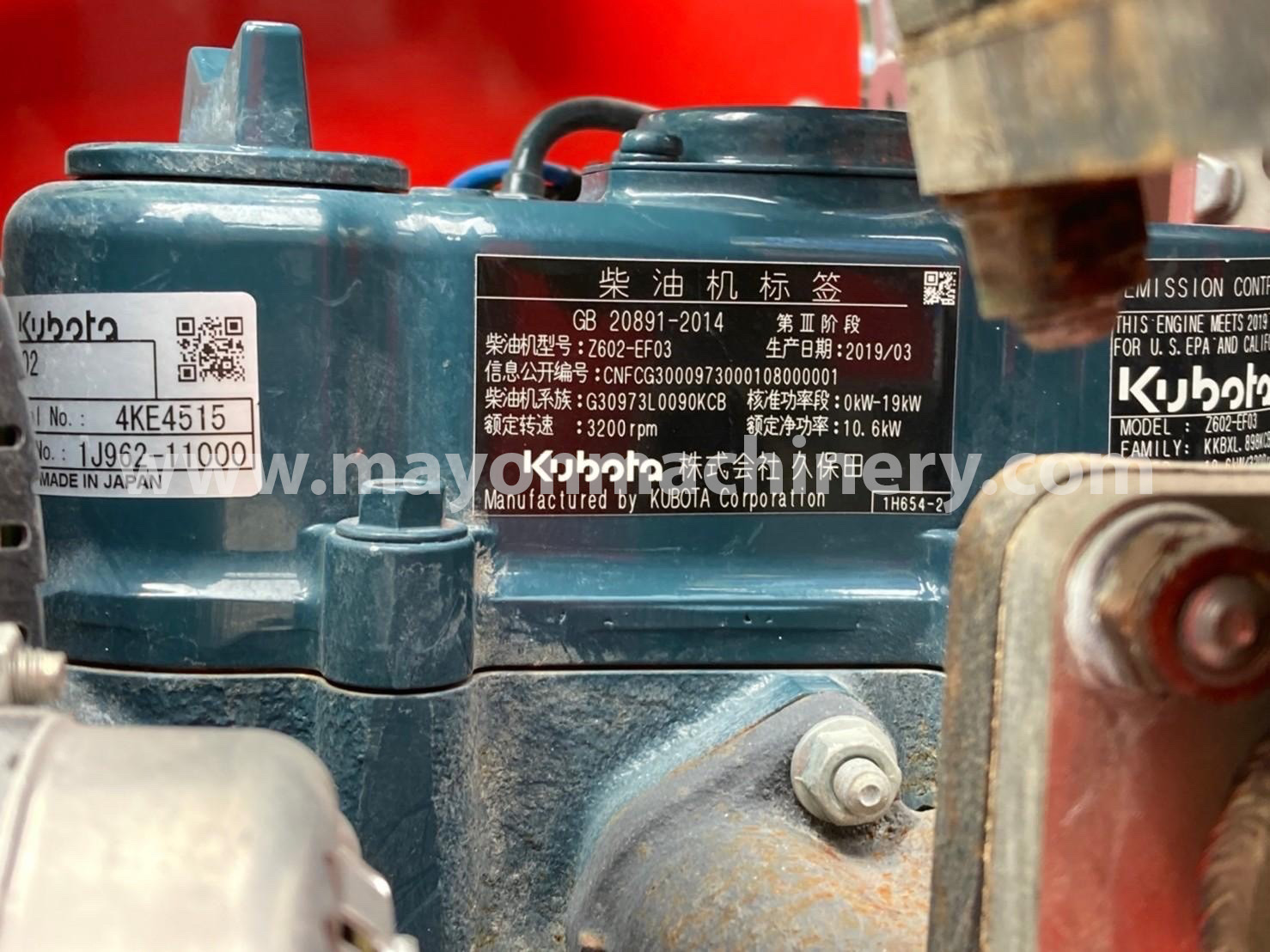

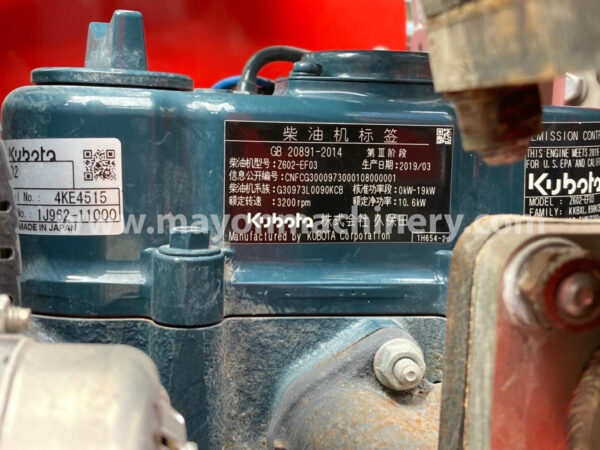

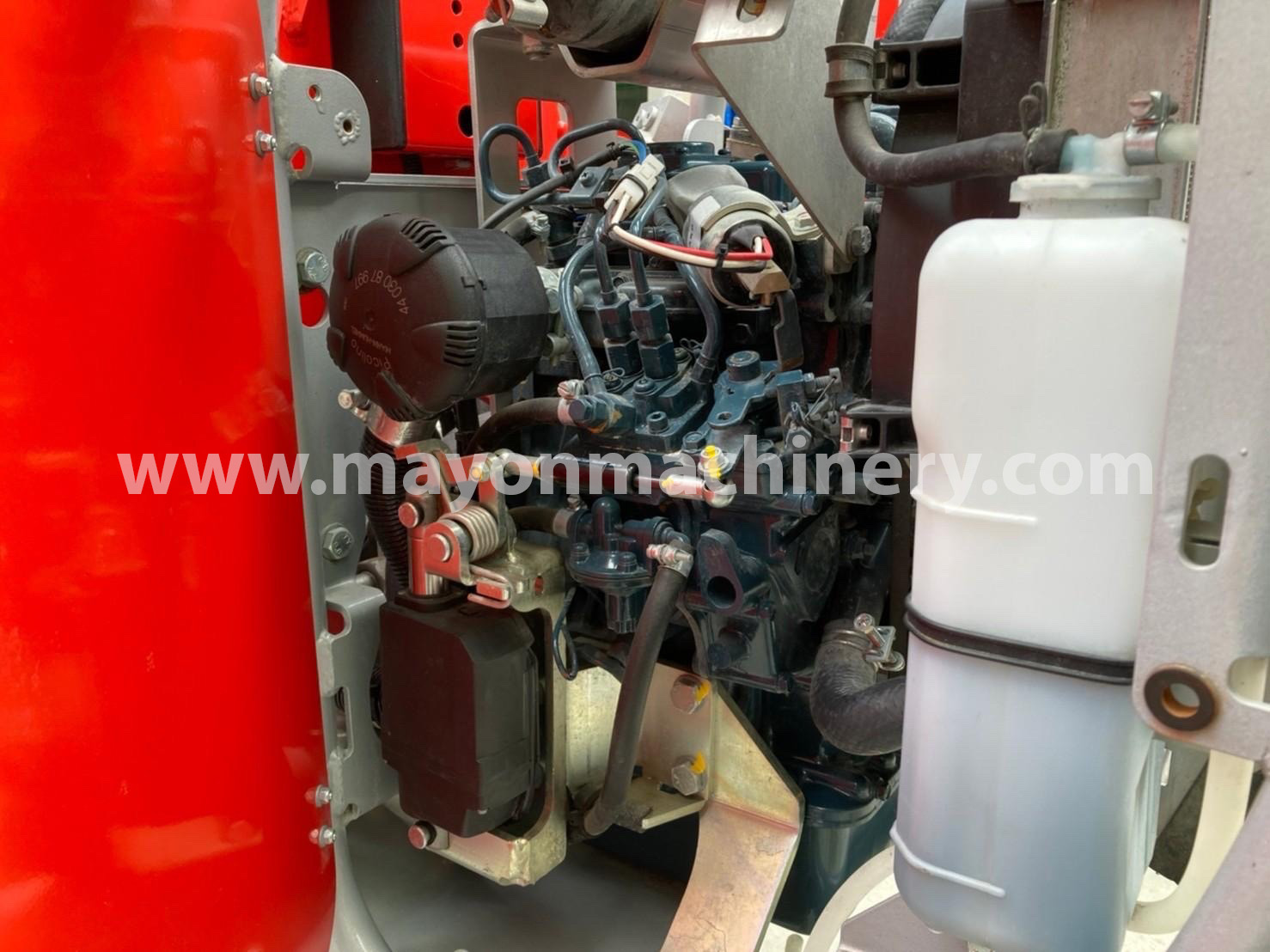

- Diesel engine Kubota Z602 (10,8 kW / 14,5 hp)

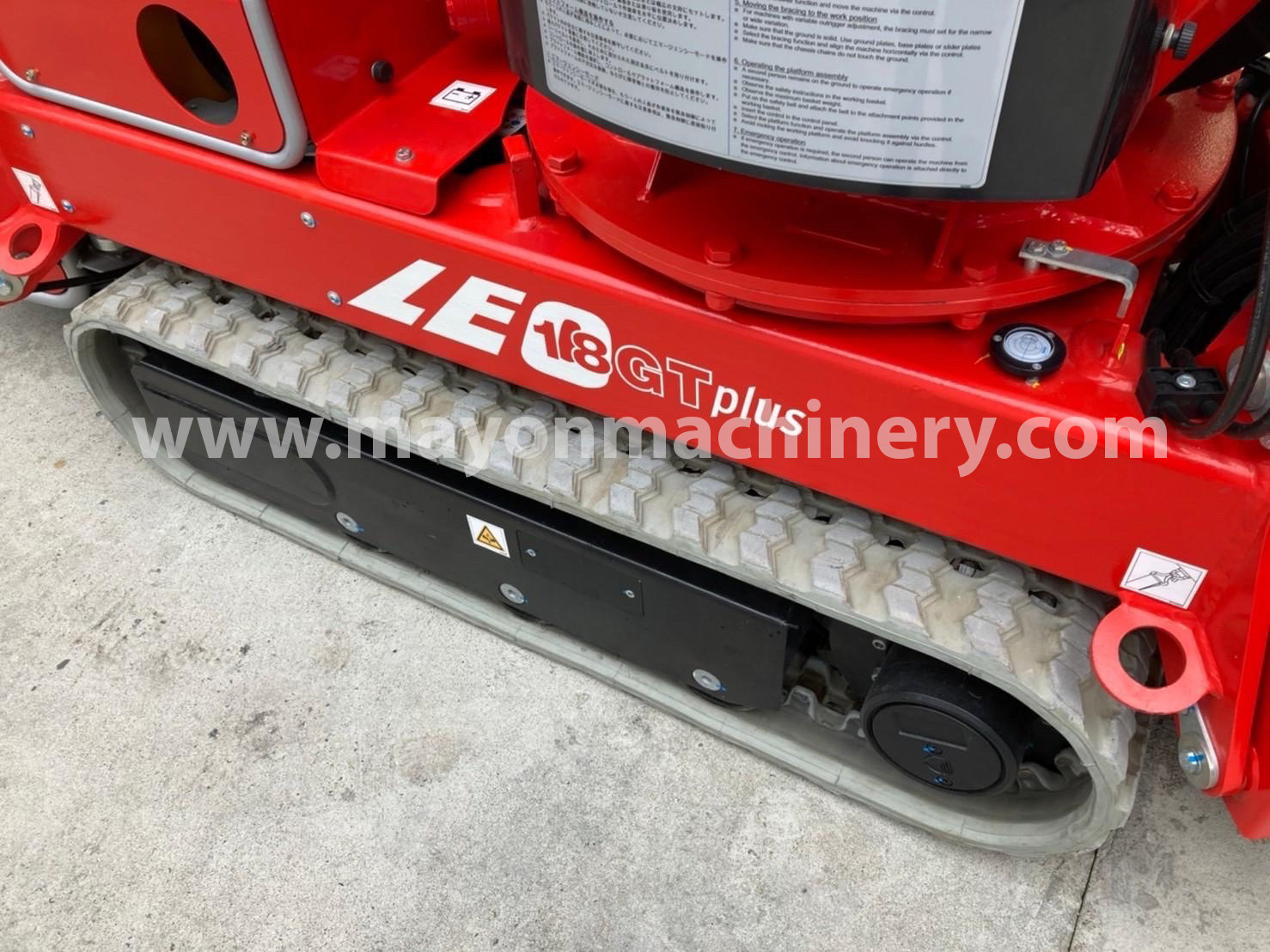

- Hydraulically height- and width-adjustable crawler track drive
- Indoor non-marking rubber tracks, with less tread depth the profile enables smooth travelling
- 4 sliding pads (700 x 220 x 60 mm)
- 4 covers, piston rod (outrigger)
