Description
Lifting height | 20.9 m | 68’7″ |
Lifting capacity | 4999 kg | 10998 lb |
Max reach | 17.9 m | 58’9″ |
Drawbar pull | 8700 dan | 19558 lbf |
Overhang | 2.67 m | 8’9″ |
Moving speed | 40 km/h | 24.9 mph |
Length (up to the back of the fork) | 6.87 m | 22’6″ |
Total length (fork included) | 8.07 m | 26’6″ |
Wheelbase length | 3.05 m | 10’0″ |
Width | 2.49 m | 8’2″ |

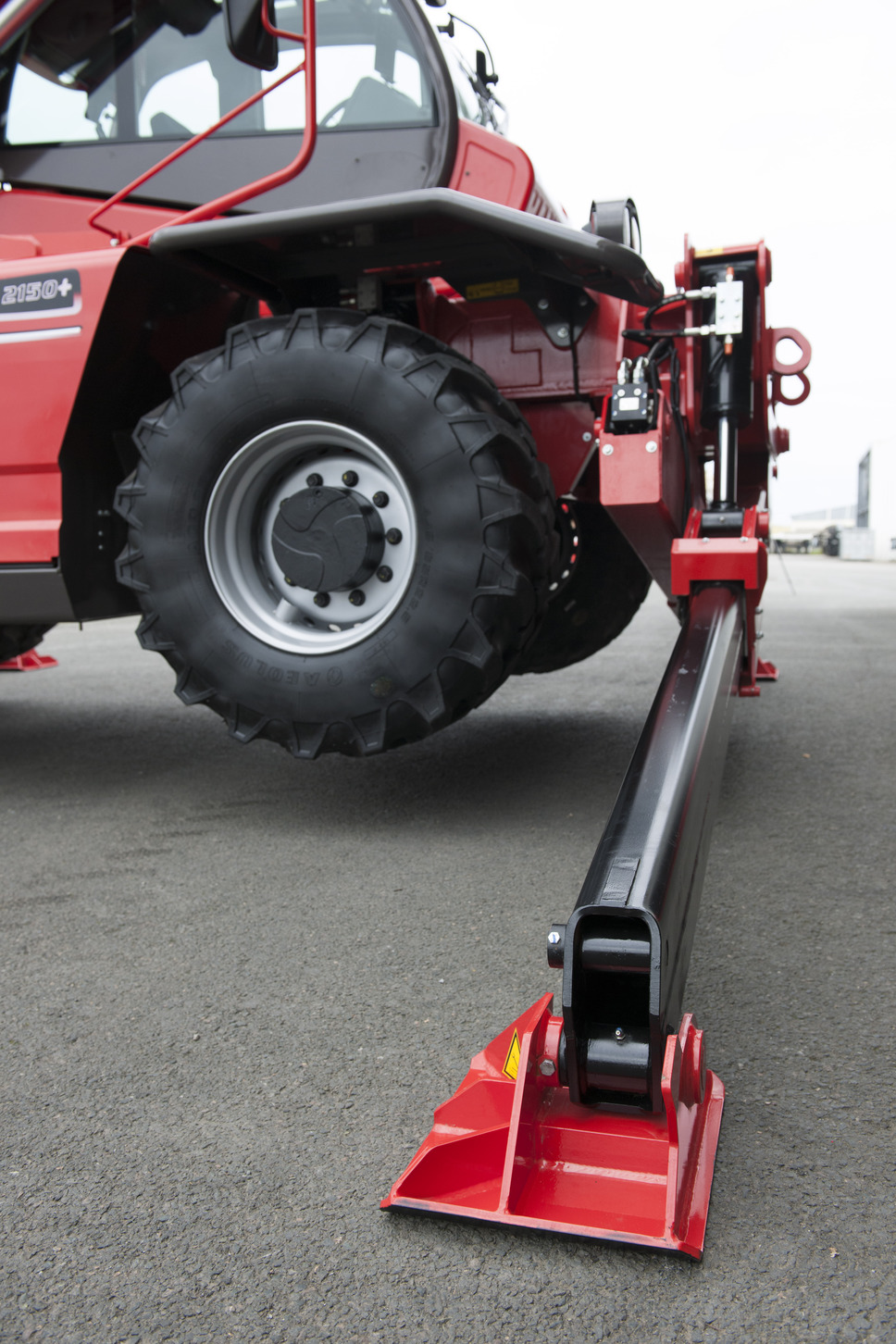

Overall width (stabilizers lowered) | 5.55 m | 18’3″ |
Height | 3.05 m | 10’0″ |
Weight (unladen) | 17930 kg | 39528 lb |
Turning radius | 5.23 m | 17’2″ |
Ground clearance | 0.35 m | 1’2″ |
Scale drawing (front/rear view) :

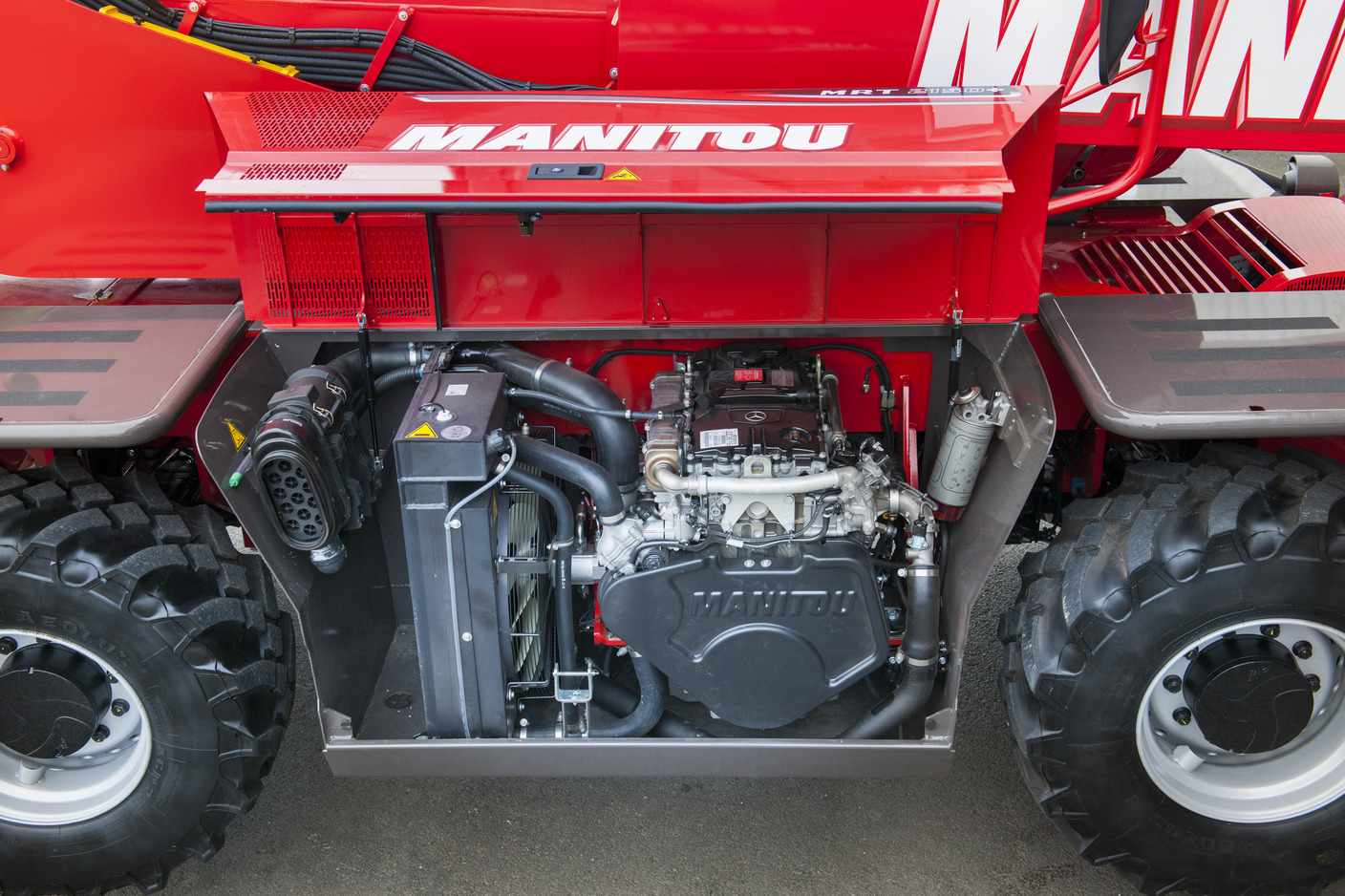

Energy | Diesel | |
Engine brand | Mercedes | |
Engine type | Stage 3A | |
Engine manufacturer type | OM904LA.E3A/2 | |
Power | 150 ch | 150 hp |
Power | 110 KW | |
Max. Torque @ Rotation | 580 Nm @ 1600 tr/min | |
Number of cylinders | 4 | |
Total capacity | 4250 cm3 | 259.4 in3 |
Injection | Direct | |
Cooling | Water | |
Voltage | 24 V | |
Amperage | 120 Ah | |
Transmission type | Hydrostatic |
Pressure | 270 bars | |
Hydraulic oil tank volume | 225 l | 59.44 gal |
Number of wheels (front/rear) | 2/2 | |
Number of drive wheels (front/rear) | 2/2 | |
Number of steering wheels (front/rear) | 2/2 | |
Number of braking wheels (front/rear) | 2/0 | |
Parking brake | Automatic negative handbrake | |
Driving position noise levels | 79 dB | |
Environmental noise levels | 107 dB | |
Vibrations affecting hands/arms | <2.50 m/s |

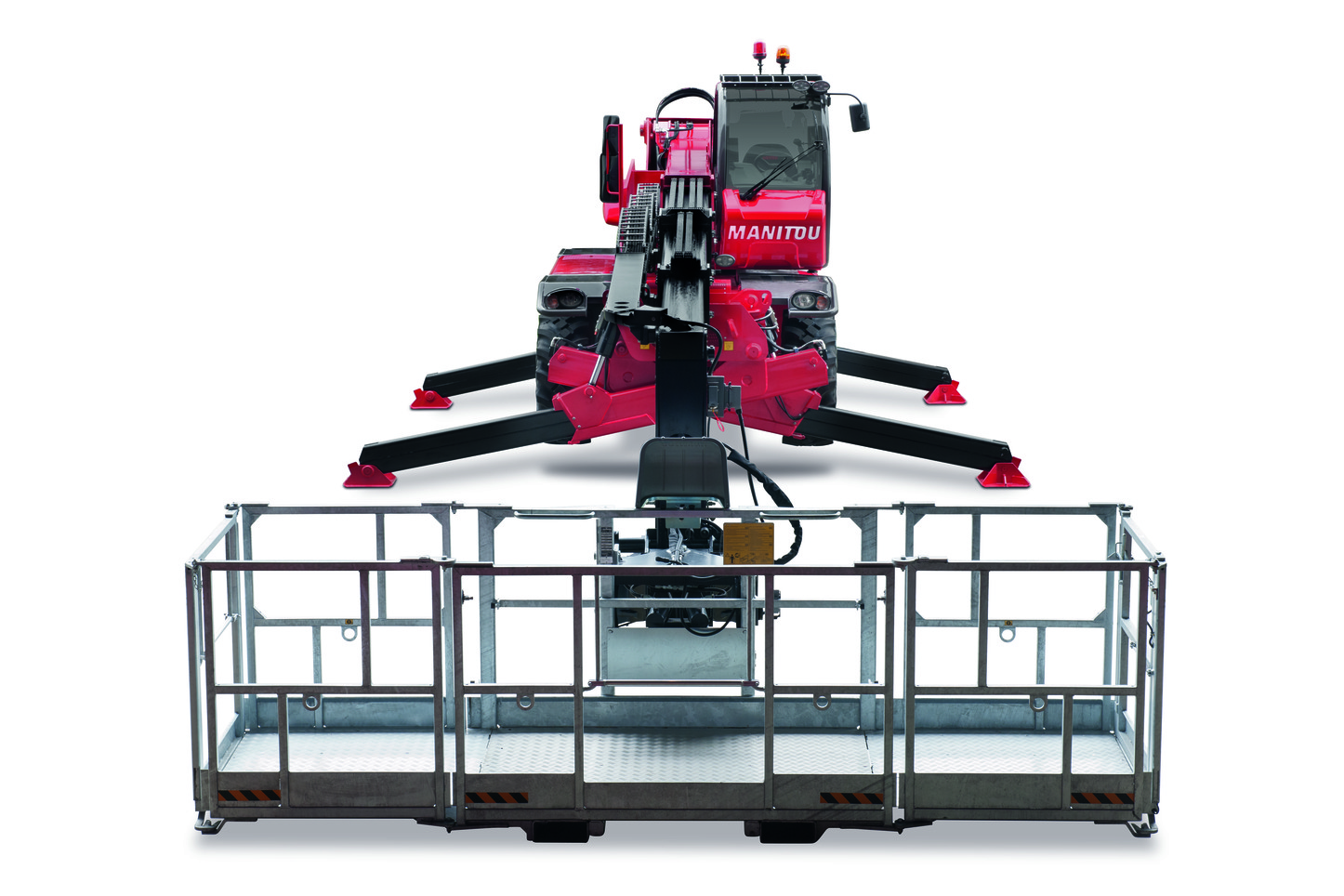

Expandable Platform
|
|
Aerial Jib 2
|
|
Frame Mounted Hook
|
|

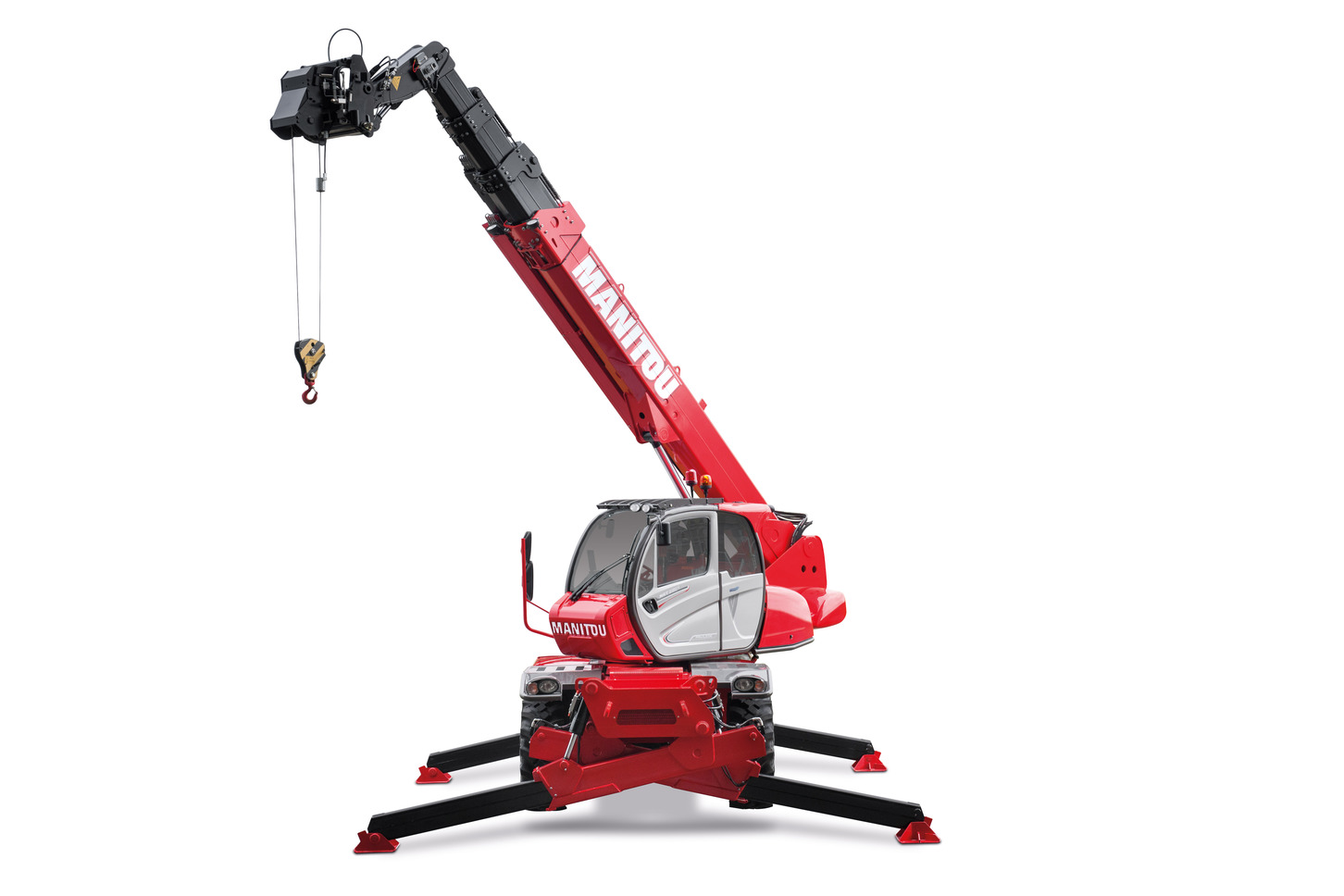

Crane
|
|
Extension Jib with Winch
|
