LEO27GTplus

Key Specs

  • Working Height: 21,00 m
  • Platform Capacity: 250 kg
  • Weight: 3 000 kg

Key Features

  • Full basket – Full outreach
  • Innovative boom technology
  • Intuitive control system
  • Height & with adjustable tracks
  • High – performance stabiliser system
  • The basket – a flexible work place
  • Dual power source







Compare
Categories: , Tags: , ,

Description

Performance

Working height, max. 27,00 m
Side reach, max. (100 kg) 14,30 m
Side reach, max. (250 kg) 12,50 m
Basket capacity, max. 250 kg
Length with/without basket 6,45 m / 6,45 m
Transport height x width, min. 1,99 m x 0,89 m
Gradeability, max. 16,7 ° / 30,0 %
Total weight 3870 kg
Tracks, adjustable Hydraulic
Stabilisation system Automatic, multi-position
Power source – standard 230 V electric motor + Diesel
Power source – optional 230 V electric motor + Battery (AGM or Lithium 48V)


Benefits

The platform – maximum of flexibility

With a 250 kg platform capacity, the LEO27GTplus has a 12,50 m outreach; at 100 kg it even reaches 14,30 m. That is always enough capacity to take two persons including tools or material. The platform is detachable to decrease the transport length, 180° rotatable, and corner-mounted to turn into confined corners. Additionally, it is mounted from single high-strength aluminum components rather than being welded into one piece – which makes replacing damaged parts more economical.
Innovative boom technology

Within the new, high-strength steel boom telescopes, all cables, hoses, and hydraulic cylinders are safely routed through the booms and therefore protected against damage, dirt, and all weather conditions – clean and above all safe quality.
Intuitive control system

Blue for boom functions, yellow for stabilizers, and red for the track drive: All TEUPEN controls are arranged following this easy and simple design. Furthermore, a display offers a complete overview of all important information. In the standard version, the LEO27GTplus comes with a remote control, allowing for precise maneuvering.
The TEUPEN track drive

The track drive with non-marking rubber tracks provides easy, precise maneuvering and protects sensitive flooring. As a standard feature the LEO27GTplus is equipped with the hydraulically height- and width-adjustable track drive: The narrow setting decreases the width of the machine, in wide it increases ground clearance and stability. Also levelled driving alongside slopes is possible. On request, the hydraulic track drive is smoothly adjustable at a touch of a button.

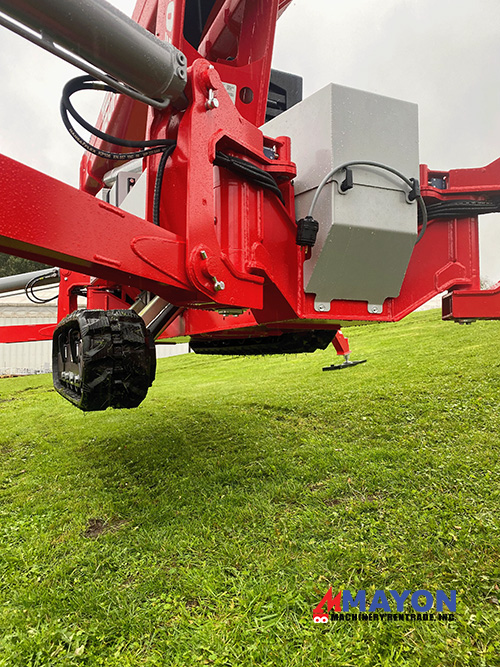

High-performance stabiliser system

Safe positioning even with little space: The multi-position stabiliser system permits to automatically set up the machine in confined areas and on slopes. It offers three different setup positions: Both sides wide, one side wide, and one side narrow or both sides narrow. In terrain or over obstacles the stabilisers overcome a height difference of 1,20 m.
Dual power source

The right power source for every job: in standard version, the LEO27GTplus is equipped with a 230 V electric motor for silent and zero-emission work inside of buildings. For outdoor use, it has a powerful and robust Kubota Diesel engine. Optionally, the diesel engine can be replaced by a battery drive AGM or Lithium 48V including charging devices.

CHASSIS

  • Powerful track drive with hydraulic braking system
  • Precise maneuvering via sensitive remote control
  • Indoor non-marking rubber tracks, with less tread depth the profile enables smooth travelling
  • Hydraulically height and width adjustable crawler track drive

STABILISATION

  • Electrohydraulic stabilisation with automatic levelling and ground pressure sensor system
  • Variable outrigger system with wide supported, narrow supported, left or right supported, and front or back supported
  • Wear resistant, anti-friction outrigger pads

BOOM SYSTEM

  • Telescopic lower and upper boom
  • All functions available via radio remote control
  • Platform positioning into negative work area up to 5 meters below setup level
  • 180 degrees platform rotation for additional flexibility
  • Jib movable by 165 degrees
  • Platform changing system
    • Coming home function – automatic return of the boom into transport position

POWER SOURCE

  • Electric motor (230V, 12,9A, 2,2kW)
  • Diesel engine Kubota Z602 (10,8 kW/14,5 hp)
  • Start-stop device for the combustion engine via radio remote control

PRODUCTIVITY, SAFETY, QUALITY

  • Power socket in the platform (110V/16A)
  • USB socket in the control panel (5V)
  • Power socket in the control panel (12V/5A)
  • Drive operation without platform possible
  • Lockable storage box
  • Protected, internal power track for platform control
  • Hydraulic system filled with biodegradable hydraulic oil
  • High-quality paint in RAL 3020 (red)
    – Hydraulic cylinders in RAL 9006 (white aluminum)
    – Engine unit & component support in RAL 9006 (white aluminum)
  • Unlockable check valves located directly on hydraulic cylinders
  • Hydraulic system protected by pressure relief valves
  • Hydraulic tank, emergency control, connecting cables, and hoses are mounted in protected
  • Colour display in the control panel
  • Additional color display in the chassis
  • TEUPEN Fuzzy V control technology with new intuitive operating concept
  • Additional hydraulic drive for boom recovery via platform control
