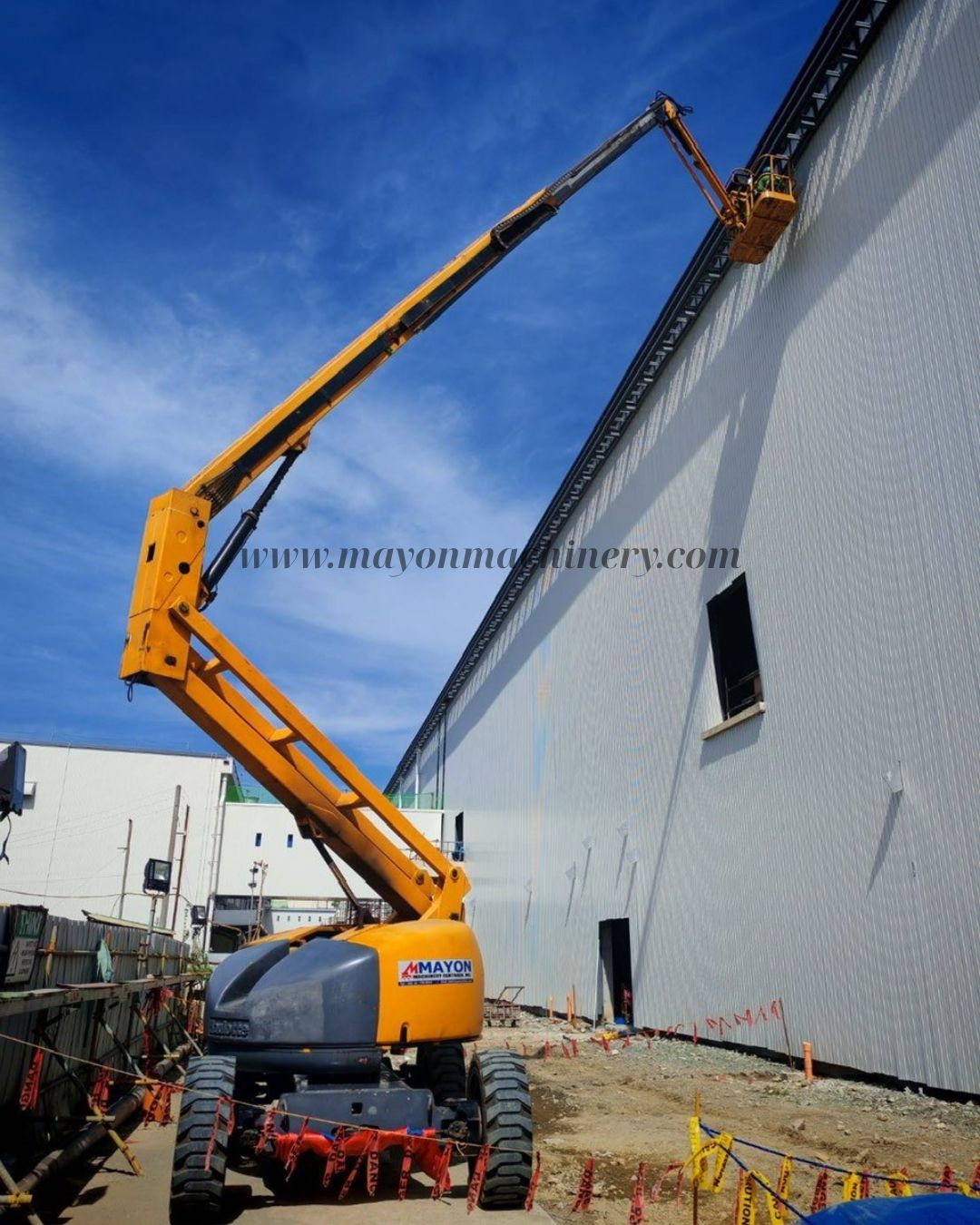

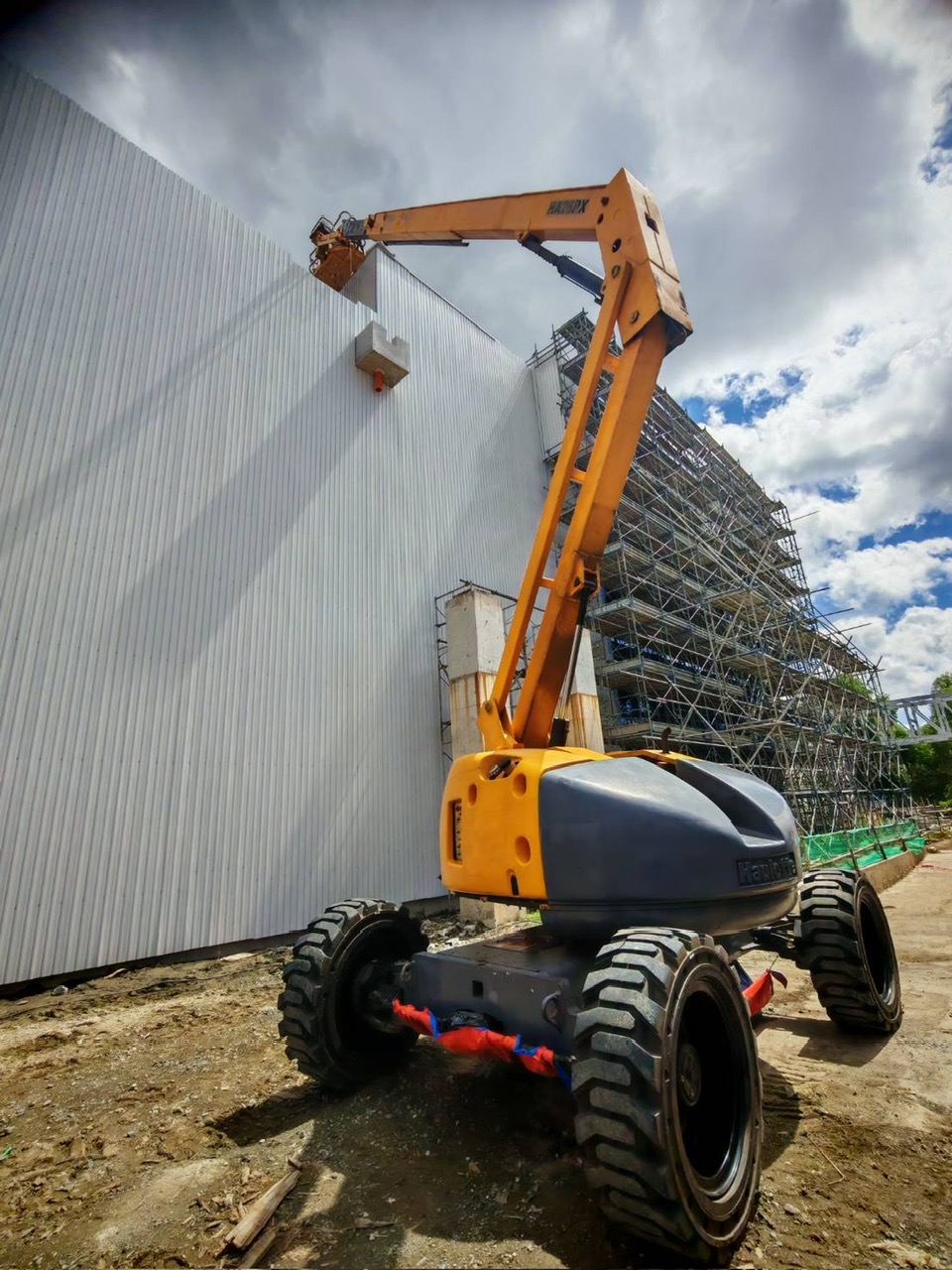

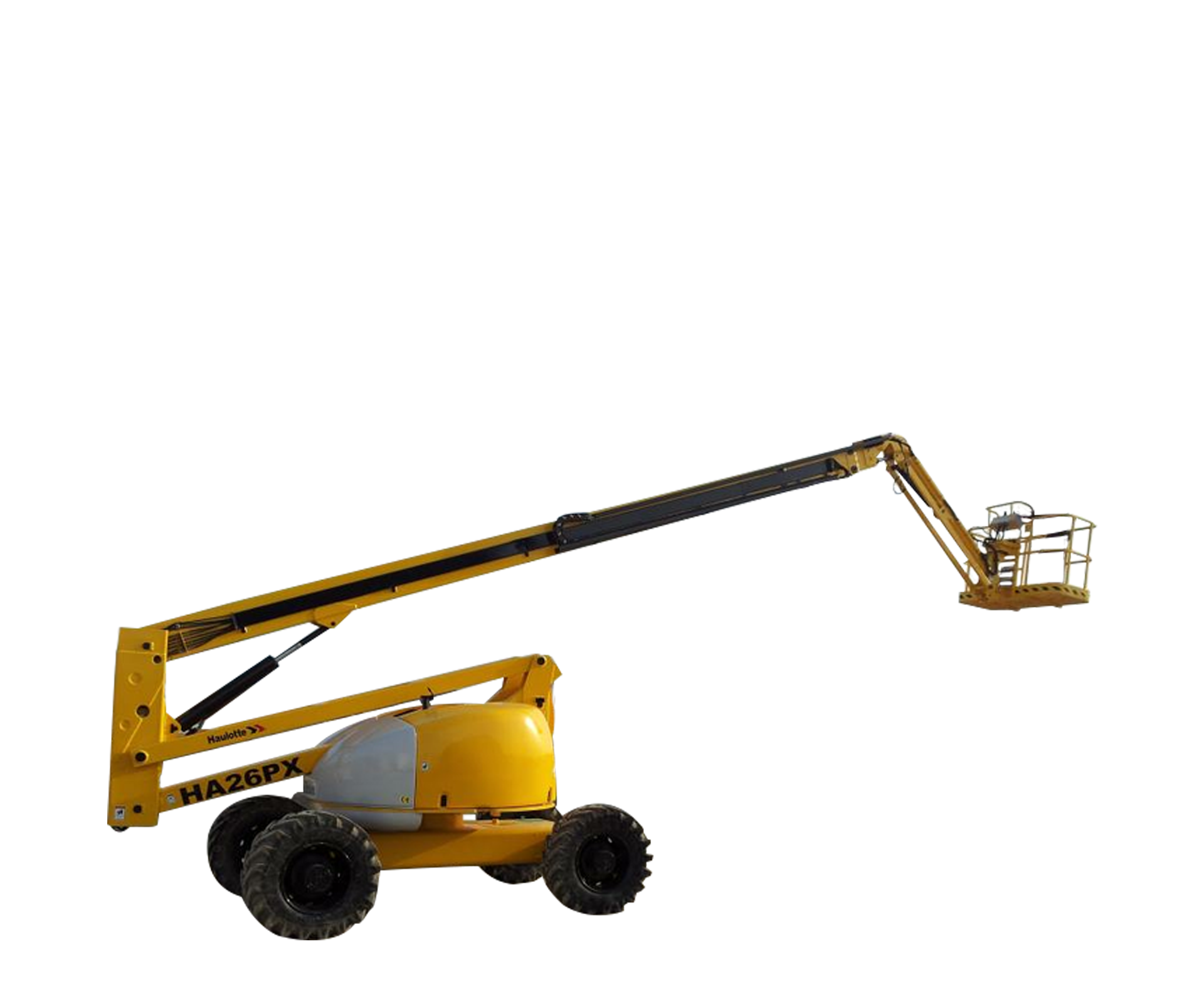

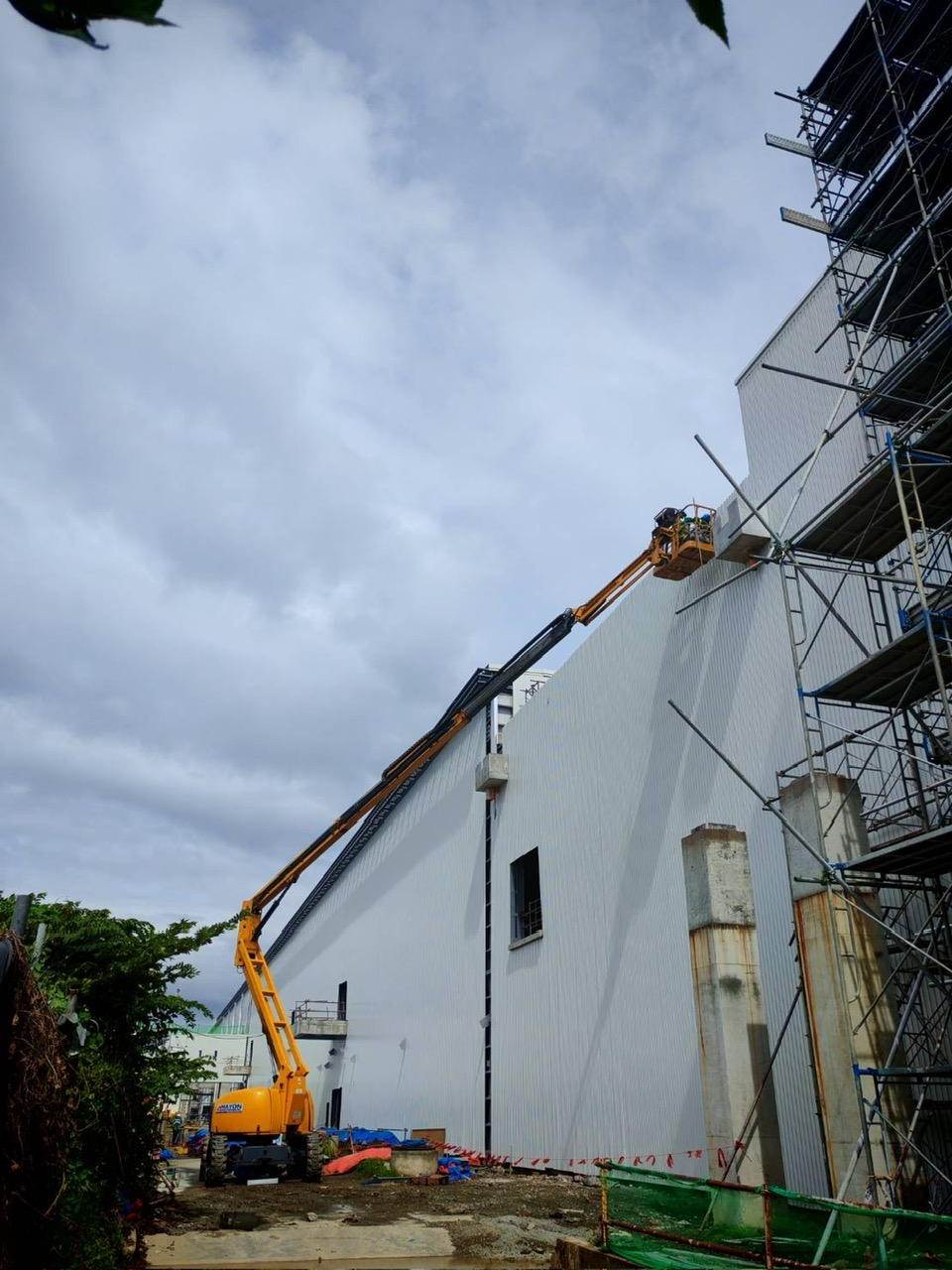

HAULOTTE HA26 PX

Key Specs

  • Working Height: 26,00 m
  • Platform Capacity: 230 kg
  • Weight: 14 150 kg

Key Features

  • Optimal productivity
  • Up to 4 simultaneous, proportional movements
  • Optimal transport length
  • Excellent maneuverability in the tightest spaces
  • Shortest turning radius
  • No turret tailswing
  • Standard 4-wheel drive and 4-wheel steer
  • Differential wheel lock
  • 42 cm ground clearance
  • +70° / -70° fly jib
  • 40% gradeability
Compare
Categories: , Tags: , ,

Description

Performance

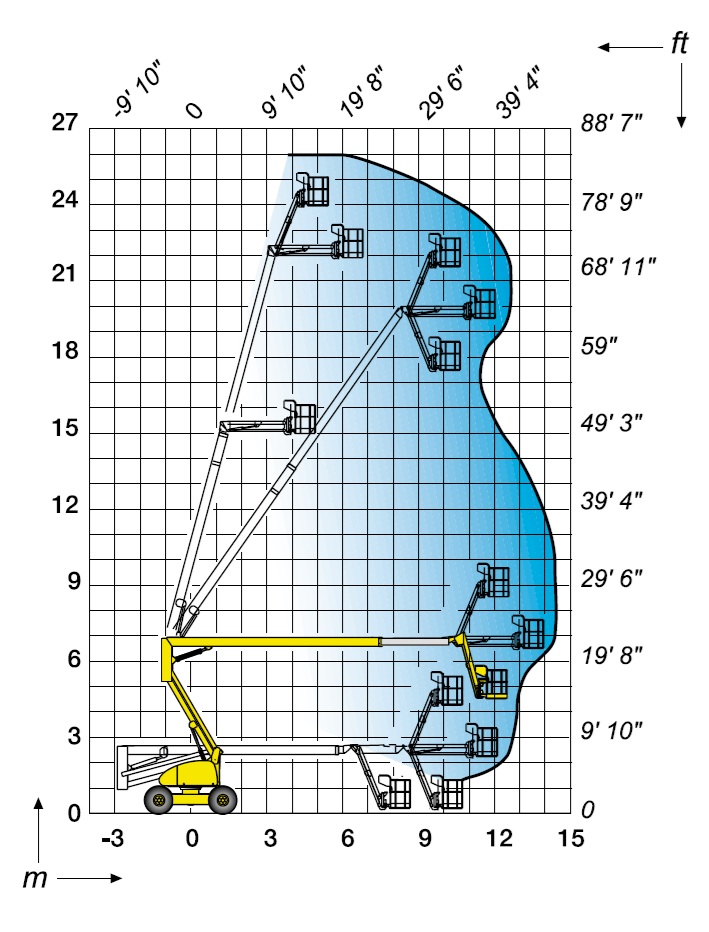

Working height, max. 26,00 m
Horizontal outreach 14,00 m
Up and over clearance
 6,8 m
Lift capacity 230 kg
Platform size 1,8 x 0.8 m
Transport height x width, min. 2,67 m x 2,38 m
Total weight 14 150 kg
Gradeability 40%
Drive speed 1.2-4.5 km/h
Tailswing 0
Turntable rotation (continuous)
 360°
Hydraulic platform rotation
 180°
Fly jib range of motion
 140 ° (+70°/-70°)
Outside turning radius 3.9 m
Power source  38 kW
Tyres (foam-filled)
 15 R 22
Hydraulic tank
 150 L
Fuel tank 150 L



Advantages:
  • Improved working area through a positive/negative articulating fly jib with 140° movement
  • Hydraulic differential lock and 17 in (42 cm) ground clearance for improved rough terrain capability
  • Continuous 360° turntable rotation
  • Zero tailswing
  • 180° hydraulic platform rotation
  • Compact travel/transport dimensions
  • Full proportional controls and simultaneous boom functions improve productivity
  • 2.8 mph (4.5 km/h) travel speed
  • Robust, reliable, and easy to maintain design
Standard Equipment:
  • 4-wheel drive and steer
  • Load limiter in the platform
  • 220 V / 16 A power line to the platform
  • 3° tilt alarm
  • Diesel Deutz engine
  • 12 V – 95 AH – batteries / electrical control system
  • Electric emergency lowering system
  • Free-wheeling device
  • Hourmeter
  • Slewing block pin
  • Towing hooks / lifting eyes
  • 2 hooks for a safety harness on the platform
