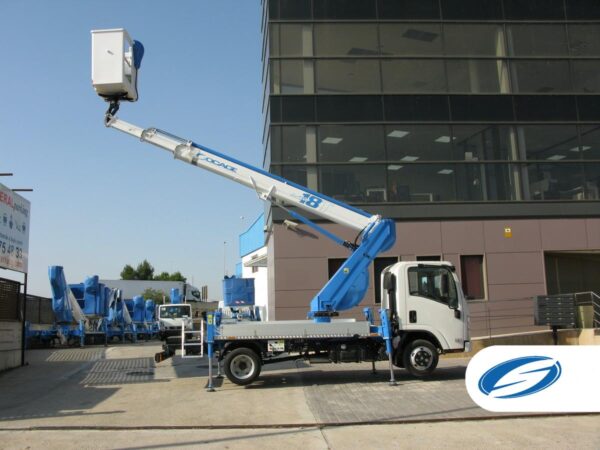

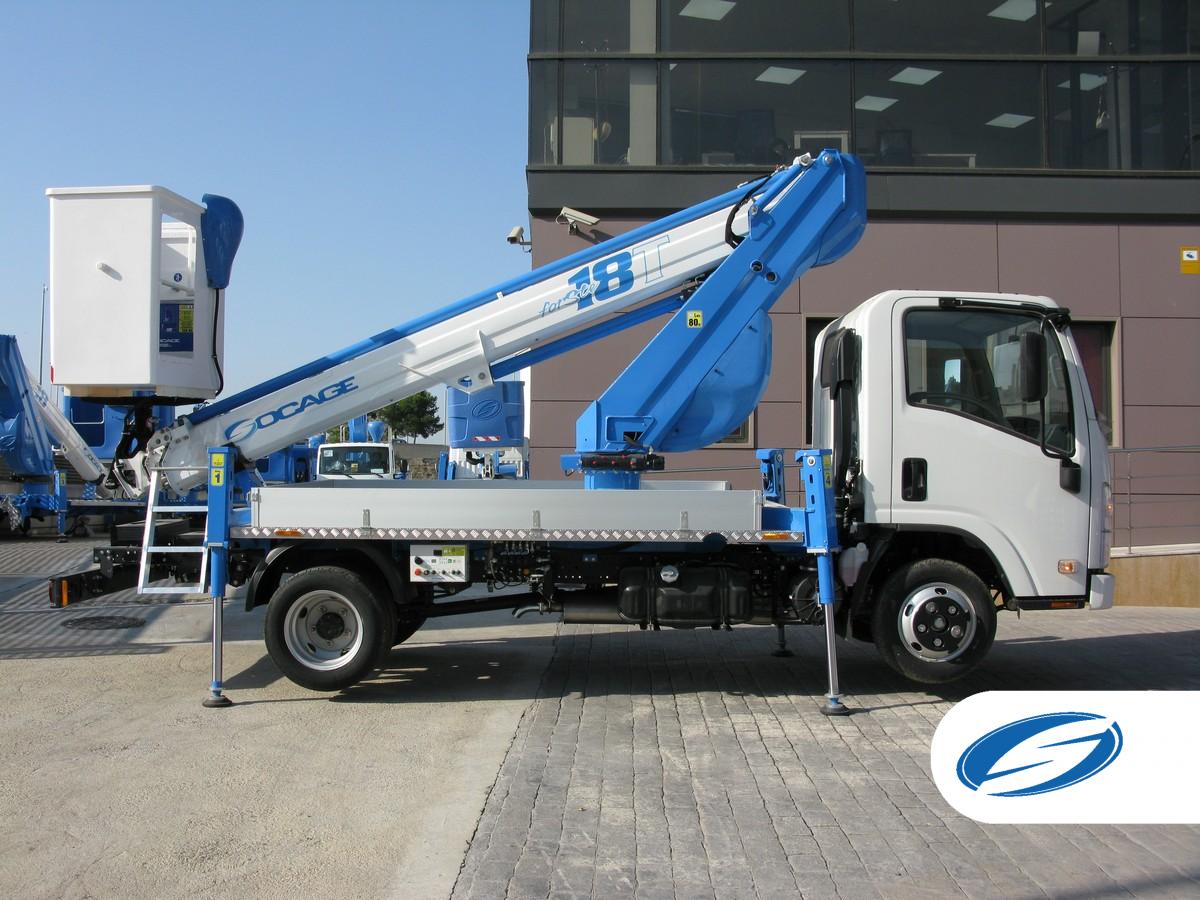

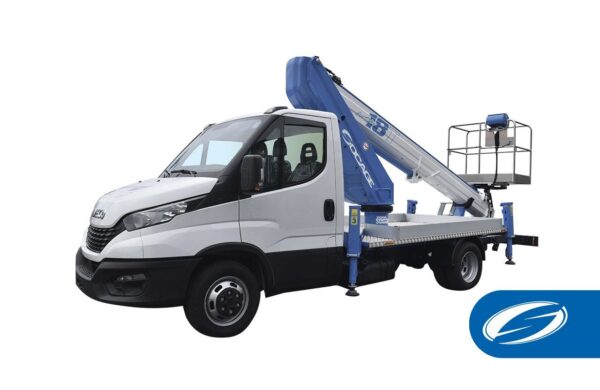

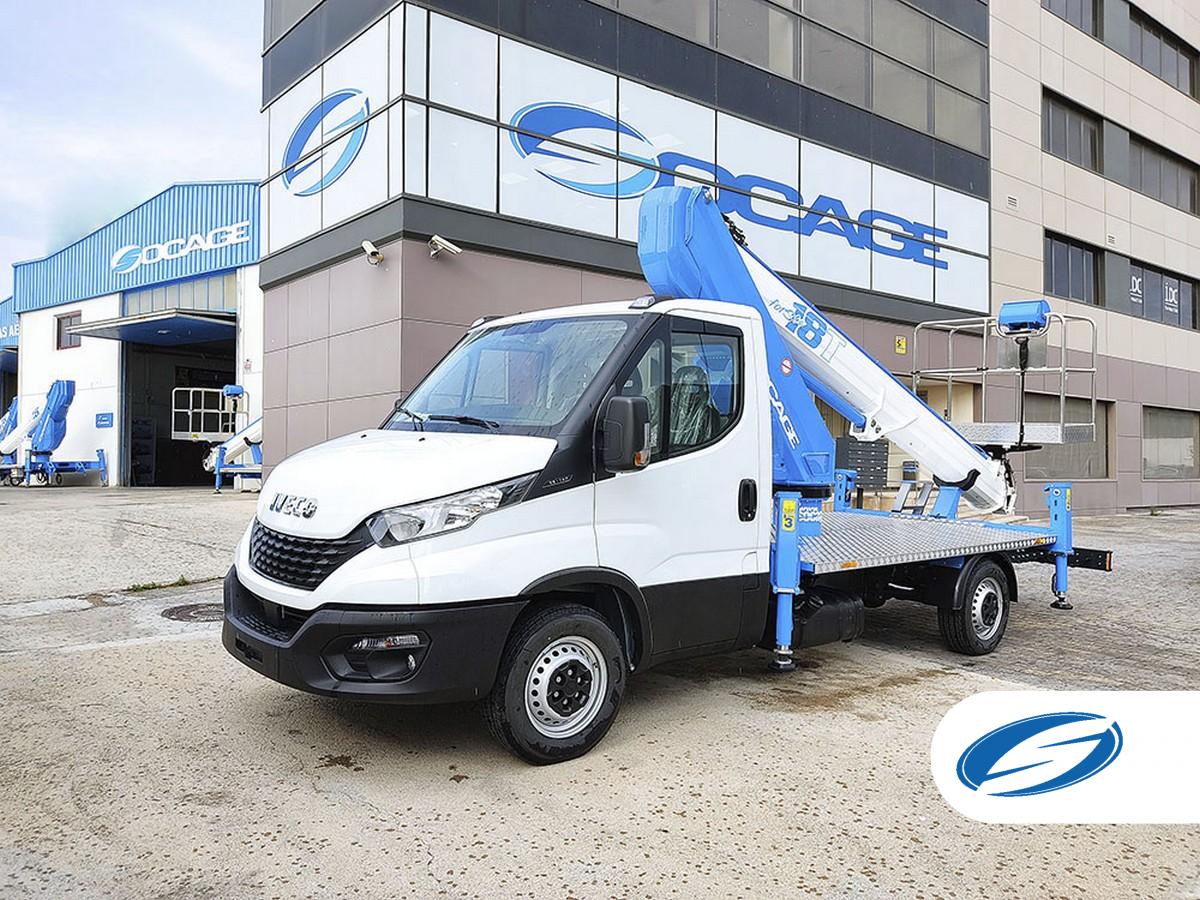

SOCAGE forSte 18T SPEED is a truck-mounted telescopic aerial platform, with automatic vertical stabilization as standard. It reaches a working height of 17.70m and a lateral reach of 10,50m, in addition, has a large load capacity of 230 kg (2 operators + material).
The forSte 18T SPEED combines perfectly its compact dimensions, low weight and excellent performance with SOCAGE’s valued automatic stabilization system, SPEED H + H.
The standard automatic stabilization and the extra path of the Socage vertical stabilizers make the Socage 18T one of the easiest platforms on the market to stabilize.
The automatic stabilization SPEED allows to stabilize the platform from the basket and guarantees a safe and simple stabilization to overcome slopes and less space occupied by the vehicle positioned to work.

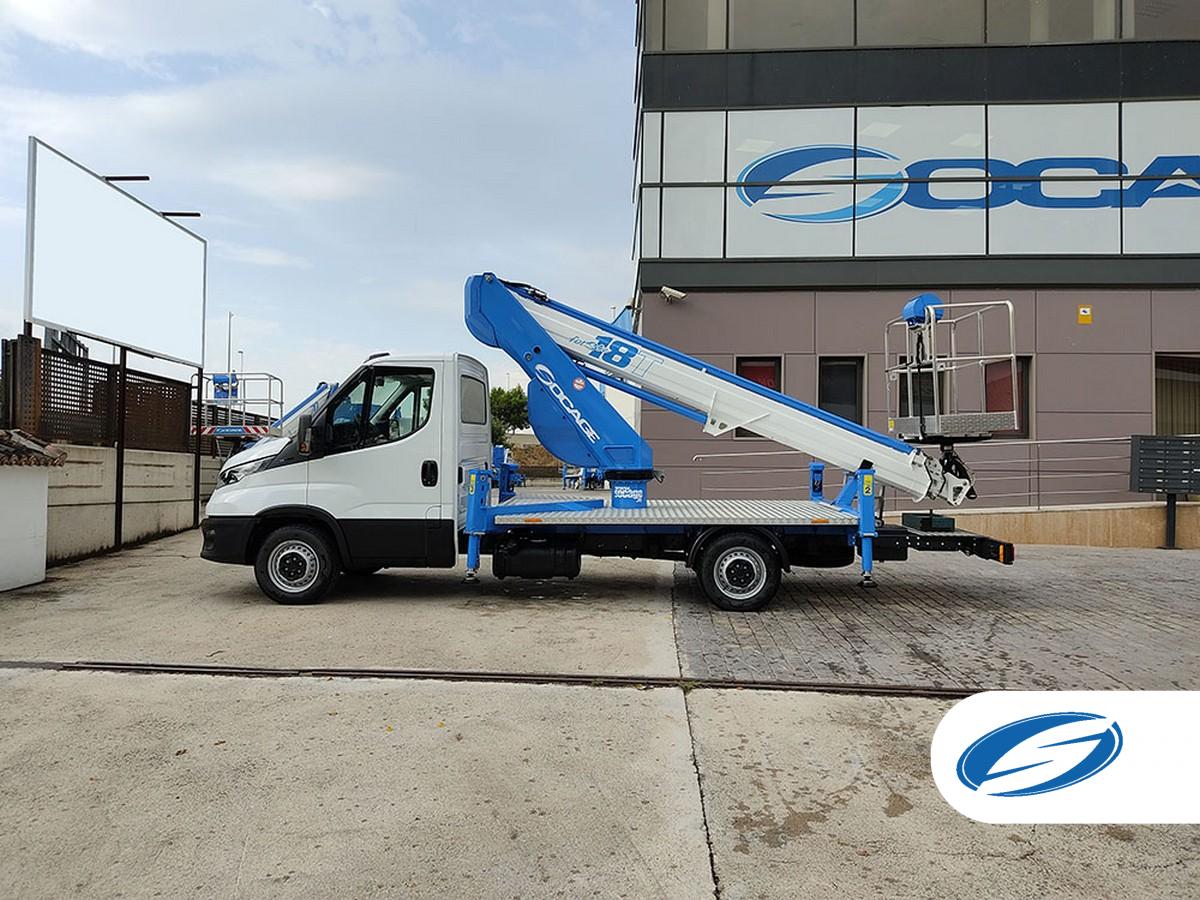

Assembly Available On Fuso, Isuzu, Ford, Iveco, Mercedes, Renault Trucks.

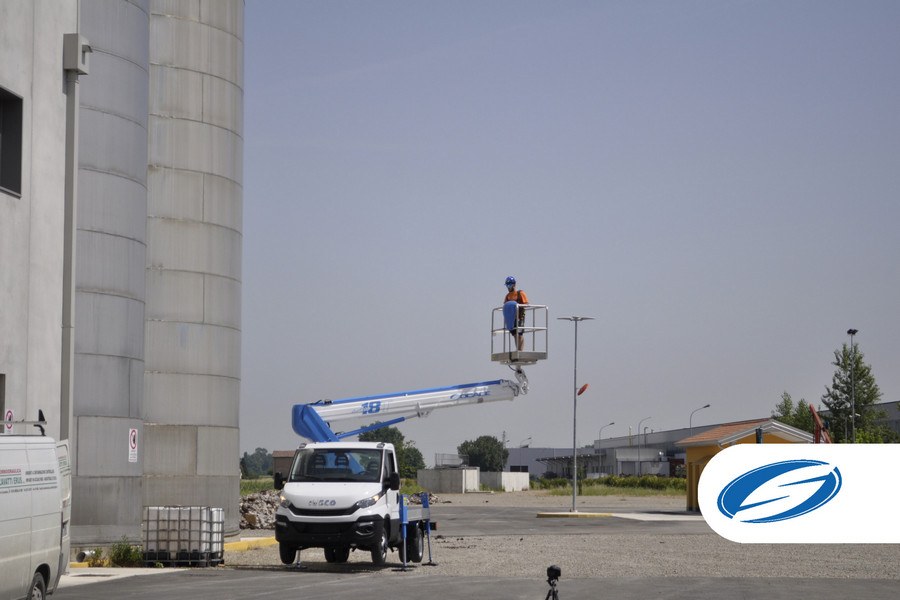

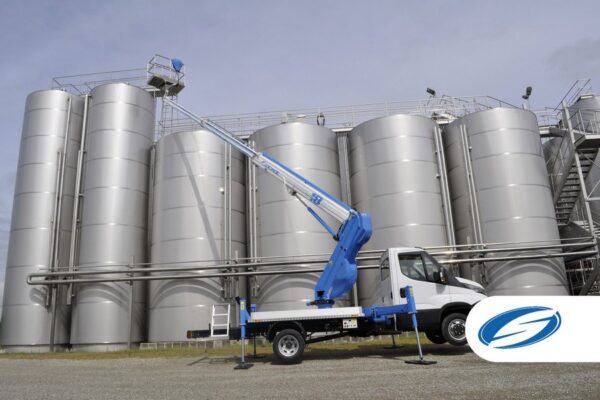

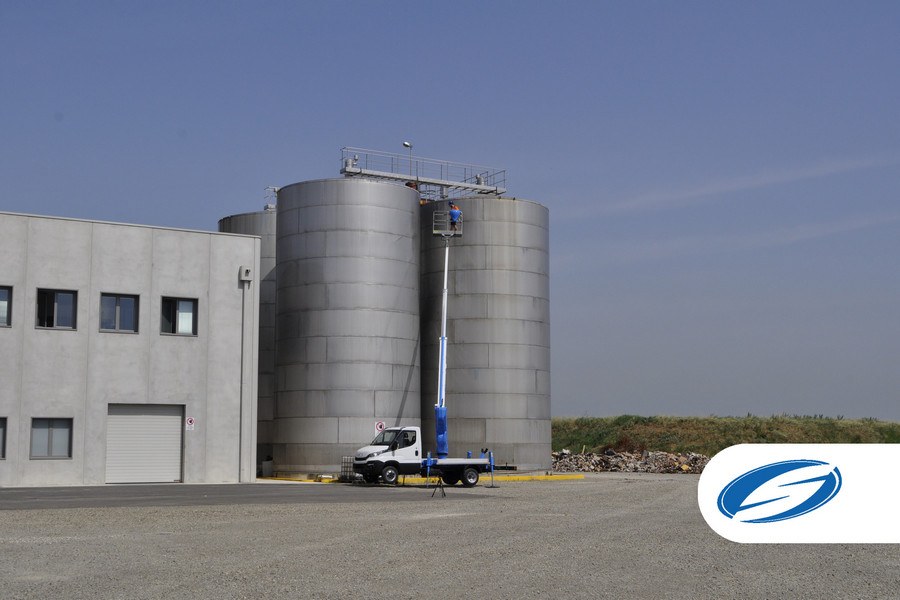

Ideal solution for work in urban or industrial areas with difficult access.

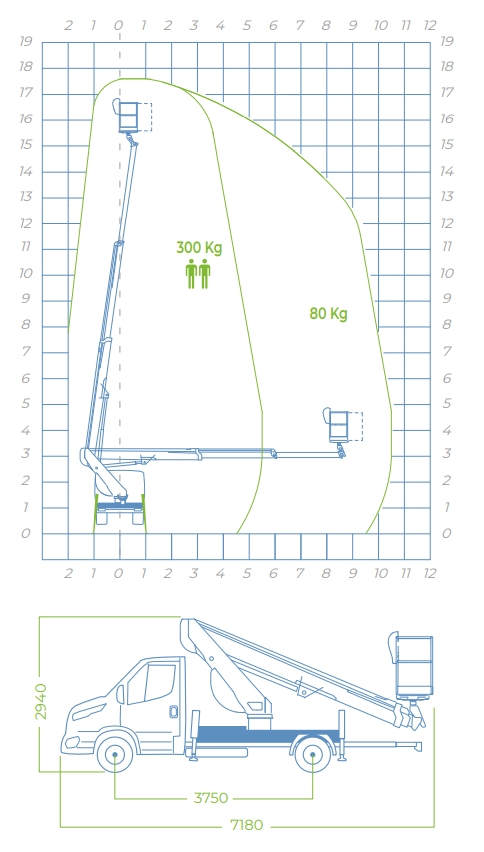

| Working height, max. | 17,70 m |
| Platform height, max. | 15,70 m |
| Outreach, max. | 10,50 m |
| Basket load capacity, max. | 230 kg |
| Turret rotation | 7000 |
| Basket dimensions | 140 x 70 x 110 cm |
| Basket | Aluminum / Fiberglass Polyethylene |
| Basket rotation | 900+900 |
| Outrigger | H+H / HE + H |
| Controls | Electric |
| GVW | 3,5 t |
Standard Equipment:
Safety Devices:
