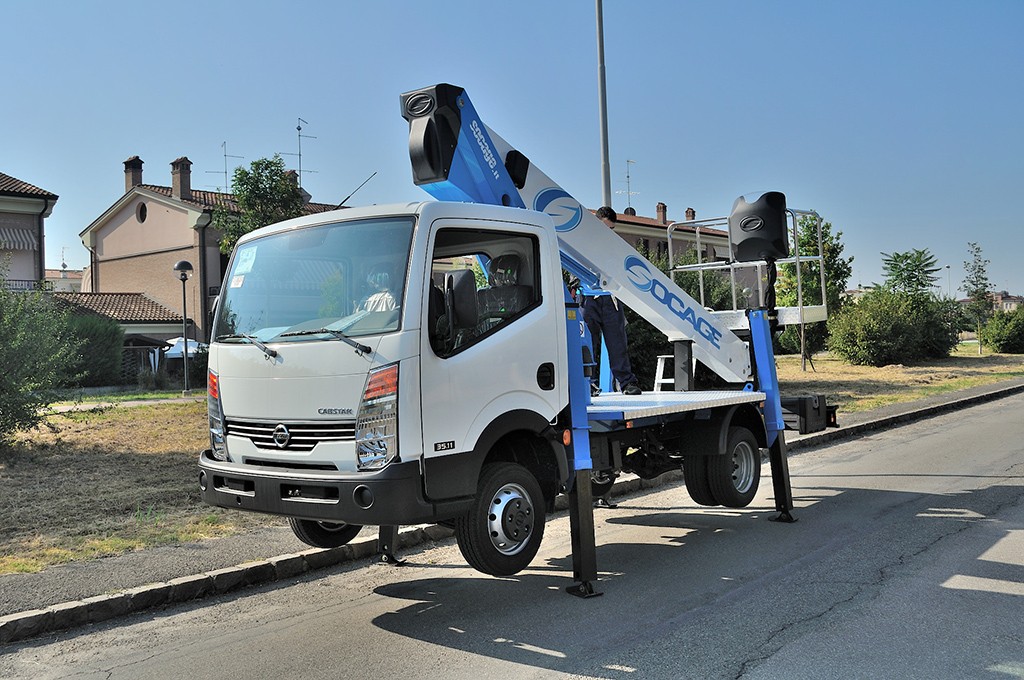

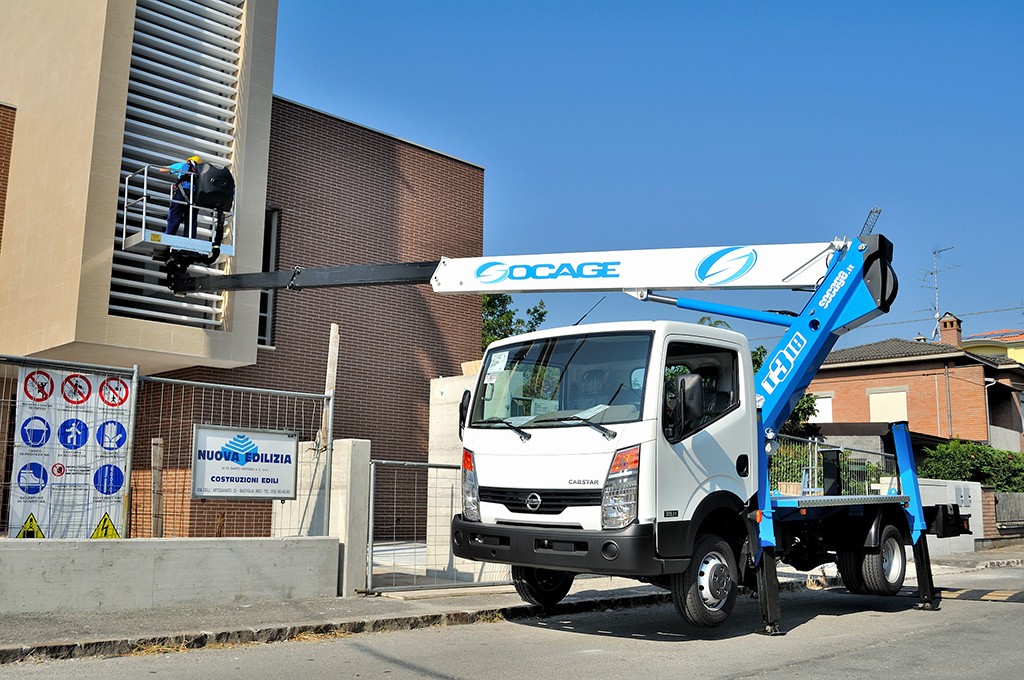

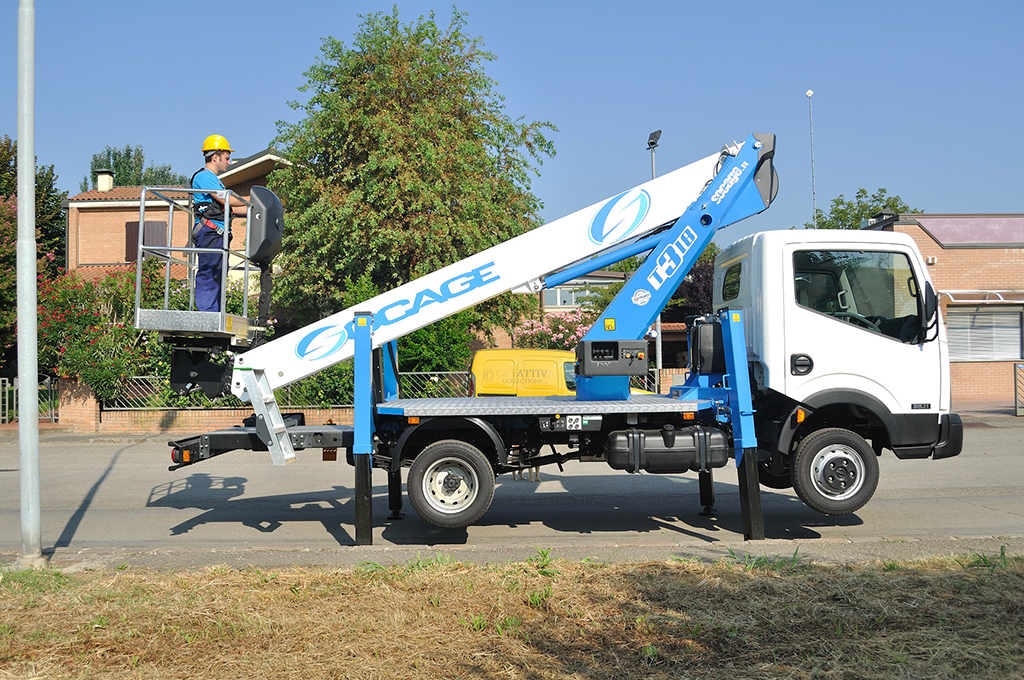

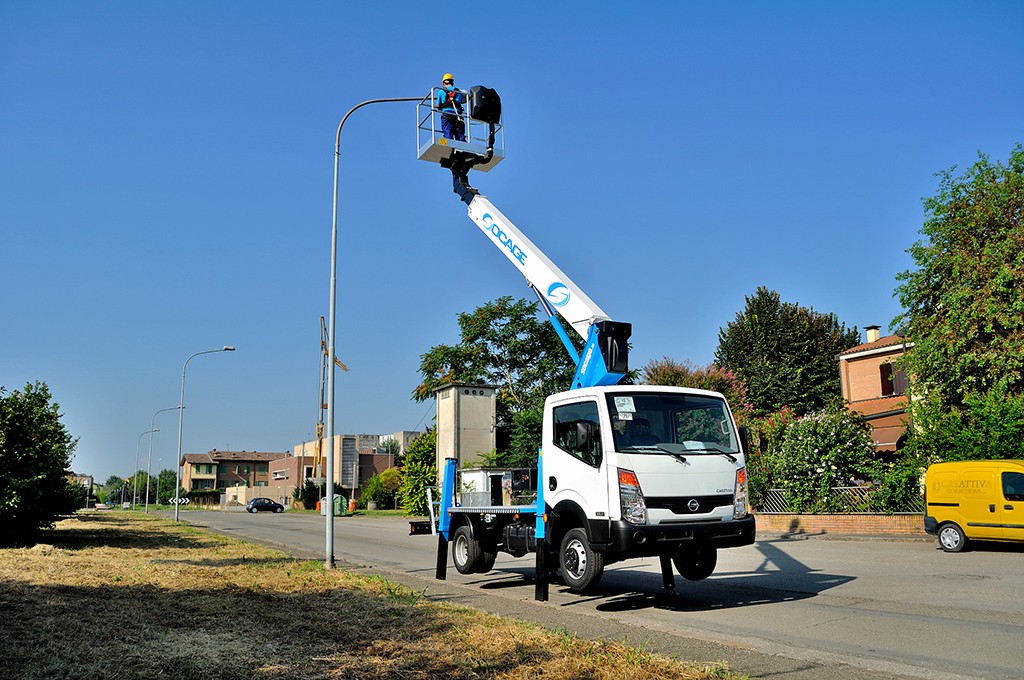

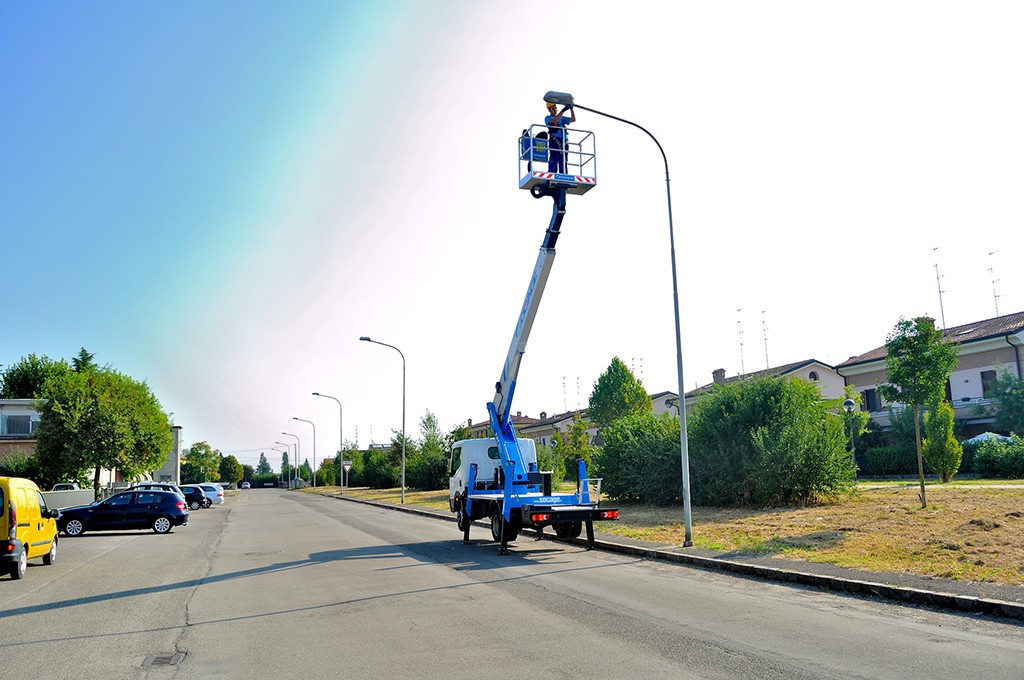

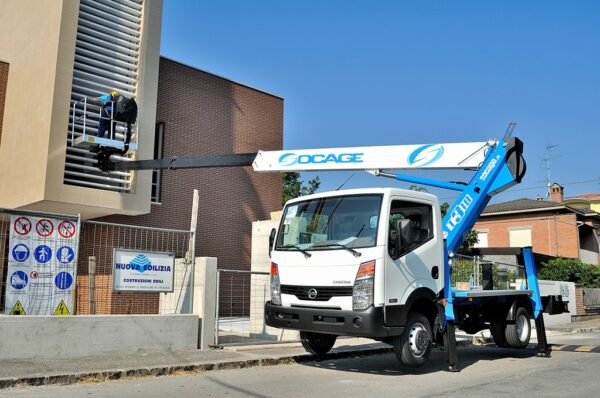

Truck-mounted hydraulic hoist (truck-lift) SOCAGE T318 forSte on the chassis of 3.5 tons is designed for lifting workers with tools and materials to a height of 18.0 m for construction, installation, repair, and other works. Boom design of SOCAGE T318 forSte – 3-section telescopic boom box section. The Italian truck-mounted booms SOCAGE T318 forSte are made of high-strength European structural steel Strenx 700, which reduces the weight of the equipment and increases durability and safety. Cradle has the ability to rotate 90 degrees to the left + 90 degrees. to the right of the axis of rotation, which provides additional comfort and convenience at work and increases the service area. The SOCAGE T318 forSte aerial work platform is equipped with an insulated cradle that allows the operator to work on power and communication lines at voltages of up to 1000V without cutting off power.
| Working height, max. | 18,00 m |
| Platform height, max. | 16,00 m |
| Outreach, max. | 10,00 m |
| Basket load capacity, max. | 225 kg |
| Turret rotation | ∞ |
| Basket dimensions | 140 x 70 x 110 cm |
| Basket | Aluminum |
| Basket rotation | 900+900 |
| Outrigger | ME+H |
| Controls | Hydraulic |
| GVW | 3,5 t |
Standard Equipment:
Optional Equipment:
