SOCAGE forSte 14T SPEED is a telescopic boom lift platform, with a lateral reach of 9m, reaches a working height of 14.10m with a large load capacity of 230 kg in the basket.
The combination of high performance and small dimensions, together with automatic vertical stabilization, make the forSte 14T SPEED the ideal urban solution for all the professionals in the market.
SOCAGE H + H stabilization provides the equipment with great simplicity and versatility of use, facilitating the stabilization maneuver. The equipment even allows working without outriggers.
The SPEED automatic stabilization allows stabilization from the basket and guarantees safe and easy stabilization with greater capacity to overcome slopes without exceeding the vehicle dimensions. It is also fitted with automatic closing, even from the basket.
The reduced weight of the assembly allows great customization of the equipment by the customer.

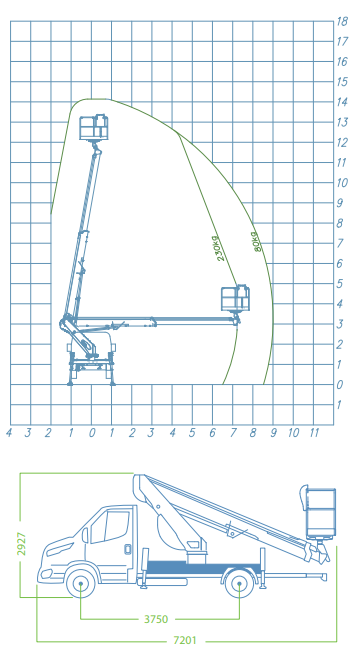

| Working height, max. | 14,10 m |
| Platform height, max. | 12,10 m |
| Outreach, max. | 9 m |
| Basket load capacity, max. | 230 kg |
| Turret rotation | 7000 |
| Basket dimensions | 140 x 70 x 110 cm |
| Basket | Aluminum / Fiberglass Polyethylene |
| Basket rotation | 900+900 |
| Outrigger | H+H / Area without stabilization |
| Controls | Electric |
| GVW | 3,5 t |
Standard Equipment:
Safety Devices:
