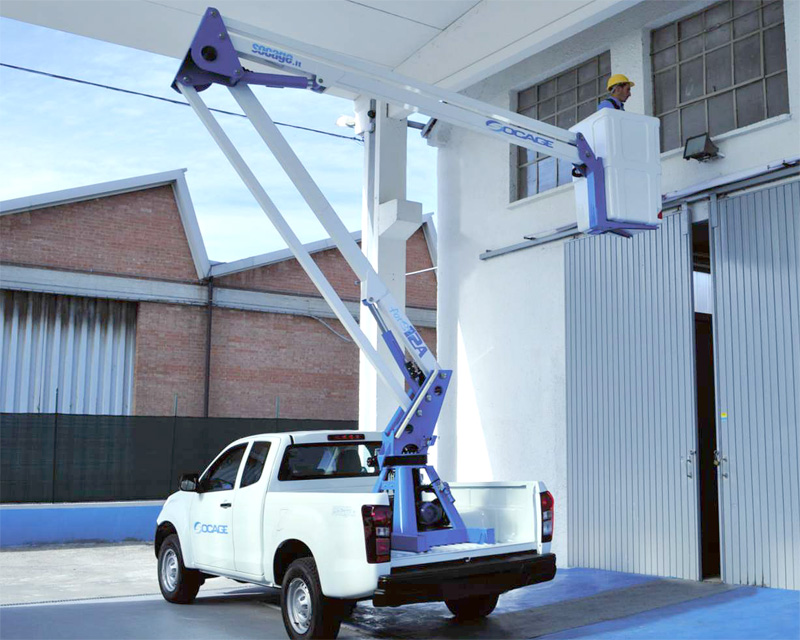

SIMPLICITY, FUNCTIONALITY, AND VERSATILITY define the new SOCAGE forSte 12A platform. The characteristics and low weight of the kit allow it to be mounted on practically any type of vehicle, both 4×4 and small. Capable of reaching a working height of 12m, and with an outreach of 5m, without the need for stabilizers and with a reduced weight of the equipment of only 600kg.
The anchoring system designed by SOCAGE allows the assembly and disassembly of the forSte 12A, not only allowing the vehicle to be used in lifting but allowing the professional different uses of the vehicle.
The forSte 12A is designed for work without stabilizers (120 kg) being able to mount a pair of stabilizers for the versions with 200 kg capacity in the basket.

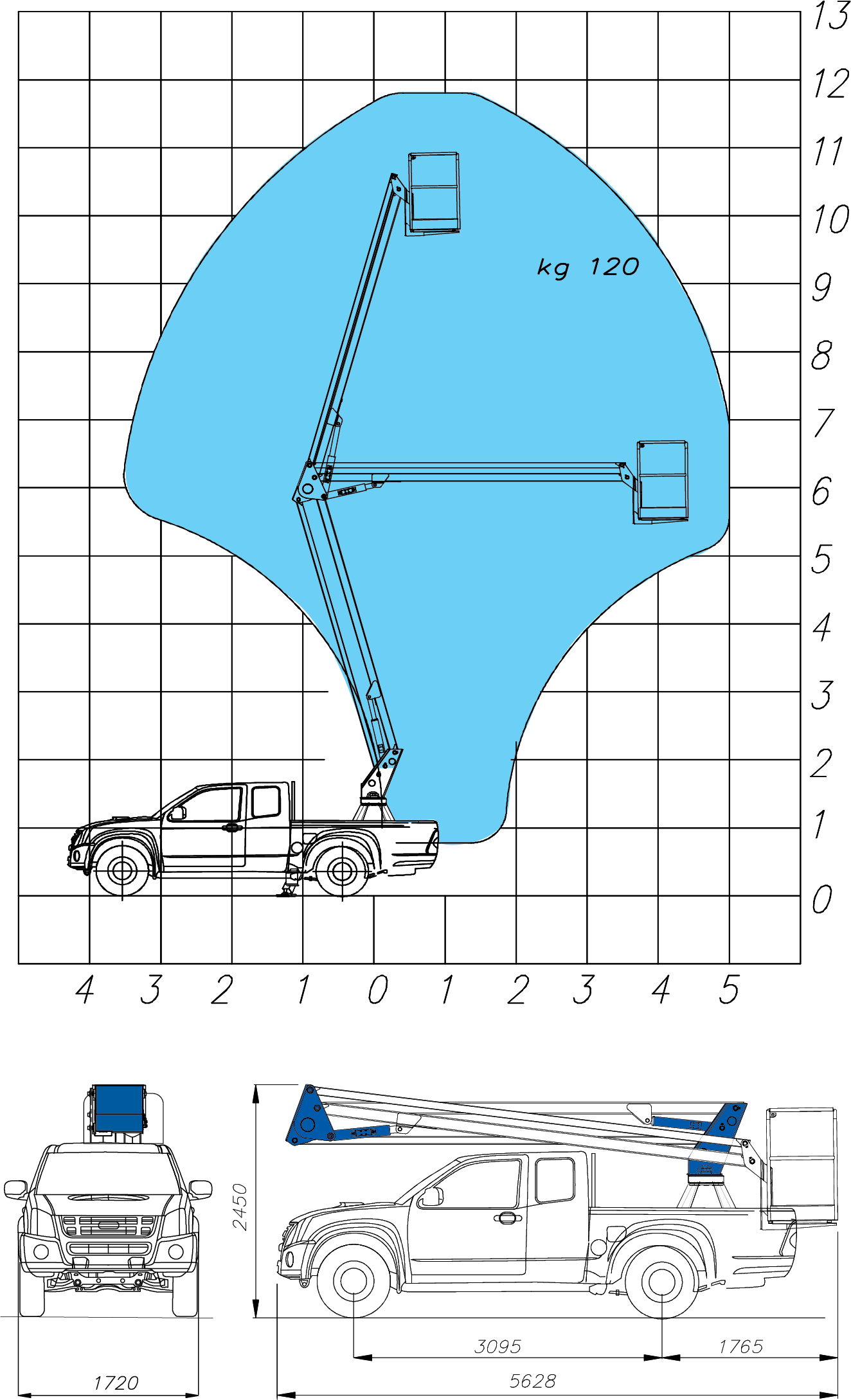

| Working height, max. | 11,90 m |
| Platform height, max. | 9,90 m |
| Outreach, max. | 5,0 m |
| Basket load capacity, max. | 120 kg |
| Turret rotation | 3500 |
| Basket dimensions | 70 x 70 x 110 mm |
| Basket | Fiberglass |
| Basket rotation | 00 |
| Outrigger | No |
| Controls | Electrical |
| GVW | 3,0 t |
