MT-X 733

Key Specs

  • Lifting capacity: 3 300 kg
  • Lifting height: 6.90 m
  • Engine: PERKINS – Stage 3A
  • Power: 70 kW
  • Standard Fork: 1200 L x 125 W x 45 T mm

Key Feature

Manitou MT-X 733 is designed for medium-height work sites with a lifting capacity of 3.3 tonnes, the boom can extend to up to 6.9 m. A 100 hp engine gives you power with low fuel consumption, and the MT-X 733 also has no problem getting around with a 3.8 m turning radius and generous ground clearance (45 cm).

The ergonomic driver’s cab and JSM (Joystick Switch & Move) limit fatigue with all of the controls at the operator’s fingertips, whilst access to the cab is quick and safe thanks to the large step platform. Also, maintenance has been simplified thanks to easy access to filters and components under the bonnet.

Compare

Description

 :

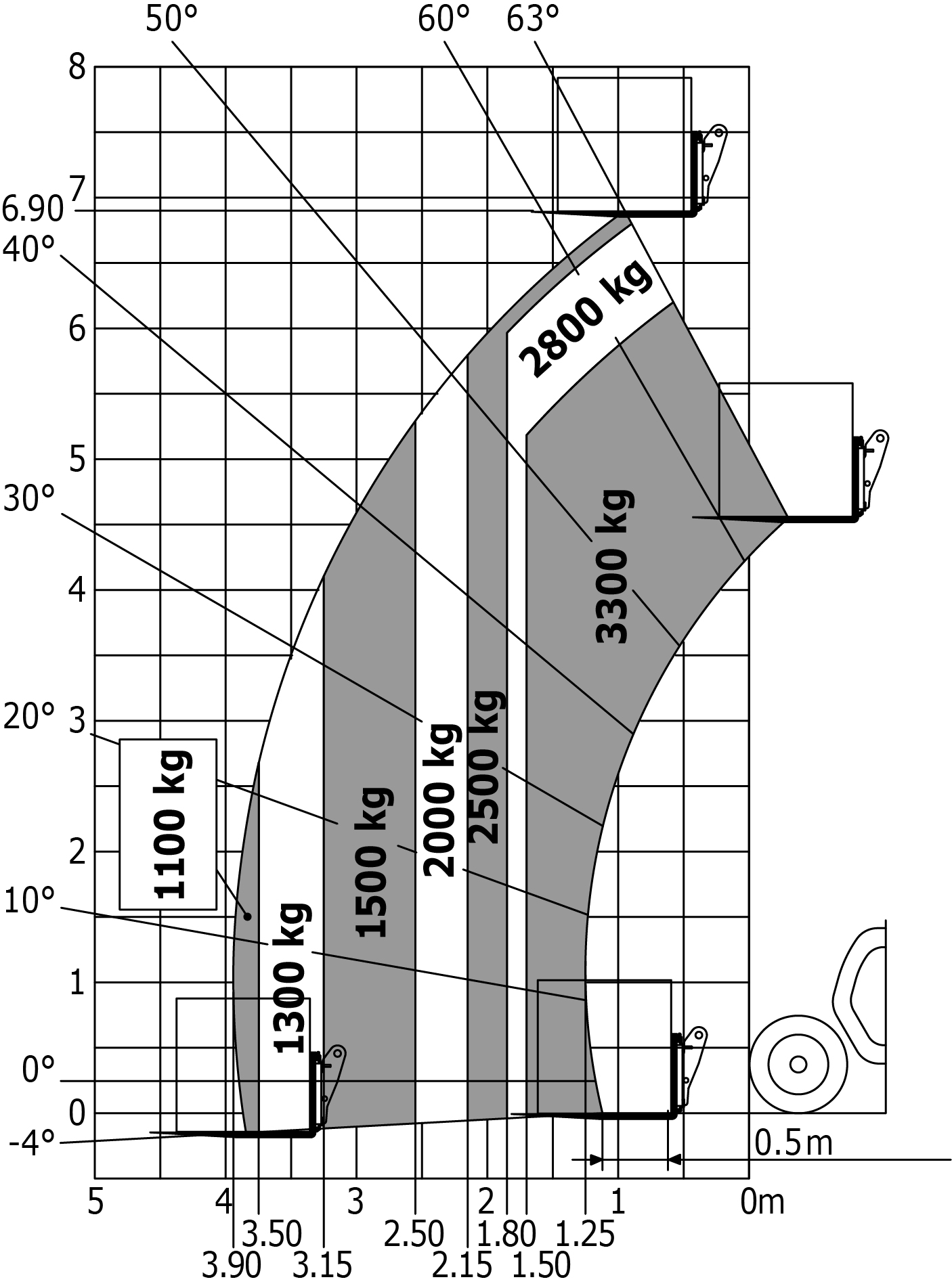

Lifting height 6.9 m 22’8″
Lifting capacity 3300 kg 7275 lb
Max reach 3.9 m 12’10”
Max reach capacity 1100 kg 2425 lb
Drawbar pull 9000 dan 20232 lbf
Breakout force 7400 dan 16635 lbf
Moving speed 27 kmh 16.7 mph
Working speed 27 kmh 16.7 mph
Lifting time (unladen) 7.2 s
Lowering time (unladen) 5.5 s
Boom extension time (unladen) 6.5 s
Boom retraction time (unladen) 5.4 s
Crowd 2.9 s
Dump 2.8 s
Length (up to the back of the fork) 4.76 m 15’7″
Wheelbase length 2.81 m 9’3″
Width 2.26 m 7’5″
Height 2.3 m 7’6″
Weight (unladen) 6620 kg 14594.6 lb
Turning radius 3.8 m 12’6″
Ground clearance 0.45 m 1’6″
 :
 :
 :
Energy Diesel
Engine brand Perkins
Engine type Stage 3A
Engine manufacturer type 1104D-44 T
Power 95 ch 95 hp
Power 70 KW
Max. Torque @ Rotation 392 Nm @ 1400 tr/min
Number of cylinders 4
Total capacity 4400 cm3 268.5 in3
Injection Direct
Cooling Water
Transmission type Torque converter
Pressure 250 bars
Hydraulic oil tank volume 128 l 33.81 gal
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Number of steering wheels (front/rear) 2/2
Tractor European Conformity Yes
Driving position noise levels 78 dB
Environmental noise levels 104 dB
Vibrations affecting hands/arms <2,5 m/s

Must-have attachments:

Crane

Crane

  • 2 forward reach possible for more flexibility in performing daily works
  • Safety: homologated swivel self-locking hook

Extension Jib

Extension Jib

  • Perfect for transporting and placing beams, frames.
  • Design that improves the forward reach of the telehandler
  • Tubular structure designed for optimal weight/rigidity ratio
  • Safety: homologated swivel self-locking hook

Concrete Bucket

Concrete Skip

  • Very compact enables working on window frame and filling under mixing truck
  • Optional: hydraulic opening
  • Optional: flexible tube
  • Hitch on forks or on carriage
  • 1 m. Ø 200 mm flexible tube

Re-Handling Bucket

General Purpose Bucket

  • Can handle material with a density of ≤ 2,100 kg / m3
  • Perfect for handling cereals, manure, dirt, gravel, etc.
  • Heavy-duty structure (base, blades, and sides)
  • Levelling plate for greater accuracy
  • Optional bolt-on wear plate LDR on specific models
  • TSDL version: mandatory for machines equipped with an integrated side shift carriage (TSDL)

Construction Bucket

Construction Bucket

  • Handling material with a density ≤ 2100 kg / m3
  • Interchangeable teeth for better longevity
  • Teeth dedicated to earthmoving
  • Levelling plate for more accuracy
  • TSDL Version: mandatory for machines equipped with an integrated side shift (“TSDL”)


Standard equipment:

  • Battery 12V-105AH
  • Fixed towing bar
  • Hydraulic line for attachment with fast coupling
  • Joystick “Switch and Move” (JSM)
  • Cyclonic prefilter
  • 400/80 R24 Tyres
  • Closed Cab with heating
  • Front and rear wiper with windscreen washer
  • Lateral and roof wiper
  • Document case (net)
  • Sun visor on the roof
  • Sun visor on windscreen
  • Mechanical plastic seat
  • Audio warning in reverse
  • Aggravating movement hydraulic cut-off
  • Complete road lighting (front / rear)
  • Reversing light
  • Rotating beacon
  • Anti-theft predisposition
  • Exterior mirrors (left and right)
  • Floating forks carriage on T.S. TFF 35MT / 1040 + 2 forks 125*45*1200

Option equipment:

  • Radio predisposition
  • Tuner radio
  • Bluetooth car radio with integrated microphone (100 W)
  • Bluetooth car radio with extra microphone (100 W)
  • External toolbox
  • Air conditioning (including rear working lights)
  • Adjustable steering column
  • Rear window with adjustable opening
  • Document-case
  • Material seat
  • Pneumatic cloth seat
  • Rear window with de-icing
  • Lighting of rear licence plate
  • Left and right-front working light
  • Front working lights LED (x2)
  • R.H. and L.H. rear working light (x2)
  • Rear working lights LED (x2)
  • Boom working lights (x2) on fixed part
  • Boom LED working lights (x2) on fixed part
  • Manual towing hitch
  • Rear view mirror on back of machine
  • Return piping to hydraulic oil tank
  • Aggravating movement hydraulic cut-off
  • Electrovalve 2 hydraulic functions on the top of the boom including fast coupling kit
  • Attachment hydraulic locking
  • Battery 12V – 145AH – 1000A
  • Battery cut-off
  • Rear electric plug
  • Electric predisposition on boom
  • Self-cleaning prefilter
  • Engine pre-heating
  • Fuel heater
  • Displaced access to wheel reduction gear pivot pins greasers
  • Reversible fan AUTOCLEAN SYSTEM (Straw deflector and Self-cleaning prefilter included)
  • Special color paints
  • Foam filled tyres
  • Rims spanner
  • Spare wheel for standard tyres
  • Spare wheel for optional tyres
  • 400/80-24 162A8CL 8T P102 MICHELIN Tyres
  • “DIGICODE” Anti-theft device
  • Fuel tank locking cap
  • Windshield protection grid
  • Inner rear-view mirror
  • Easy Link Manager Predisposition
  • Material baffle on the boom head
