MLT-X 732 – 100

Key Specs

  • Lifting capacity: 3 200 kg
  • Lifting height: 6.9 m
  • Engine: Perkins – Stage 3A
  • Power: 70 kW

Key Feature

The Manitou MLT-X 732 telehandler comes equipped with a Powershuttle 4-speed gearbox for a good range of speed options for optimum performance based on your specific application.

This machine is an excellent first-time investment choice or for users looking to make the step up from loader tractors to the versatility afforded by telehandlers. Easy to use, it’s perfectly suited to novice users for various light or specific farm applications, with its 95 hp engine and torque converter giving you more than enough power for most tasks.

Compare

Description

 :
Lifting height 6.9 m 22’8″
Lifting capacity 3200 kg 7055 lb
Max reach 3.94 m 12’1″
Lifting time (unladen) 7.2 s
Lowering time (unladen) 5.5 s
Boom extension time (unladen) 6.5 s
Boom retraction time (unladen) 5.4 s
Crowd 2.9 s
Dump 2.8 s

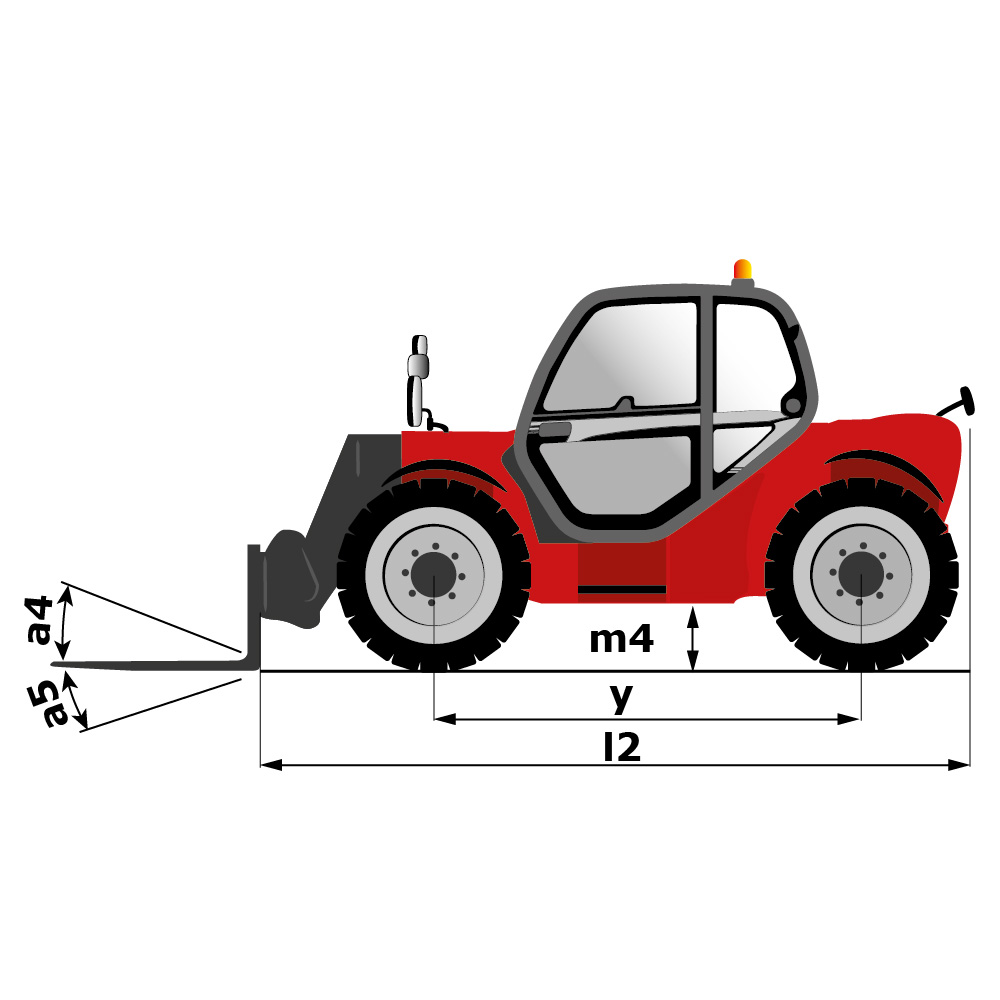

Length (up to the back of the fork) 4.74 m 15’7″
Wheelbase length 2.81 m 9’2″

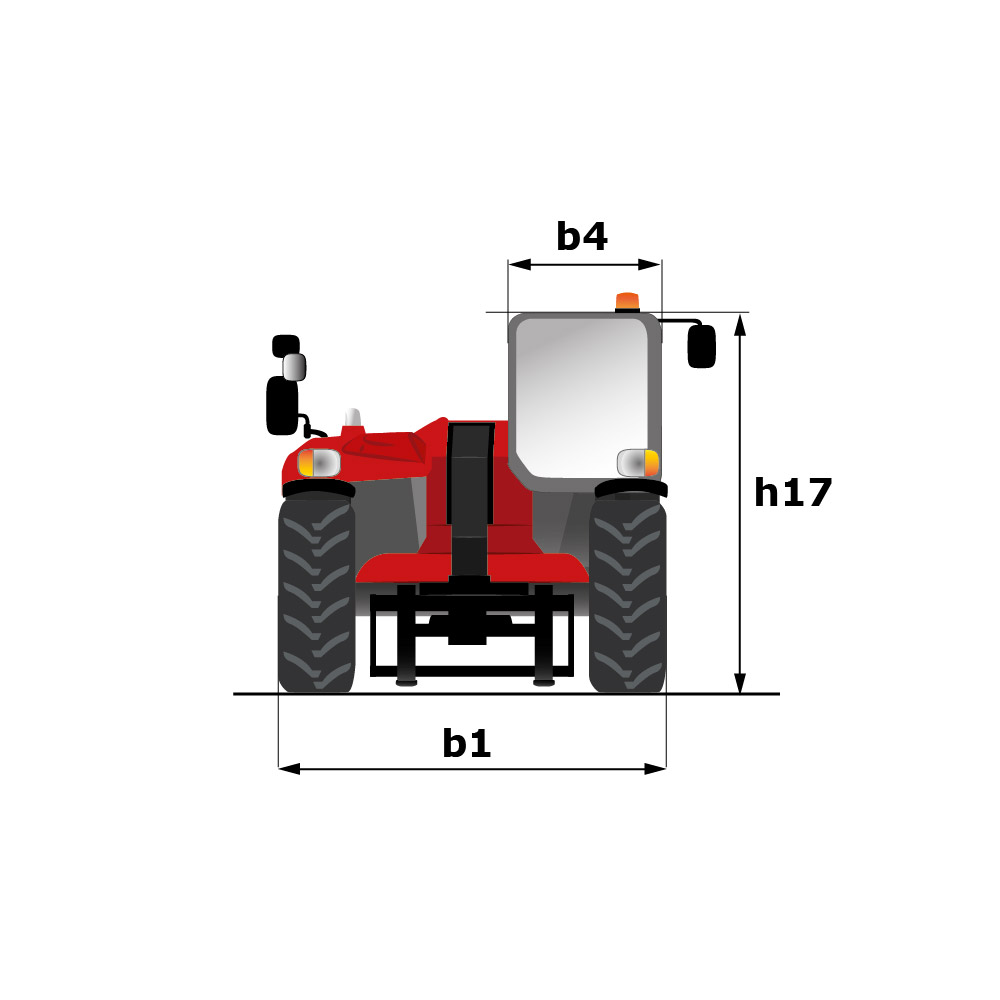

Width 2.34 m 7’10”
Height 2.3 m 7’7″
Weight (unladen) 6845 kg 15090 lb

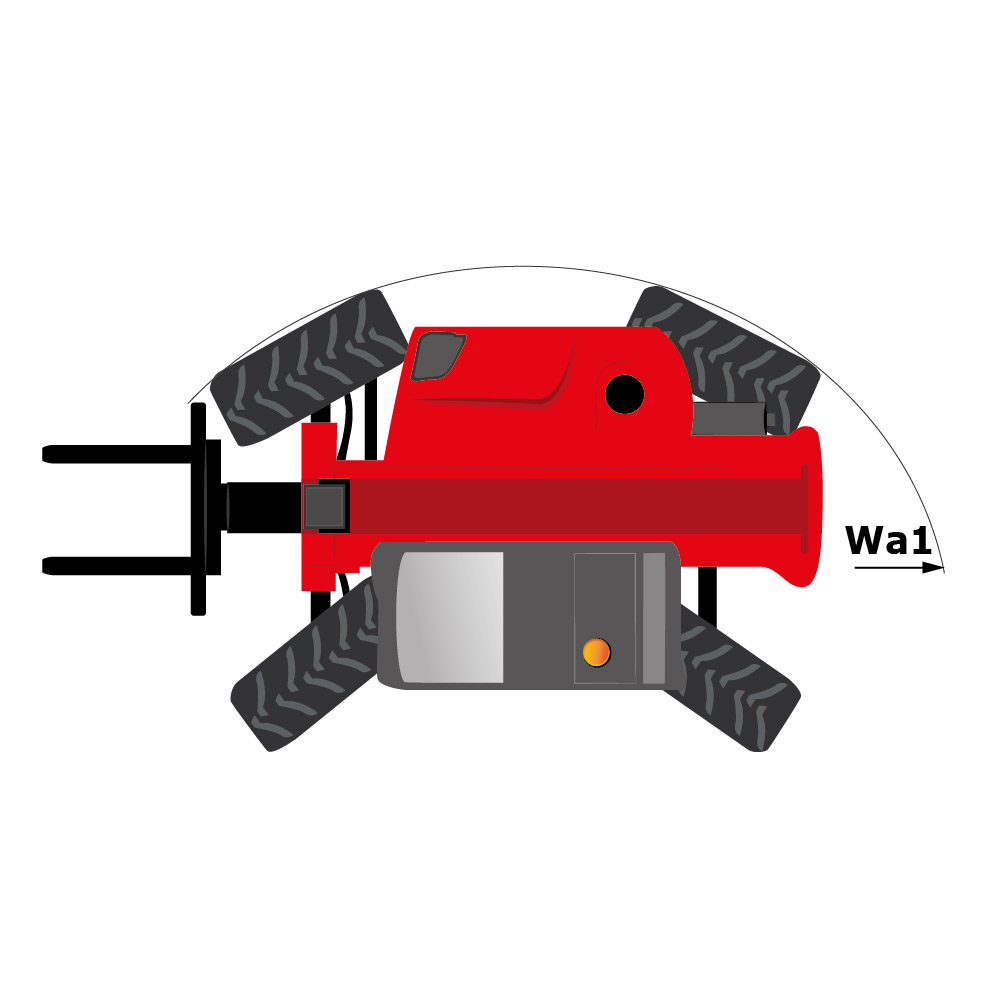

Turning radius 3.83 m 12’7″
Ground clearance 0.45 m 0’2″
 :
 :
 :


Energy Diesel
Engine brand Perkins
Engine type Stage 3A
Engine manufacturer type 1104D-44T
Power 95 ch 95 hp
Power 70 KW
Max. Torque @ Rotation 392 Nm @ 1400 tr/min
Number of cylinders 4
Total capacity 4400 cm3 269 in3
Injection Direct
Cooling Water
Transmission type Torque converter
Pressure 250 bars
Hydraulic oil tank volume 128 l 34 gal
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Driving position noise levels 78 dB
Environmental noise levels 104 dB
Vibrations affecting hands/arms <2.5 m/s

Agricultural Bucket

  • Daily use and hard working bucket.
  • Ideal bucket for bulk products (cereals, woodchip, mineral feed, etc.)
  • Durable and resistant bucket.
  • Improved shape designed for quick loading and unloading operation.
  • More longevity of the wear plate
Light Material Bucket

Multifunction Agricultural Grab Bucket

  • Robust and versatile bucket suitable for diary use and different AG applications.
  • Complete opening >90° and powerful jaw allows working flush with walls
  • Perfect for handling non-coherent manure, silage….
  • Must-have tool for livestock farm.

CBG_2450_1700L_MS_AVG_006

CBG 2450 / 1700 FO

Wrapped Bale Clamp

  • Easy to use and competitive attachment.
  • Powerful double effect cylinder allows the manipulation of very heavy bales.
  • Rounded and articulated clamp designed to fit the shape of every bale.
  • Smooth structure that avoids any perforation of plastic film.
Wrapped Bale Clamp

Bale Clamp Intensive

  • Easy and clean handling
  • Time-saver and competitive attachment
  • Handles 2 round bales or 3 rectangular bales at the same time
  • Perfect stability while handling square bales with optional lower tines
TODO

Manure Fork With Grapple

  • Rugged, multi-purpose attachment
  • Easy handling of compact manure
  • Total jaw opening allows working flush with walls
  • A versatile attachment that enables occasional square bale handling.
  • Very good visibility – faster work
Manure Fork With Grapple

Shear Grab

  • Suitable for any type of silage
  • Very clean silage face avoiding secondary fermentation
  • Bolt-on tines for easy maintenance
  • Lateral shear for easy cutting operations
    • Heavy-duty teeth for easy penetration
Shear Grab

Pickup Sweeper

  • Sweep and pick-up in one operation
  • Up to 2500m2 cleaned in 10 minutes
  • High-quality sweeping
  • Polyester & steel brush for perfect sweeping along walls or sidewalls
  • Interchangeable side brush (left or right)
  • Swivel wheel for an easy driving process
Pickup Sweeper

Standard on Classic Version:

  • Tuner radio
  • Cloth seat
  • Battery 12V – 180 AH – 900A
  • Working lights on cab (x3 : 2 front + 1 rear)
  • Fixed towing bar
  • Hydraulic line for attachment with fast coupling
  • Material baffle on the boom head
  • Joystick “Switch and Move” (JSM)
  • Displaced access to wheel reduction gear pivot pins greasers
  • Cyclonic prefilter
  • 460/70R24 159A8 A580 Alliance Tyres
  • Closed Cab with heating
  • Tachometer and speed indicator
  • Front and rear wiper with windscreen washer
  • Roof wiper and R.H lateral wiper
  • Document case (net)
  • Sun visor on windshield and roof
  • Rear view mirror on back of machine
  • Complete road lighting (front / rear)
  • Reversing light
  • Rotating beacon
  • Exterior mirrors (left and right)
  • Tilting fork carriage PFB 35N / 1260 + 2 forks 125*45*1200

_________________________________________________________________________________________________

Optional on Classic Version:

  • Slide Bay – opening window on L.H. door
  • Manual Air conditioning
  • Rear window with adjustable opening
  • Rear window with de-icing
  • Inner rear-view mirror
  • Pneumatic cloth seat
  • R.H. working light
  • Boom working lights (x2) on fixed part
  • Lighting of rear licence plate
  • Audio warning in reverse
  • Automatic towing hitch with turnable axis
  • Adjustable towing bar
  • Rear electric plug
  • Easy Connect System (E.C.S.)
  • Attachment hydraulic locking
  • Electrovalve 2 hydraulic functions
  • Return piping to hydraulic oil tank
  • Aggravating movement hydraulic cut-off (mandatory for C.E. certification)
  • Electric predisposition on boom (Included with the electrovalve)
  • Rear electric plug
  • Reversible fan AUTOCLEAN SYSTEM (Straw deflector and Self cleaning prefilter mandatory)
  • Straw deflector
  • Fuel heater
  • Self cleaning prefilter
  • Engine pre-heating
  • Special color paints
  • Rims spanner
  • Spare wheel for standard tyres
  • 15.5 R25 XHA Michelin Tyres
  • Fuel tank locking cap
  • Windshield protection grid
  • “DIGICODE” Anti-theft device
  • “MODCLE” Anti-theft device
  • Toolbox
  • Ring suspended under TS
