MLT-X 625 75H

Key Specs

  • Length: 3.9 m
  • Width: 1.81 m
  • Height: 2 m
  • Weight: 4 922 kg
  • Lifting capactiy: 2 500 kg
  • Lifting height: 5.9 m
  • Engine: Kubota -Stage 3A
  • Power: 55.4 kW

Key Feature

The Manitou MLT-X 625 75 H is a compact telehandler with a 75 hp engine designed for agricultural work with lifting height 5.9 m & lifting capacity 2500 kg. Optimised dimensions mean it’s easy to enter narrow buildings and maneuver around, and driven wheels and three steering modes help you get around.

To meet your versatility needs, the Easy Connect System (ECS) makes changing attachments at the boom tip easy, whilst hydraulic flow allows for precise and smooth movements so you can be more productive. The MLT-X 625 75 H also comes equipped with an optimised driver’s cab and JSM controls for maximum comfort.

Compare

Description

 :
Lifting height 5.9 m 19’5″
Lifting capacity 2500 kg 5512 lb
Max reach 3.3 m 10’11”
Breakout force 4205 dan 9453 lbf
Lifting time (unladen) 7.3 s
Lowering time (unladen) 4.95 s
Boom extension time (unladen) 5.2 s
Boom retraction time (unladen) 3.7 s
Crowd 3.2 s
Dump 3.2 s

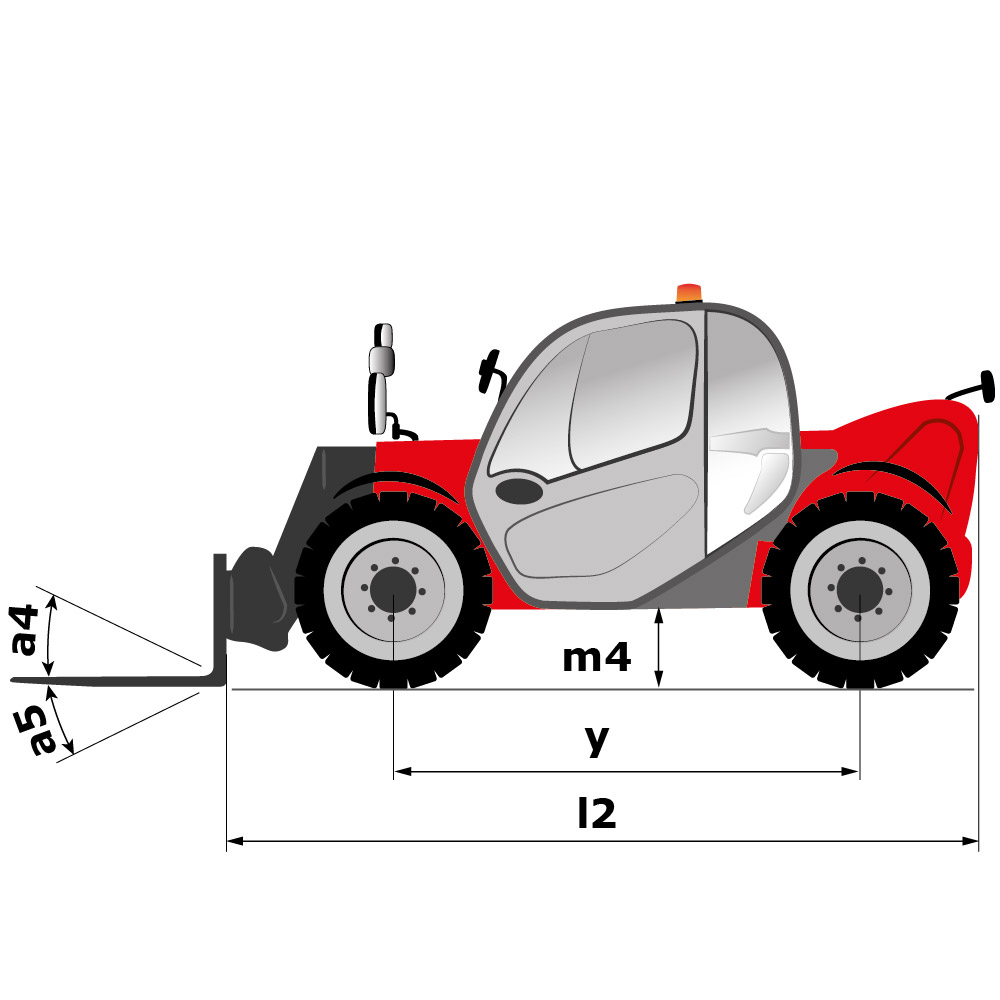

Length (up to the back of the fork) 3.9 m 12’11”
Wheelbase length 2.3 m 7’7″

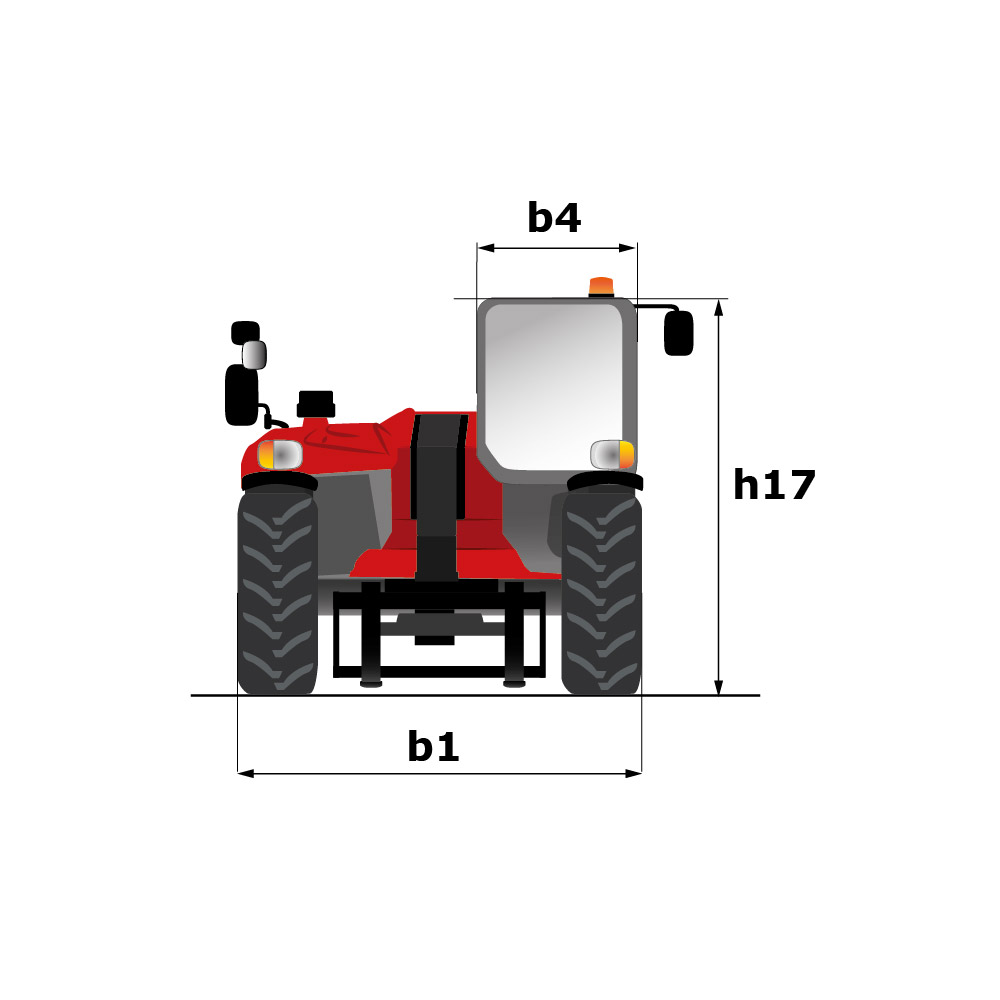

Width 1.81 m 6’0″
Height 2 m 6’7″
Weight (unladen) 4922 kg 10851 lb

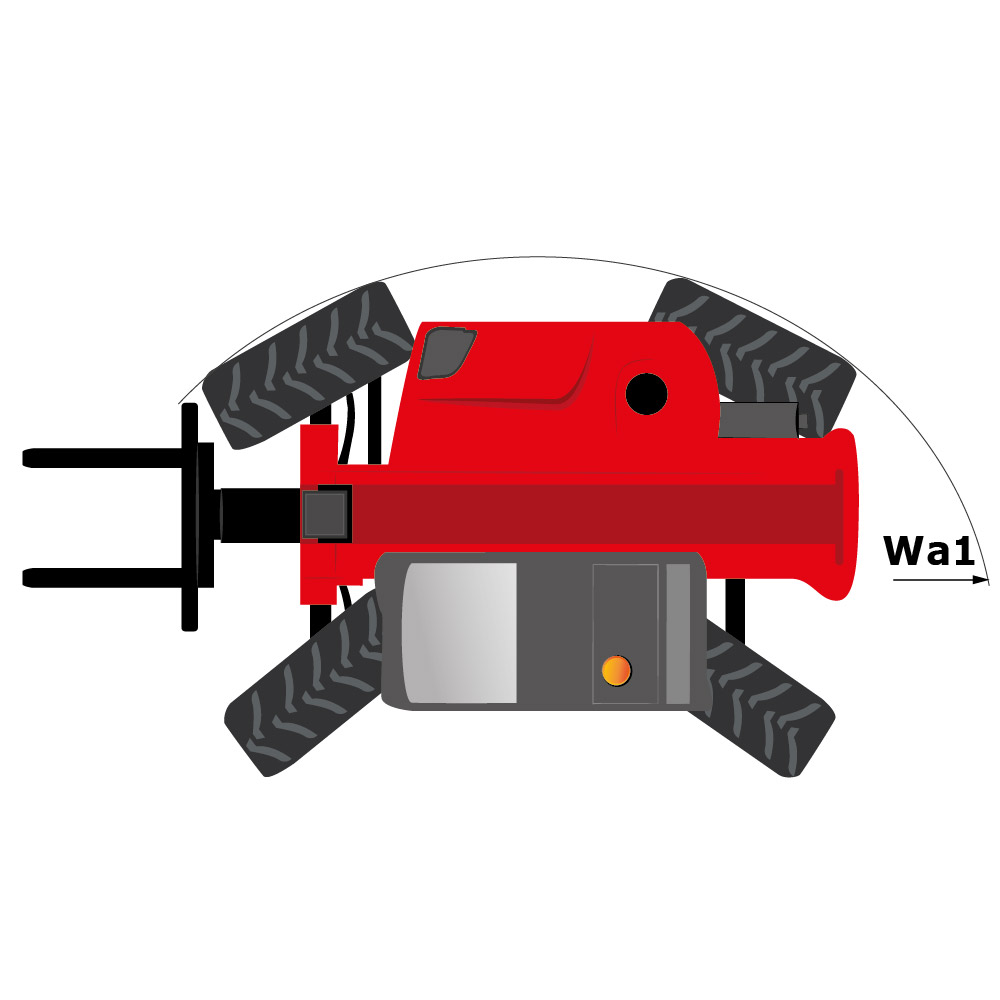

Turning radius 3.31 m 10’6″
Ground clearance 0.38 m 0’2″
 :
 :
 :

Energy Diesel
Engine brand Kubota
Engine type Stage 3A
Power 75 ch 75 hp
Power 55.4 KW
Max. Torque @ Rotation 265 Nm @ 1400 tr/min
Number of cylinders 4
Total capacity 3331 cm3 204 in3
Transmission type Hydrostatic
Pressure 235 bars
Hydraulic oil tank volume 115 l 30 gal
Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Parking brake Automatic negative handbrake
Driving position noise levels 76 dB
Environmental noise levels 104 dB
Vibrations affecting hands/arms <2.5 m/s

Must-have attachments:



Bale Clamp Super Compact

  • Rounded forged teeth for easy and clean handling
  • Non-synchronized closure

Multifunction Agricultural Grab Bucket – MS

  • Handling material with a density < 1000 kg / m3
  • Dismountable sides for better flexibility
  • 500 HB bolted wear plate with 3° angle for a better longevity
  • Welded and reinforced grapple with rotation stops for intensive working conditions
  • Construction-type pins with locking bolts and welded stiffeners
  • Complete jaw opening > 90° allows working flush with wall (except Ref 790677)
  • CBG 2450 / 1700 : side teeth for a higher material holding

Manure Fork With Grapple

  • Handling material with a density 1200 kg / m3
  • Bolt-on teeth and tines for easy maintenance
  • Grab opening adjustement
  • Complete jaw opening > 90° allows working flush with wall
  • Massive structure

Square Bale Forks

  • Simple, effective solution for bale handling
  • Simultaneous handling of up to 4 bales
  • Attachment suitable for road traffic
  • Foldable frame for under-roof handling
  • Upholding teeth on top of frame
  • Tool-free foldable tines: suitable for road traffic

Pickup Sweeper

  • Sweep and pickup in one operation
  • Up to 2,500 m² (27,000 ft²) cleaned in 10 minutes
  • High quality sweeping
  • Polyester and steel side brush for perfect sweeping along wall or sidewalks
  • Interchangeable side brush (left or right)
  • Swivel wheels for easy driving mode

Standard Features on Classic Version:

  • Tuner car radio (50 W)
  • Mechanical cloth-covered seat Grammer
  • Easy Connect System (ECS)
  • Battery 12V-110AH-750A
  • Working lights on cab (x4 : 2 front + 2 rear)
  • Rear electric plug
  • 12V electric plug on cigar lighter
  • Hydraulic line for attachment with fast coupling
  • Inching
  • Material baffle on the boom head
  • Joystick “JSM”
  • Selector speed (slow / fast)
  • Cyclonic prefilter
  • Auto reversing fan
  • Engine 75Hp Stage 3A Kubota
  • Alliance – 300/75 R18 142A8 A580 Width model 1,81 m
  • Armrest/storage compartment integrated  grommet with portable charger
  • Closed Cab with heating
  • Adjustable and telescopic steering column
  • Instrument panel with digital posting
  • Front wiper and windscreen washer
  • Rear wiper
  • Roof Wiper
  • Document case (net)
  • Sun visor on windshield and roof
  • Ceiling light
  • Phone bracket
  • Emergency stop button
  • Battery cut-off
  • Aggravating movement hydraulic cut-off
  • Complete road lighting (front / rear)
  • Reversing light and fog lamp
  • Rotating beacon
  • Safety device (Load Moment Indicator)
  • Exterior mirrors (left and right)
  • Inner rear-view mirror
  • Rearview mirror on back of machine
  • Indicator of alignment of the front and rear wheels
  • Tilting fork carriage PFB 25N / 1020 + 2 forks 125*45*1200

__________________________________________________________________________________________________

Options on Classic Version:

  • Audio warning in reverse
  • Manual rotating towing hook
  • Bluetooth car radio with integrated microphone (100 W)
  • Bluetooth car radio with extra microphone (100 W)
  • Manual Air conditioning
  • Windshield protection grid
  • Document-case
  • Air suspension cloth-covered seat Grammer
  • Low-frequency air suspension cloth-covered seat Grammer
  • Rear window with de-icing
  • Lighting of rear licence plate
  • Flat LED rotating beacon (-71mm)
  • R.H. and L.H. front and rear working lights LED (x4)
  • Workings lights LED on boom head (x2)
  • LED blue poultry lights (x2)
  • Electric predisposition on the top of the boom
  • Return piping to hydraulic oil tank
  • Electrovalve 2 hydraulic functions on the top of the boom mandatory
  • Continuous flow hydraulics
  • Combined movements (Flow sharing)
  • Adjustable flow control system
  • Boom suspension – “Active CRC”
  • Attachment hydraulic locking
  • Special color paints
  • Foam filled tyres
  • Rims spanner
  • Spare wheel for standard tyres
  • Spare wheel for optional tyres
  • BKT Tyres – 15.0/55-17 14PR AS504 – Width model 1,92 m
  • Alliance Tyres – 400/55 R17.5 140A8 A328 – Width model 1,92 m
  • Michelin Tyres – 280/80 R18 132A8 XMCL – Width model 1,81 m
  • Michelin Tyres – 280/80 R20 133A8 XMCL
  • Handthrottle
  • Speed Limit
  • Speed 40 km/h
  • Easy Link Manager Predisposition
  • Easy Link Remote Control Manager Predisposition
  • Easy Link Control Keypad Manager Predisposition
