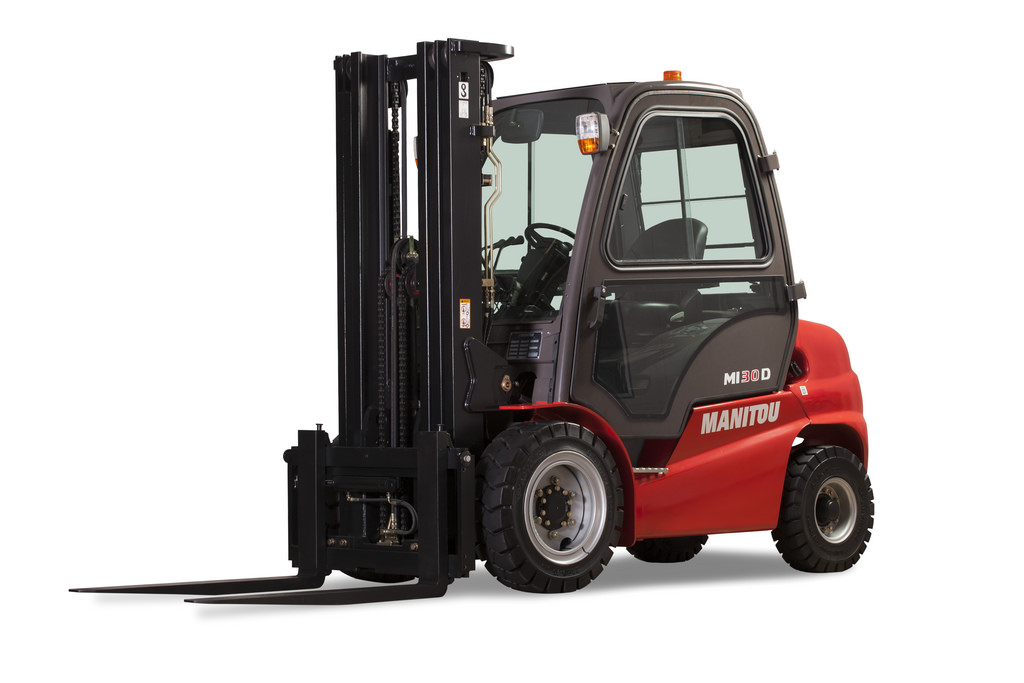

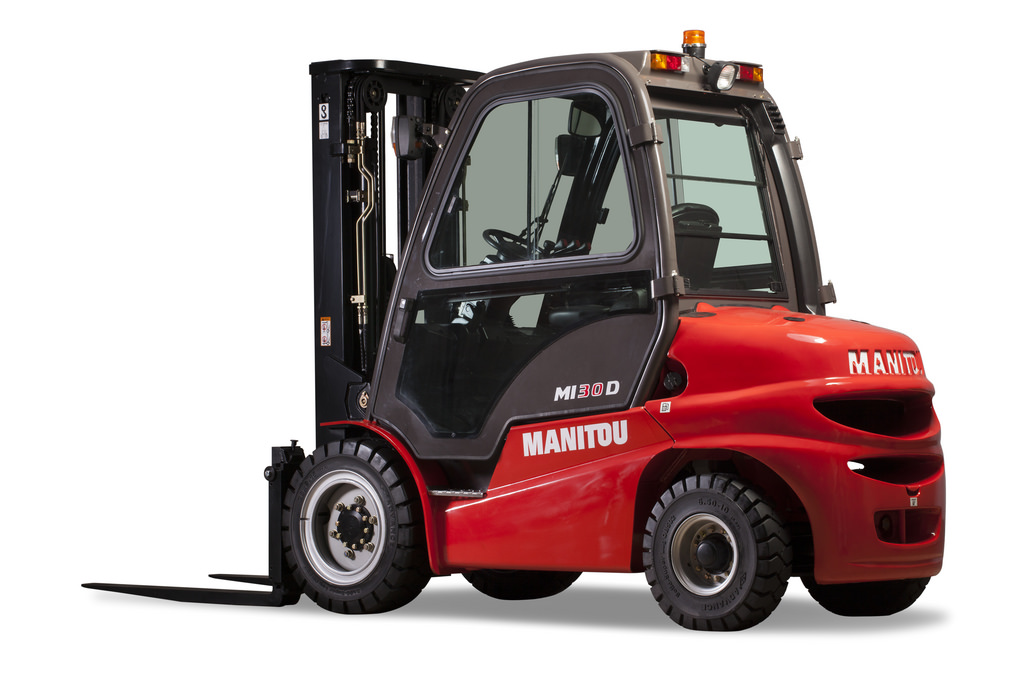

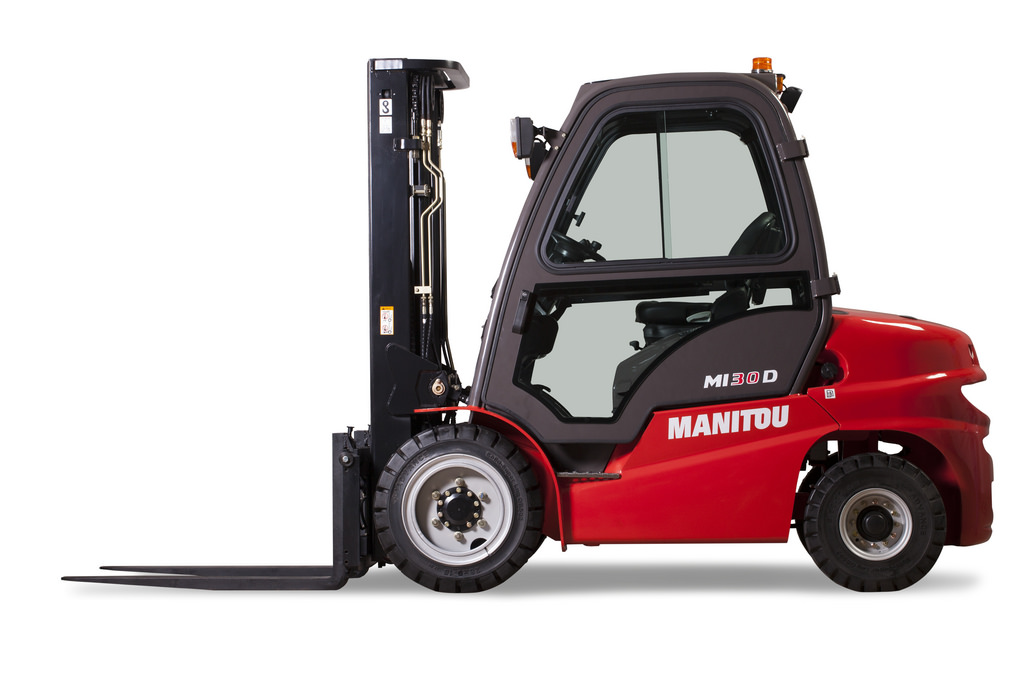

MANITOU MI30D

Key Specs

Key Features

High-performance engine.
Easy-to-use and maintain.
Easily access the driver’s cab from both sides.
Visibility & safety.
The spacious and comfortable driver’s cab provides the operator with outstanding driving comfort, making work less tiring and improving productivity.

Compare

Description

Power Source	Diesel
Operator Type	Seated
Load capacity/Rated load	3000 kg
Load center of gravity	500 mm
Load distance, center of drive axle of fork	480 mm
Lift height	3000 mm
Tilt of mast forward/backward	6⁰/12⁰
Overall width	1225 mm
Turning radius (outside)	2460 mm
Overhead guard height	2130 mm
Length to fork face	2715 mm
Fork dimensions (length/width/thickness)	1150/122/45 mm
Overall length	3865 mm
Wheelbase	1700 mm
Service weight	4610 kg
Weight on front axle (laden)/rear axle (laden)	6650/960 kg
Weight on front axle (unladen)/rear axle (unladen)	1860/2750 kg

Travel speed (laden/unladen)	18/18.5 km/h
Lift speed (laden/unladen)	0.45/0.52 m/s
Lowering speed (laden/unladen)	0.43/0.48 m/s
Drawbar pull (laden/unladen)	1600/1380 daN
Gradeability (laden/unladen)	20%/20%

Engine, brand	Yanmar
Engine, model	4TNV94L-BXPHZ
Engine power	35 kW
Rated speed	2400 rpm
Number of cylinders / Capacity of cylinders	4 – 3054 cm³
Fuel consumption according to VDI cycle	3.56 l/h
